1 Pair Reference Accuphase E405-MOD Integrated Home Audio Amplifier Board HiFi Stereo 150WX2

Name: 1 Pair Reference Accuphase E405-MOD Integrated Home Audio Amplifier Board HiFi Stereo 150WX2
Brand: BRZ-hifi-audio
SKU: E405
Price: 21.16 USD
Availability: InStock

E405-MOD 150WX2 Amplifier Board

Flash Sale

0.0 (0 Reviews)

3 Sold

~~$23.00~~ $21.16

-8%

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product Details:

Use twin FET input transistors.

Use imported original NE5532 as preamplifier. DC Servo DC SERVER circuit.

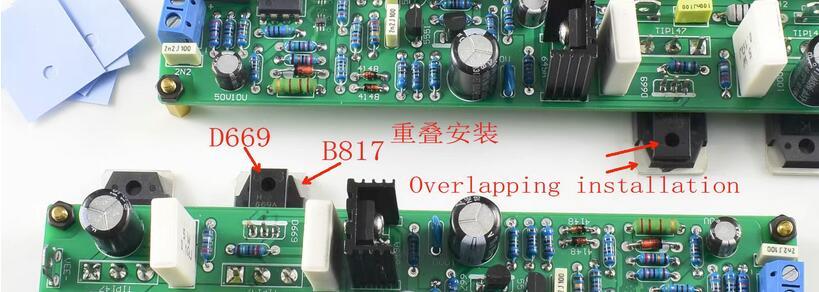

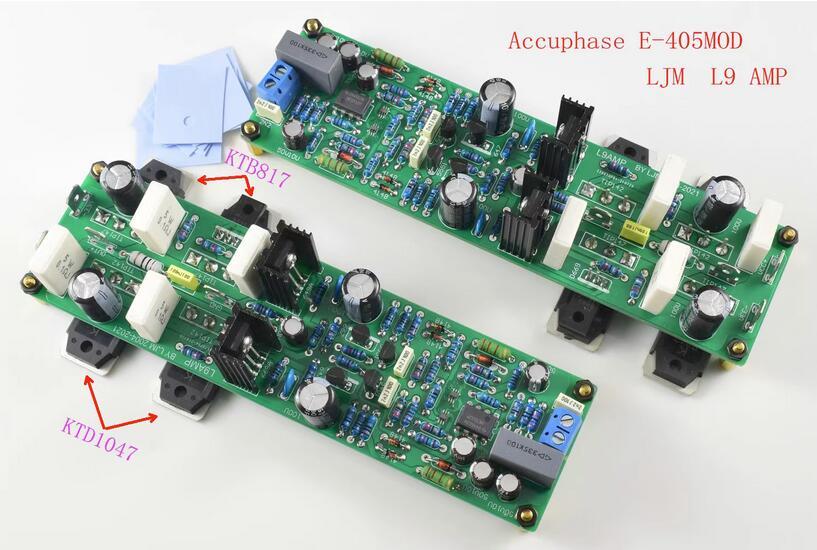

The output power tube can be matched with the original KEC KTB817 and KTD1047 pairs of tubes.

Supply voltage: +- 25V to +- 55V

Output power: Max 150W/ 8R

Voltage Gain: 90

Frequency response: 20HZ -0.05DB. 20KHZ-0.15DB.

THD+N: < 0.02% 50W/8R

PCB size: 153*42MM (mono)
