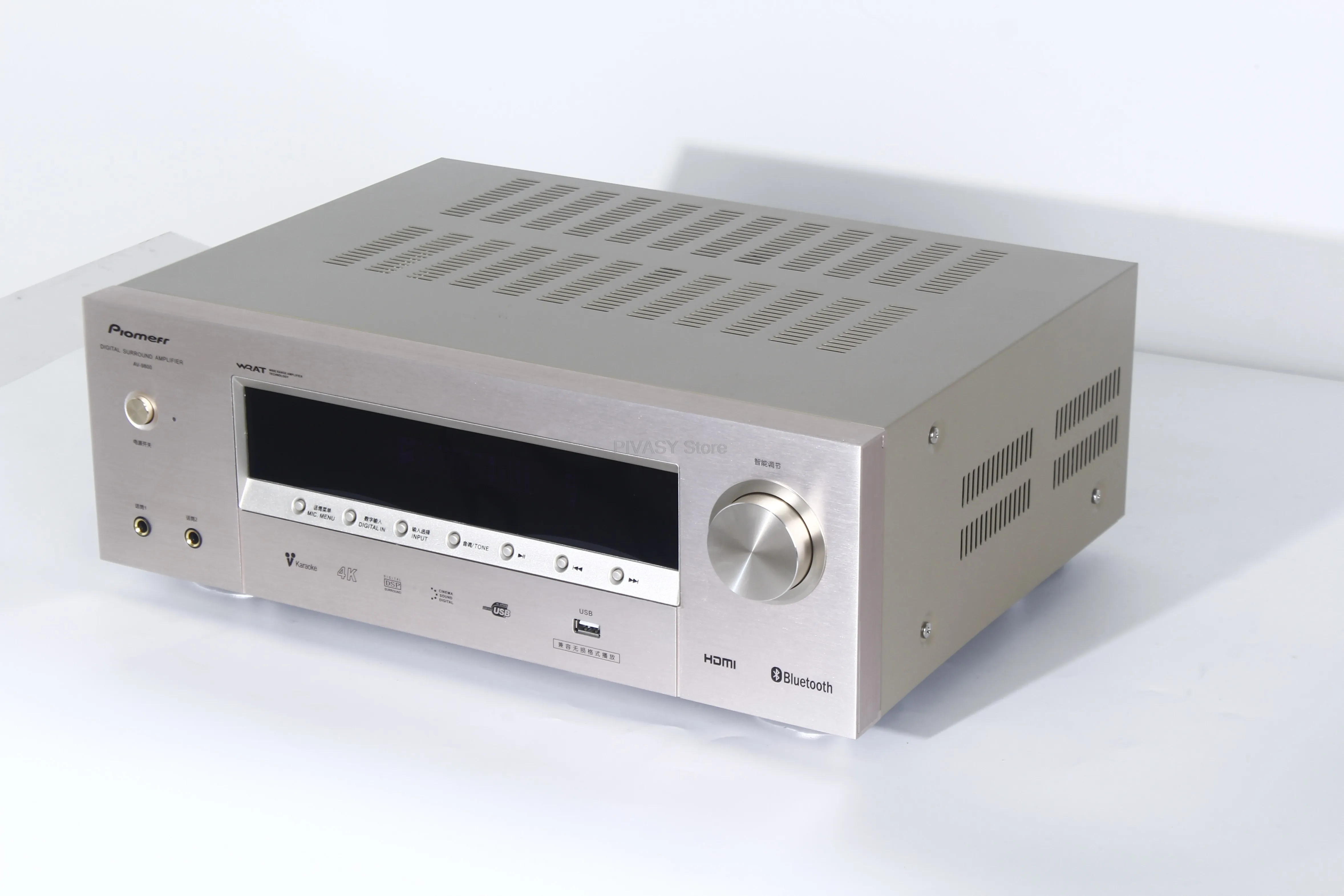

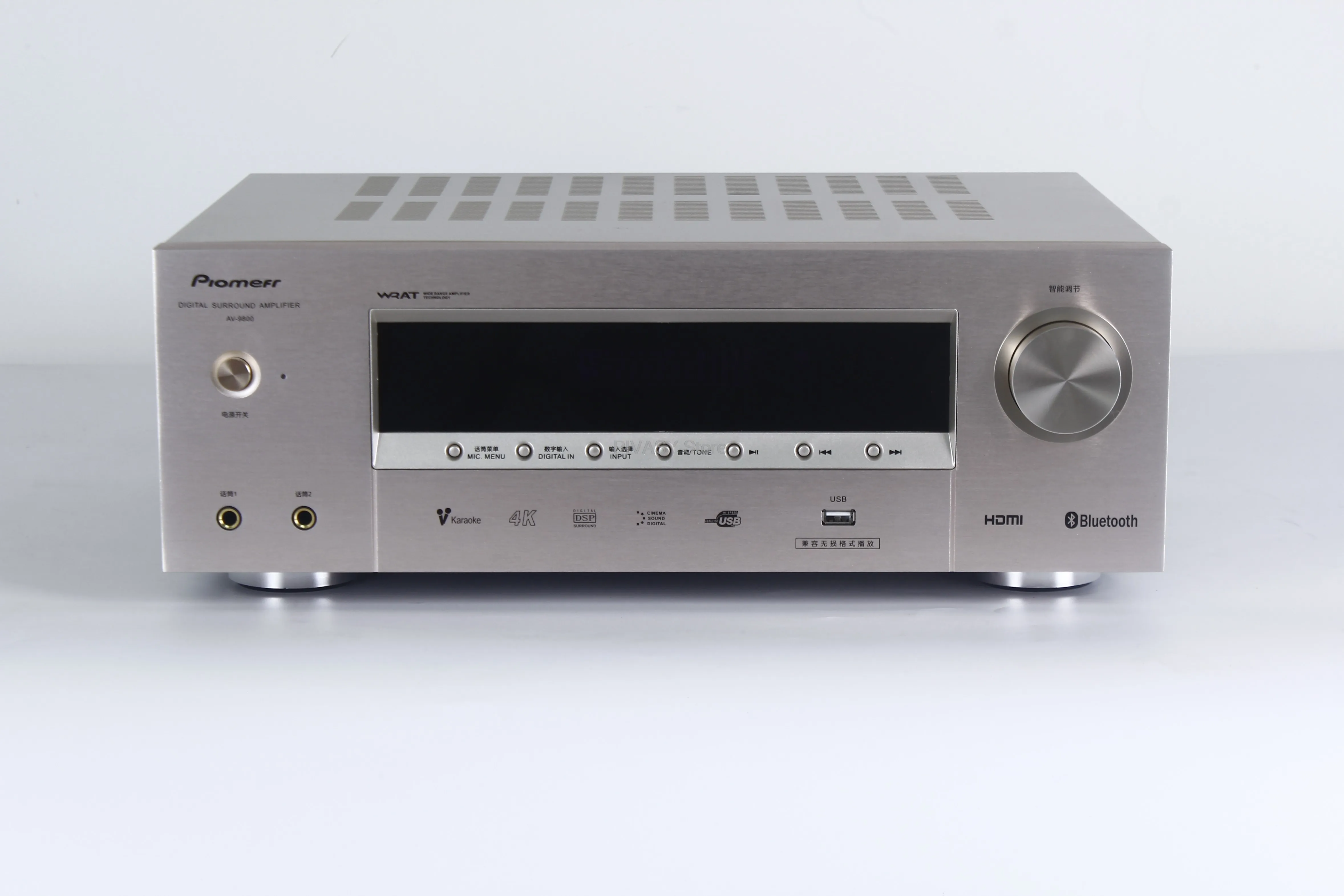

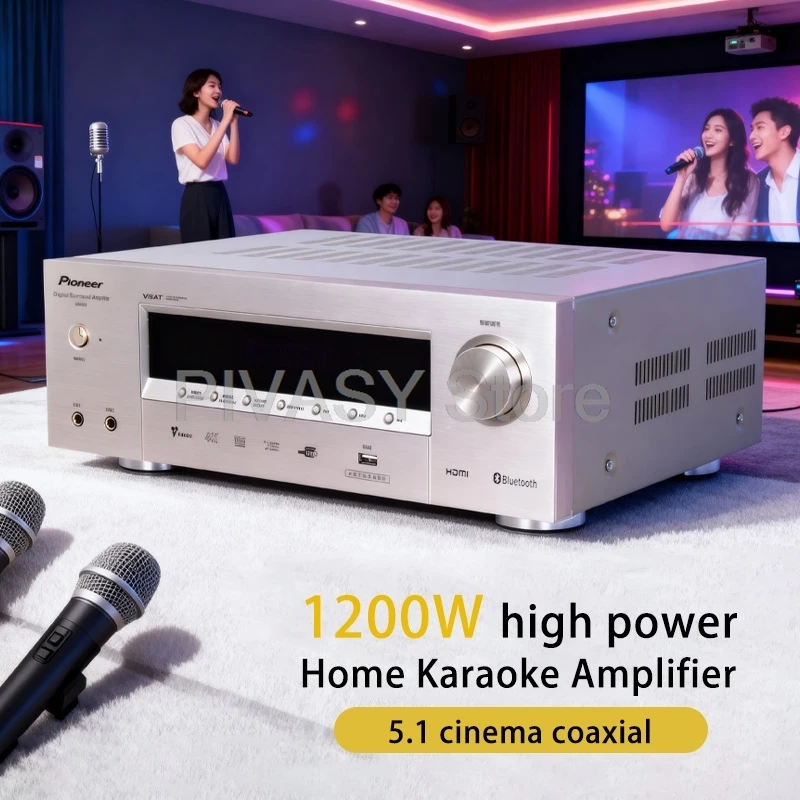

1200W Amplifier Bluetooth Amp SNR85dB Sound Amplifier HDMI 4K ARC Optical Coaxial DSP For Karaoke 5.1 Channel Home Theater KTV

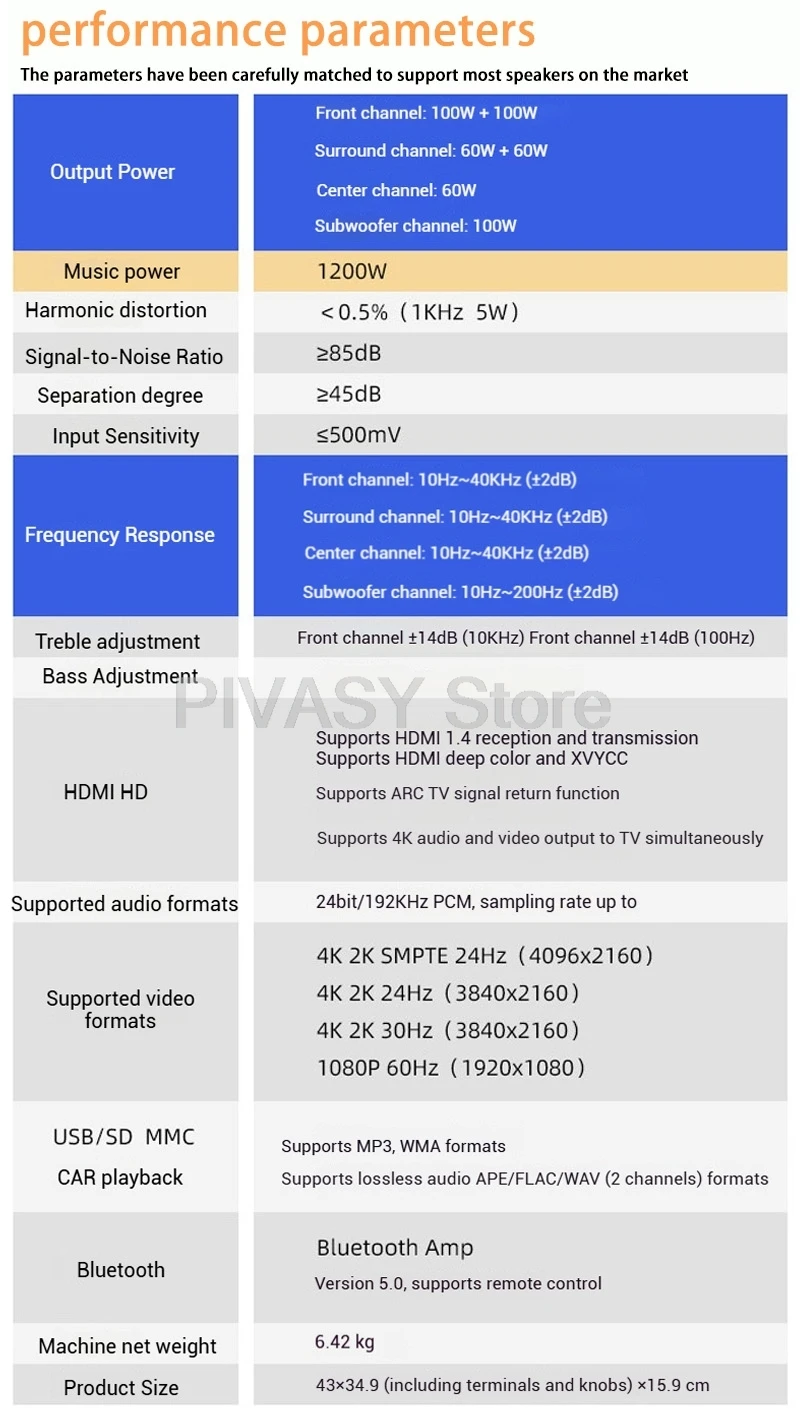

Product Parameters:

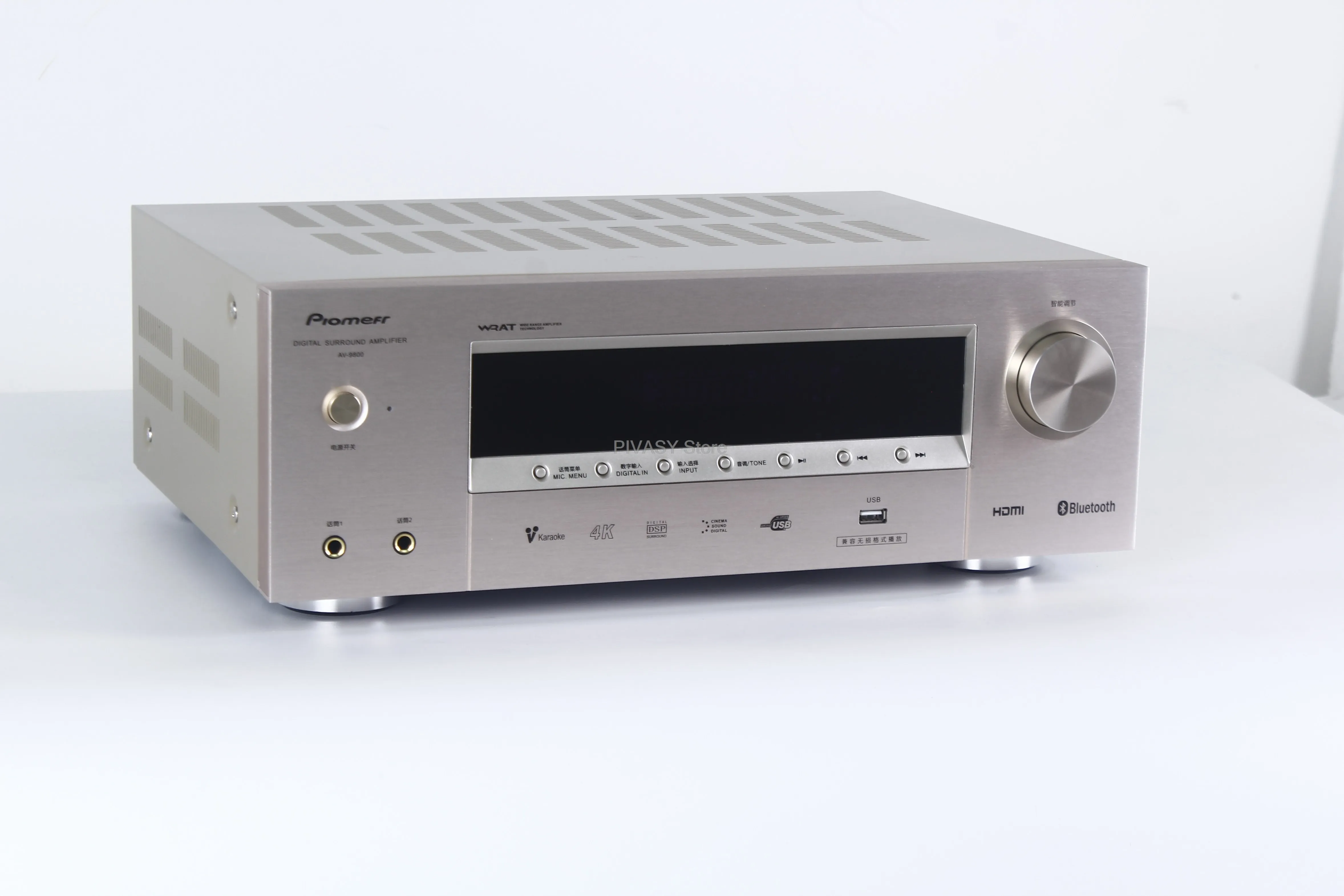

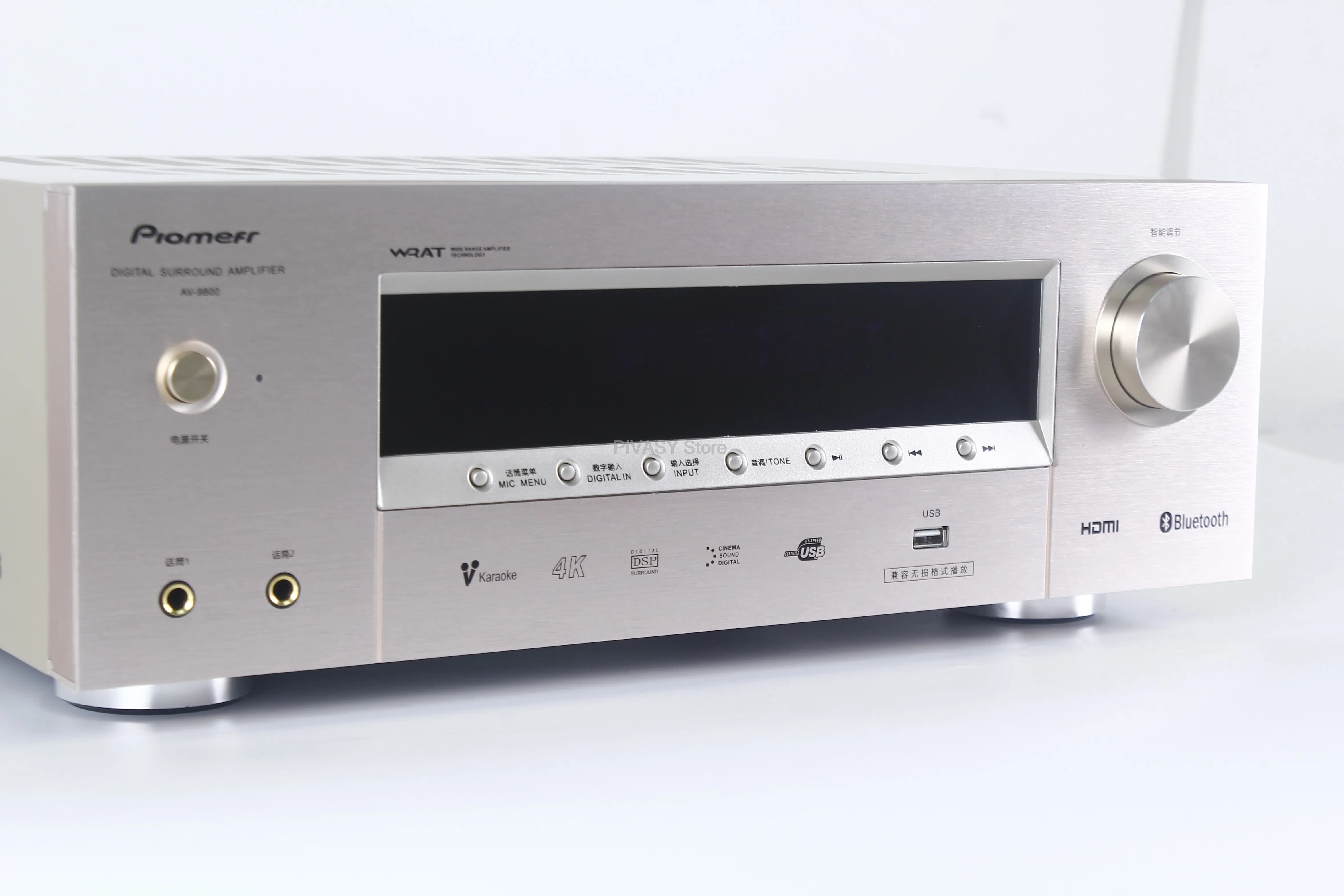

• Model: 5.1 Channel AV Surround Receiver

• Amplifier Section:

  • Front Channels: 100W + 100W

  • Surround Channels: 60W + 60W

  • Center Channel: 60W

  • Subwoofer Channel: 100W

  • Total Music Power: 1200W

• Audio Performance:

  • THD: <0.5% (1kHz, 5W)

  • SNR: ≥85dB

  • Separation: ≥45dB

  • Input Sensitivity: ≤500mV

• Frequency Response:

  • Front/Surround/Center: 10Hz-40kHz (±2dB)

  • Subwoofer: 10Hz-200Hz (±2dB)

• Tone Controls:

  • Treble: ±14dB (10kHz, Front Channels)

  • Bass: ±14dB (100Hz, Front Channels)

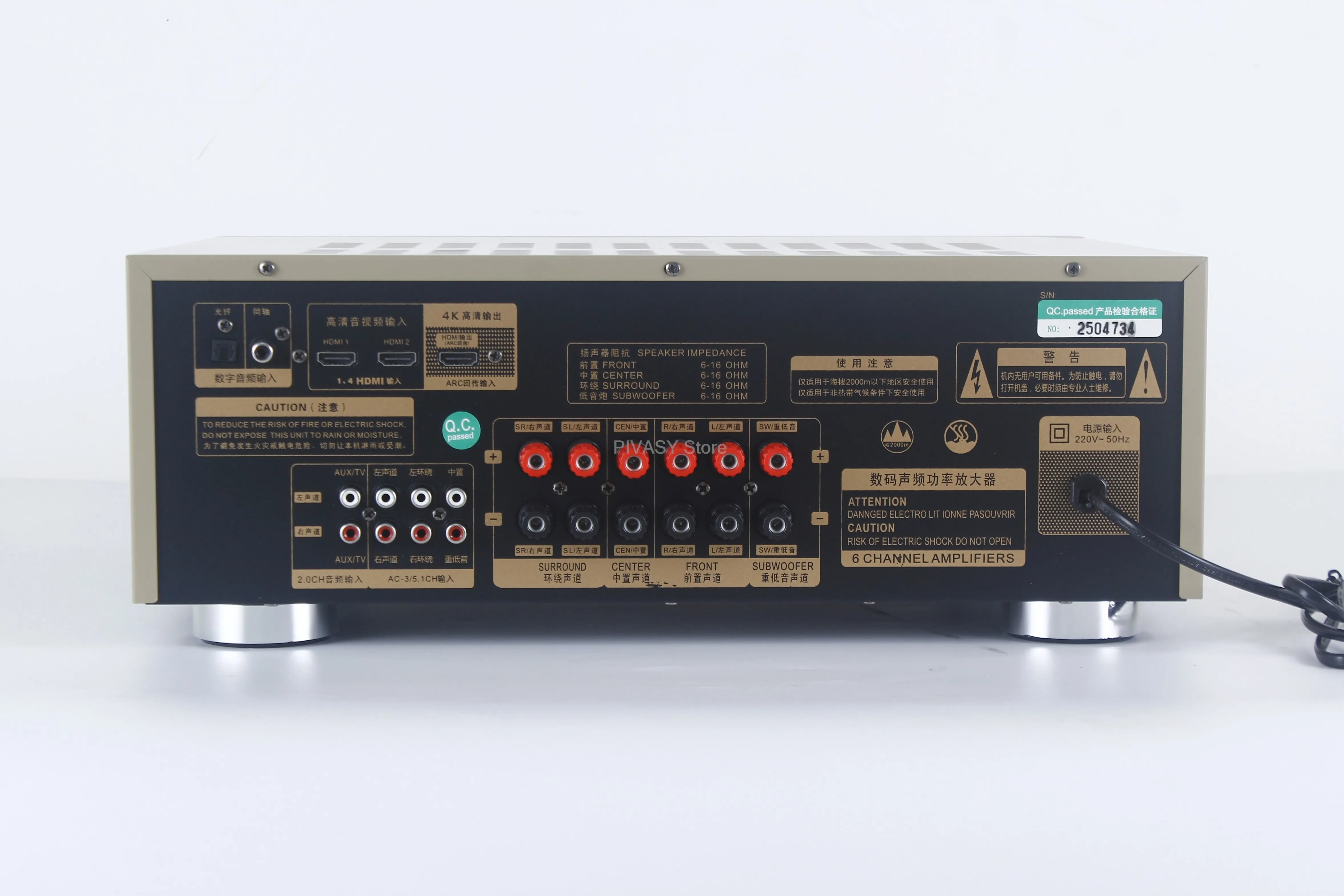

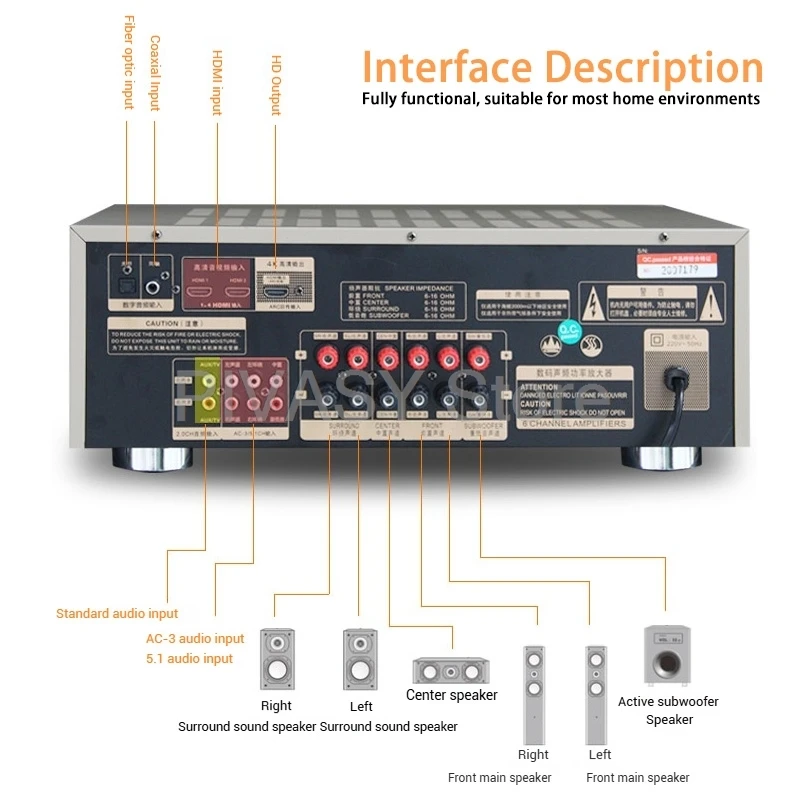

• Inputs/Outputs:

  • HDMI: 2 Inputs + 1 Output (v1.4, 4K, ARC, xvYCC)

  • Digital Audio: Optical, Coaxial

  • Analog Audio: RCA, 2 Microphone Inputs

  • Media: USB, SD/MMC Card

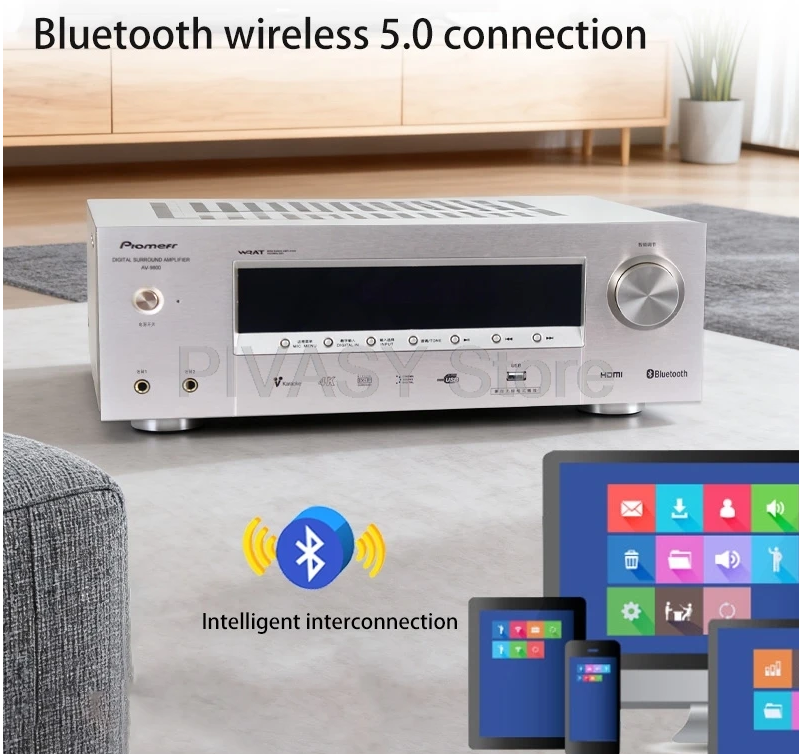

  • Bluetooth: Version 5.0

• Audio Support:

  • Formats: PCM up to 24bit/192kHz, MP3, WMA, APE, FLAC, WAV (2-channel)

  • Decoding: AC-3, DTS

• Video Support:

  • 4K: 4096x2160@24Hz, 3840x2160@24/30Hz

  • 1080P: 1920x1080@60Hz

• Special Features: DSP Sound Modes, Power-off Memory, Karaoke Function, IR Remote

• Power Supply: AC 110-240V (50/60Hz)

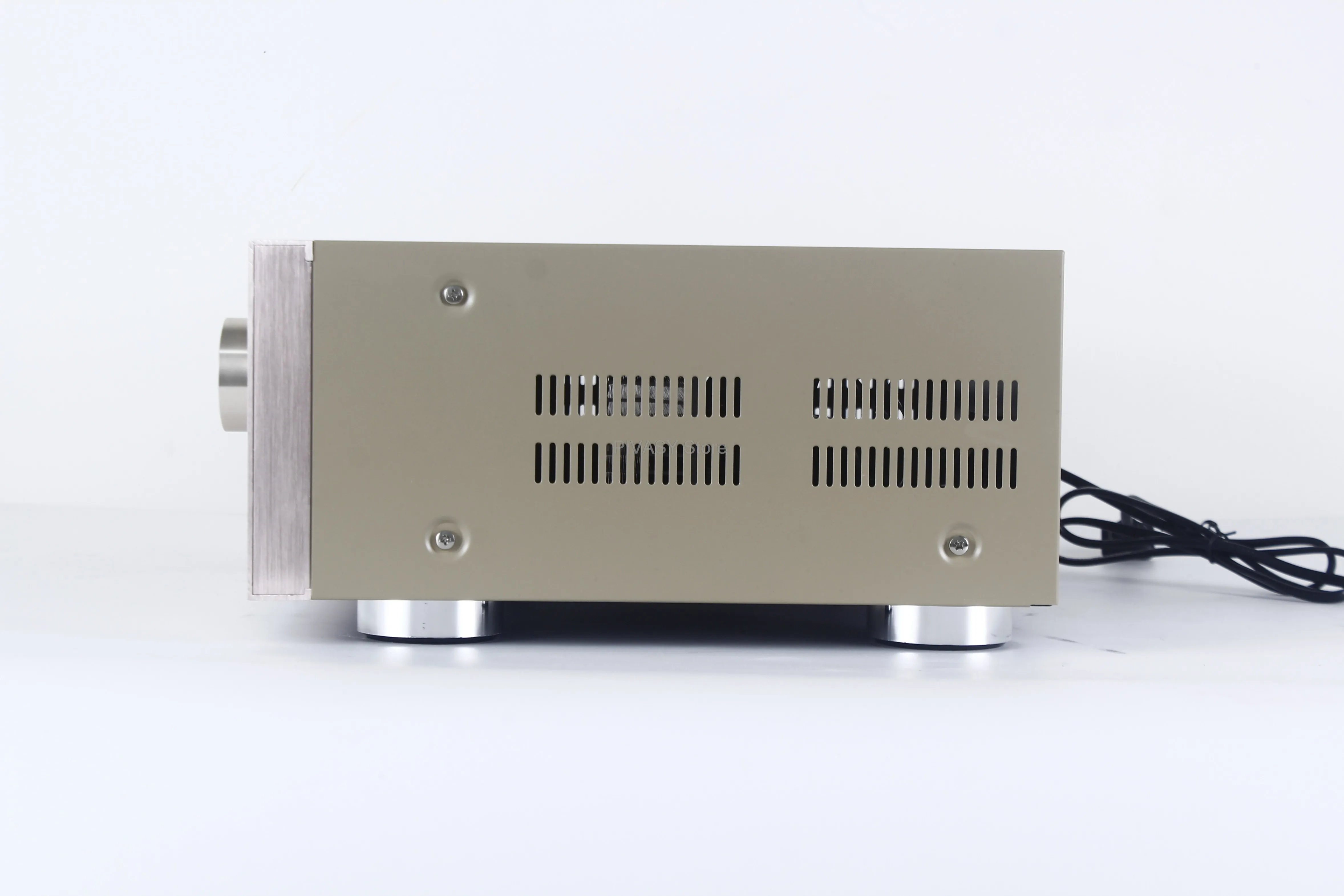

• Dimensions (W x D x H): 43 × 34.9 × 15.9 cm

• Weight: 6.42 kg

Package Included: 1 x AV Receiver

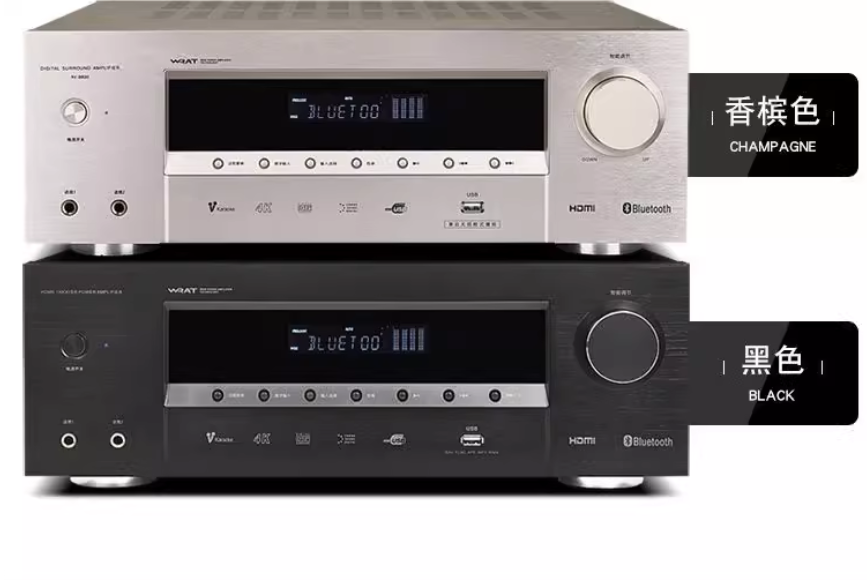

Note: There may be slight variations in data, color, size and weight; please refer to the actual product.

Product Features:

1. Complete 5.1 channel system delivers 100W per front channel with wide 10Hz-40kHz response for immersive home theater and music listening.

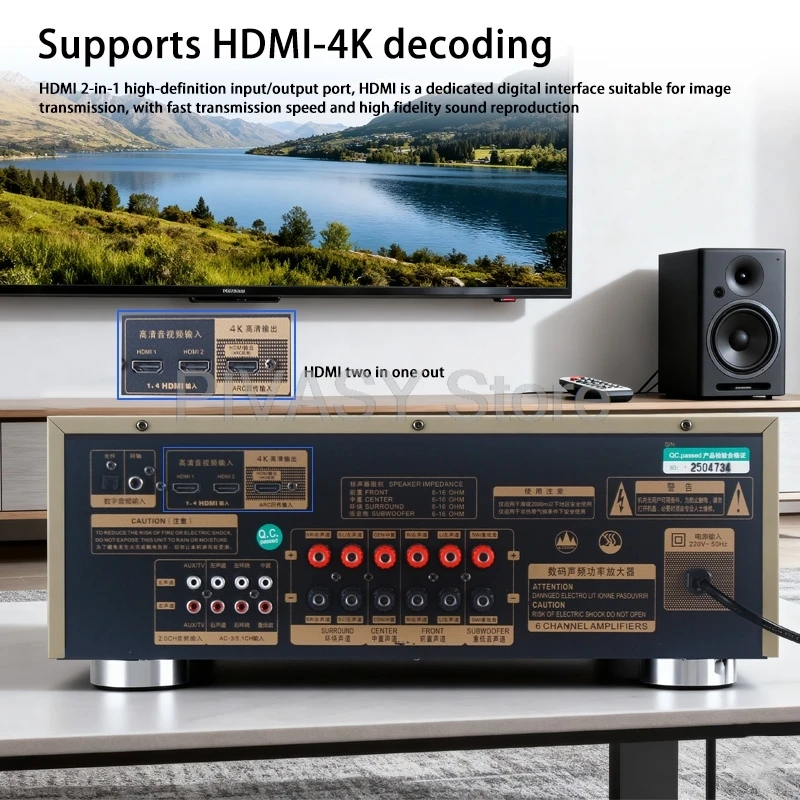

2. Advanced HDMI 1.4 with 4K video pass-through, ARC audio return, and xvYCC support for modern home entertainment setups.

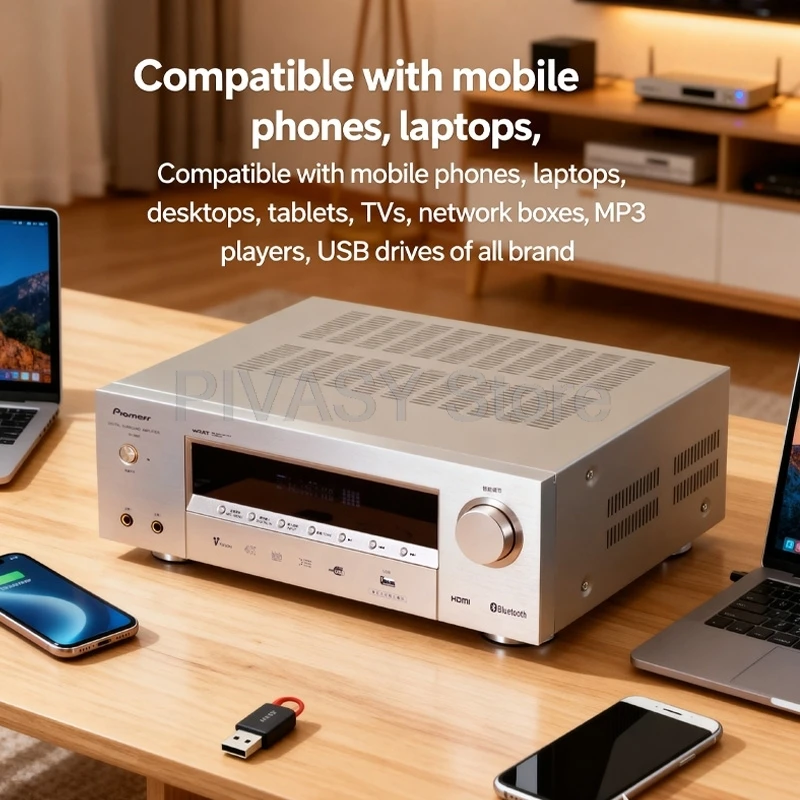

3. Multiple connectivity options including Bluetooth 5.0, optical/coaxial inputs, USB/SD playback with lossless audio format support.

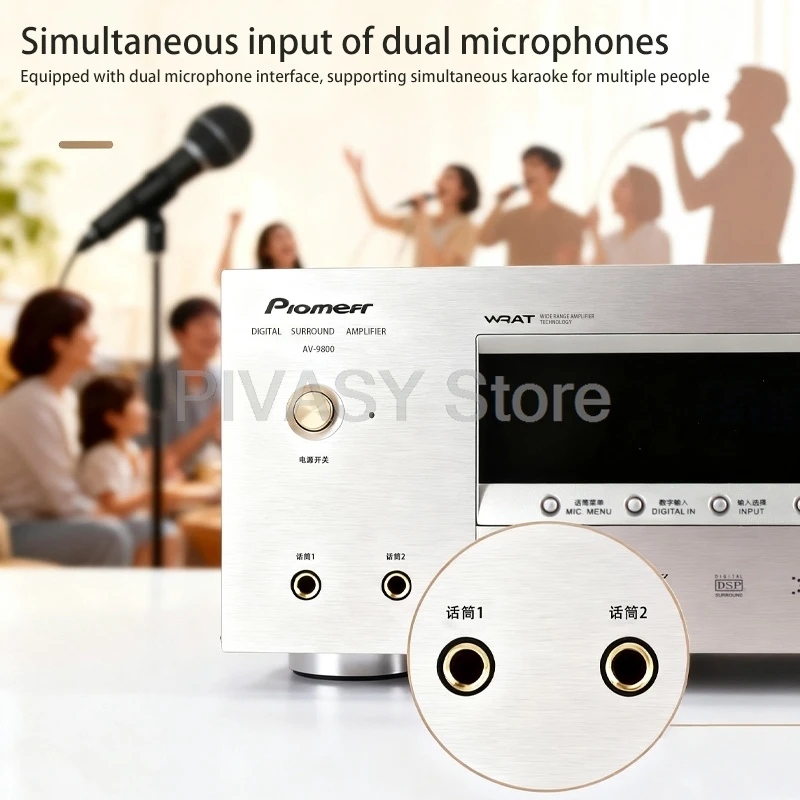

4. Professional DSP sound field modes, dual microphone inputs with echo control, and ±14dB bass/treble adjustments for customized audio.

5. High-resolution audio support up to 24bit/192kHz PCM with low distortion (<0.5%) and high signal-to-noise ratio (≥85dB) for clean power.

Warm Tips:

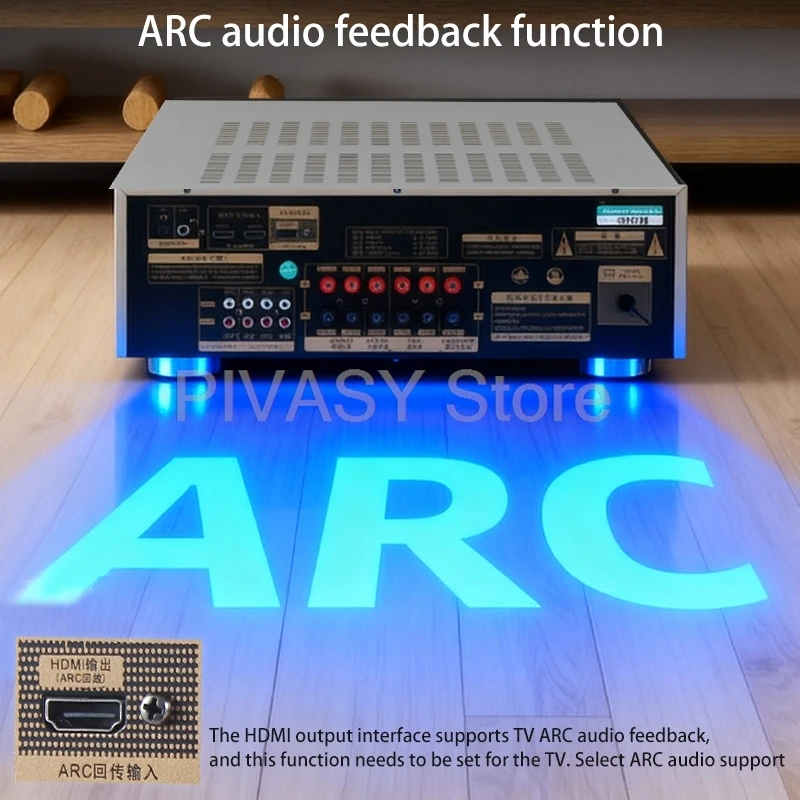

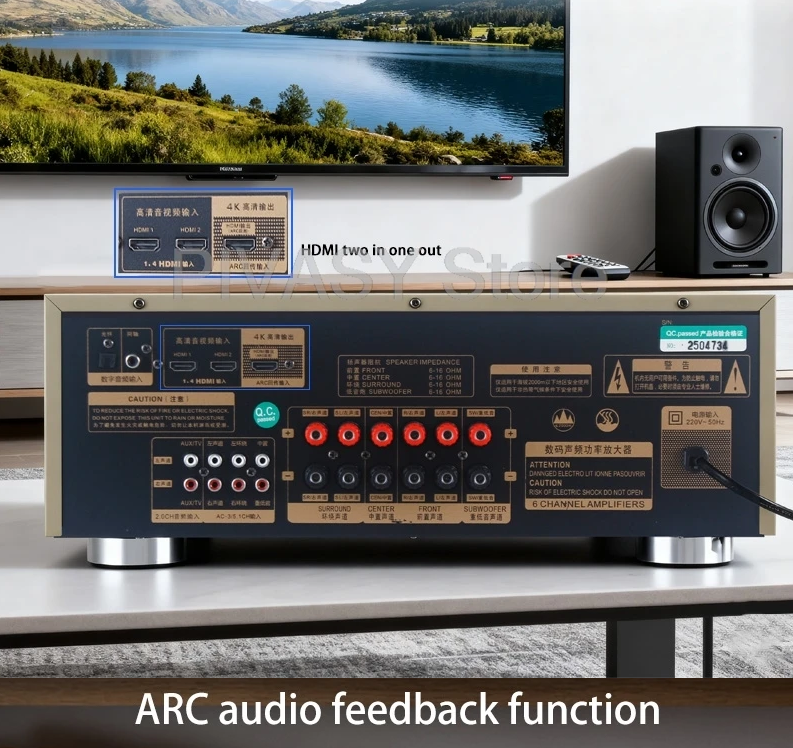

• Use the ARC (Audio Return Channel) function to simplify connections when using with a compatible smart TV for single remote control operation.

• For best karaoke performance, connect professional dynamic microphones and adjust DSP settings to match your room acoustics.
