Product Details:
Before 6P14, it was often used on radio power output tubes, with a bright and round tone Audiophile suitable for appreciating music.
High quality silicon steel sheet and oxygen free enameled copper wire winding rate transformer, with sufficient power and low temperature rise.
Pure copper gold-plated terminal post
western electric retro style chassis, solid and stable.
Brand capacitor+metal film resistor+0.2A inductor form CLRC filtering grid to suppress AC sound

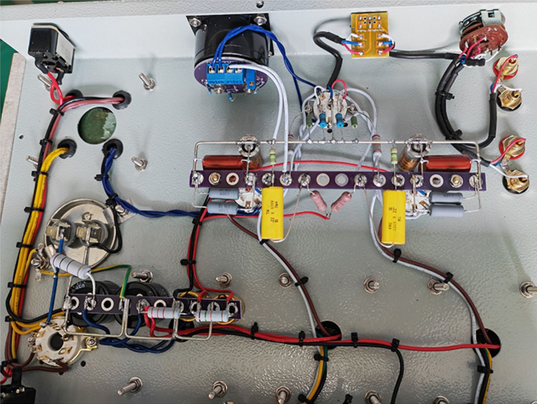

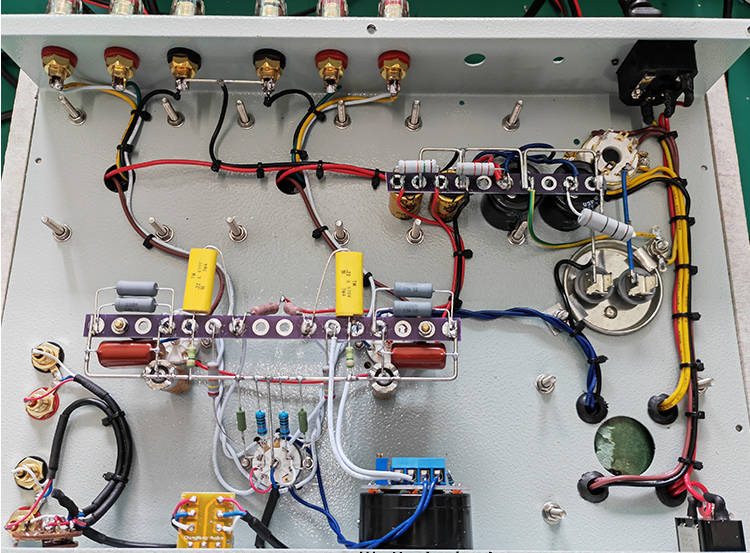

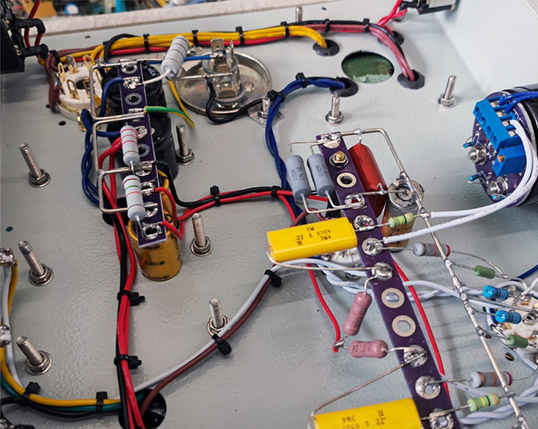

Hand built shed welded together.
66 * 28 10H 0.2A oxygen free copper wire wound inductor choke coil.
Japanese ALPS dual potentiometer with moderate damping and no rotational noise
Parameters:
Electronic tube model: 5Z4P * 1 6P14 * 2 ECC83 * 1
Output power: 3.8W * 2 8 Ω
Frequency response: 20Hz-28KHz
Input sensitivity: 800 mv
Power supply: 120W
Input impedance: 100K
Output impedance: 4-8 Ω
Signal to noise ratio: 96db
Size:35.5*27.5*17.5cm
Weight:11.7kg
Package list:
1 × Finished 12AX7 tube amplifier
During the power on test, the electronic tube amplifier must be connected to the load, otherwise it will burn out the electronic tube.
