1710 double layer All-Aluminum Audio Amplifier Chassis DIY Preamp Case HIFI PSU Box

Product Details:

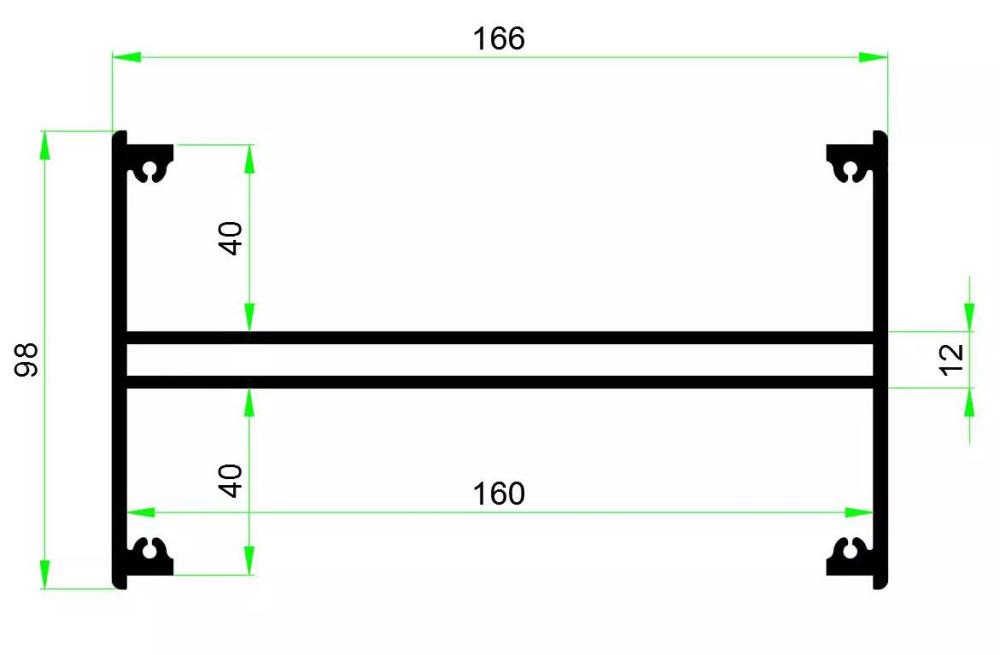

External dimensions: Width 170MM * Height 100MM * Depth 248MM

Internal dimensions: Width 160MM * Height 40MM * Depth 240MM （upper）

Internal dimensions: Width 160MM * Height 7MM * Depth 240MM（middle ）

Internal dimensions: Width 160MM * Height 40MM * Depth 240MM（below ）

Front panel material thickness: 8MM

Back panel material thickness: 3MM

Left and right side plate material thickness: 3MM

Upper and lower cover material thickness: 3MM

Middle partition thickness: 2.5mm

Package list:

1 × Aluminum case

1 × Power outlet

1 set × Rubber machine feet
