1pcs 40w Push-Pull Tube amplifier Output Transformers For 6P1 EL84 6L6 EL34 KT88 KT66
Our manufacturer have about 10 Years experience to specially produce high level transformer for worldwids customer, and the tube amplifier's transformer is produced more than 200000PCS/year , and the both quality of material and quality of sound can be 100% quarenty, their special work process can assure a good deep bass and transparent sound and high wide frenquence response.
notice ： this price is for 1 pcs transformer ，
-
Match with: Push-Pull tube amplifier only, Not for single-ended tube amplifier!
-
Primary impedance: Raa =4ohm - 6.6K ohm (or others)
-
EI 76x40(30w) Or EI 86x40(40w)
-
Iron steel: New Japanes Z11 0.35mm special for audio, magnetic flux 16000wb
-
Secondary Impedance: R2 = 0 - 4 - 8 ohm (or others, please indicate 2 outputs)
-
Rate value for 2 tubes: Ip = 110mA so 55mA for one tube,
-
Max current: 40w is 150mA/Chanel
-
Frequence response: 20-55Khz + -1db
-
Efficacite N = 0.9
-
Inductance:> 120H
-
Size: LxWxH: 86x88x76(40w)
-
Net weight for a pair: 2.1kg(40w)
-
Package weight 2.8kg
-
-
Please choose your Primary Impedance,
we list in almost case the mapping list about tube name and impedence for push pull amp
EL34, 807 push pull use 6.6k
KT88, 2A3, push pull use 5k
For other input Impedance , plese leave us a message to indicate it, Thanks
-
-

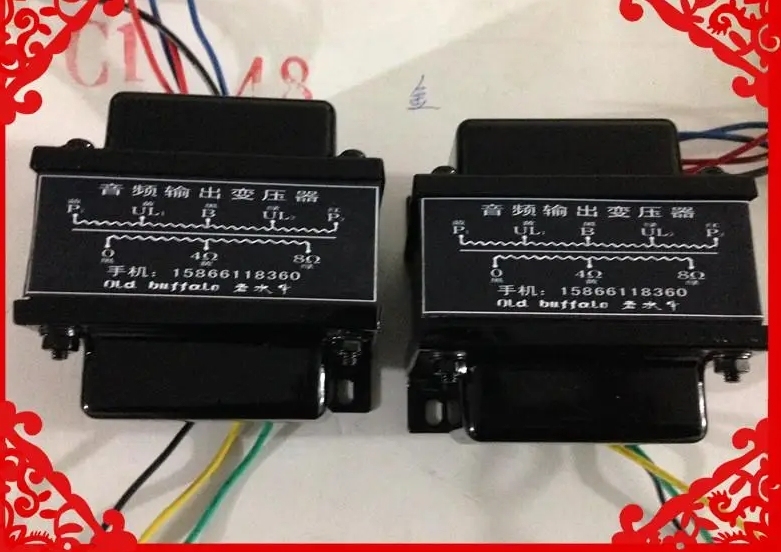

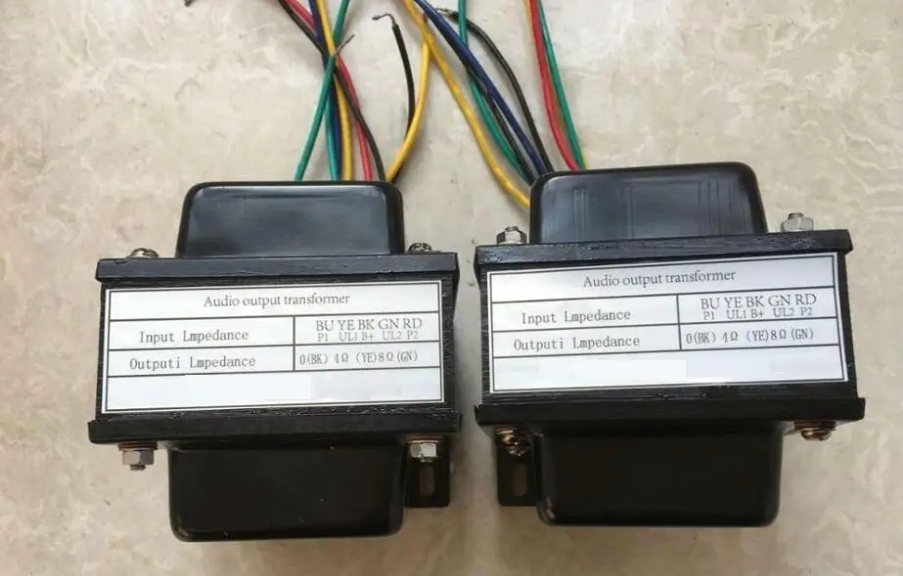

Primary : P1 (anode 1), UL1 "(SUPERLINEAR 1), B (positive supply), UL2 (Superlinear 2), p2 (anode 2)
