Product Details:

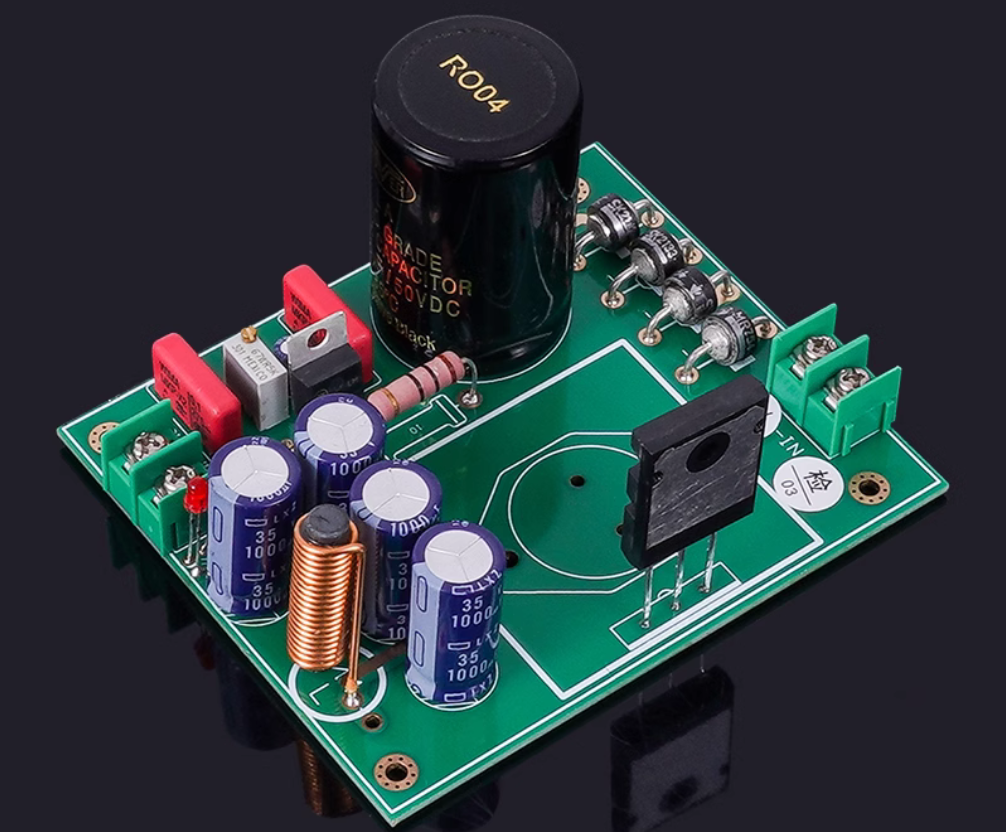

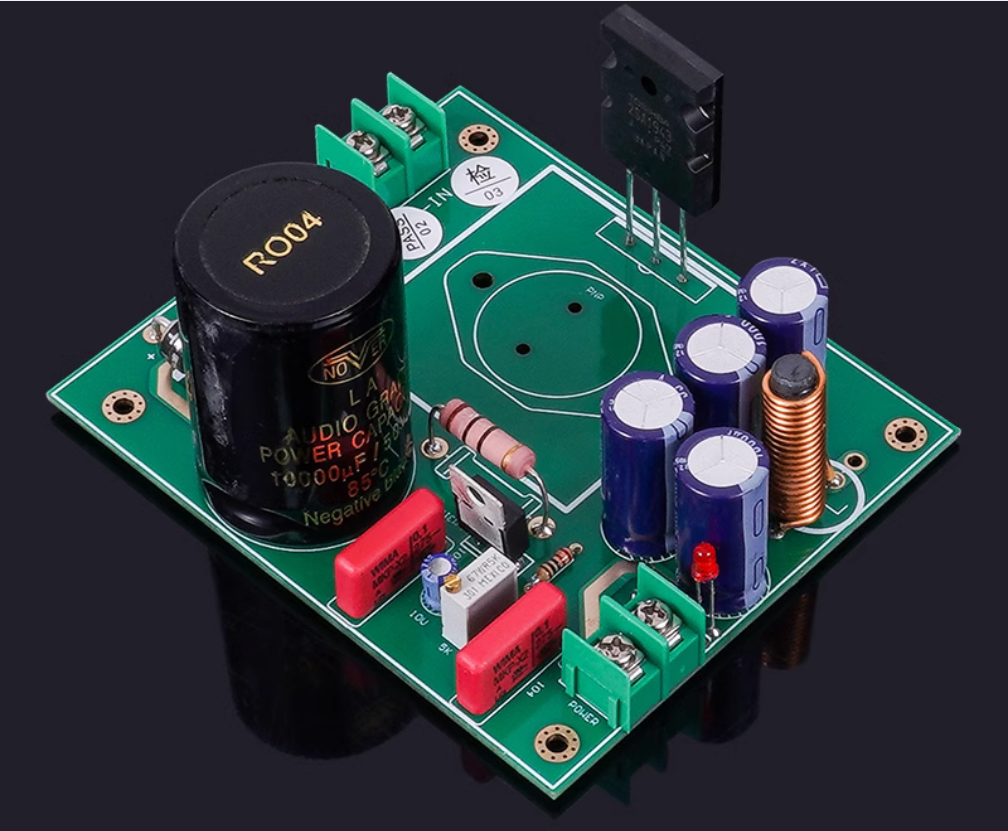

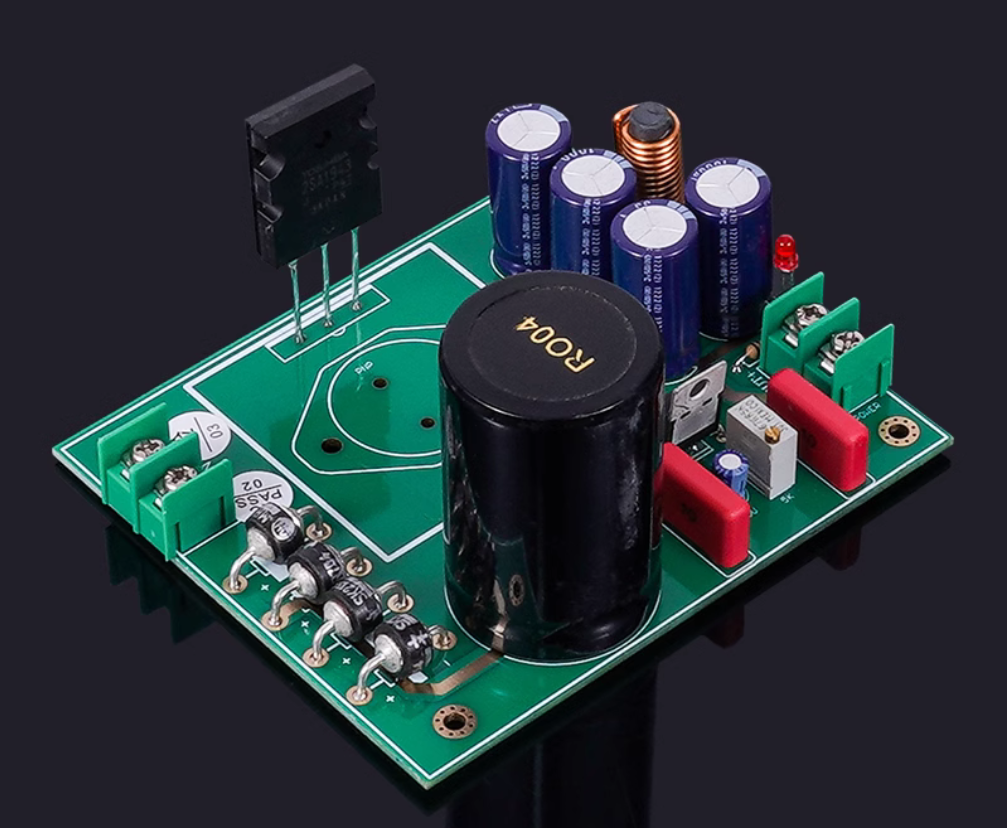

This power board is based on the ON LM317 and uses metal encapsulated Toshiba 2SA1943 transistor output tubes for output. The output linearity is very good under high current, and the frequency band is wider than LT1083. It is very suitable for HIFI power supply and can also be used as a laptop power supply. The output is also equipped with CLC two-stage filtering, making the high frequency cleaner. It remains stable even at high current output.
NOVER 10000UF Chemical Decoupling Capacitor.
American BI adjustable resistor
If the current exceeds 5A, large heat dissipation must be used Apply thermal conductive silicone.
This is a finished board that has been tested.
Specifications:
Size: 100X88MM
Weight: about 123g
Input voltage: AC6V-AC33V
Output voltage: DC 3V3-DC37V
Package list:
1 × Assembly Power supply board
