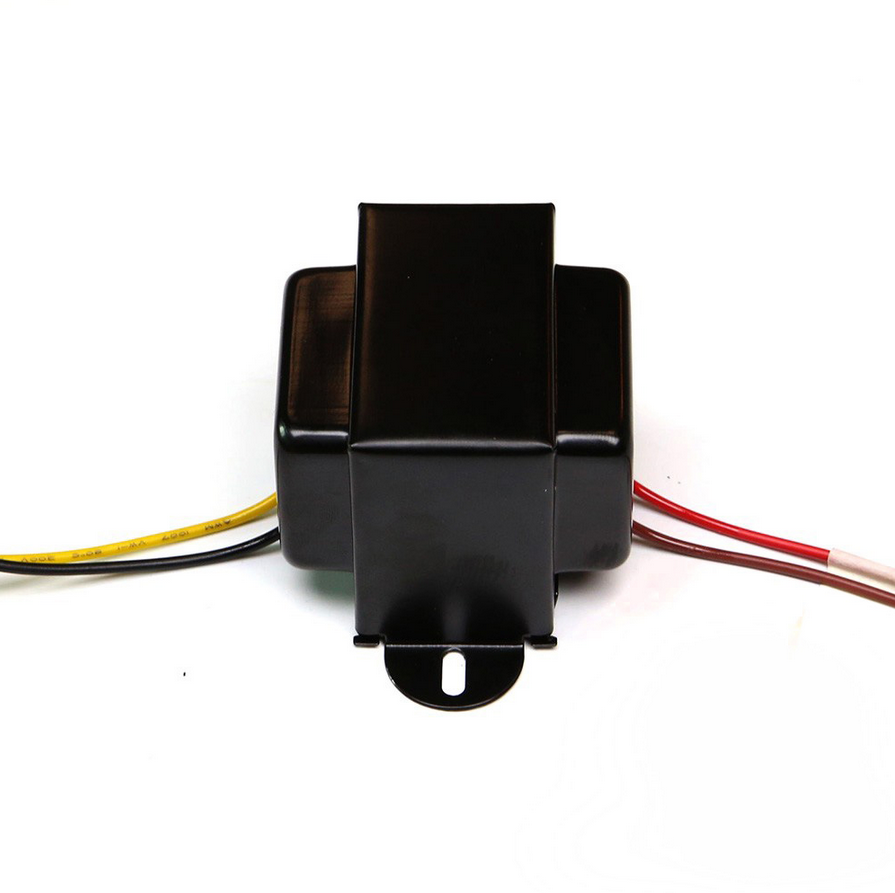

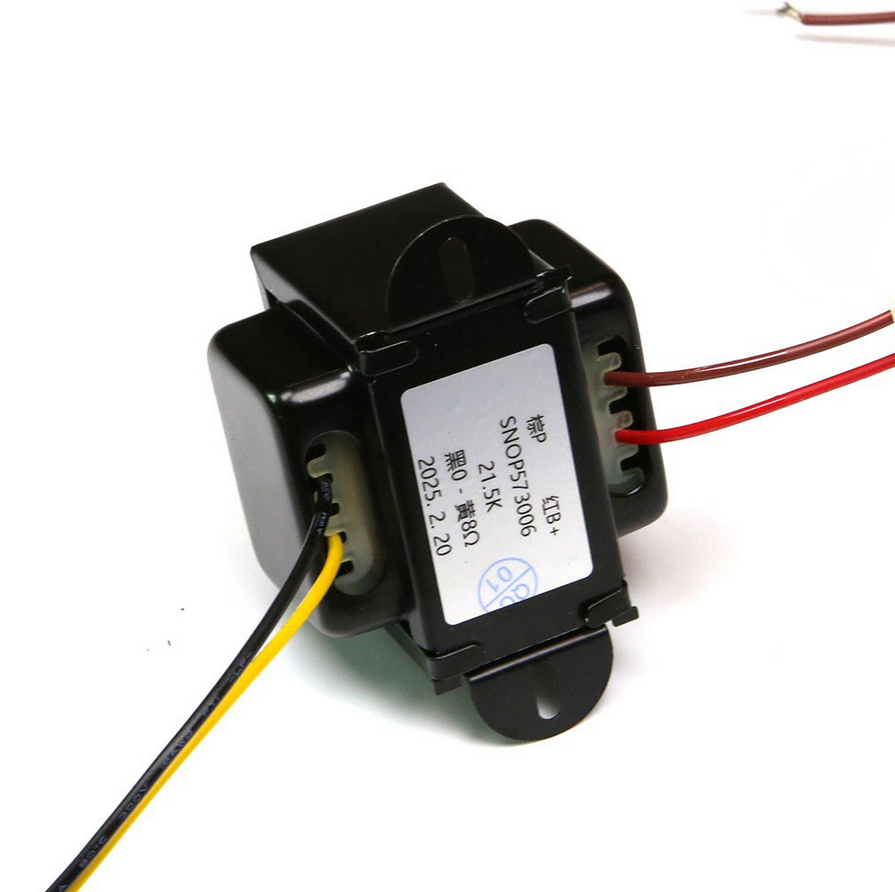

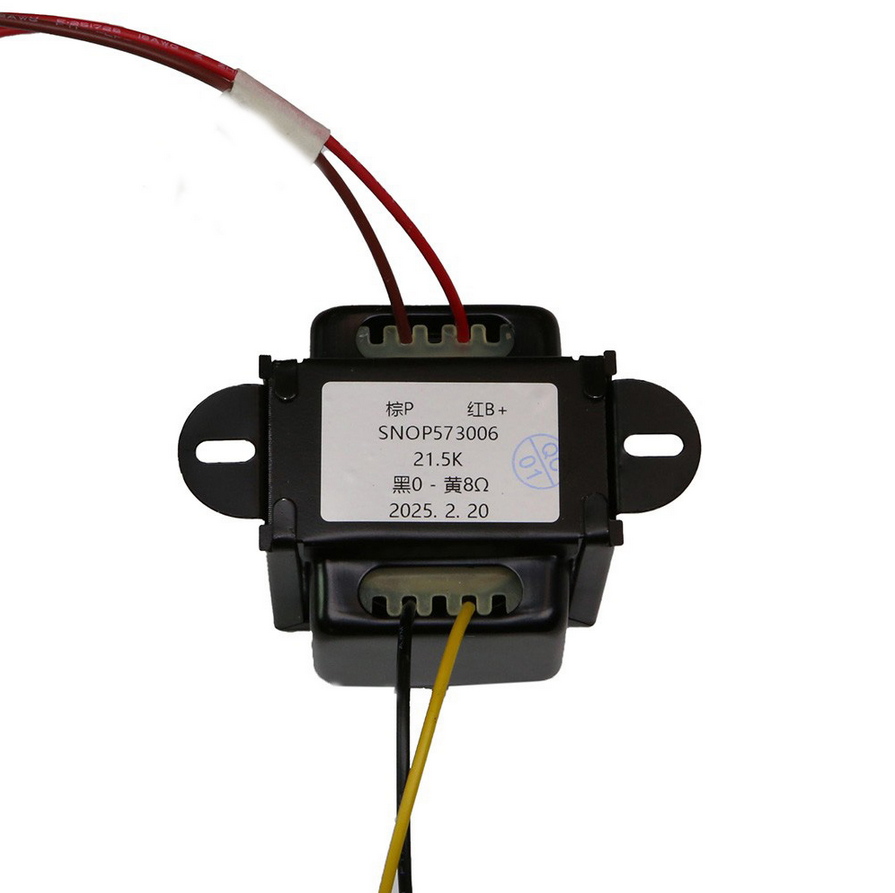

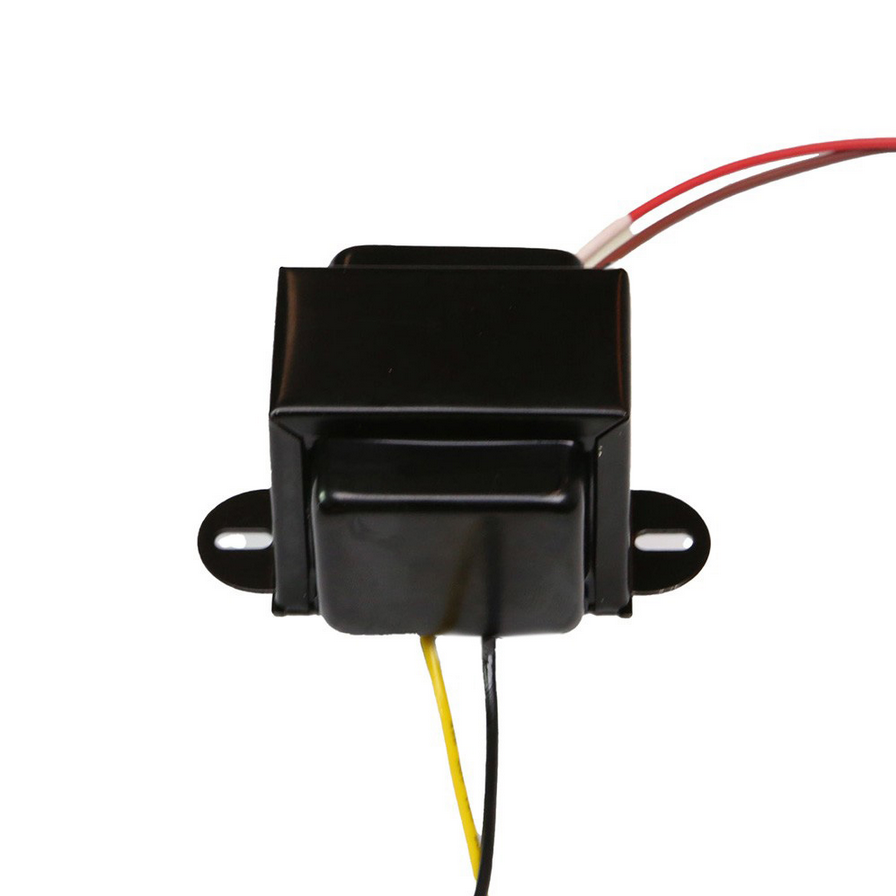

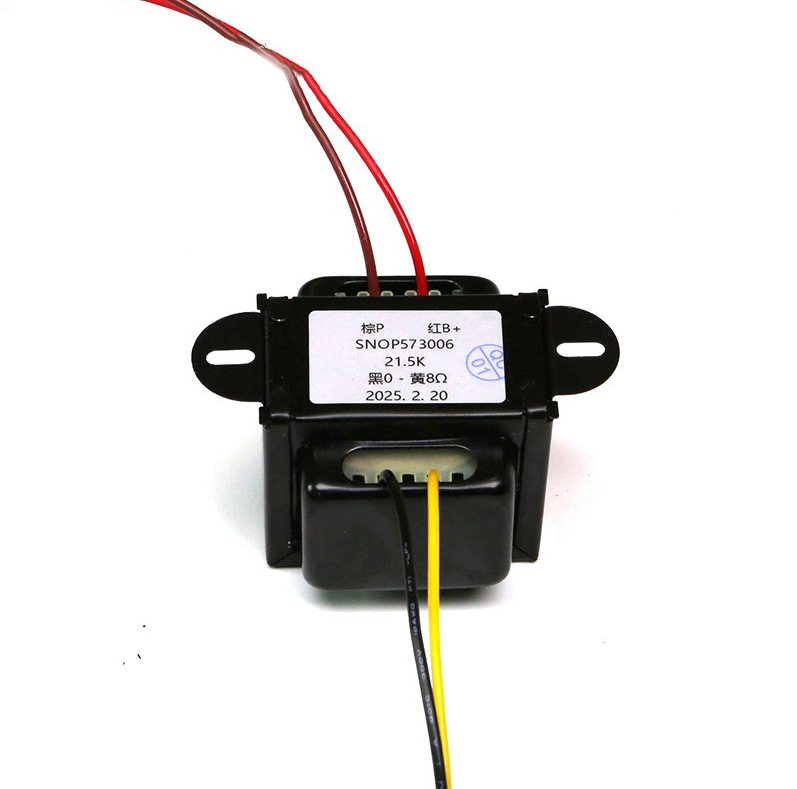

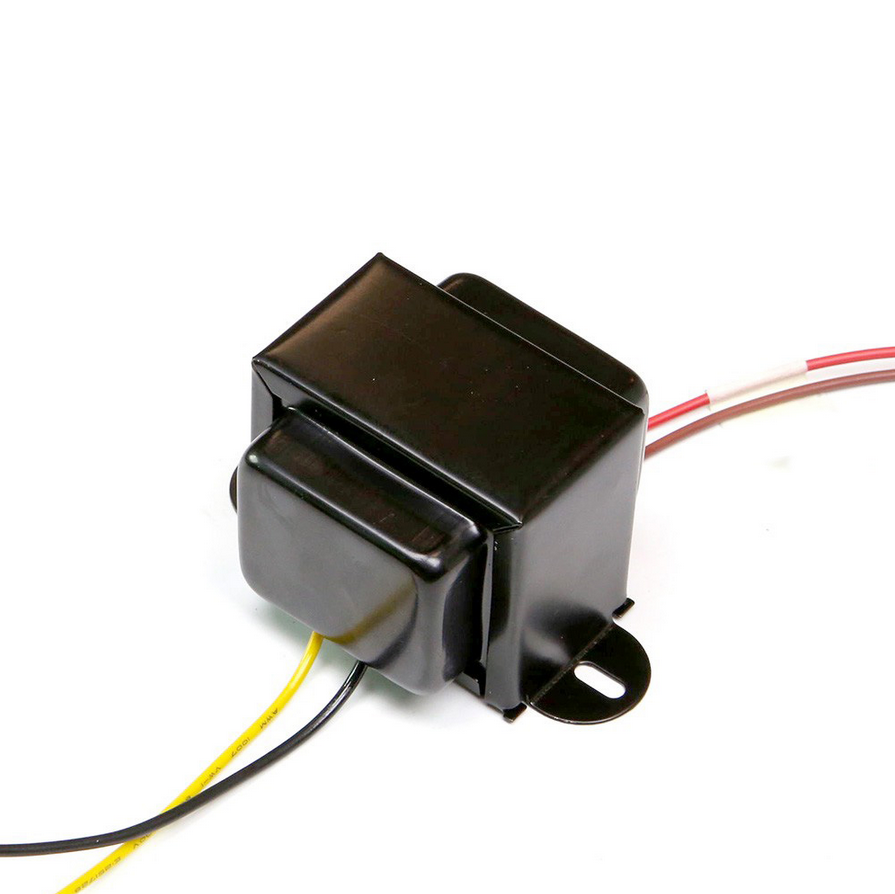

21.5K:8R Guitar amplifier single ended output transformer Fender box head using black shell 22K universal

Product Details:

Attention: When testing the machine, the output transformer must be connected to a speaker or resistor as a load. No load testing can easily burn out the transformer, and the buyer is responsible for this kind of burning

Power: 3.5W

Model: SONOWAV SNOP573006

Core size: Width 19MM * Thickness 30MM

Core material: Newly imported silicon steel sheet

Enamel wire material: Oxygen free copper QZ-2

Shielding method: Grilled black paint iron bridge shell shielding

Weight: 0.5KG

Primary impedance: 21.5K

Primary maximum current: 30mA

Primary DCR=1.47K

Frequency response range: 70HZ-15KHZ

Secondary impedance: 8 ohms


Package list:


1 × Transformer
