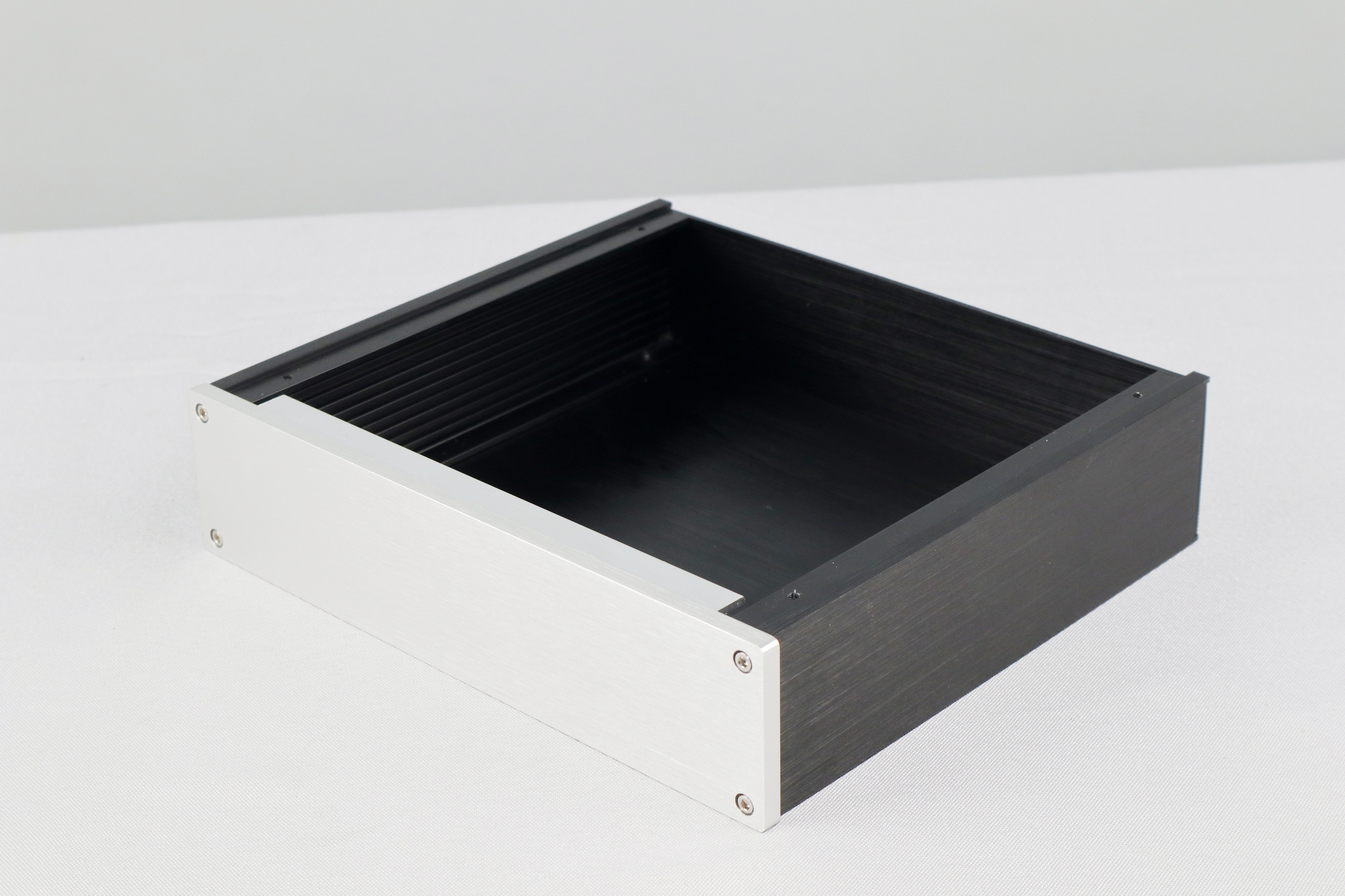

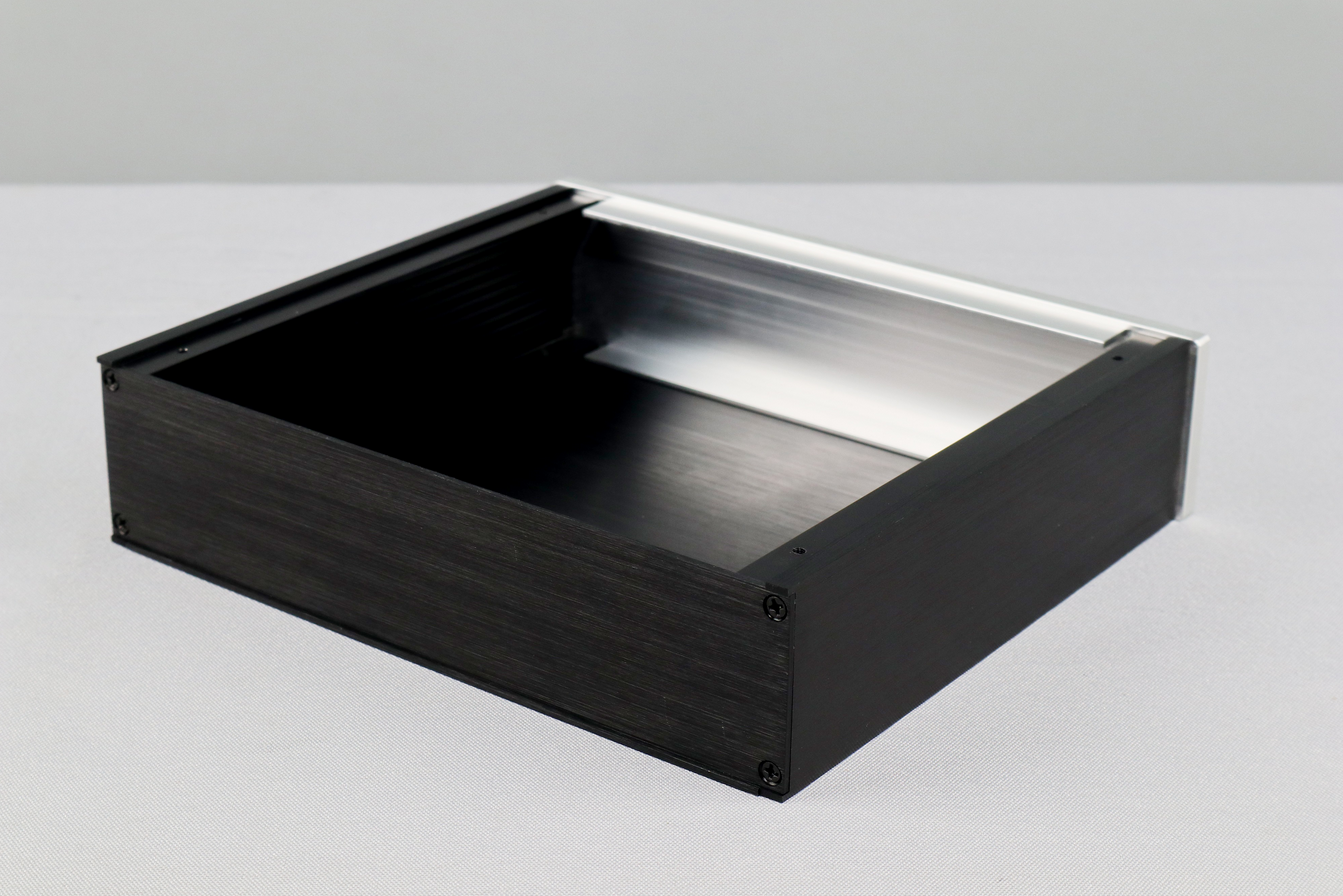

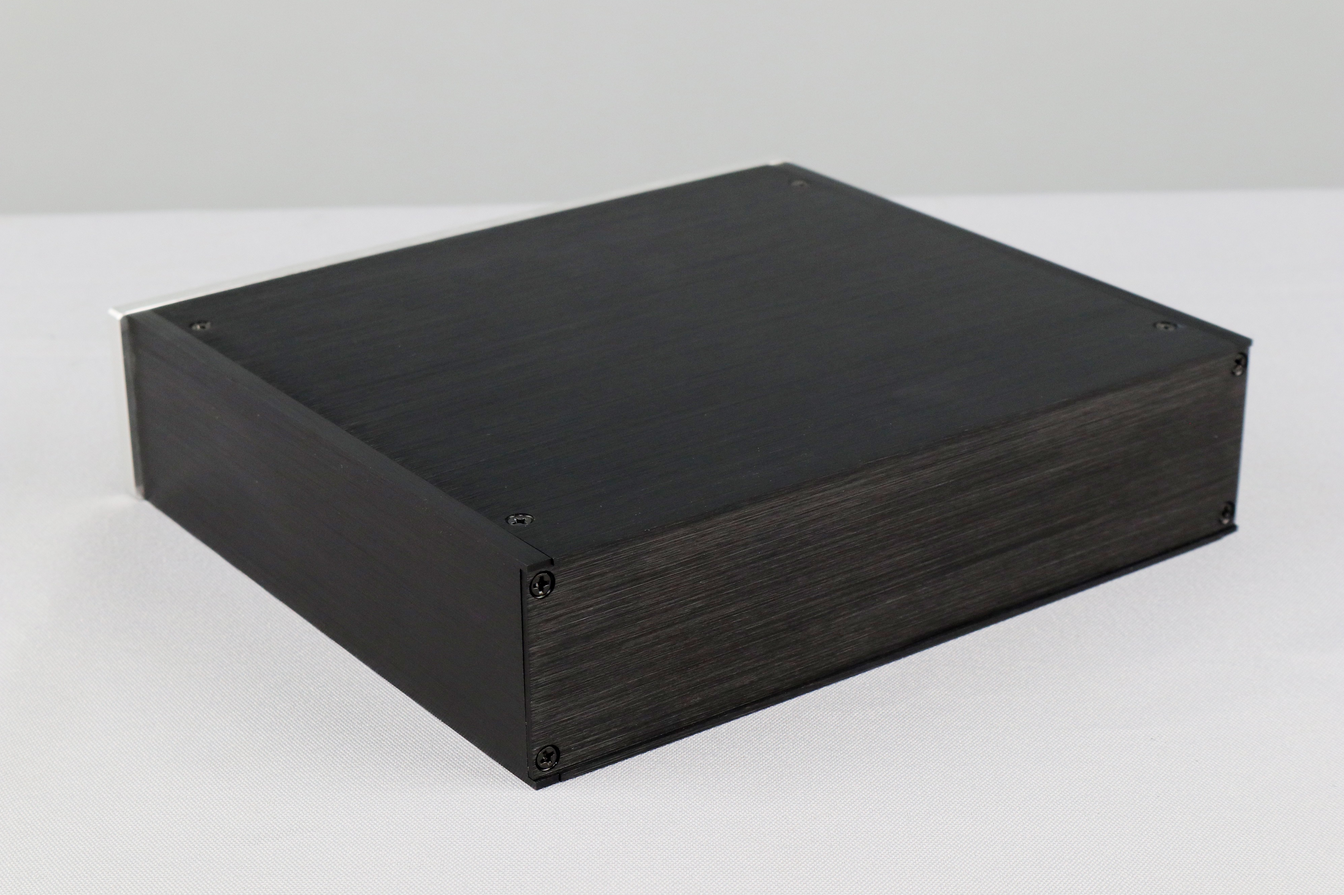

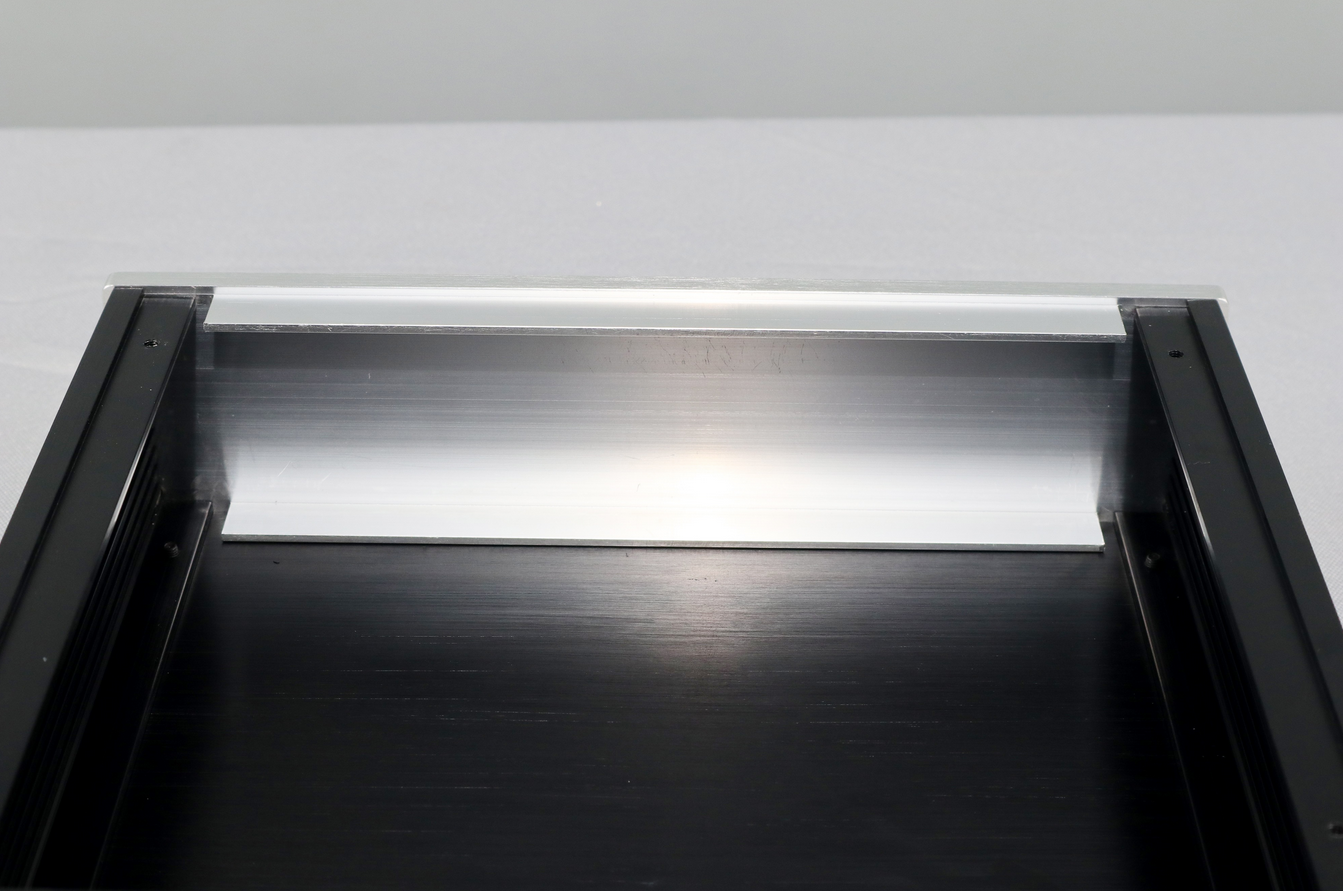

2205 All Aluminum Power Amplifier Housing Audio Amp Chassis DIY Enclosure Equipped with multiple PCB mounting card slots

Product Details:

S-version size:

External dimensions: width 215MM * height 52MM * depth 191MM

Internal  dimensions: width 200MM * height 48MM * depth 182MM

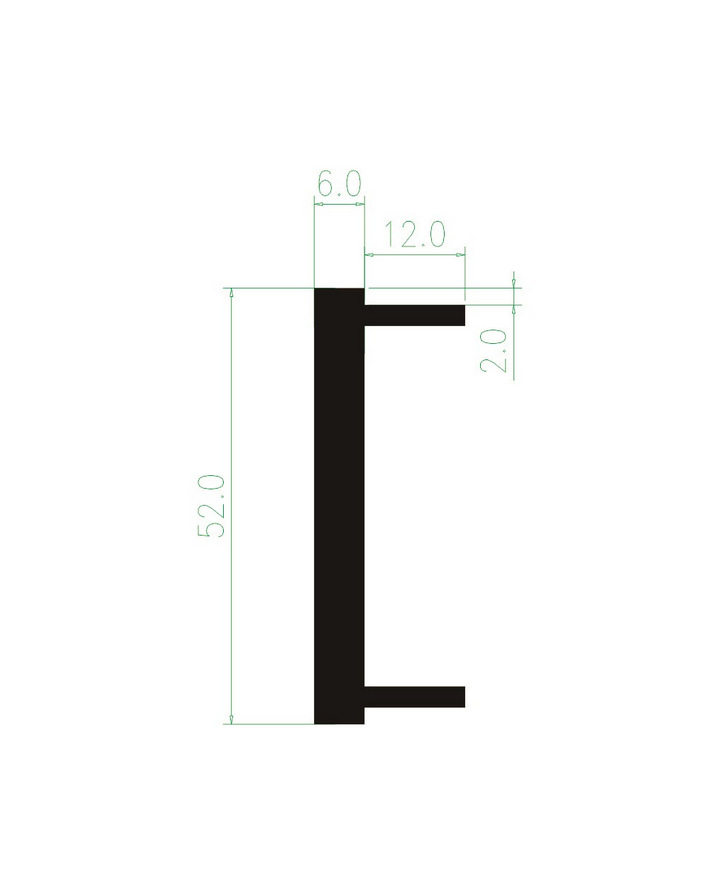

Front material thickness: 6MM

Back material thickness: 2MM

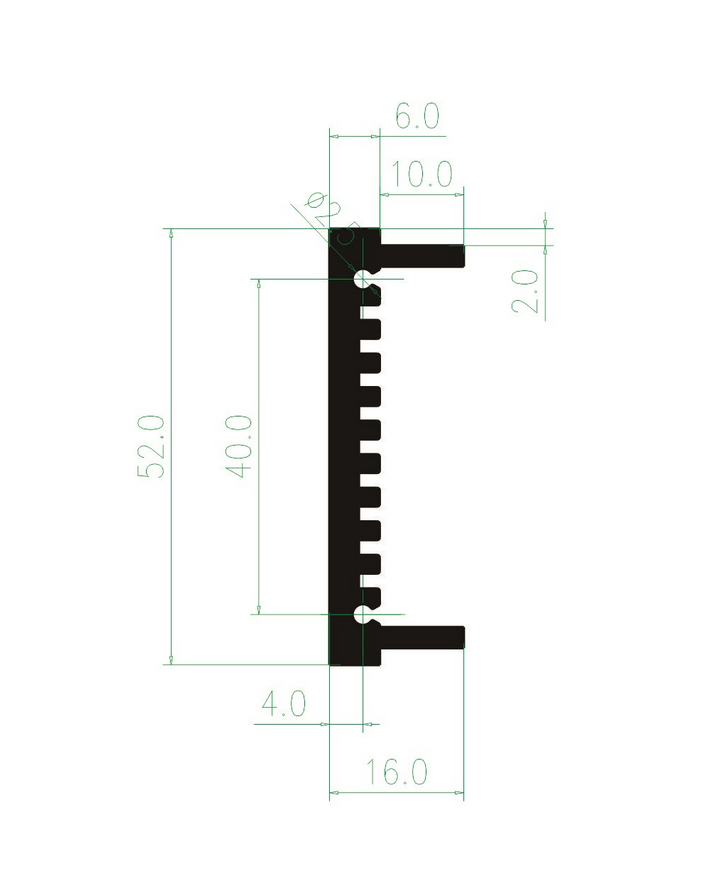

Left and right side panel material thickness: 2MM

Upper and lower cover material thickness: 2MM

Net weight: 1.1KG

L-version size:

External dimensions: width 215MM * height 52MM * depth 226MM

Internal  dimensions: width 200MM * height 48MM * depth 217MM

Front material thickness: 6MM

Back material thickness: 2MM

Left and right side panel material thickness: 2MM

Upper and lower cover material thickness: 2MM

Net weight: 1.2KG

Package list:


1 × Aluminum chassis

1 set × Rubber foot
