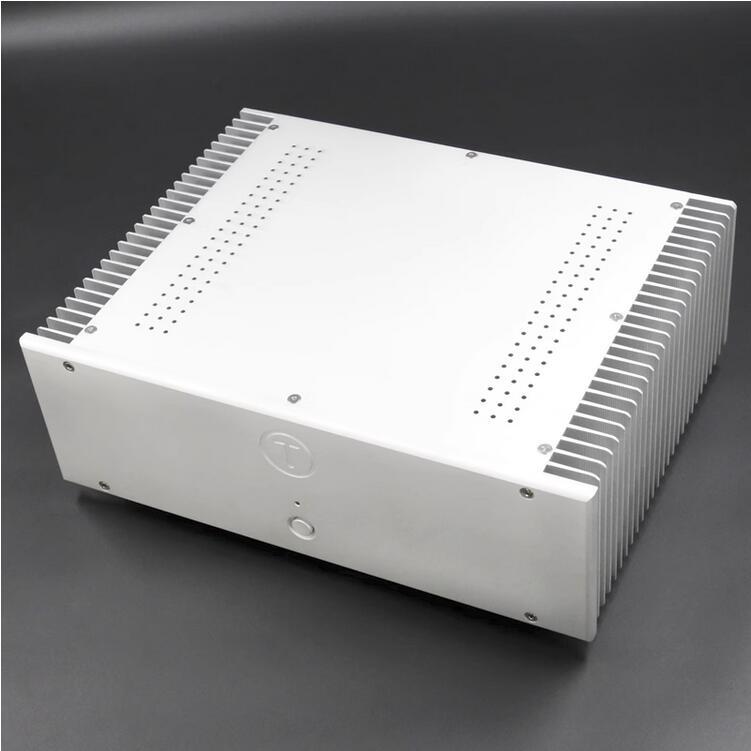

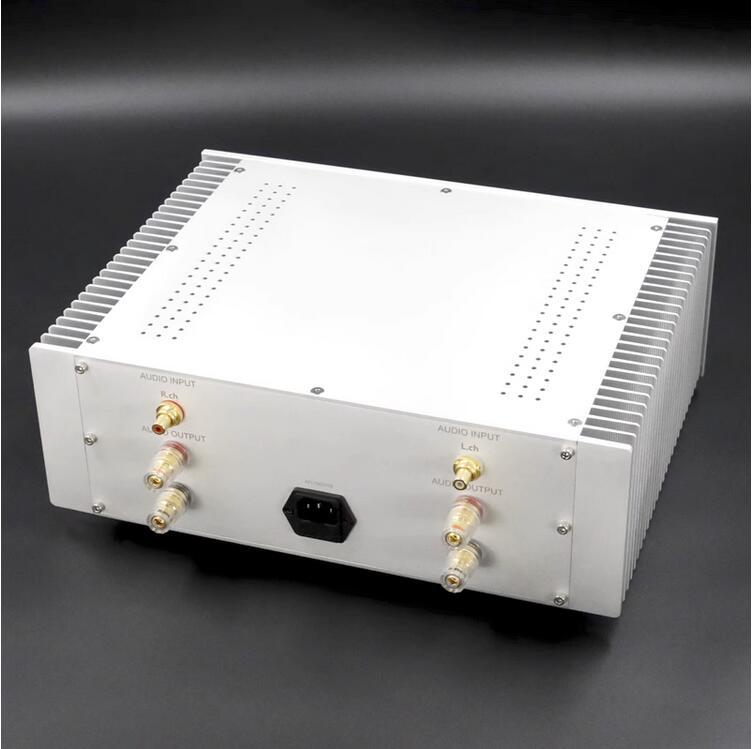

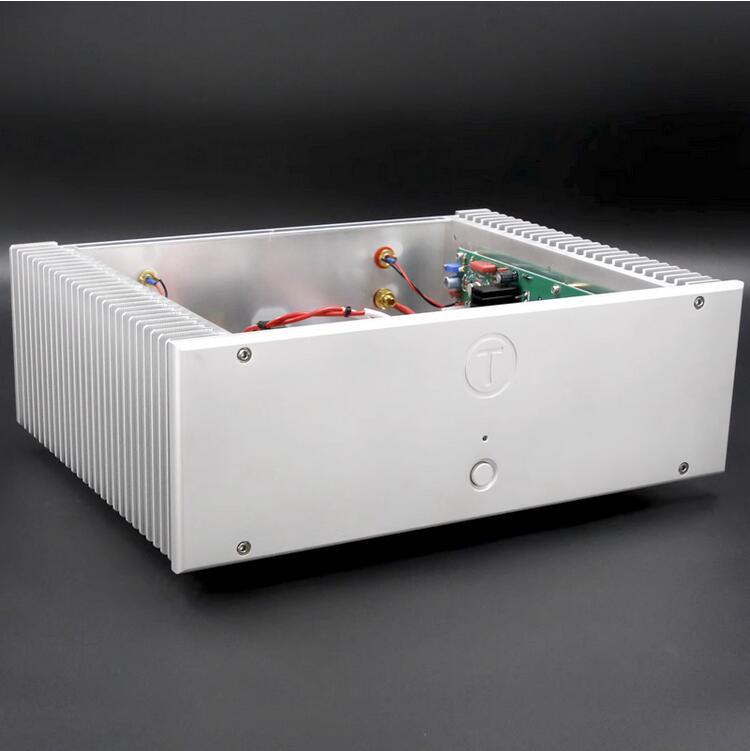

Complete reproduction of Sugden A21 famous Class A power amplifier.
Single ended Class A OTL circuit
Perfect horn protection.
All aluminum chassis external radiator.
he left and right sound channels of 300W Nippon Steel transformer are supplied separately.
Four 50v10000uF electrolysis.
4 precision paired Sanken C3284 transistors.
Product Parameters :
Output power: 23 watts * 2/8 Ohms, Class A power amplifier
Static current: 800mA
Power amplifier size: 360*275*120mm, excluding the foot and the terminal post at the back
Machine weight: about 8kg
Magnification: 22.7 times
Static power consumption: 98W, 1 KWH in 10 hours
Output noise: 0.4mV
Output distortion: 0.004%
Heat dissipation temperature: The main heat sink is 32 ° C and the ambient temperature is 12 ° C
Packing list:
1 × A21 Pure class A Amplifier
Without Power Cable
