2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum

SKU:
L20 200W amplifier board
0.0 (0 Reviews)
6 Sold
$0.00 $43.00
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • version:
    L20 Amplifier board

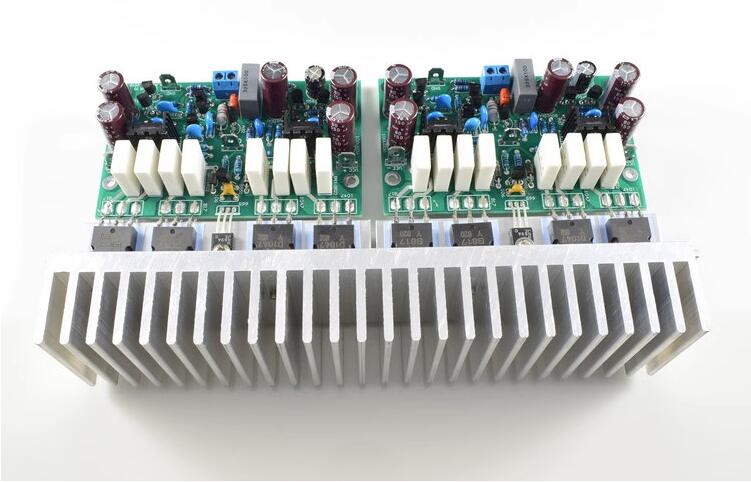

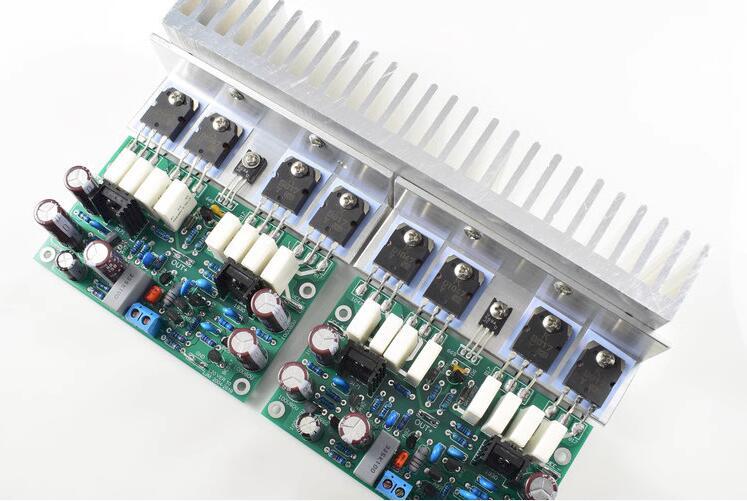

    Supporting heatsink
Quantity:
-
+
Add to Favorites (1)
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
1/1
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • 2CH HI-END L20 VER 10 Stero finished power amplifier board 200W 8R With angle aluminum
  • Description
Product details:

Using military grade 2mm thicker type FR4 PCB, 75UM thick copper, To ensure the quality and reliability, and durability. Using original KEC power tube. Each channel by the 4PCS high power tubes composition. Use japan Original ULTRA LOW ESR series low internal resistance electrolytic capacitor.
       This is an ultra-low distortion power amplifier, Support 200W 8 ohm output power.



Parameter:

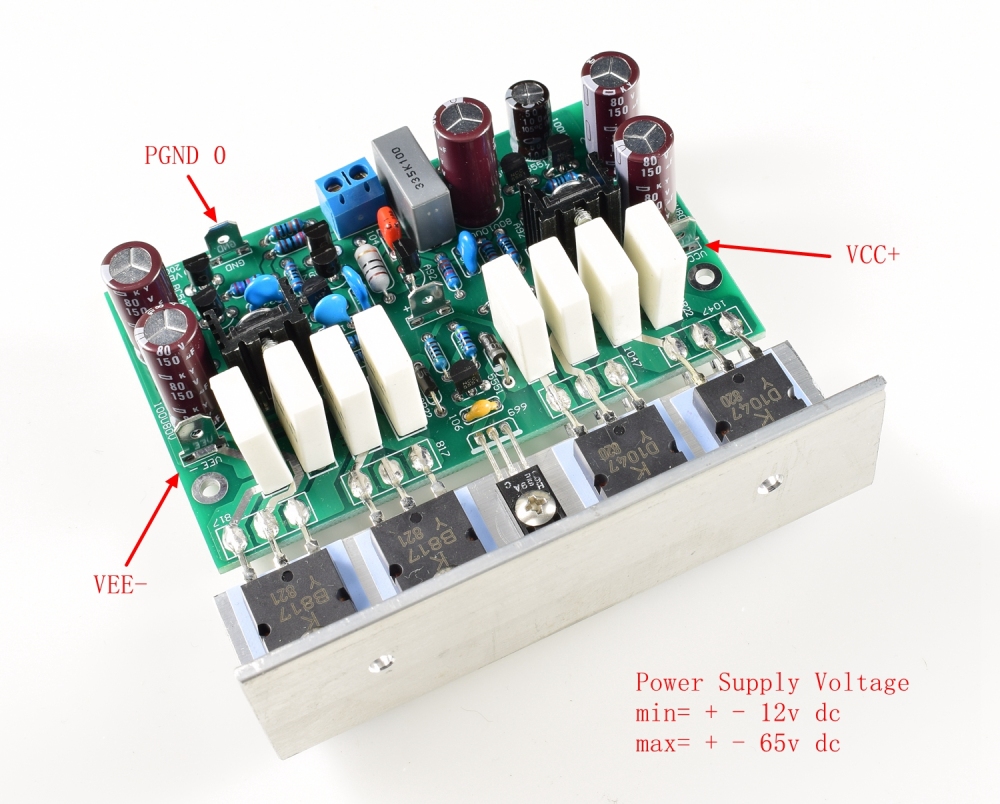

Input voltage: DC +/- 12V - +/- 65V
Output Power: 200W8R +/- 65V
                        300W4R +/- 55V
                        350W4R +/- 60V

THD +N< 0.0015% 50W 8R

THD+N <0.003% 50W 8R 20HZ-20 KHZ

THD+N <0.002% A weighting

Voltage gain: 34 times

DC output voltage: <15MV

Maximum output current: >15A

Damping factor: >2000

SNR: >99db

Voltage gain: 31 times

Input Sensitivity: 1.9V (Output Power 200W 8 R)

SR: =30V/US

Static current: Mono total value of about 55mA

Frequency response: =10HZ - 100K HZ +/- 3DB (20HZ-20K HZ +/- 0.5DB)

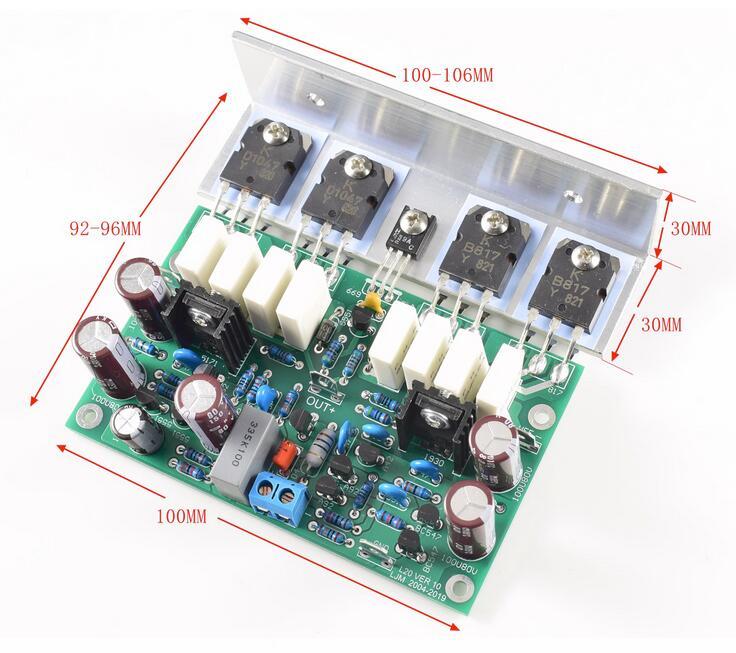

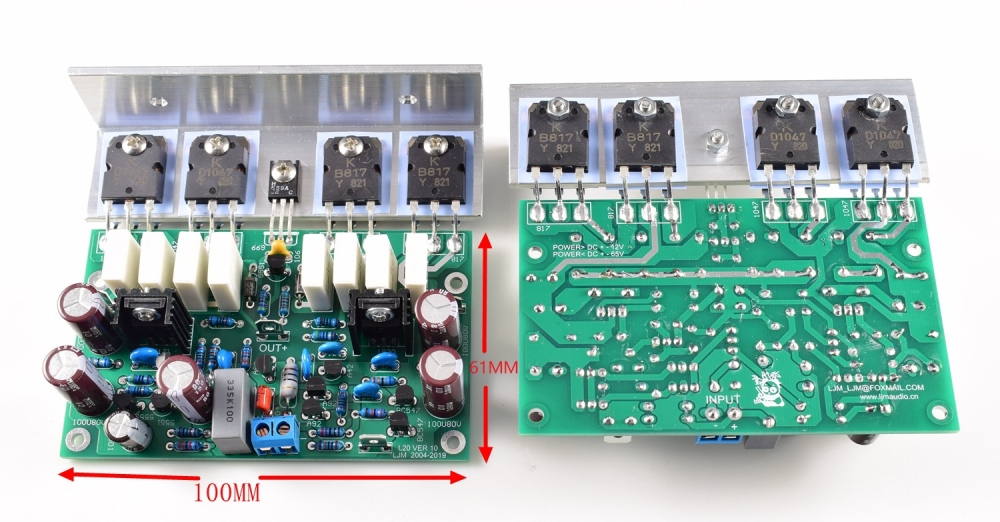

Size: 106mm*96mm*30mm (L*W*H)



Package List:

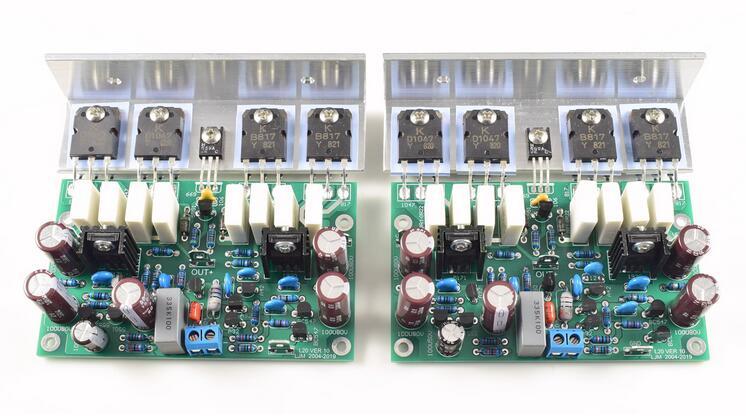

L20 amplifier board X 2(This price includes angle aluminum and does not include heatsink)
