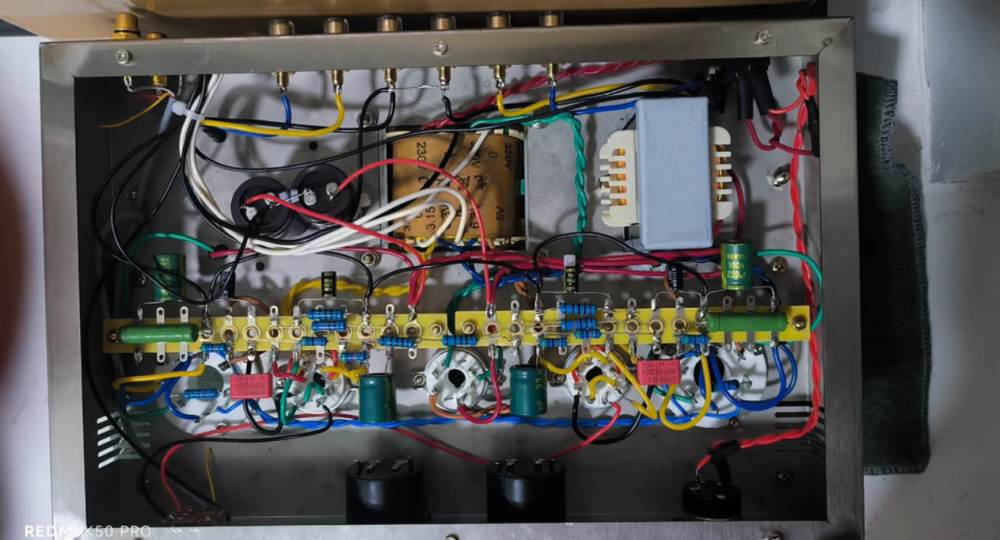

The machine uses extremely cumbersome and laborious manual point-to-point welding. But music enthusiasts know that point-to-point welding has a low failure rate and good sound,
The product parameters are as follows:
Power transformer: 96 * 60 185W super large battery, brand new special grade chip * 1
Output transformer: 66 * 35 fever 3+2 winding method, brand new inventory imported 0.35 Z11 pieces * 2
Choke: 57 * 25 4H brand new special grade piece * 1

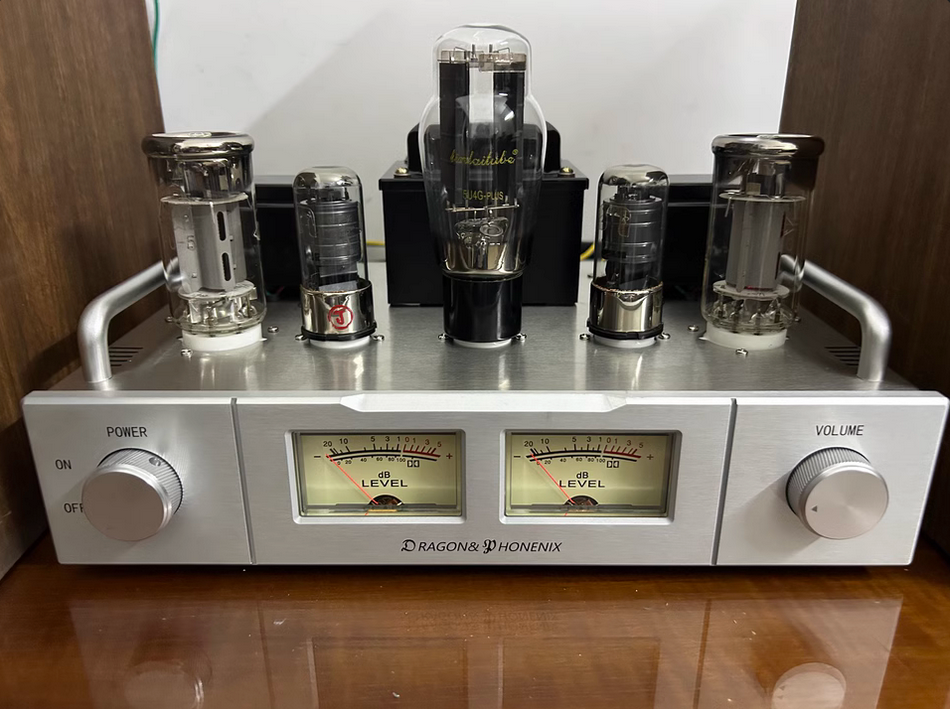

Electronic tube: 6J8P * 2/FU50 * 2/5U4G * 1
Output power: 8W+8W
Frequency response: 20hz-20khz
Output impedance: 4 ohms and 8 ohms
Signal to noise ratio: 90dB
Input sensitivity: 500mV-1000mv
Input impedance: 100k Ω
Harmonic distortion: 1% (1kHz)
Volume size: 320mm (length) * 210mm (depth) * 160 (height)
Weight: Net weight approximately 10KG

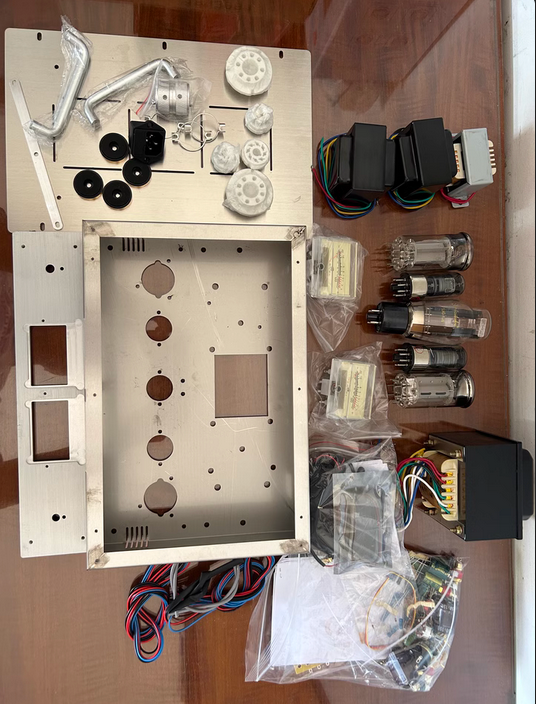

1. Due to the special nature of the kit, our store will also provide drawings. If you find DIY difficult, you can take photos of our finished products. This biliary machine is fully manual point-to-point welding,
2. Our store sells DIY products, which are difficult to achieve perfection and cannot be extremely perfect. If you have any opinions or suggestions, please contact customer service,
3. This bile pump does not include power and audio cables
4 . The vacuum tube amplifier must be connected to the speaker before being powered on, because the output transformer carries a load, otherwise it is very easy to burn out the output transformer!
Standard version

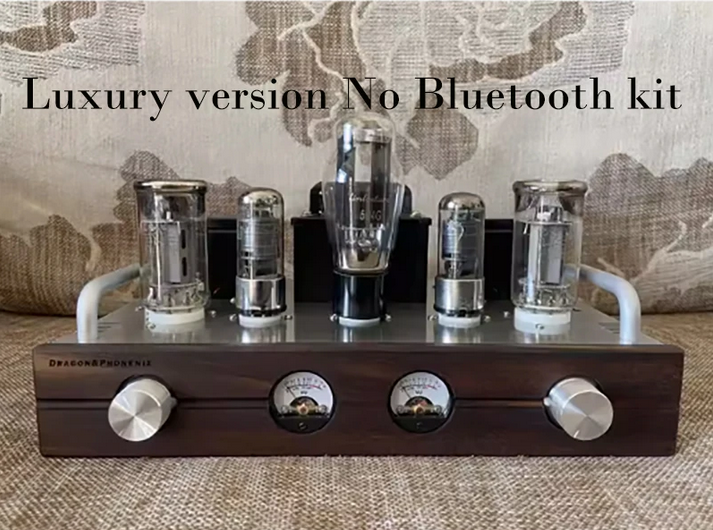

luxury version
Square header type
