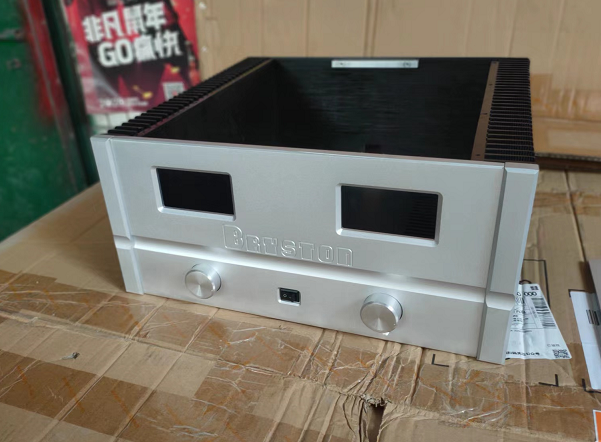

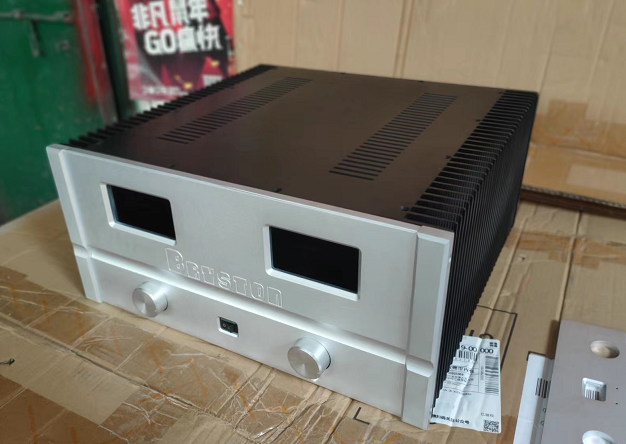

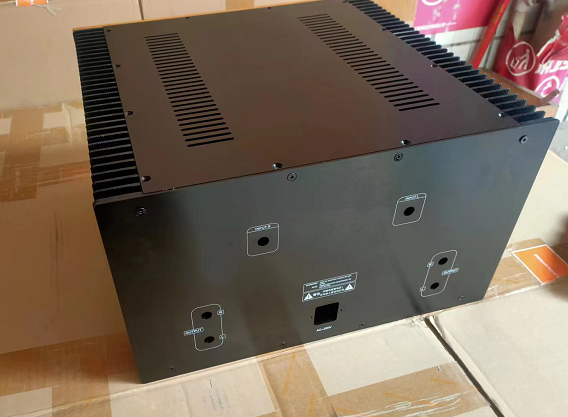

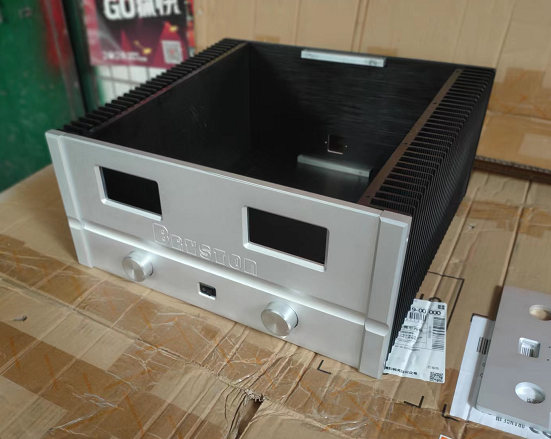

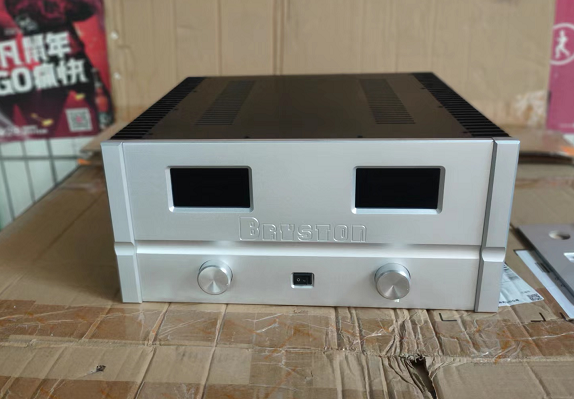

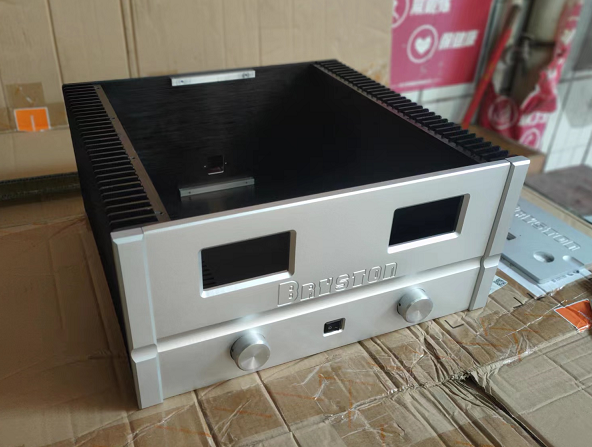

430*200 full aluminum alloy Class A amplifier chassis DIY HI-END Audio Amp Case Suitable for installing Bryston circuits

Product Details:

External dimensions: Width 430MM * Height 200MM * Depth 343/443MM

Internal dimensions: Width 330MM * Height 194MM * Depth 300/400MM

Front panel material thickness: 8MM

Back panel material thickness: 3MM

Upper and lower cover material thickness: 3MM

Unilateral radiator size: Width 195MM * Thickness 50MM * Depth 300MM, Net weight about 3.2KG Substrate thickness: 10 mm

Unilateral radiator size: Width 195MM * Thickness 50MM * Depth 400MM, Net weight about 4.2KG Substrate thickness: 10 mm

Package list:

1 × Aluminum case

1 × Power outlet

2 × Knob

1 × Power switch

1 set × Rubber machine feet
