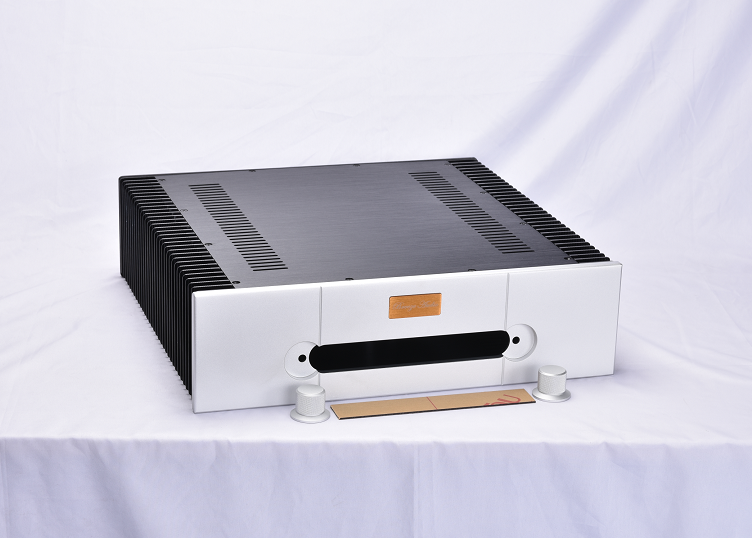

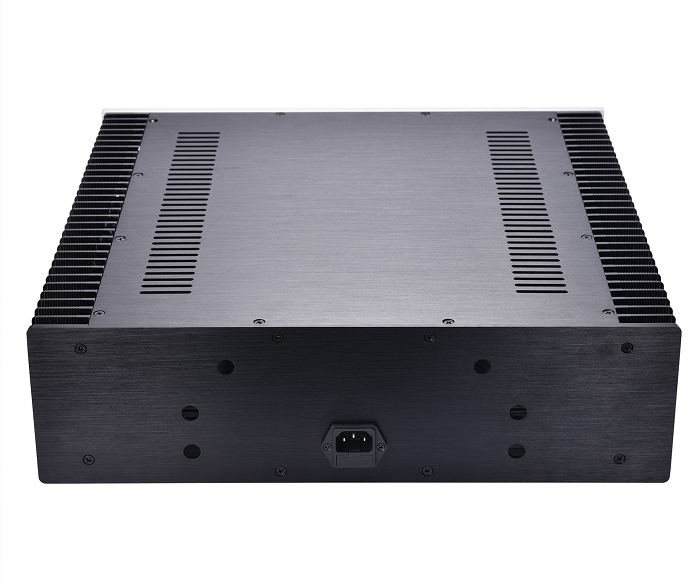

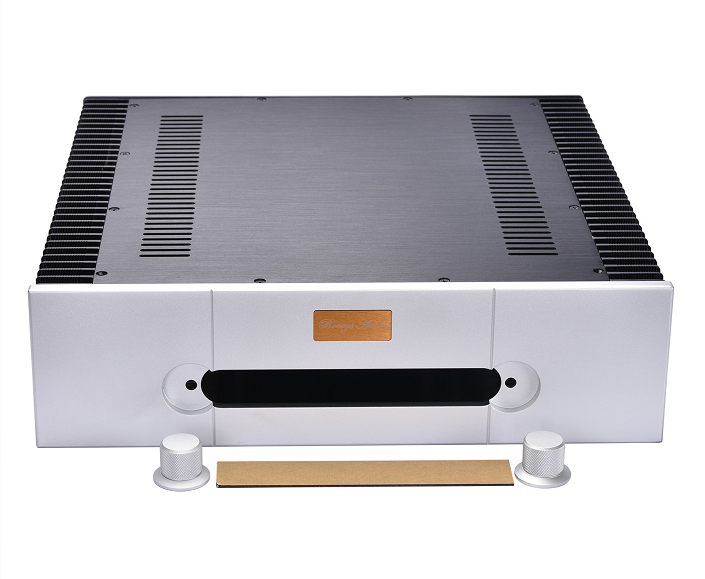

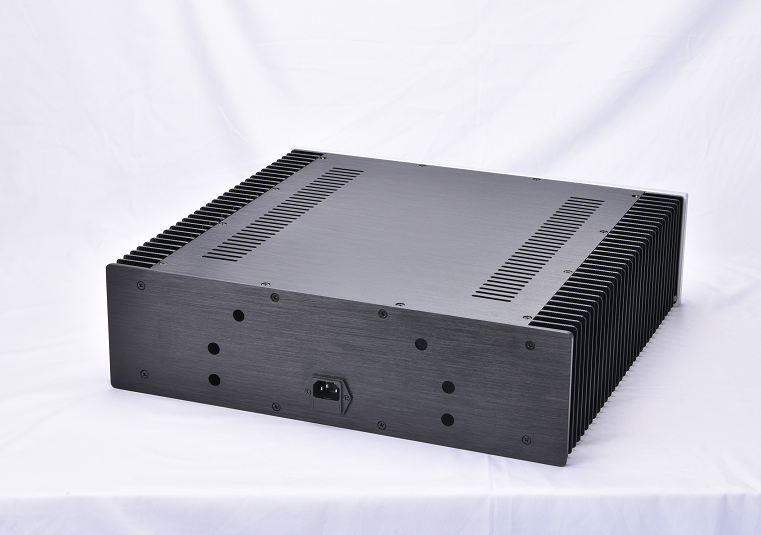

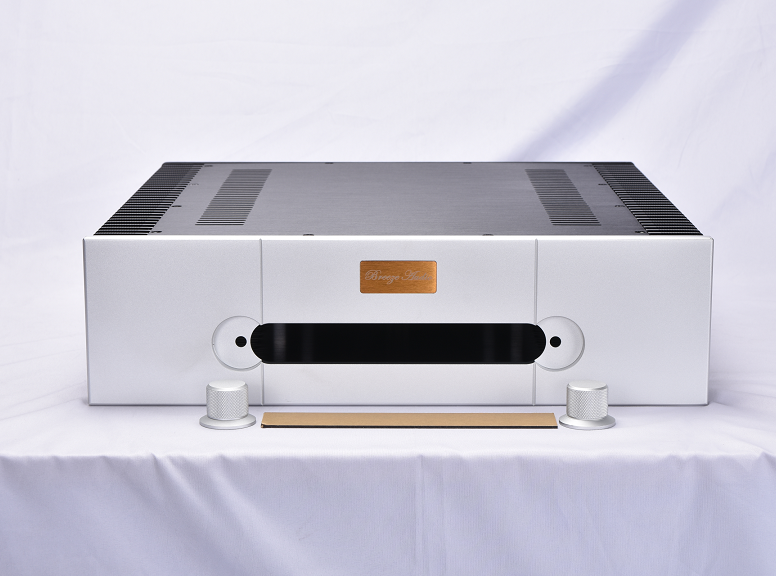

4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink

SKU:
Limited Offer!
5.0 (1 Reviews)
6 Sold
$99.00 $91.08
-8%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • version:
    300 Depth
    400 Depth
Quantity:
-
+
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
1/1
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • 4312 Full aluminum DIY chassis power amplifier chassis class A enclosure PSU box side heatsink
  • Description

List:

Enclosure X1

Feet X4

Knob x 2

Acrylic x1

Power socket X 1

Supporting screw

Not include : not include RCA , terminals ,power cable,switch and potentiometer

300mm depth size:

External dimensions: width 430mm Height 120mm Depth 313mm

Internal dimensions: Width 330mm Height 112mm Depth 300mm

Material thickness:
Panel thickness: 10 mm
Rear panel: 3 mm
Upper and lower covers: 3 mm
Radiator size: 50x300x115mm, substrate thickness: 10mm
Package weight:8.5kg

400mm depth size:

External dimensions: width 430mm Height 120mm Depth 413mm

Internal dimensions: Width 330mm Height 112mm Depth 400mm

Material thickness:
Panel thickness: 10 mm
Rear panel: 3 mm
Upper and lower covers: 3 mm
Radiator size: 50x400x115mm, substrate thickness: 10mm

Package weight:12kg
