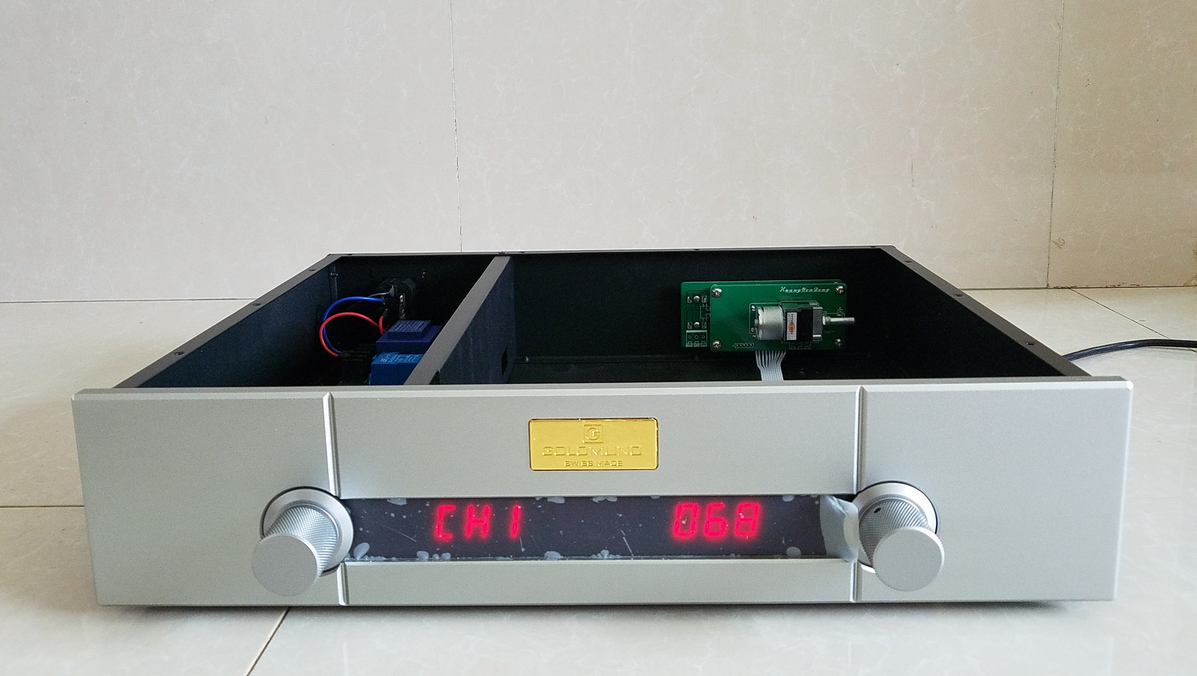

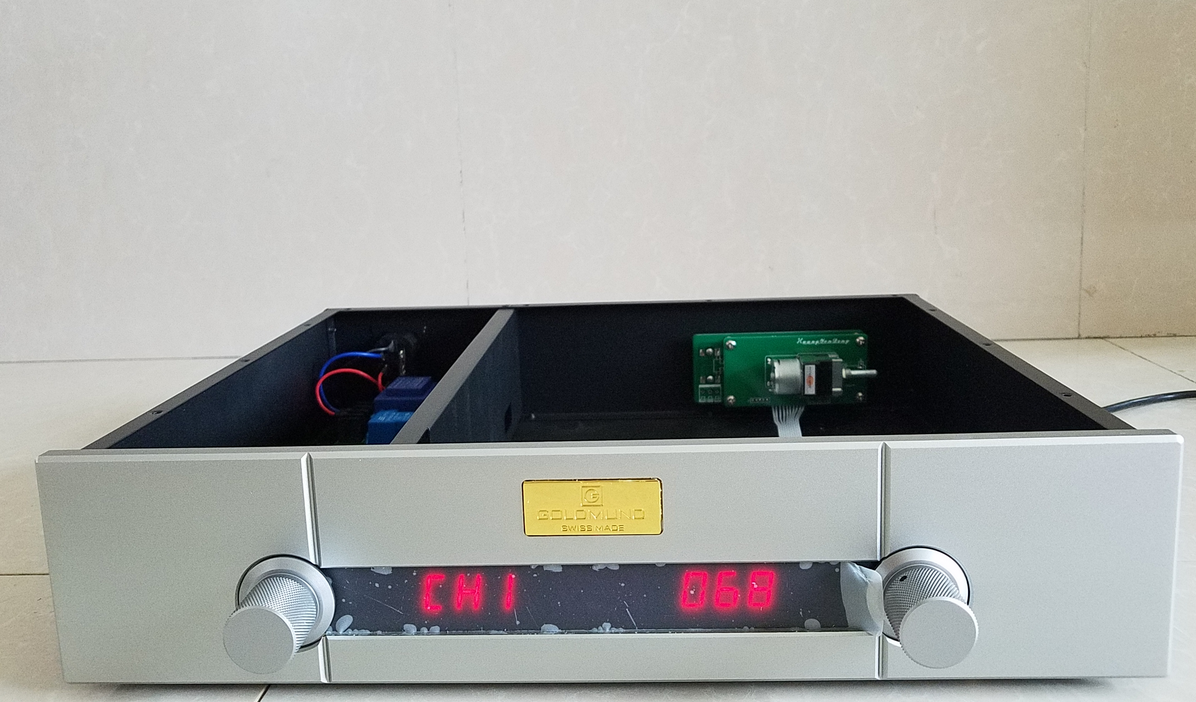

Product Details:
External dimensions: width 430mm height 95mm depth 340mm
Internal dimensions: width 420mm height 85mm depth 330mm
Front panel color: silver

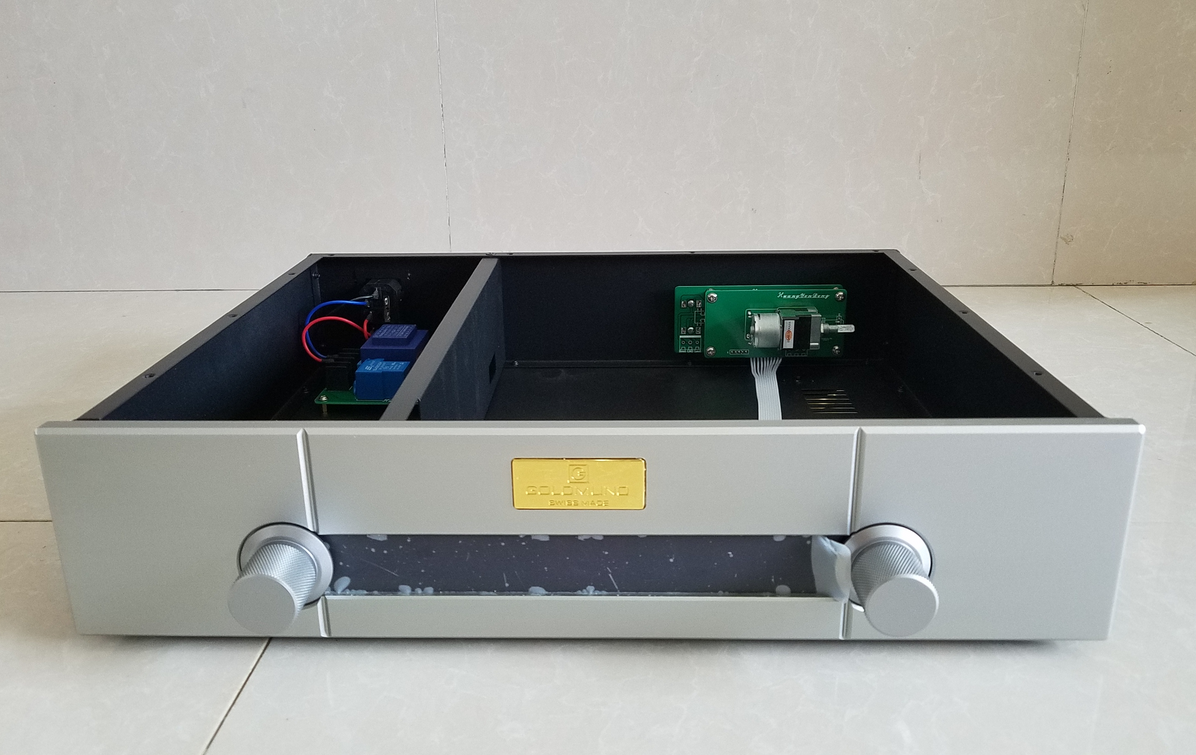

The middle rough board is divided into 140 wide by 330 deep; 280 wide * 330 deep two zones
There are heat dissipation holes on the top cover
The distance from the center of the knob to the side panel is 85mm
Lens specification: 217MM * 28M
Inner diameter specification: 80MM * 20MM (two rectangular holes)
Weight:about 6.5kg

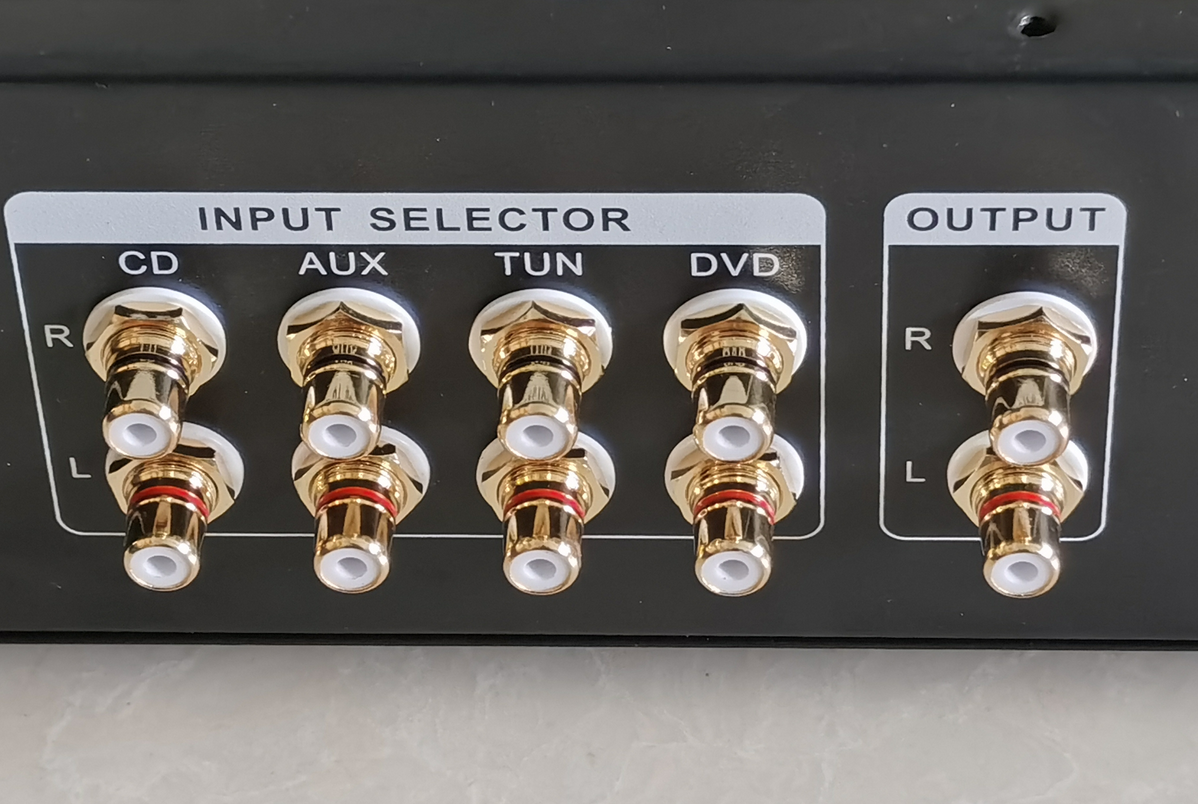

The remote volume control panel adopts the Japanese ALPS PK168 electric potentiometer, with 100 levels of control, 4 sets of input selection, and 1 set of audio output.
Pure copper gold-plated RCA
1 . Remote volume control panel with audio output mute function.
2 . The remote volume control panel has a power-off memory function, which means that it can return to the state before the last shutdown every time it is turned on.
3. The remote volume control panel also has a one click return function, where users can freely set the return volume. That is, no matter where the current volume is adjusted, simply press the one click return button to return to their set volume (press the settings button on the remote control, the volume display screen will flash, then press the volume button to set the desired volume, and then press the settings button to save)
4. Function of the chassis panel knob: Press the left button to enter the power switch, and rotate the audio input selection left and right. Press the right knob to mute and turn the volume left and right.
Package List:
1 × Amplifier chassis
1 × socket
1 × Acrylic sheet
2 × Knob
4 × Rubber feet
1 Set × Remote control circuit

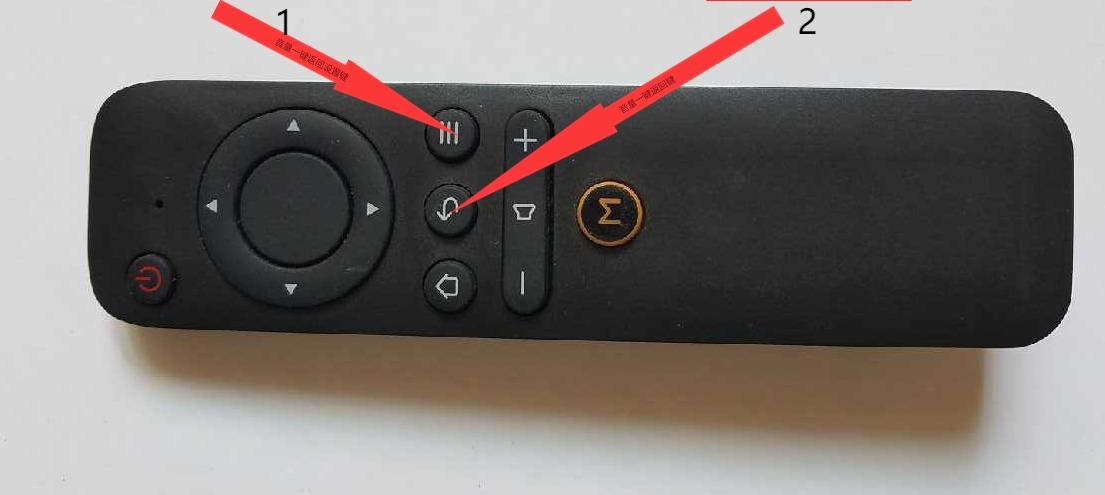

1. One click volume return setting button
2. One click volume return button
