480M Gold Brick - Flagship USB Isolation Data Reorganization TCXO Crystal for HIFI DAC

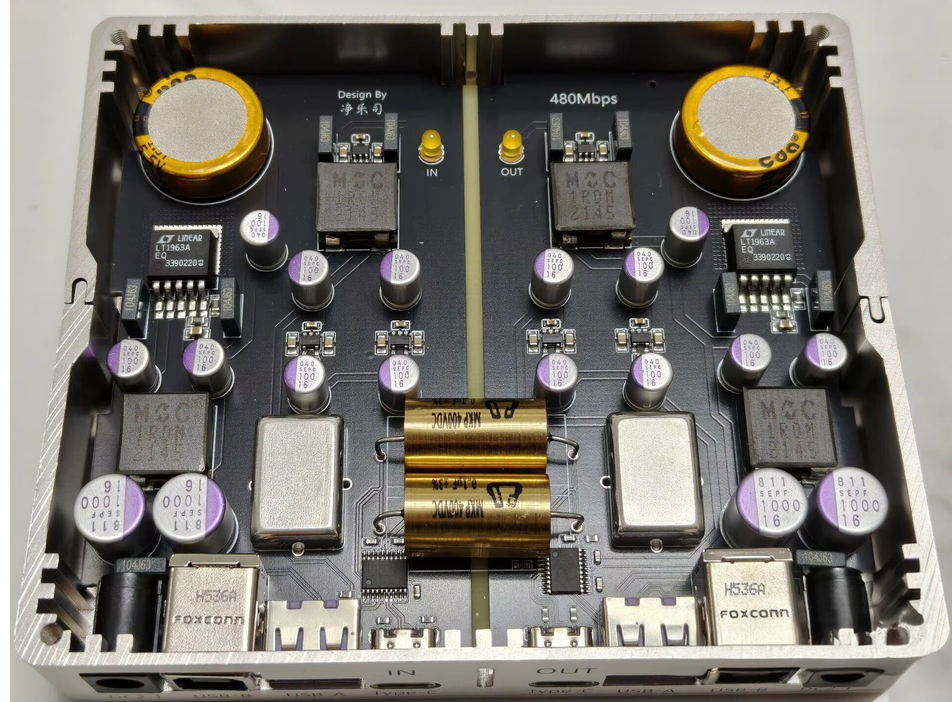

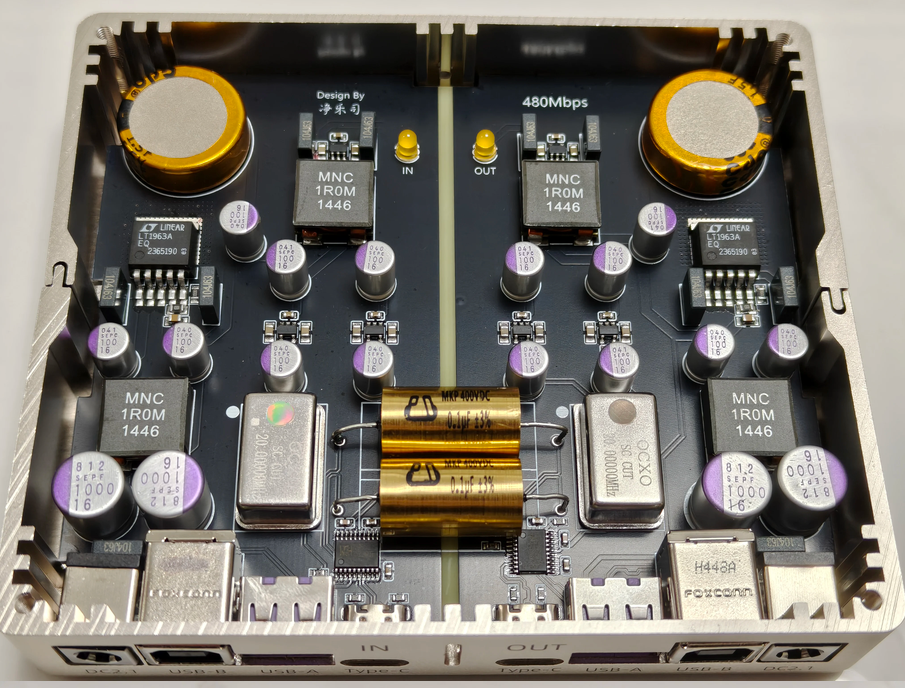

Big Gold Brick - Flagship level USB isolation+data restructuring, USB washing. The speed is 480M and supports full interface input/output. The model is a large gold brick, with completely isolated input and output terminals. Two TCXO crystal oscillators with an accuracy of 0.1ppm were used in the design, one for each upstream and downstream, for data restructuring. At the same time, both upstream and downstream are designed with external power supply, supplemented by a fully Sanyo solid-state multi-stage filtering architecture and multi-stage LDO linear voltage regulation, to achieve the ultimate power supply. The isolation chip adopts ch318t, which supports custom isolation capacitors and has strong playability. Here, two MKP metal thin film capacitors were used as data bridges, which resulted in extremely high sound separation and a very clean background. The improvement was like switching to a new decoder, without exaggeration. Not compressing dynamics, significantly improving separation and resolution, with a deep background. Welcome to listen!



Various innovative technologies are as follows:

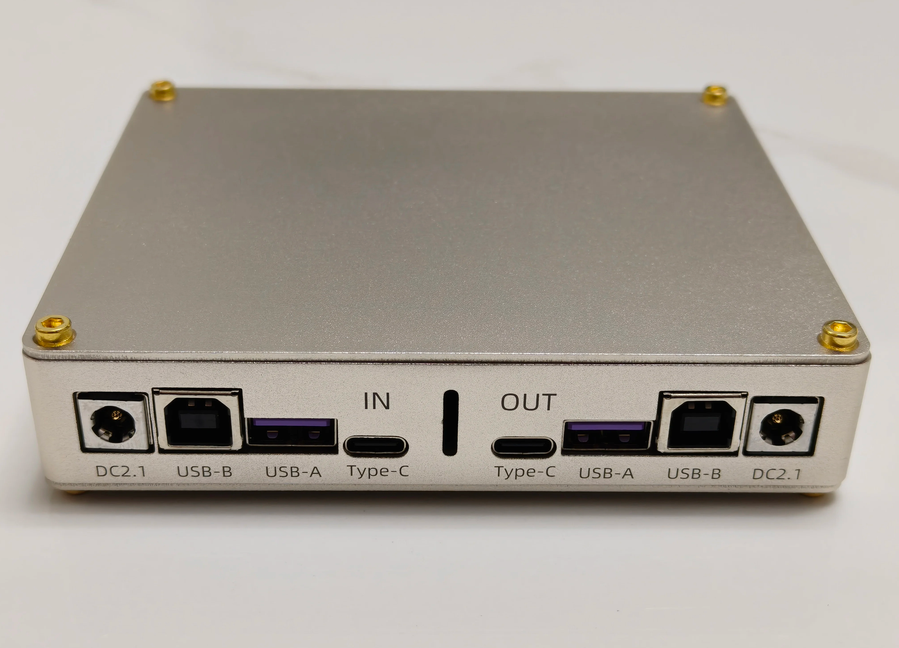

1. Supports TypeC, USB-A, USB-B interfaces for arbitrary input/output. Can be used as an adapter.
2. The clock crystal oscillator adopts a customized TCXO temperature compensated crystal oscillator with an accuracy of 0.1ppm.
3. Dual power supply design, completely eliminating USB power supply.
4. Fully isolated design, MKP capacitor isolation.

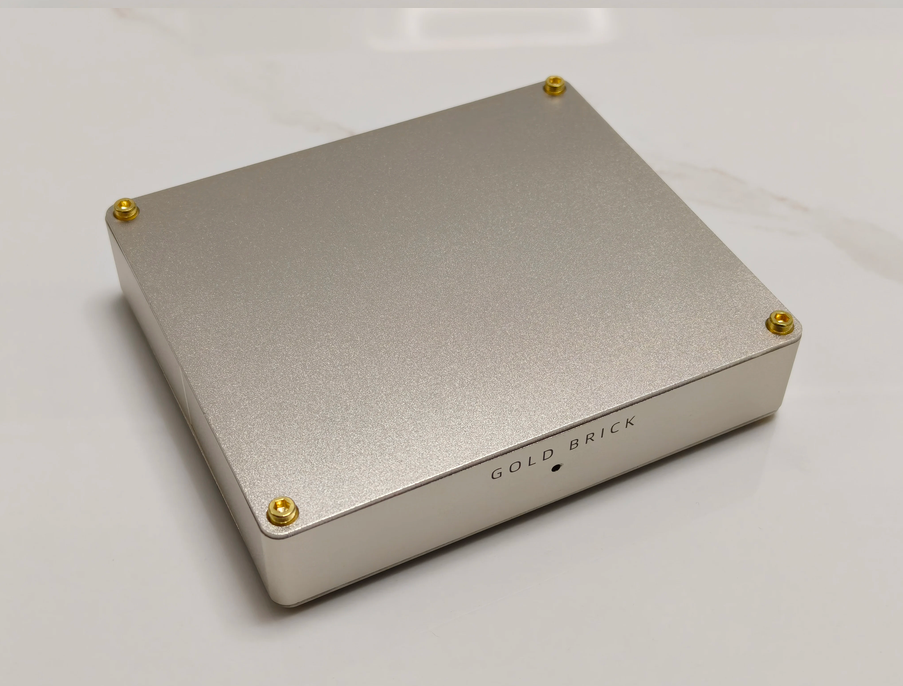

5. The all aluminum alloy shell completely shields electromagnetic interference.
Can solve:
1. Audio interference caused by graphics card operation.
2. The noise caused by USB during sound card recording.
3. Noise introduced by HiFi decoder connected to USB port.
4. Data restructuring improves sound quality with significant effects.
5. Connect the IN end to the computer and the OUT end to decode.

The product includes:
One big gold brick.
One Thunderbolt 5 high-speed gold-plated data cable.
