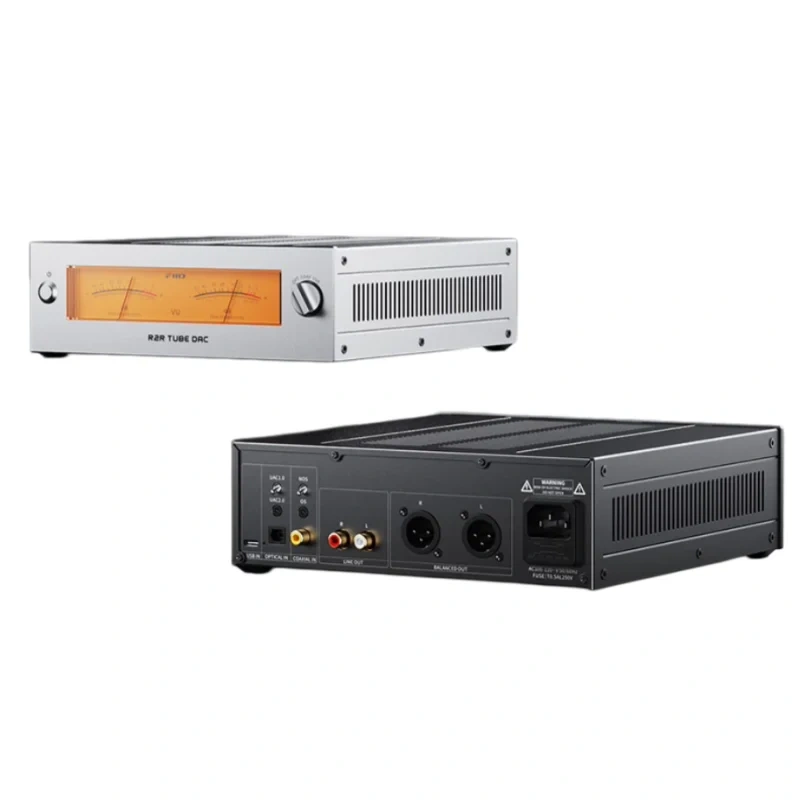

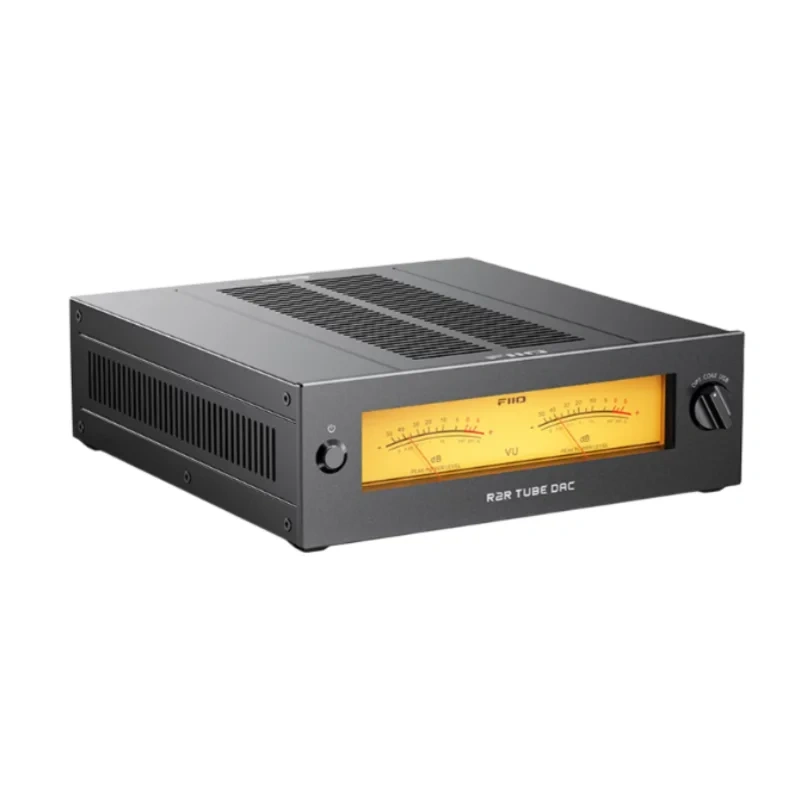

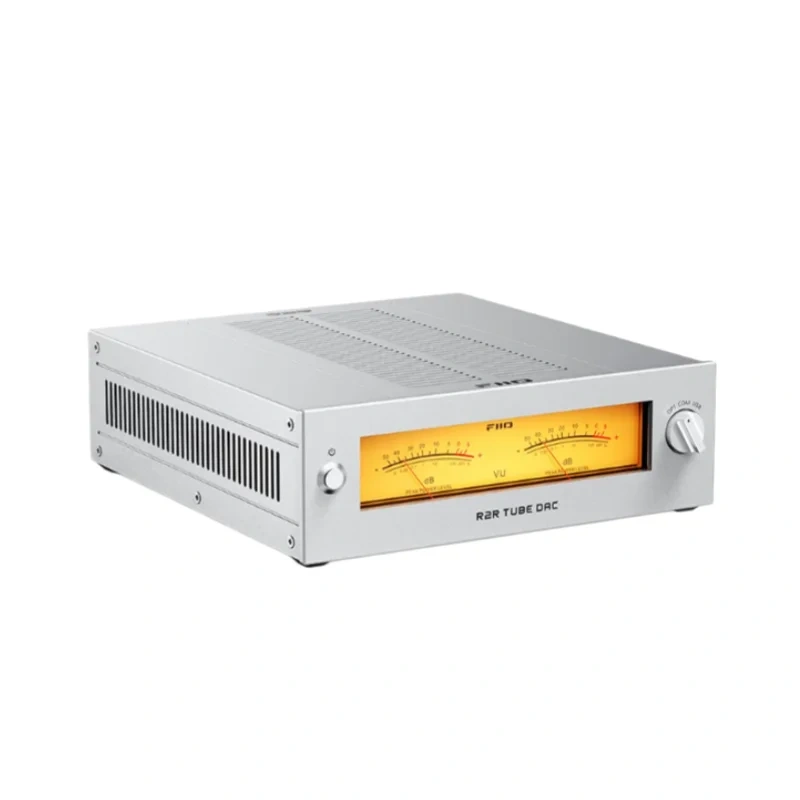

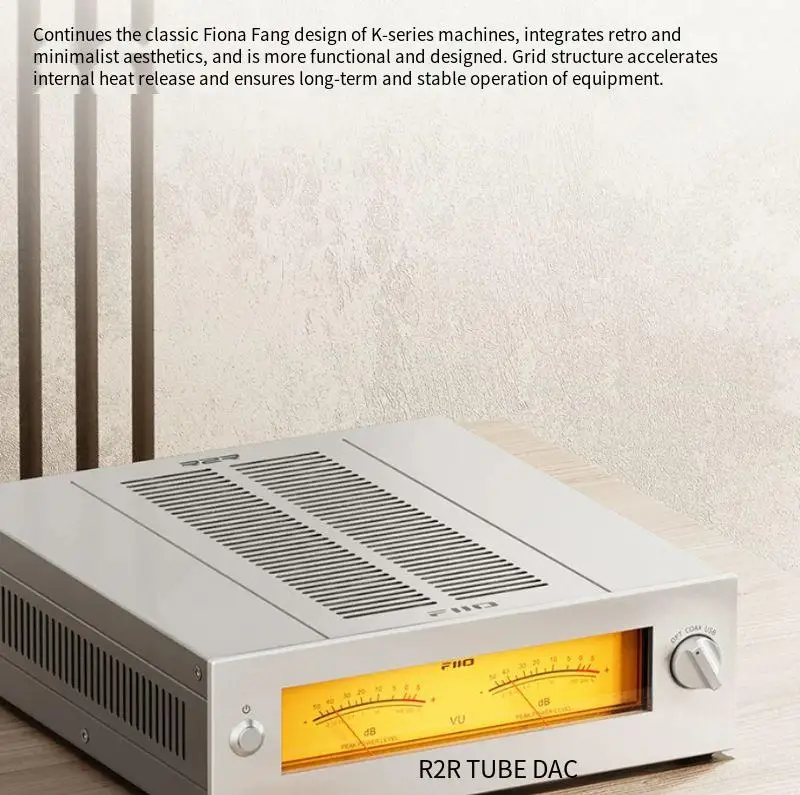

FiiO WARMER R2R Desktop Tube Pure Decoder for Mobile PC, Warm Sound DAC

FiiO/ feiaobrand

modelWARMER R2R

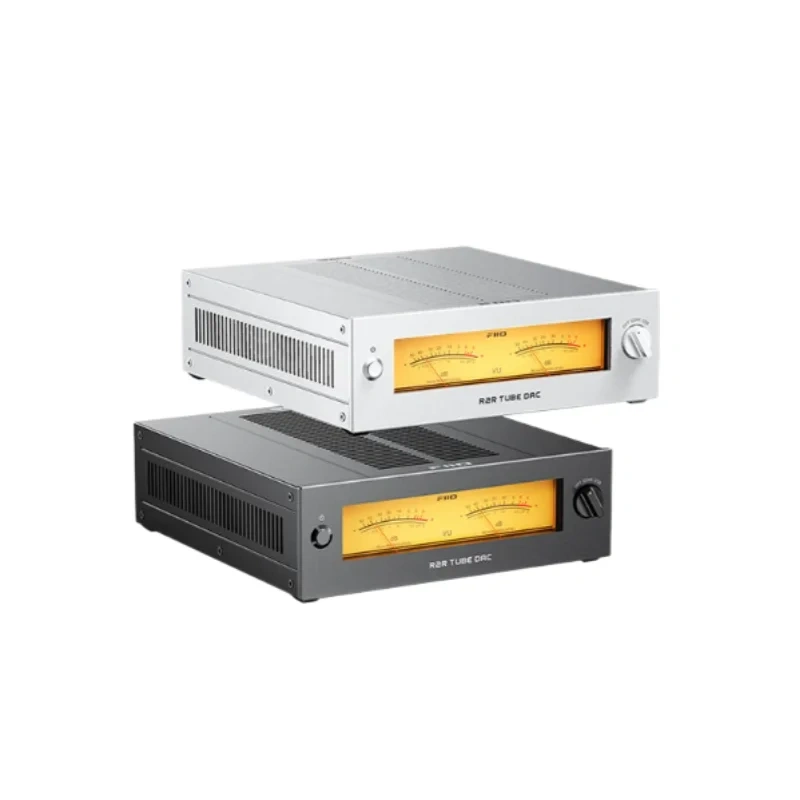

Color classification        [Silver -220V]   [Black -220V]

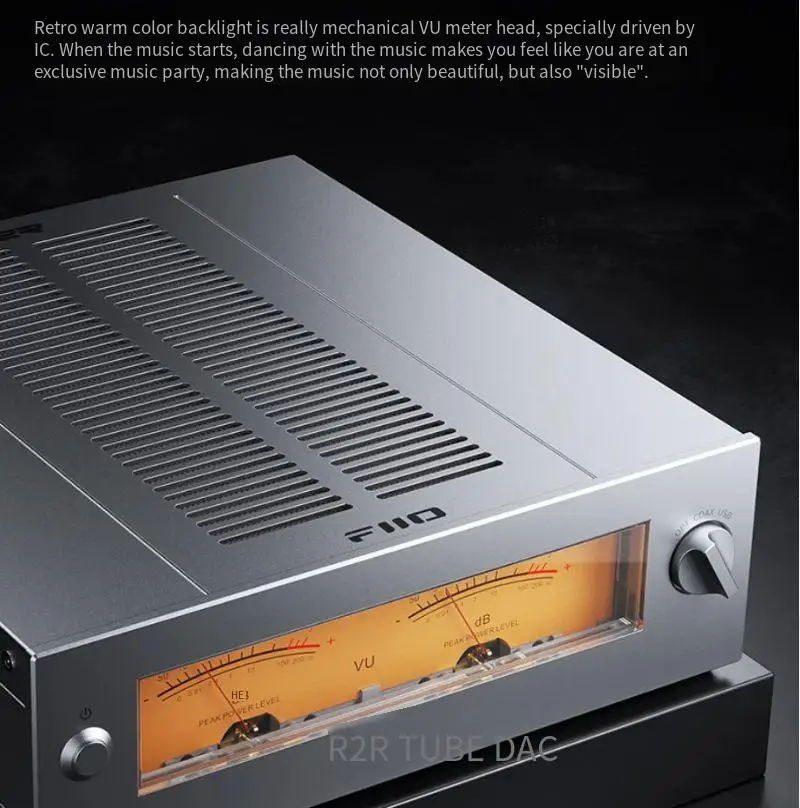

Screen: mechanical pointer VU table

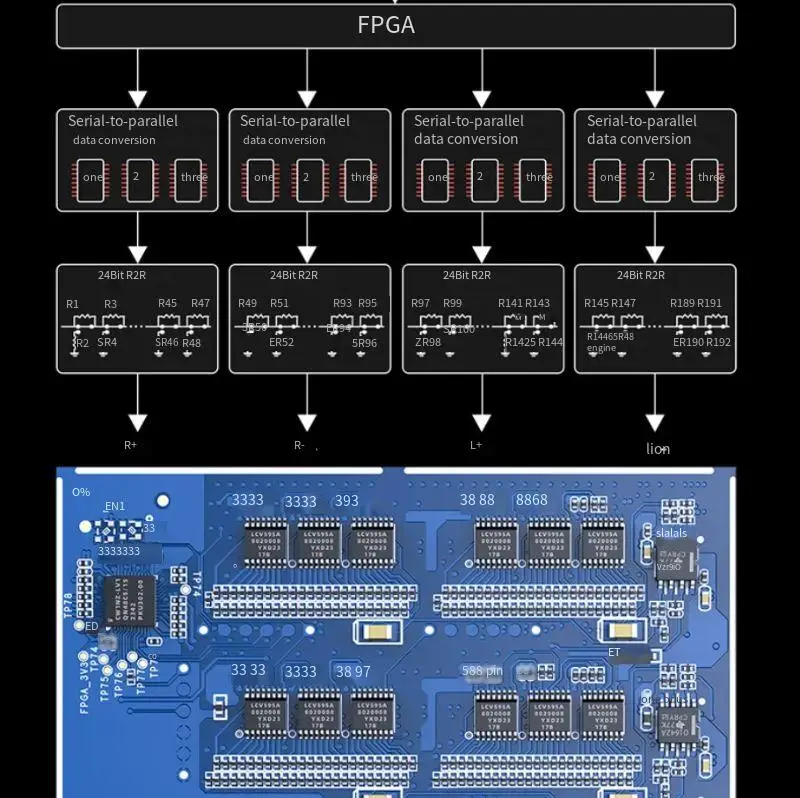

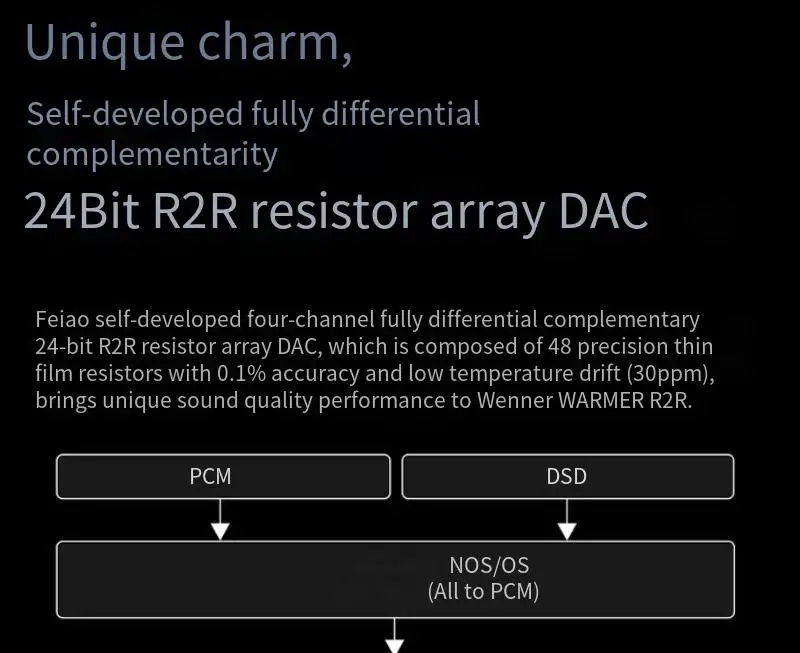

DAC module: fully differential complementary true 24Bit R2R resistor array.

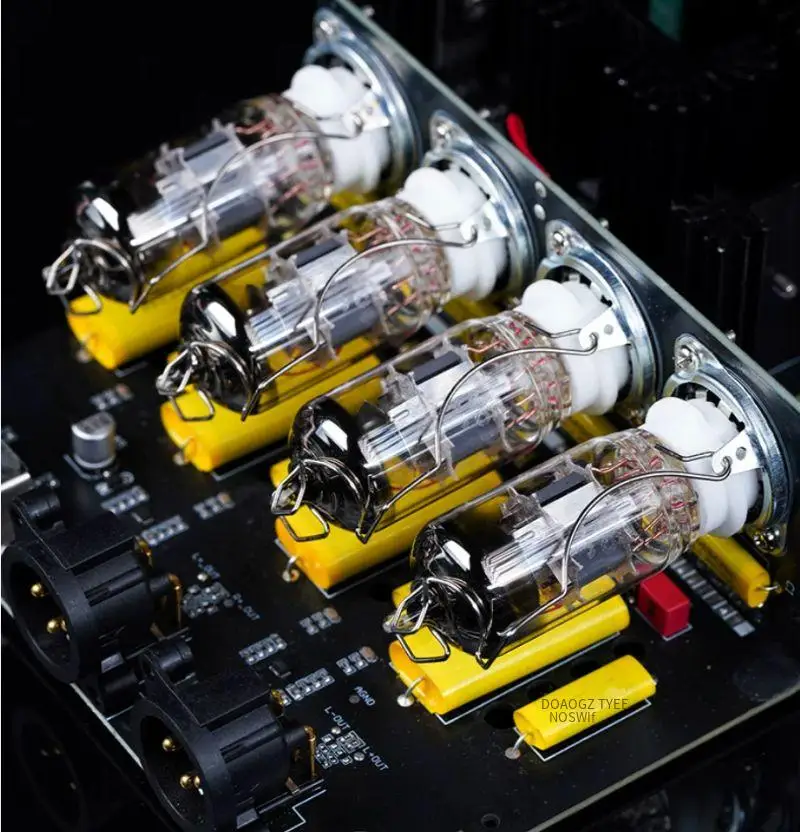

tube ：JJELECTRONICE88CC*4

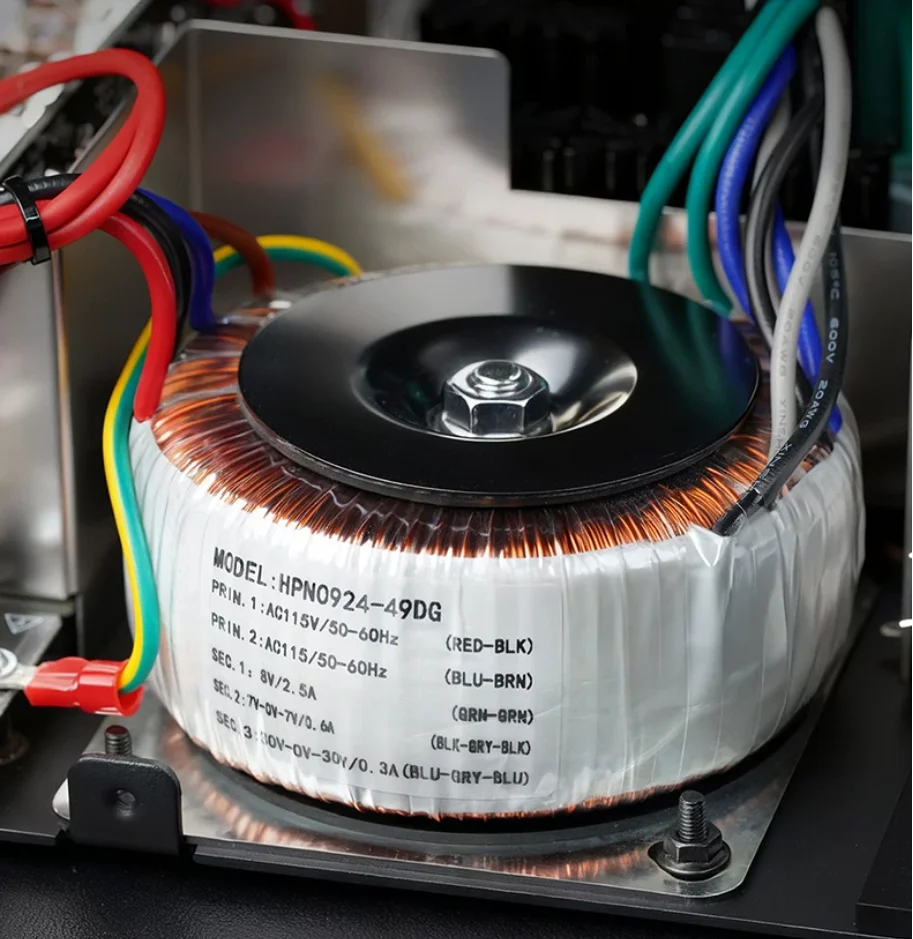

Linear power supply: 46W0 audio linear transformer.

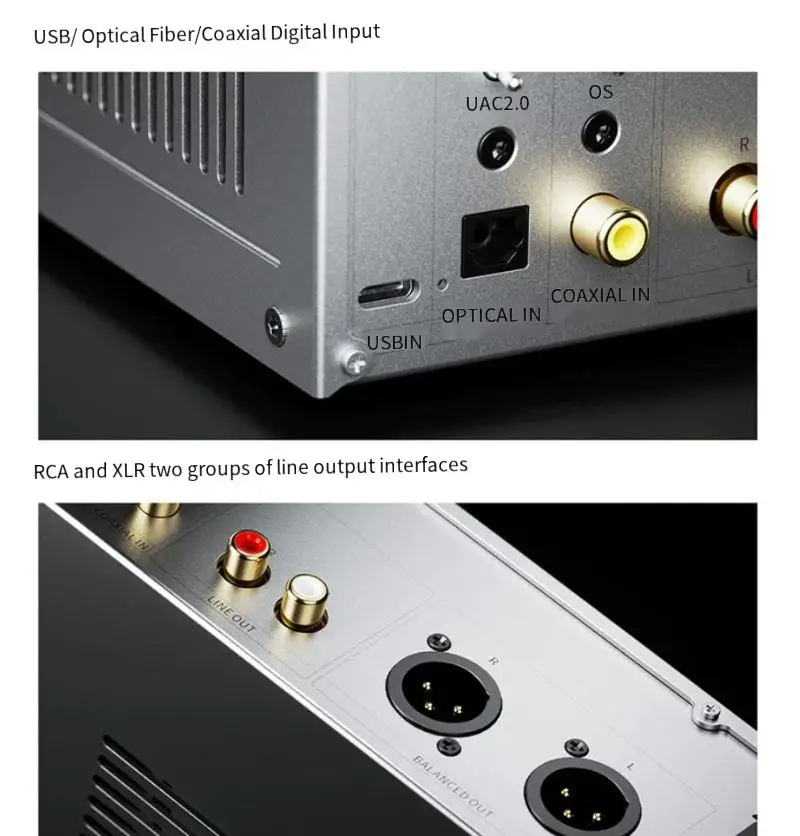

USB decoder：384kHz/32bit;DSD256

Coaxial decoding: 192kHz/24bit

Optical fiber decoding: 96kHz/24bit

RCA output：L+R21.8Vrms+1.8Vrms（1kHz@10KQ)

XLR output：L+R23.3Vrms+3.3Vrms（1kHz@10KQ)

Frequency response: 20 Hz ~ 45 kHz: attenuation < 2.4dB.

Signal-to-noise ratio: 2114dB(A weight)

Noise floor: ≤7uV(A weight)

THD+N：about 0.053%(1kHz/-7dB@10KQ)

Three-dimensional size: about 223.5×213×66.8mm (including machine foot pad)

Weight: about 2865g
