【Features】
The signal source can use CD player and computer, mobile phone audio source
1 Use all AC filaments to light the lamp, and close to the horn with a sensitivity of 90DB, only to hear a little hum noise.
2

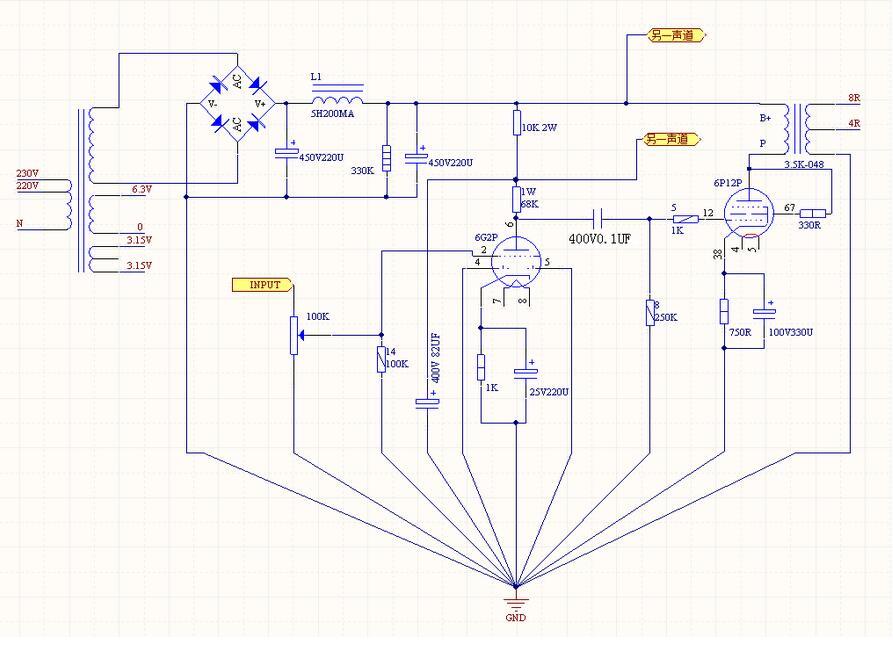

Adopt 6P12 class A amplifier circuit driven by 6G2P, output 6w+6w
power. It is suitable for speakers whose impedance is (4-8) ohm and
sensitivity is above 88db.
3 The volume potentiometer adopts Japanese ALPS 16 type potentiometer to ensure clear positioning and left and right balance.
4
Use metal film resistors and imported electrolytic capacitors with an
accuracy of up to 1%, and use the company's specially customized
thin-film TE capacitors for coupling. The power filter capacitor adopts
PHILIPS blue shell.
5 C (capacitor) L (5H 0.2A choke coil) R (resistance) C multi-stage filtering, high signal-to-noise ratio.
Output transformer model: OP864503
Power Transformer Model: 1055001
Choke Coil Model EI57X30 0.2A 5H
6 Standard electronic tubes: two Dawning 6G2P, two Shanghai 6P12
【Performance Specifications】

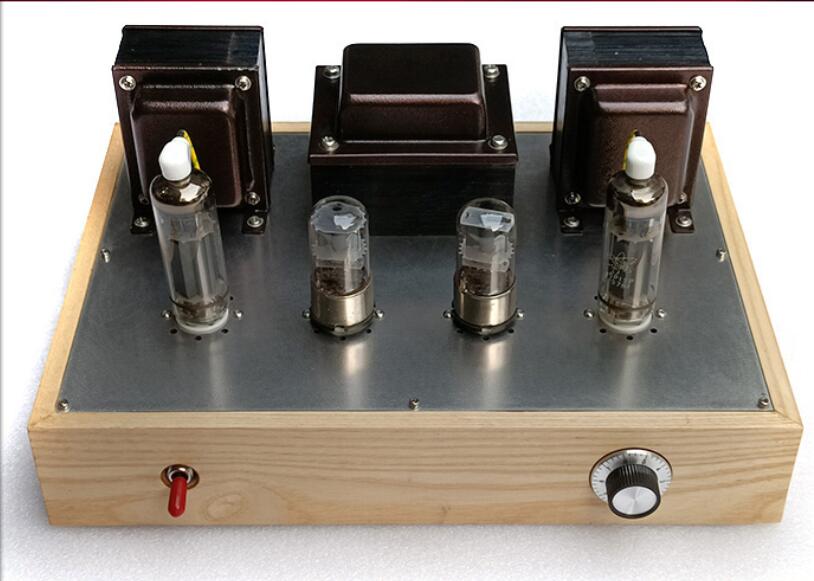

1. Full name of the product: 6G2P+6P12 vacuum tube power amplifier
2. Product color: ash log case.
3. Product weight: about 9.5kg
4.
Product size: width: 300mm height: 140mm depth: 250mm (including the
height of the tube, the depth does not include knobs and terminals)
【Product parameters】
Input: one RCA input, input impedance 100K
Output: Stereo 6w+6w, can be connected to 4 ohm or 8 ohm speakers
Frequency response: 20HZ-28KHz ±2db
Output Signal to Noise: >96dB "A"-wtd
Output THD: <0.5% 1W
[Voice description]
6G2P+6P12
tube amplifier, strong output power, wide dynamic range and rich
harmonics! The low frequency is strong and powerful, and the gall flavor
is strong.
[The
input voltage can be changed to 110V/115V/117V and other values of
voltage, please leave a message to explain the required voltage when
taking pictures, you need to add 30 yuan to change the voltage.
The
machine is an authentic pure tube amplifier, and the output transformer
is coupled between the tube and the speaker. The transformer parameters
of this machine are consistent and never cut corners.

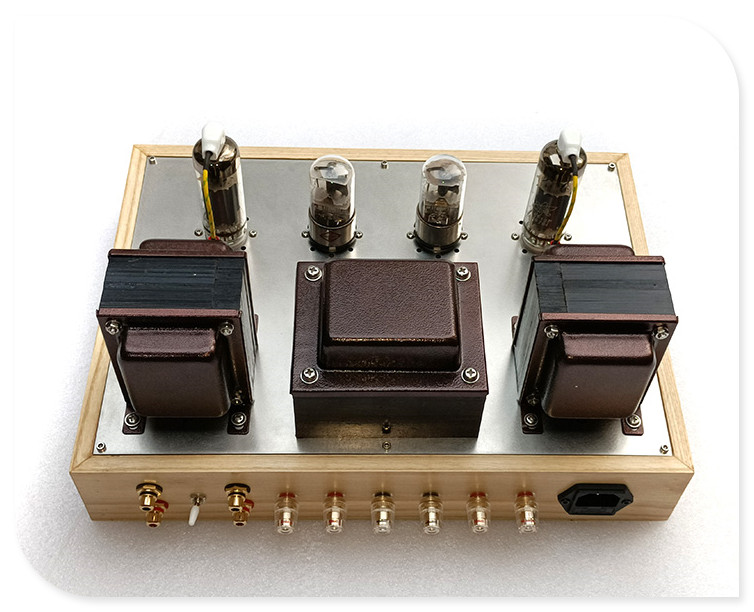

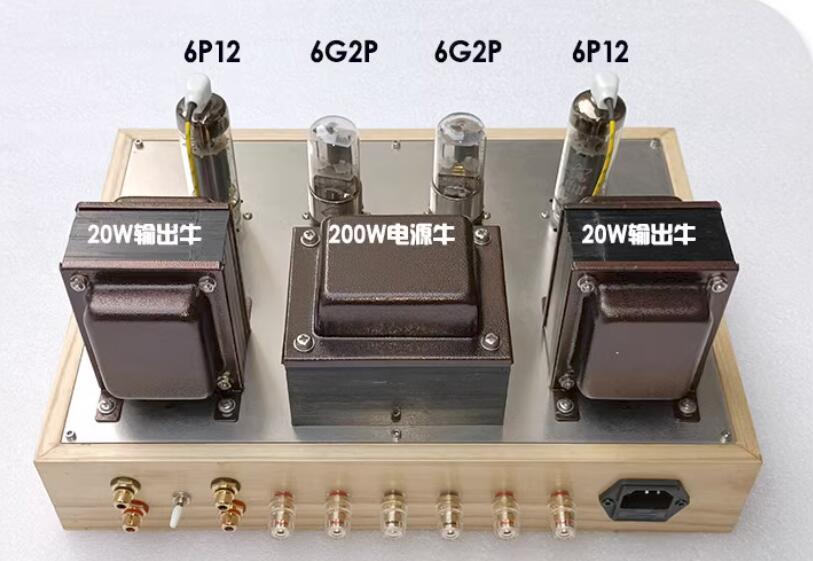

Number
of transformers: The authentic tube amplifier needs three transformers
(the big one is the power transformer, and the two small ones are the
output transformers). The output transformer is wound with a 3-clamp
2-winding method, and the iron core is made of a brand-new Z11 silicon
steel sheet with a thickness of 0.35MM from Japan. The magnetic
permeability of the Z11 sheet will be higher, and the low frequency will
be lower. Both the power supply and the output are made of high-purity
oxygen-free copper wire.
The rated output power of this machine is 6w+6w, which is equivalent to 30w+30w transistor power amplifier! )
For
safe mailing, our store adopts thick packaging, and the electronic tube
is also packaged separately. You can plug it in by yourself after
arrival
