6G2P+6P13 electronic tube amplifier, with strong output power, refreshing and natural sound quality, wide dynamic range, and rich harmonics.
Using all AC filaments for lighting, the noise is extremely low.

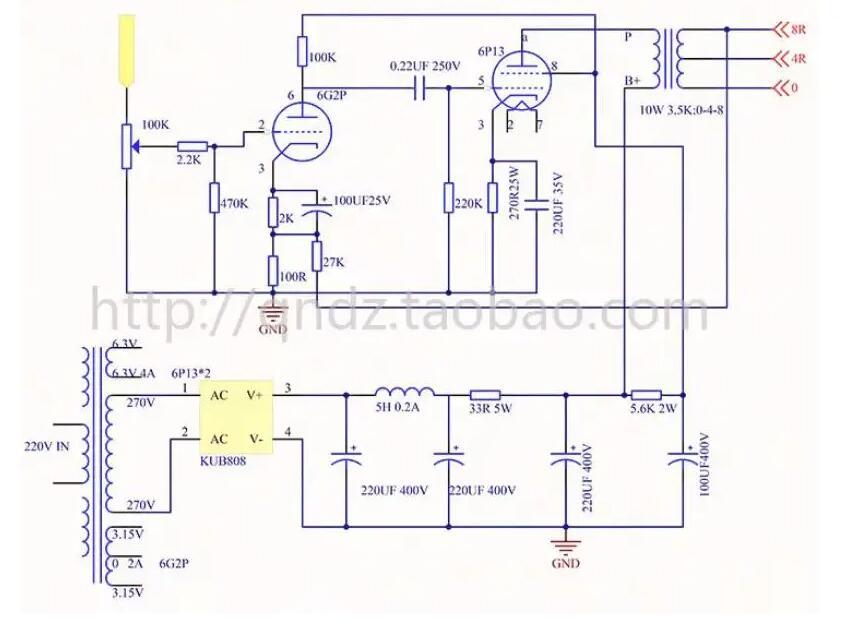

Using a single transistor 6G2P to drive a 6P13 Class A amplifier circuit, suitable for speakers with impedance (4-8) ohms and sensitivity above 88db.
Using Japanese ALPS 16 potentiometer to ensure clear positioning and left right balance.
Adopting metal film resistors with an accuracy of up to 1% and imported electrolytic capacitors.
Multistage filtering with high signal-to-noise ratio.

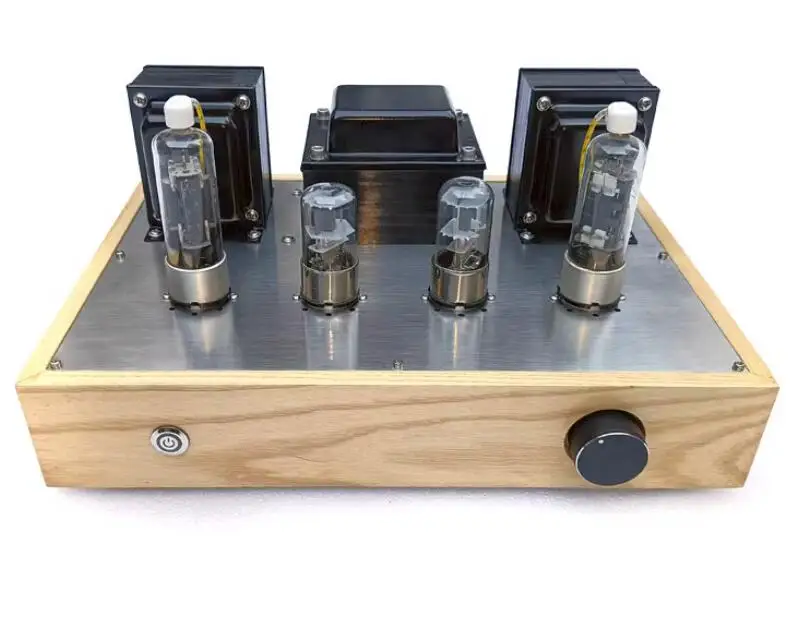

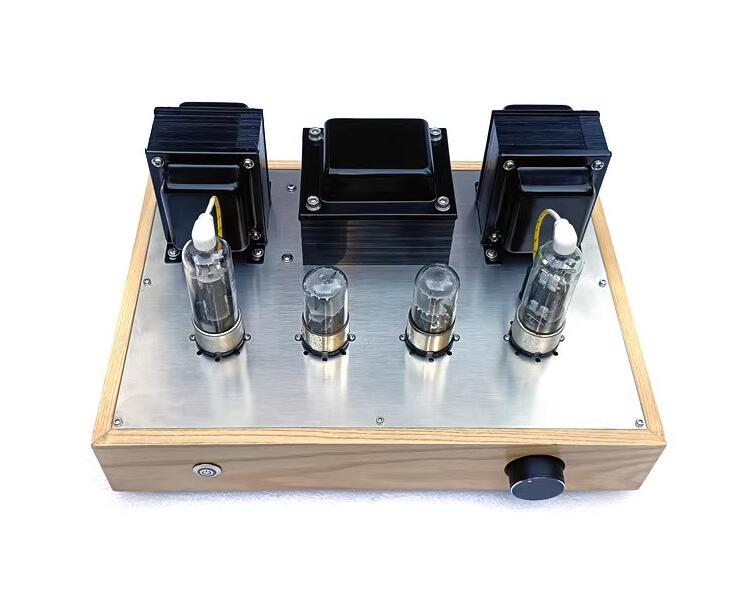

Tube: 6P13-J * 2, 6G2P * 2
Copper silver plated ceramic electronic tube holder, pure copper gold plated RCA holder, terminal .
Pure manual scaffolding circuit.
Parameters:

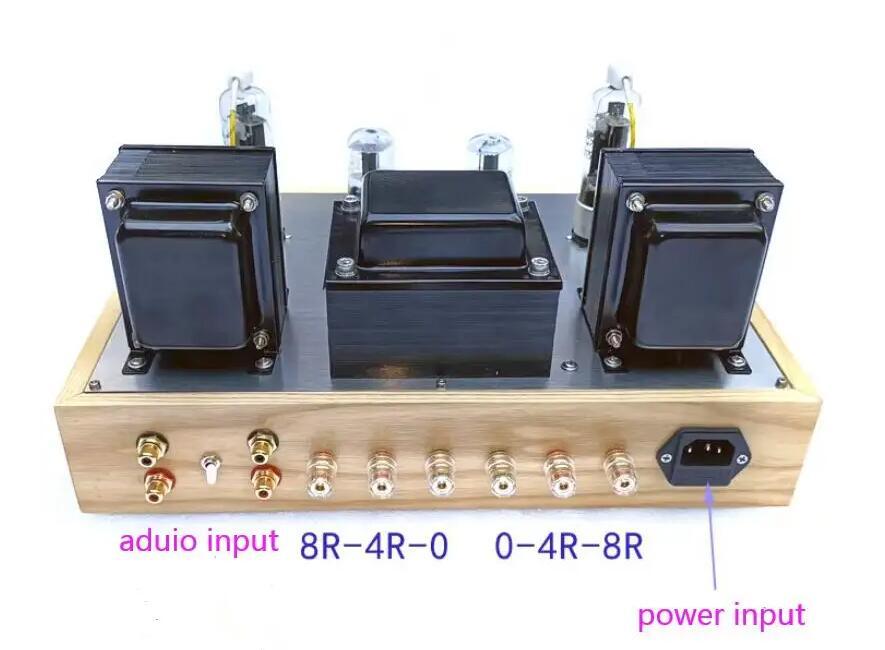

Input: One RCA input
Output: Stereo 6w+6w, can be connected to a 4 ohm or 8 ohm speaker
Frequency response: 20HZ-28KHz
Output signal-to-noise:>97dB "A" - wtd
Output total harmonic distortion:<0.5% 1W
Weight: about 9kg
Size: W 300mm, H 150mm, D 250mm (including electronic tube height)
