Product Details:
① If you choose DIY KIT. You need to assemble it yourself. Please note.
② Power Transformer: 96*50 165W Full Power Super Power Transformer, Brand New Special Grade*1
③ Output transformer: 66*35 8W HiFi4+3 winding, new inventory imported Nippon Steel 0.35 Z11*2
④ Choke coils: 57*25 4H new super film*1

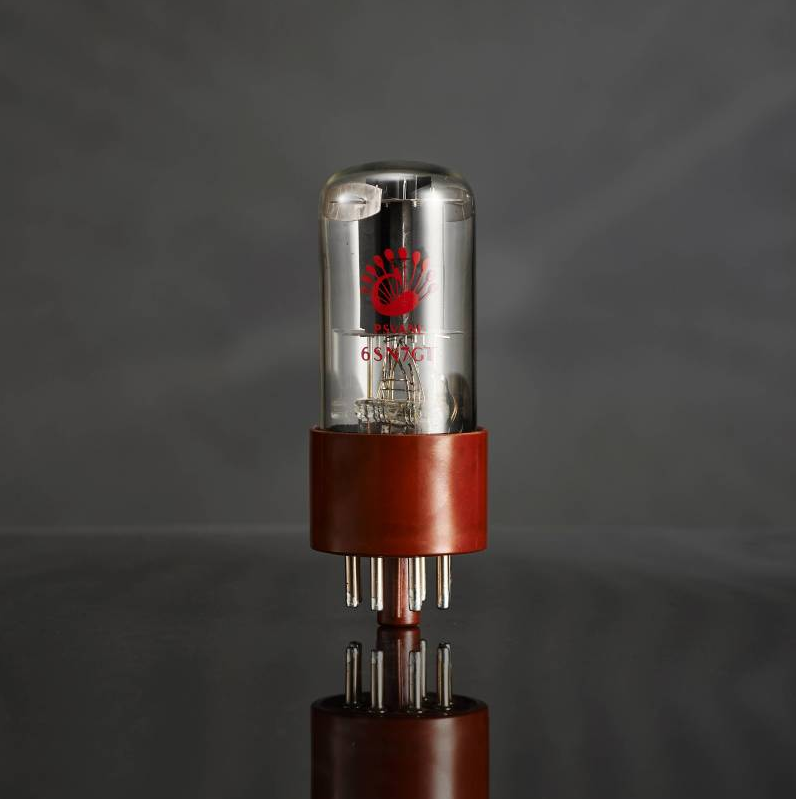

⑤ Tube: 6H8C*2 / EL34*2 / 5U4C*1
Specifications:
Output power: 6.5W+6.5W
Frequency response: 20hz-20khz
Output impedance: 4 ohms and 8 ohms
Signal to noise ratio: 90db
Input sensitivity: 500mv-1000mv
Input impedance: 100kΩ
Harmonic distortion: 1% (1khz)
Volume size: 320mm (length) * 210mm (deep) * 160 (high)
Weight: Net weight about 9KG
Package Included:

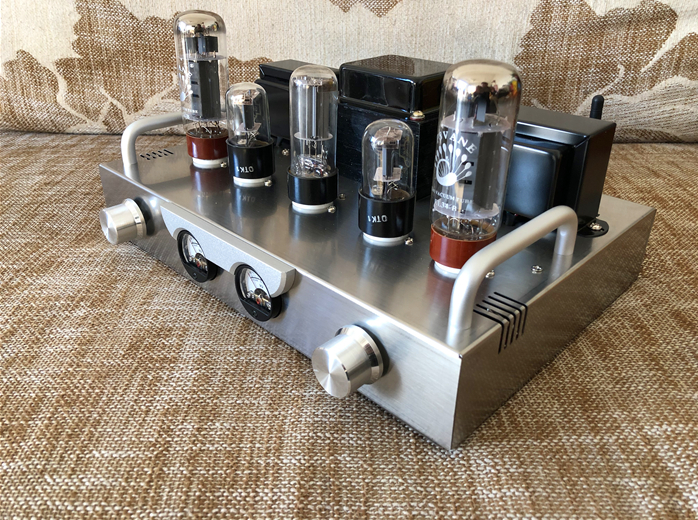

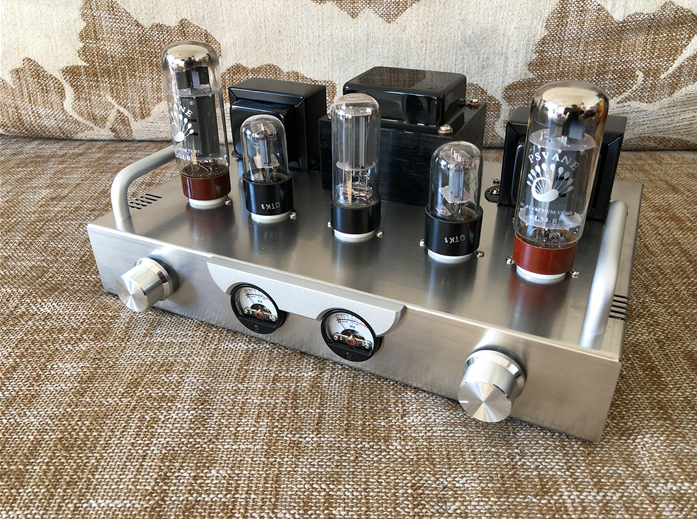

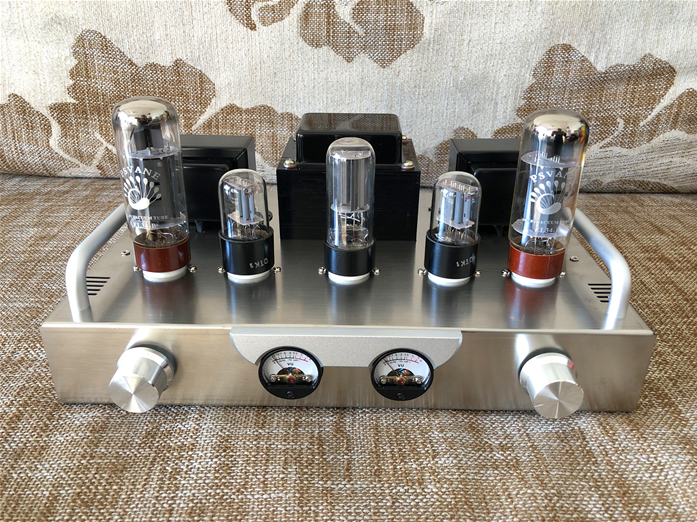

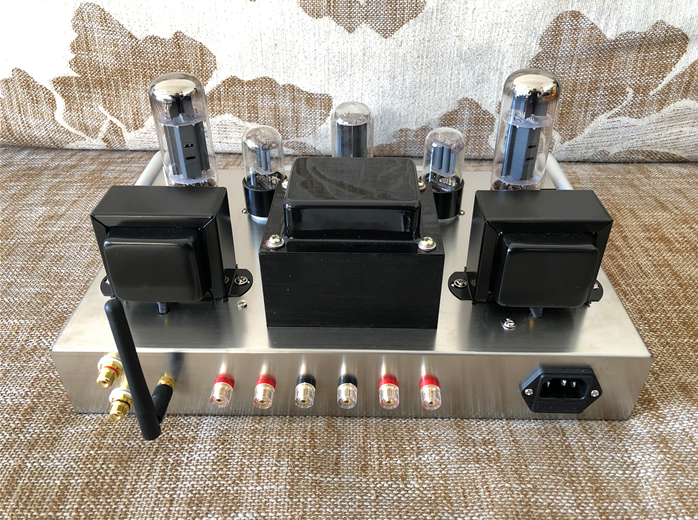

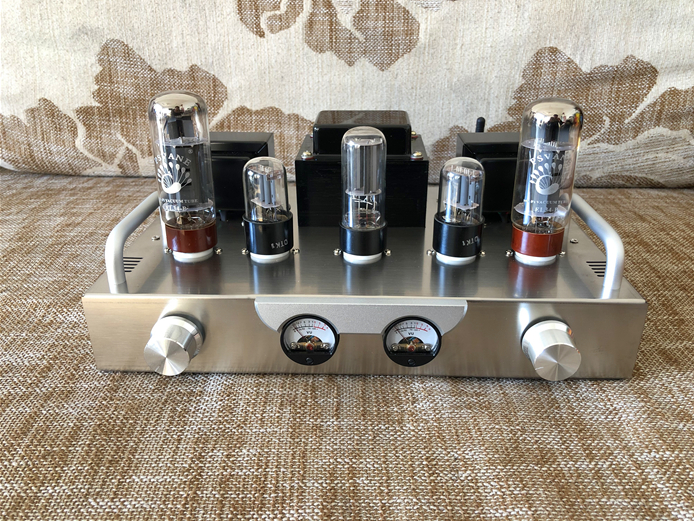

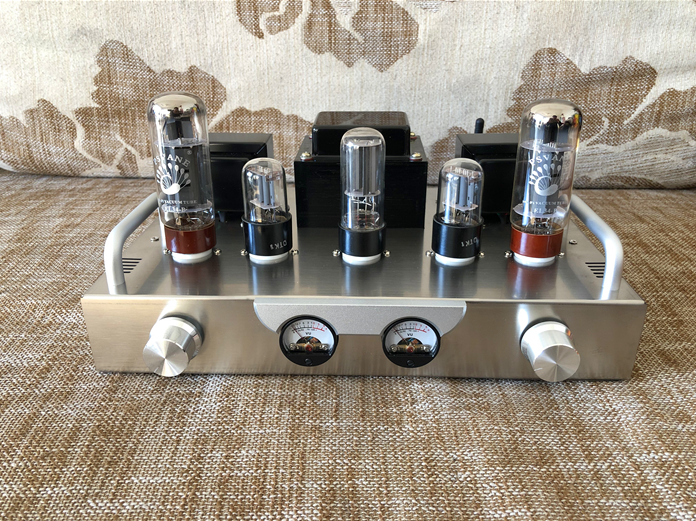

1 × Sparta X1 tube amplifier kit or Finished Sparta X1 tube amplifier （Based on your purchase selection）
