Features

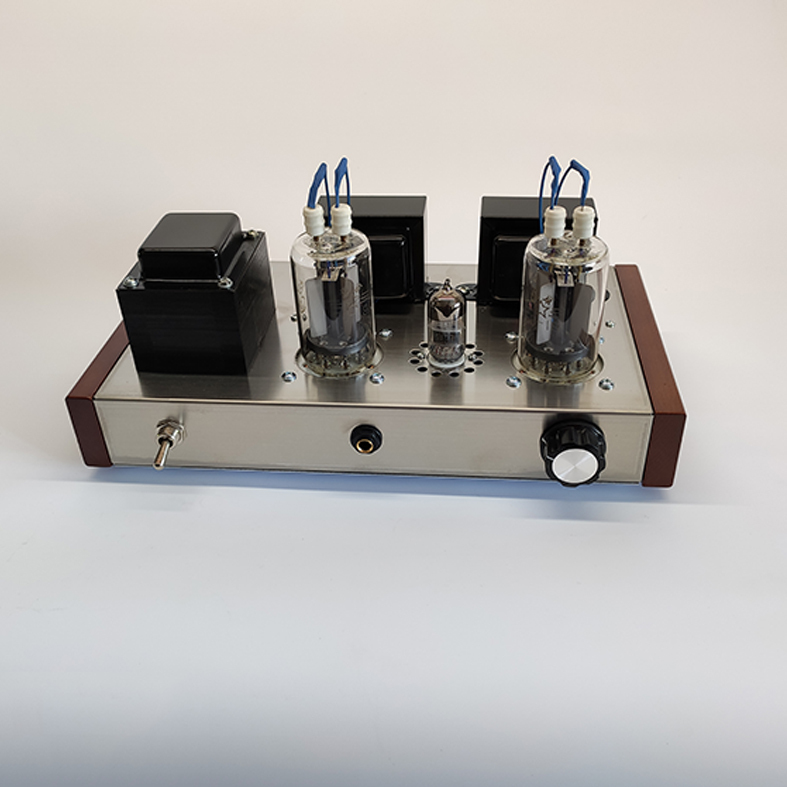

Using FU19 parallel Class A amplifier circuit driven by 6n2,Tube amplifier output 4w+4w
output 4w+4w power amplifier to promote the speaker requires an impedance of 8 ohm Two-way divider speaker, sensitivity above 90db, 6.5 inches or more, headphones 19-600 ohm (about 1w)
Vacuum Tube Headphone Amplifier Use all AC filaments to light up, use 102DB headphones to test the sound, no humming noise can be heard,
Vacuum tube amplifier is as quiet as it turns on.
1 . Use all AC filaments to light up, use 102DB headphones to test the sound, no humming noise can be heard
The tube amplifier is as quiet as it turns on.
2.Using fu19 parallel Class A amplifier circuit driven by 6n2,
3 .The volume potentiometer adopts Taiwan-funded A100k fully sealed potentiometer to ensure clear positioning and left-right balance
4. Using metal film resistors with accuracy up to 1% and imported electrolytic capacitors.
parameter:

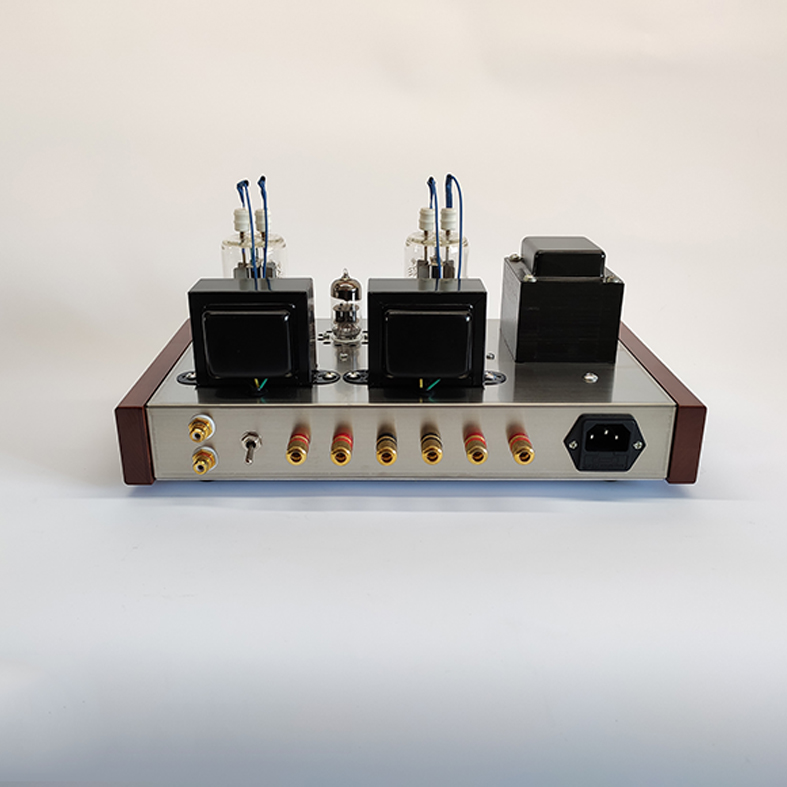

· Input: one RCA input
· Output power speaker: 4w+4w
· Output impedance: 4 ohm/ 8 ohm
· Frequency Response: 26-38KHz ±2db
· Output signal noise: >118dB
·Output total harmonic distortion: <0.008% 10Hz to 20kHz
· size: 29.5*17.5*15cm
· Input voltage: AC230V / AC115V
· weight: 6kg
Front headphone output hole standard 6.35mm
Adapt to earphone impedance: 32-600 ohm
· Headphone output peak value: (about 1w) (corresponding power, please calculate the corresponding headphone impedance)
List：
1× Finished Amplifier
