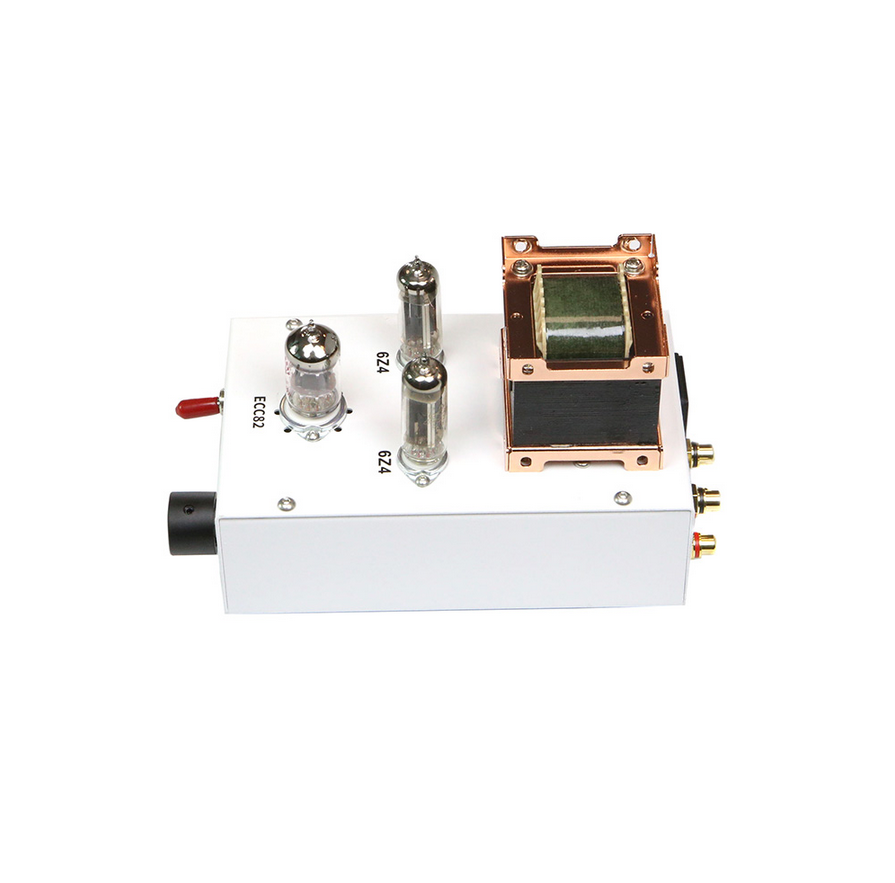

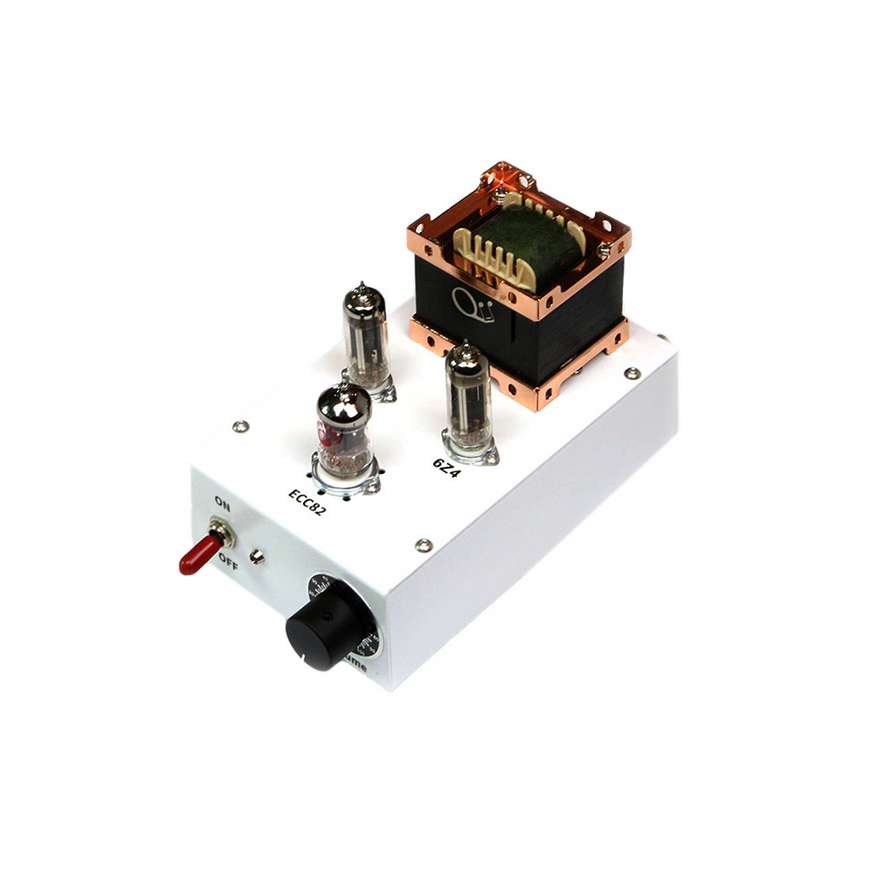

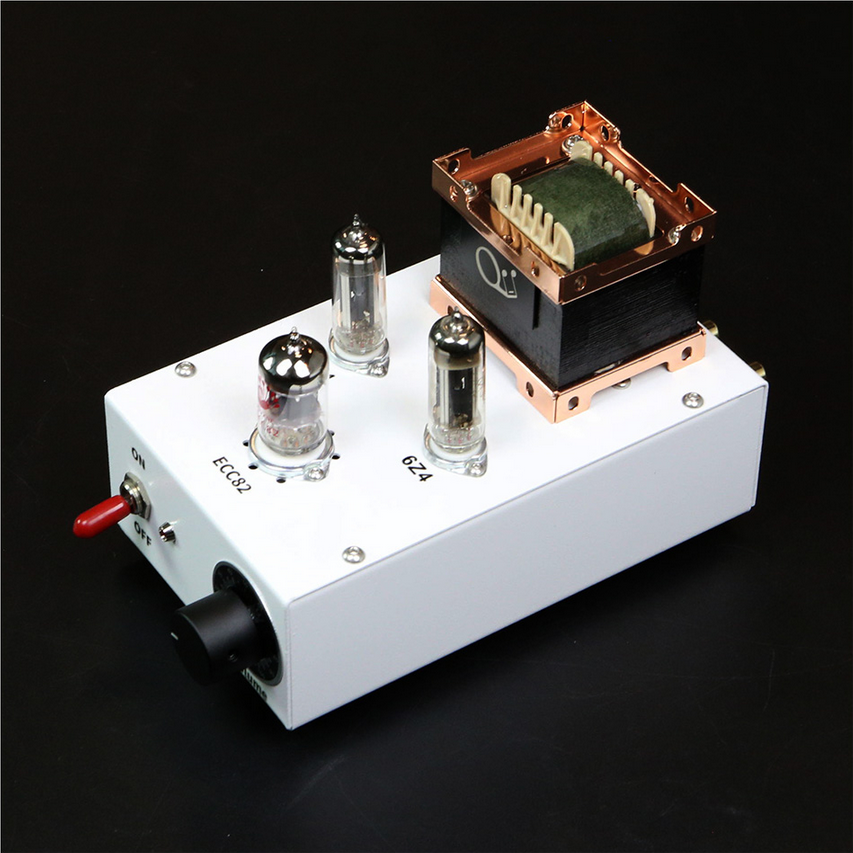

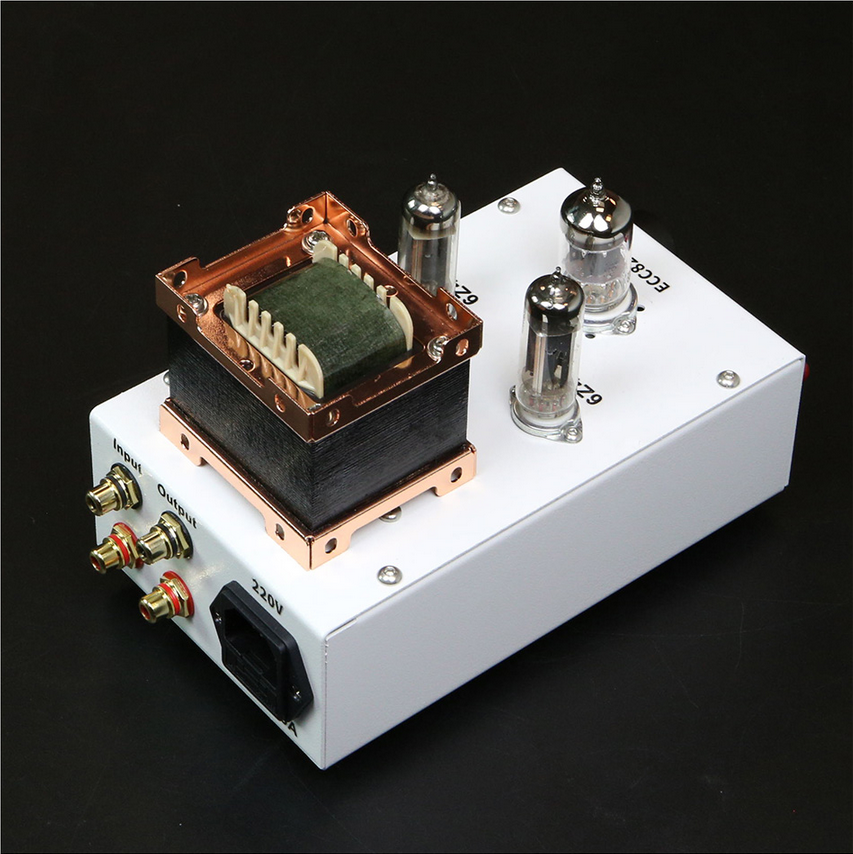

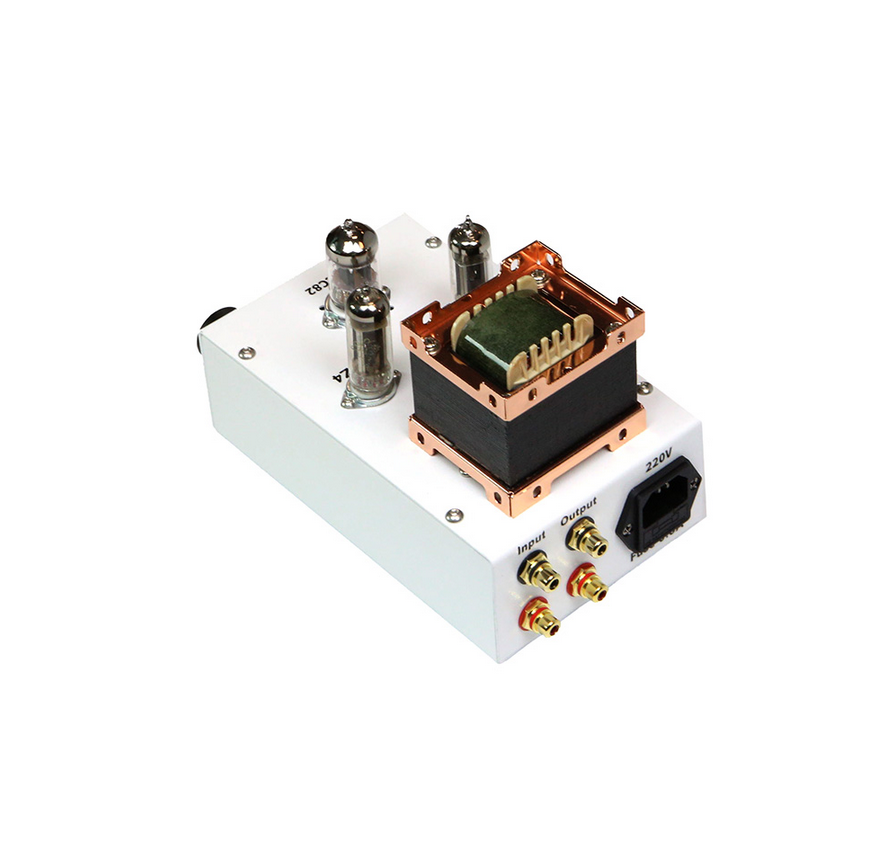

Product Details:
This electronic tube preamp has a rich mid-range, warm sound, elasticity, strong air feel, and can be heard for a long time without getting tired! The effect of replacing different brands of electronic tubes varies significantly.

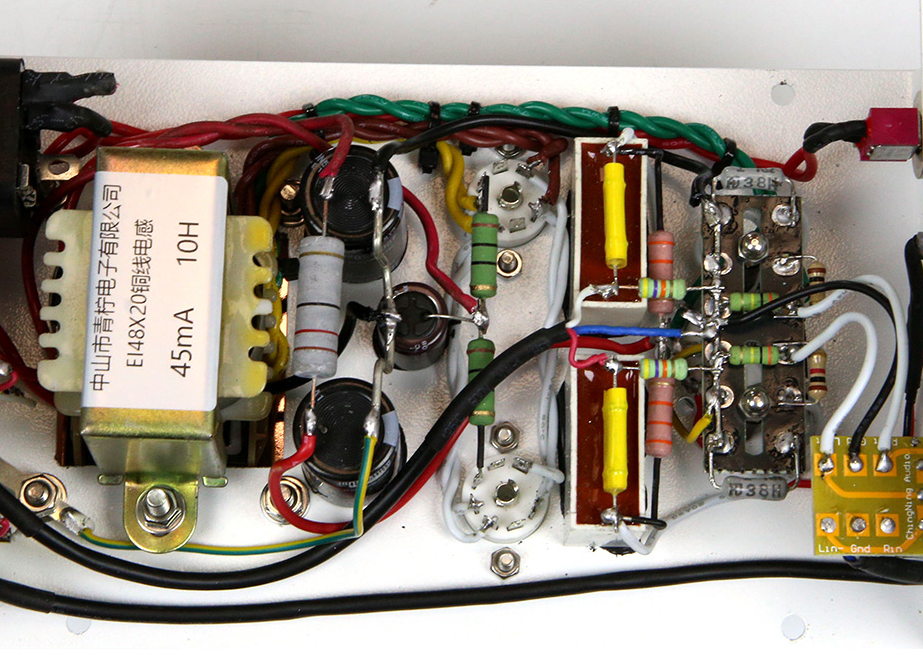

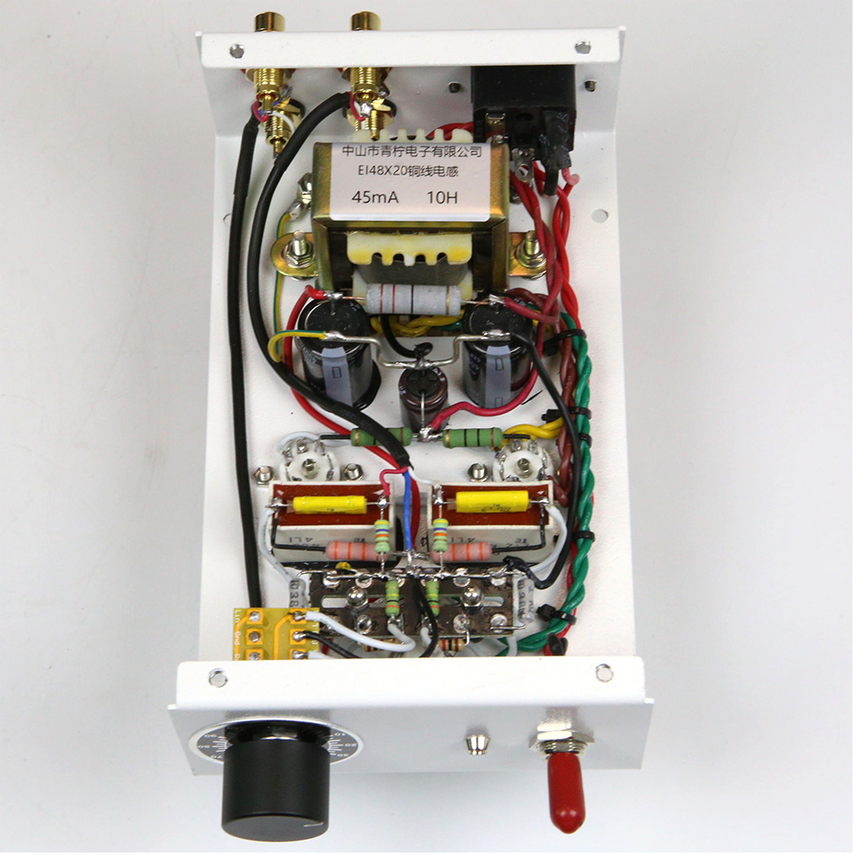

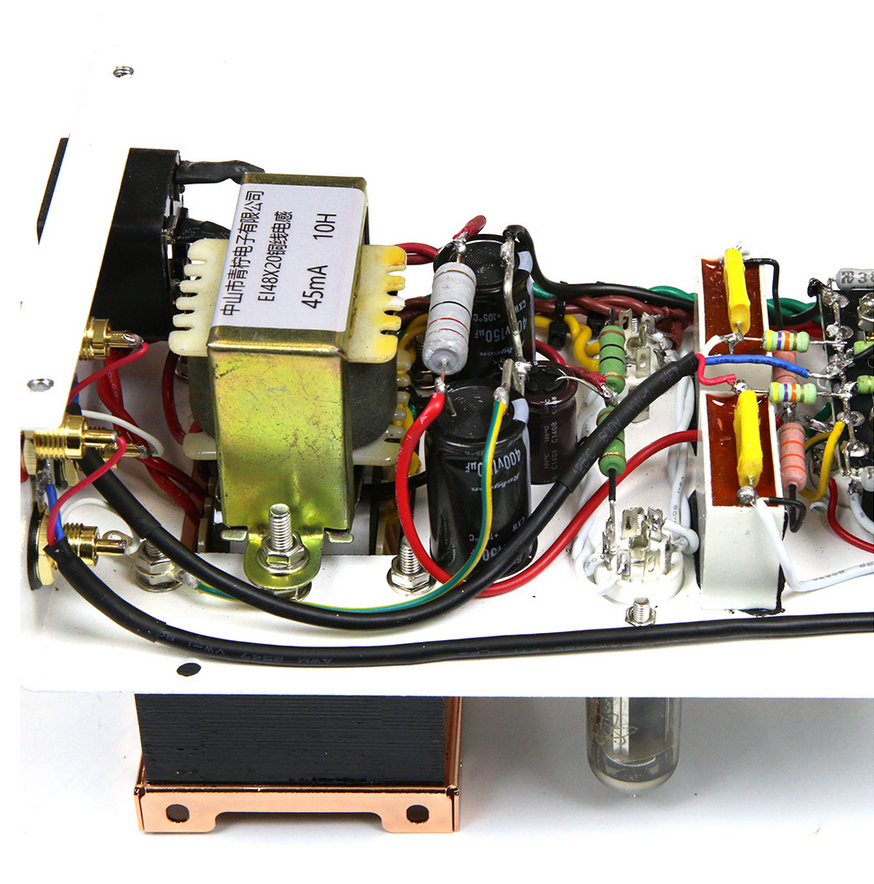

1:) 50W pure copper wire power transformer and 10H 45mA high inductance choke coil.

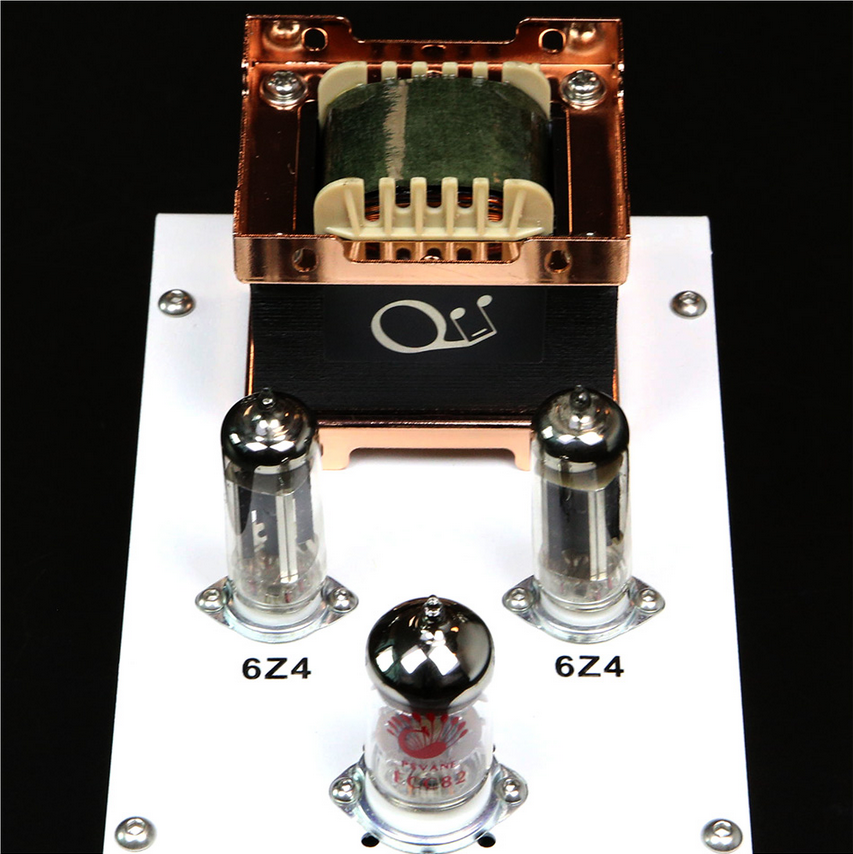

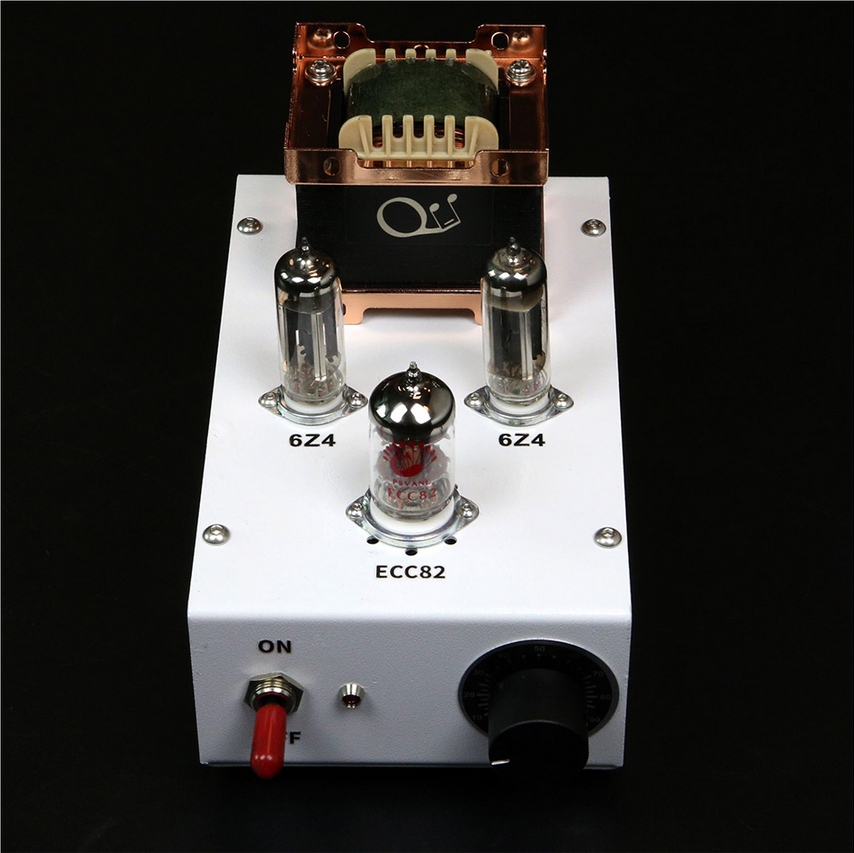

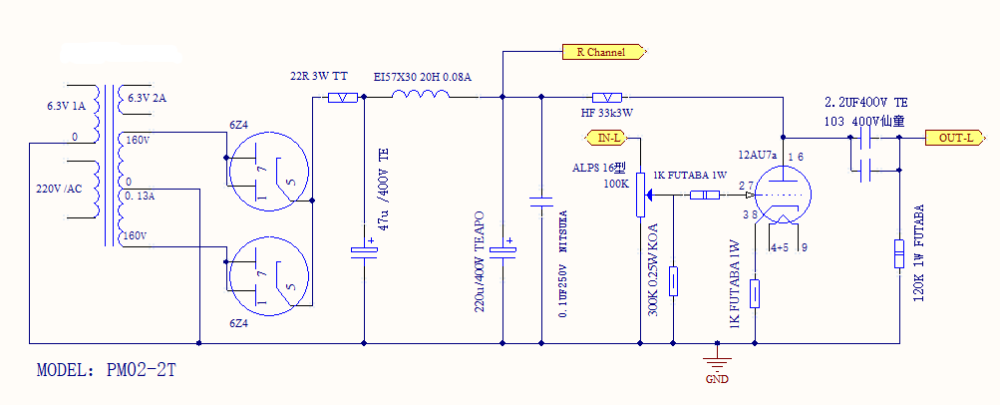

2:) 6Z4 electronic tube rectification, combined with CLRC filtering circuit, with small ripple and quiet background.
3:) Copper foot metal film precision resistor+carbon film resistor, with a strong electronic tube flavor.
4:) Japanese ALPS 16 potentiometer.
5:) High quality 1.2mm thick iron spray painted chassis.
6:) Three pairs of paired high-power field-effect transistors are connected in parallel for current expansion output, ensuring driving force.

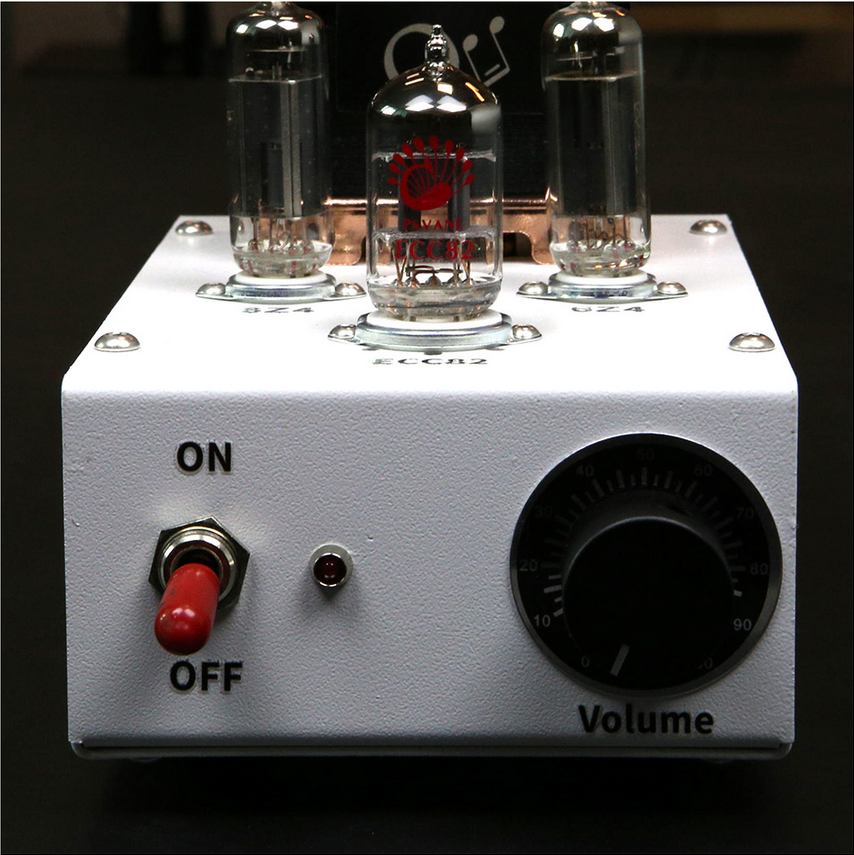

7:) Solid aluminum knob with dial, feels great to the touch.
Specifications:
Input sensitivity: 200mv
Voltage output: 2V (RMS THD<0.03%) -17V, with a voltage gain of approximately 7 times.
Signal to Noise Ratio (S/N Ratio): 97DB
Frequency Response: 10Hz-40KHz (-0.5DB)
Input Impedance: 100Kohm
Output Impedance: 2Kohm
Channel isolation: 65D
Weight: 2.35KG
Package List:
1 × Tueb preamplifier
For transportation safety, no power intput cable is provided.
