8W*2 western electric Master Series EL34B single-ended class A tube amplifier Superlinear connection

This EL34 electronic tube amplifier adopts a super linear connection method, balancing power and distortion, combined with a loop, effectively improving sound quality.

The 6J8P (6SJ7) directly coupled 6N8P (6SN7) cathode follower drives the EL34B with excellent performance.

A 260W power transformer provides abundant energy and rich overtones.

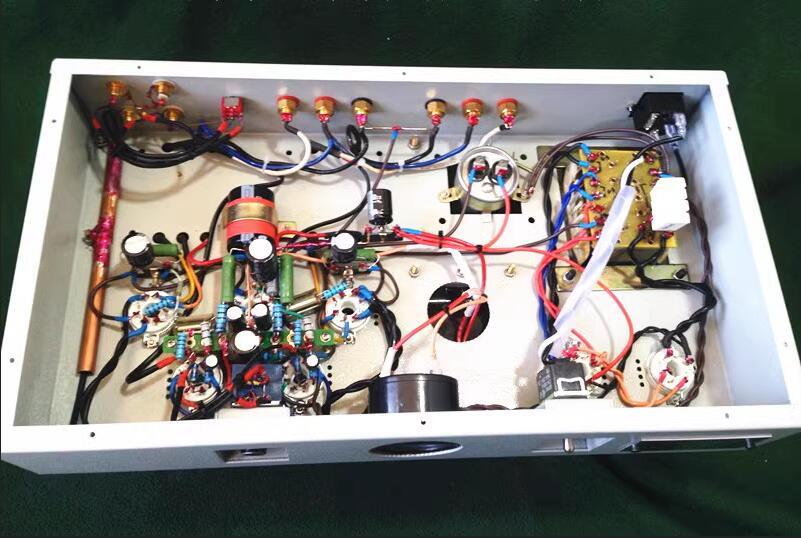

Handmade greenhouse installation, without the dull feeling of PCB distributed capacitors.

Selected components, well-known brand audio capacitors, ALPS27 potentiometers, Taiwan produced carbon film resistors.

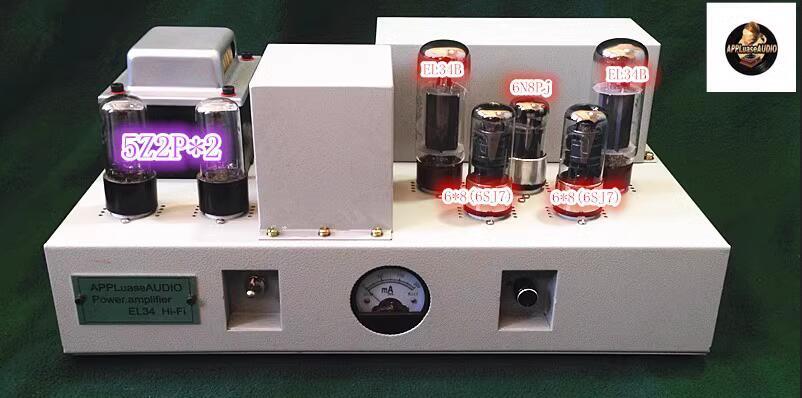

List of electronic tubes:

EL34B * 2

6J8P * 2

6N8P * 2

5Z2P * 2

Parameters:

Power: 8W+8W

Bandwidth: 30Hz-38KHz

Input impedance: 100K

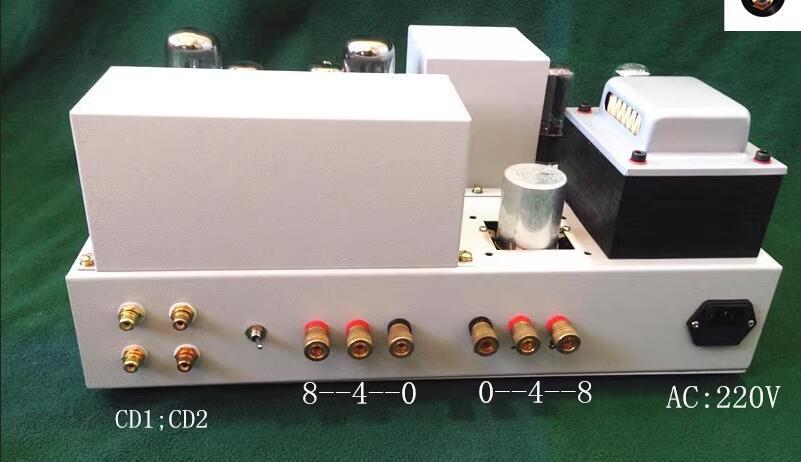

Output impedance: 0-4-8 ohms

Signal to noise ratio: 90dB

Weight: 17kg

Size: 420 * 230 * 180mm
