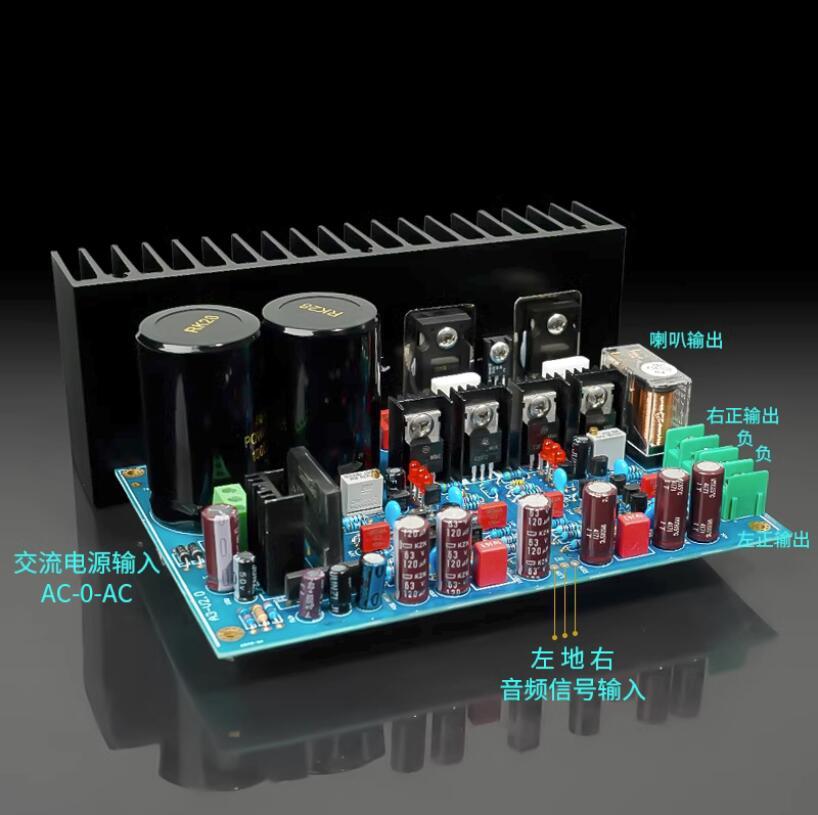

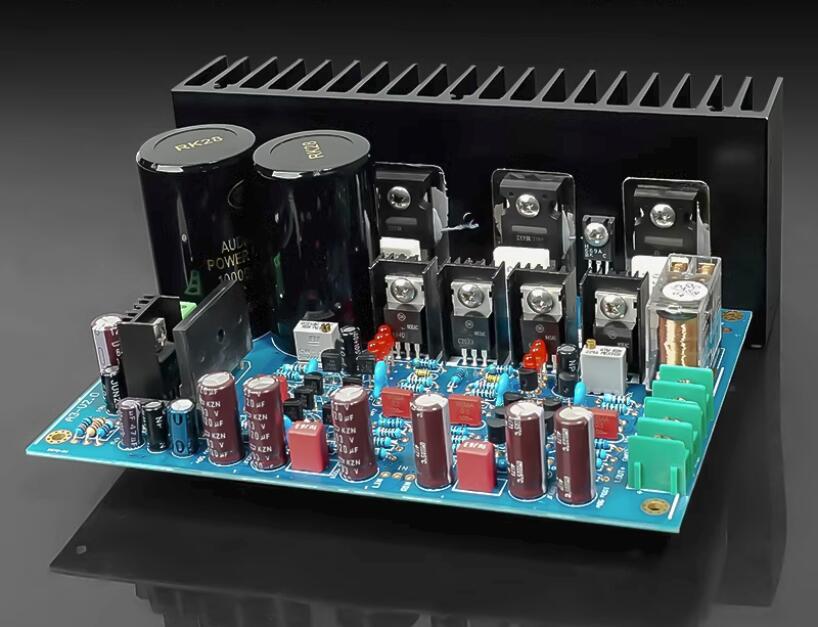

A3 Fully Symmetrical Double Difference FET Power Amplifier Board IRFP240 IRFP9240 Output transistor With Capacitor And Radiator

Product Details


All resistors are Beijing copper foot 718 resistors

The Green capacitor ERO has been fully upgraded to German Zendanil Red WIMA

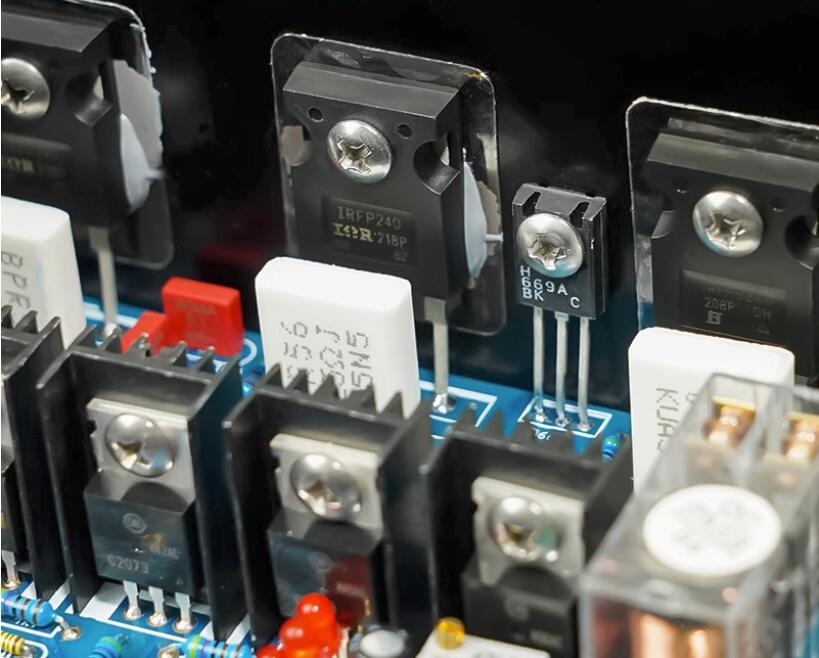

The output pipe is the PASS special pair pipe IRFP240 IRFP9240

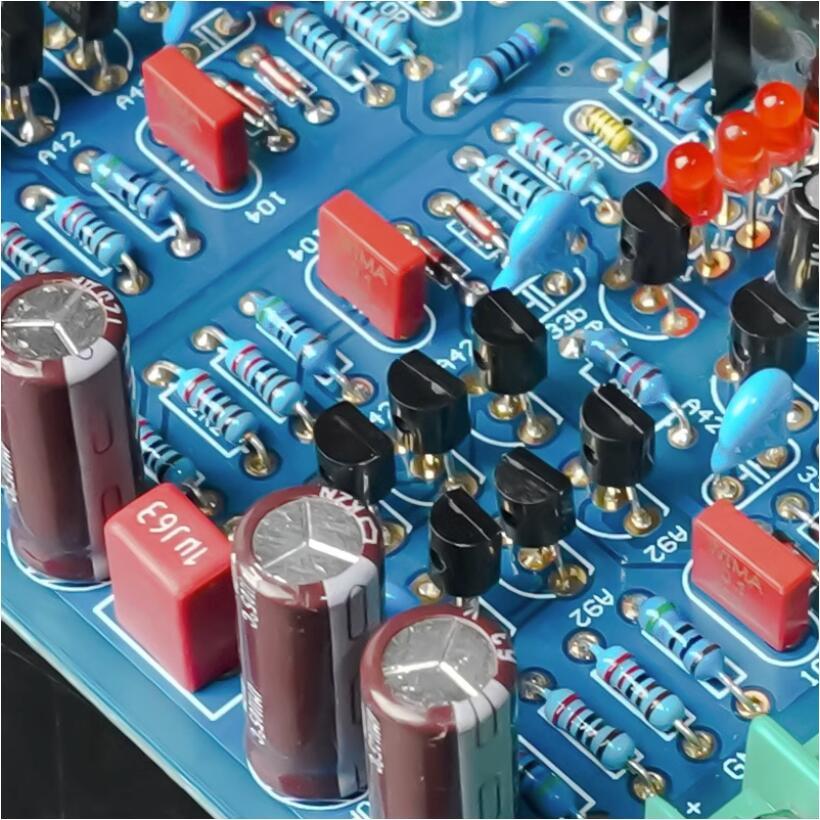

The input transistor is ON A42,92

The drive transistor is a Toshiba C5171 A1930

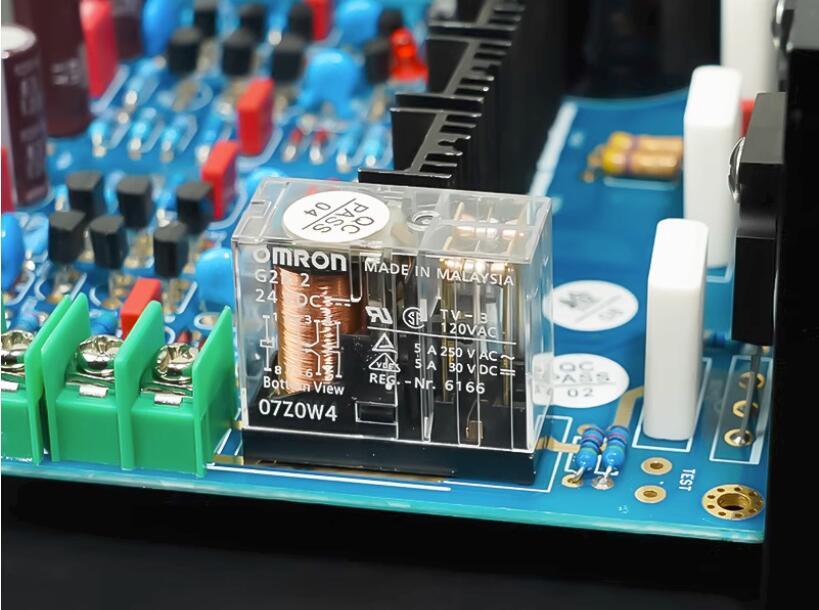

The protection circuit is Japanese omron relay plus UPC1237

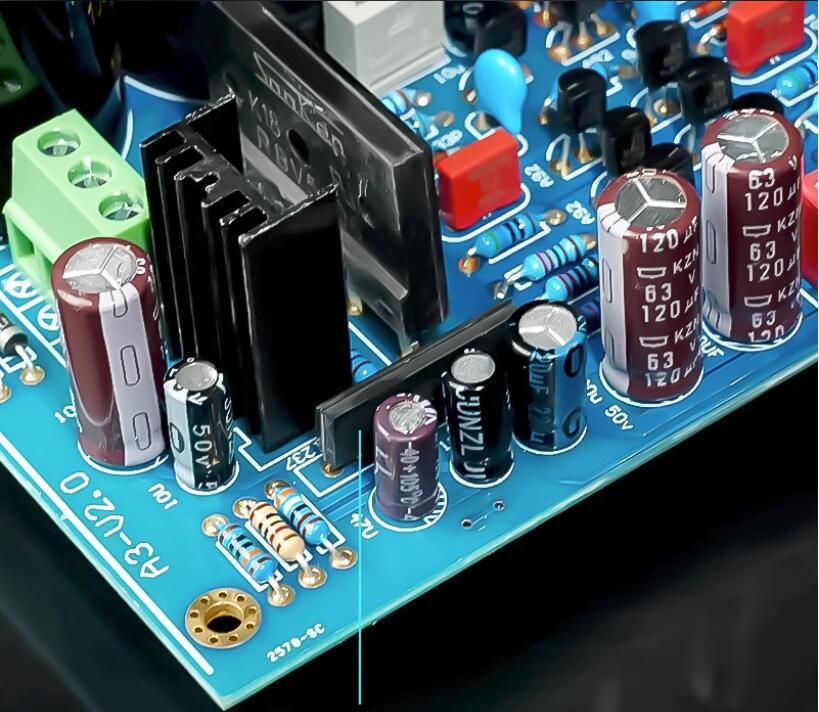

The rectifier bridge is Sanken 50A Bridge

PCB is blue double - sided gold board


Product Parameters


PCB size: 150X100MM

Supply voltage: AC16X2 to AC35X2

At AC35X2 voltage, the maximum output is 100W 8 ohm


Packing list


1 X A3 Assembled boards With Capacitor And Radiator
