Made with 7KG aluminum High precision finish chassis
Output transformer uses Z11 0.35mm type iron plate.
Uses the US CMC-816 RCA terminal, Pure Copper speaker terminal
Using 400W H18 power transformer,
Use 40Wx2 Output transformers with Z11 0.35mm type iron plate.

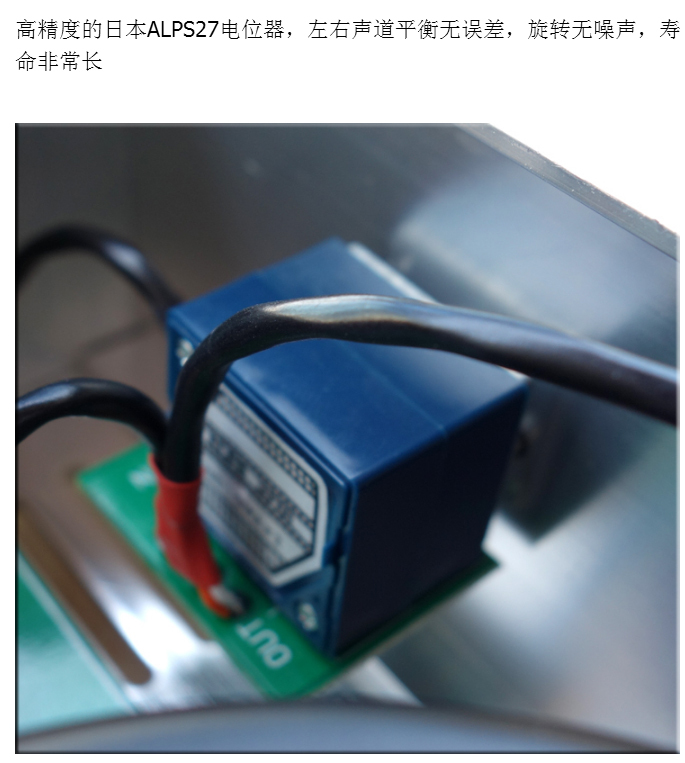

ALPS 27 type potentiometer
Auto-bias configuration
Output power: 40W+40W/8
Load range: 4-8
Frequency response: 20Hz--25KHz
Total harmonic distortion: 0.6% (1kHz)
Input sensitivity: 500mV--2000mV
Input impedance: 100K
Signal to noise ratio: 96dB
Volume (width height depth): 394 181 339mm

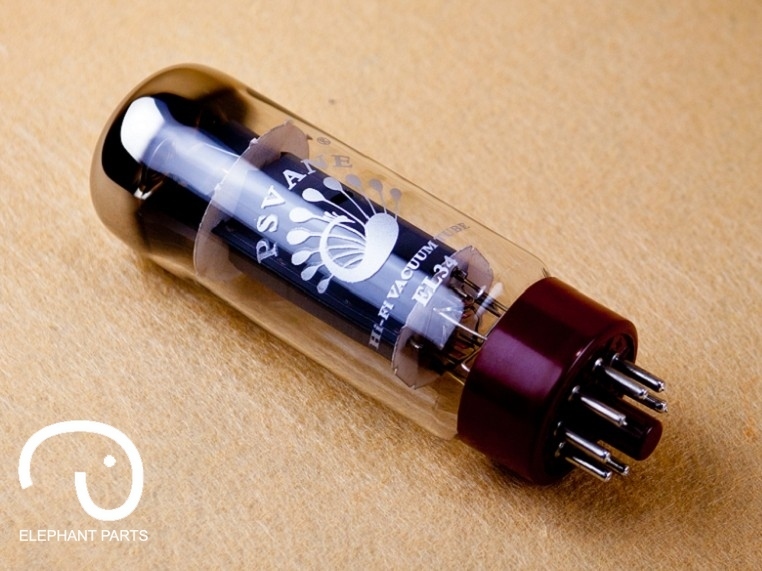

Tube: PSVANE EL3CC*2, 6N8P*4
Weight: 21KG (including packaging)
Voltage: 110v-120v or 220v-240v 50/60hz
Package Included:
1 Finished tube amplifier
