Product Details:
A45 refers to the Accuphase circuit design and is a true Class A amplifier with excellent performance, stable operation, and compatibility with various preamplifiers.The sound is warm and charming, the background is peaceful, and the sound field is grand.
1:) Each channel has 6 precision paired MJ15024/15024 transistors, ensuring extremely low distortion.
2:) 900W A-grade iron core pure copper wire wound circular transformer, with abundant power.

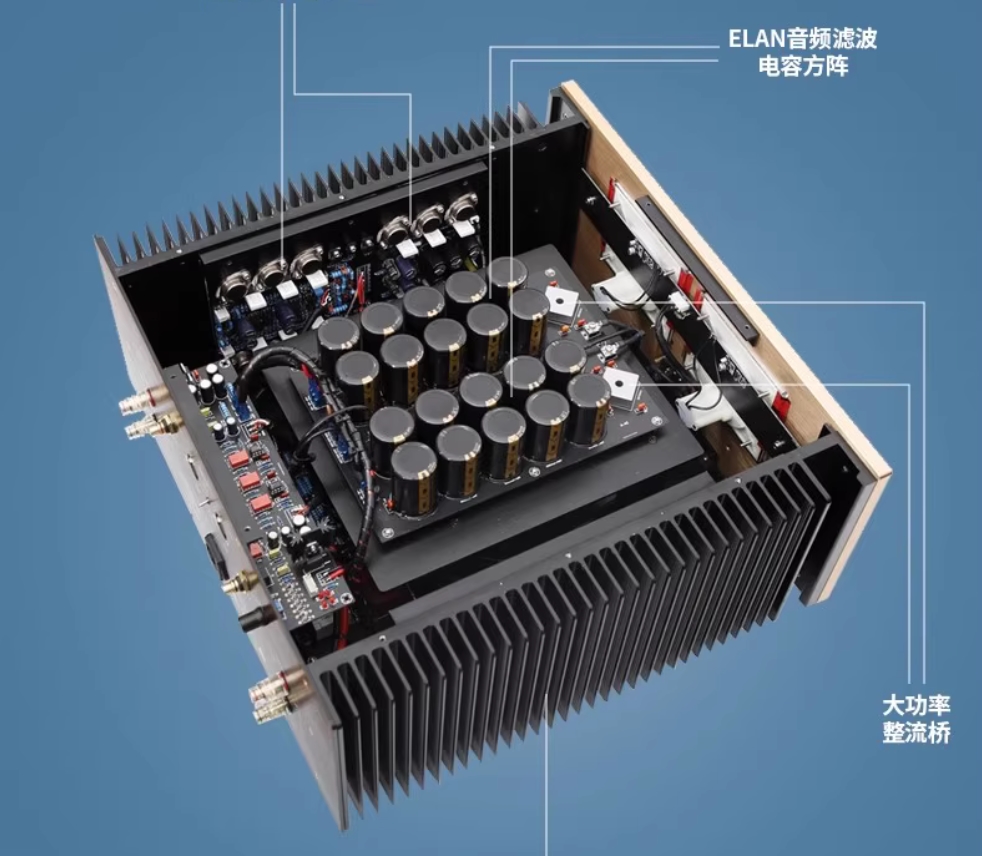

3:) 20 10000uf ELNA filter capacitor arrays, working in parallel with 2 50A rectifier bridges, providing abundant energy.

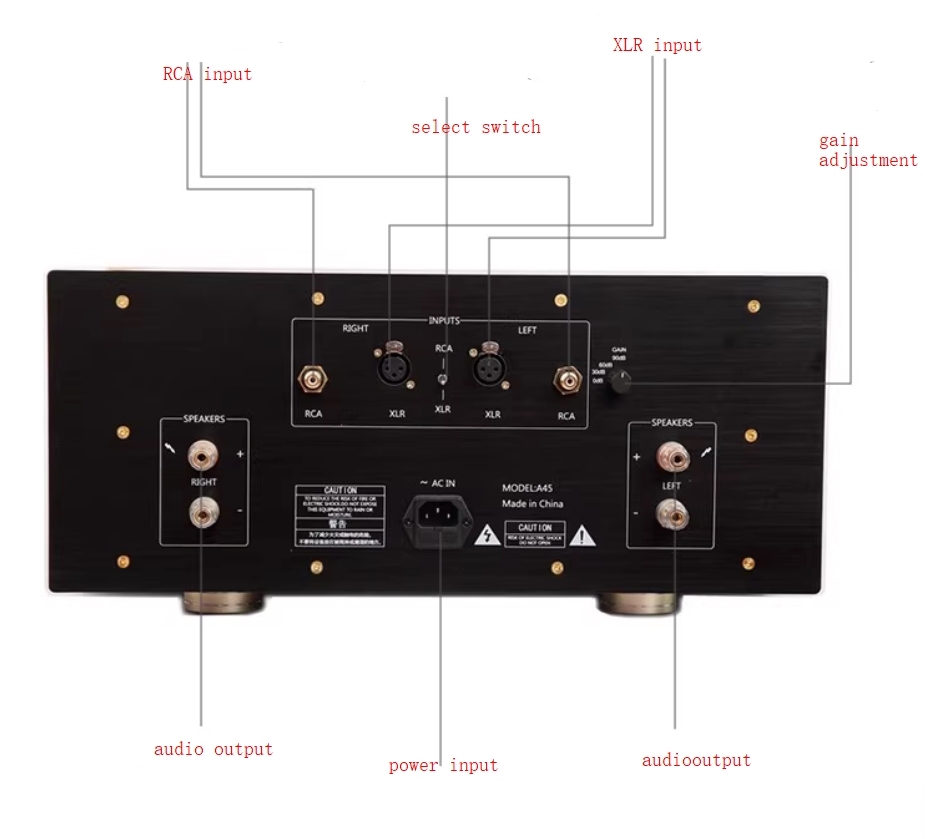

4:) Supports RCA and XLR inputs, compatible with various preamps.
5:) Dual VU meter display makes music more dynamic.
6:) CNC machining of all aluminum alloy chassis, showcasing high-end performance Exposed radiator, fast and effective heat dissipation.
Specifications:
Working mode: Class A
Model: A45Input: RCA group, XLR group,
Working voltage: AC220V/110V
Transformer power: 900W
Adjustable gain range: 0dB,+3db,+6dB,+9dB
Standby power consumption: 350W
Output power: 45W/8 Ω, 90W/4 Ω (Class A)
Total harmonic distortion:<0.01%
Signal to noise ratio: 105db
Frequency response range: 20Hz-20KHz

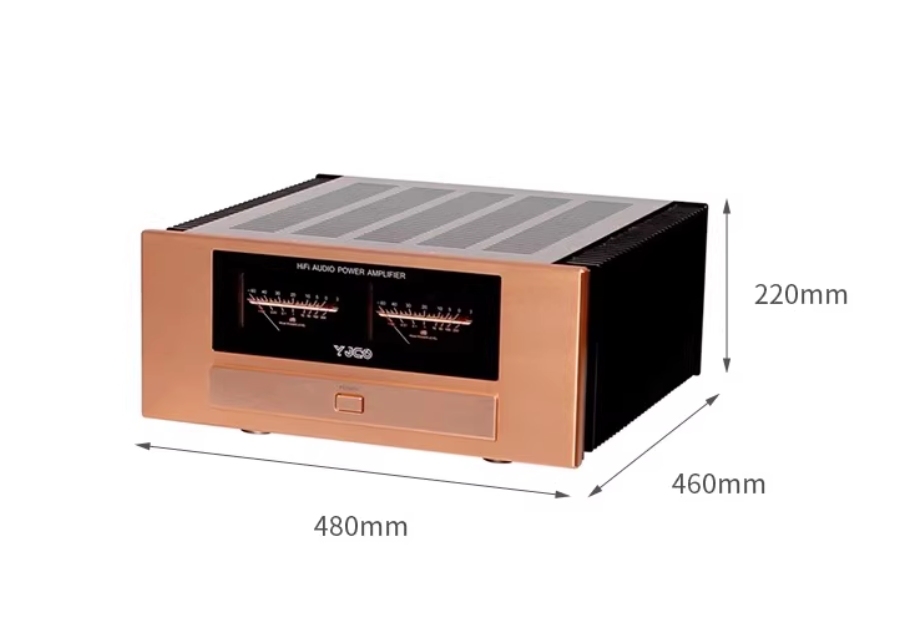

Size: 480 * 460 * 220mm
Weighing 31.2kg
Package List:
1 × A45 amplifier （To ensure transportation safety, power input cables are not provided by default）
