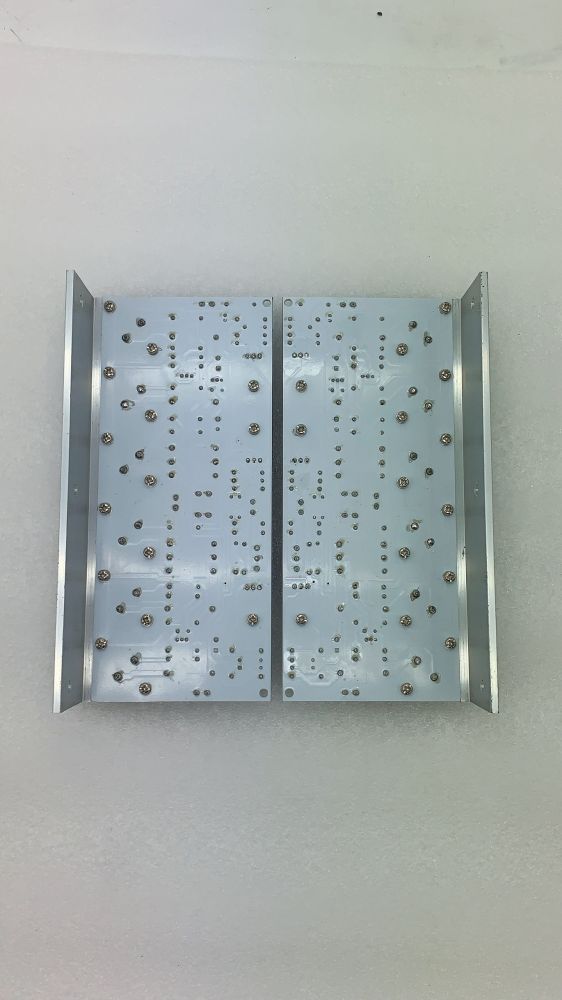

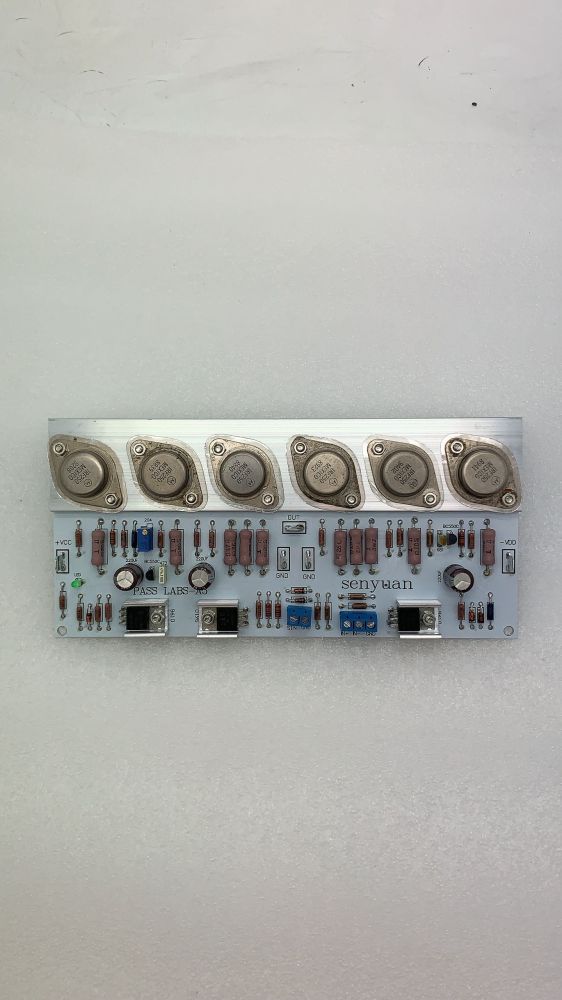

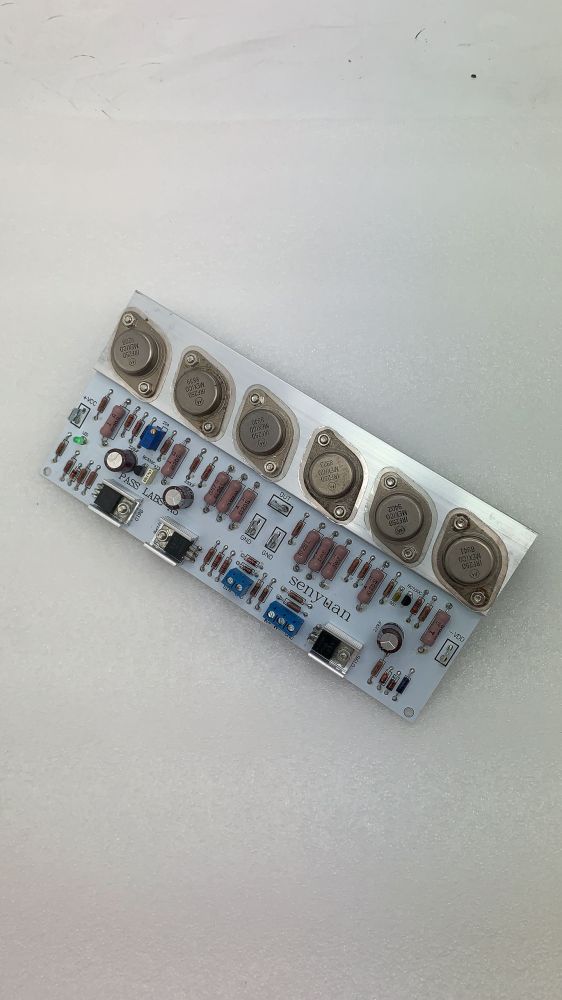

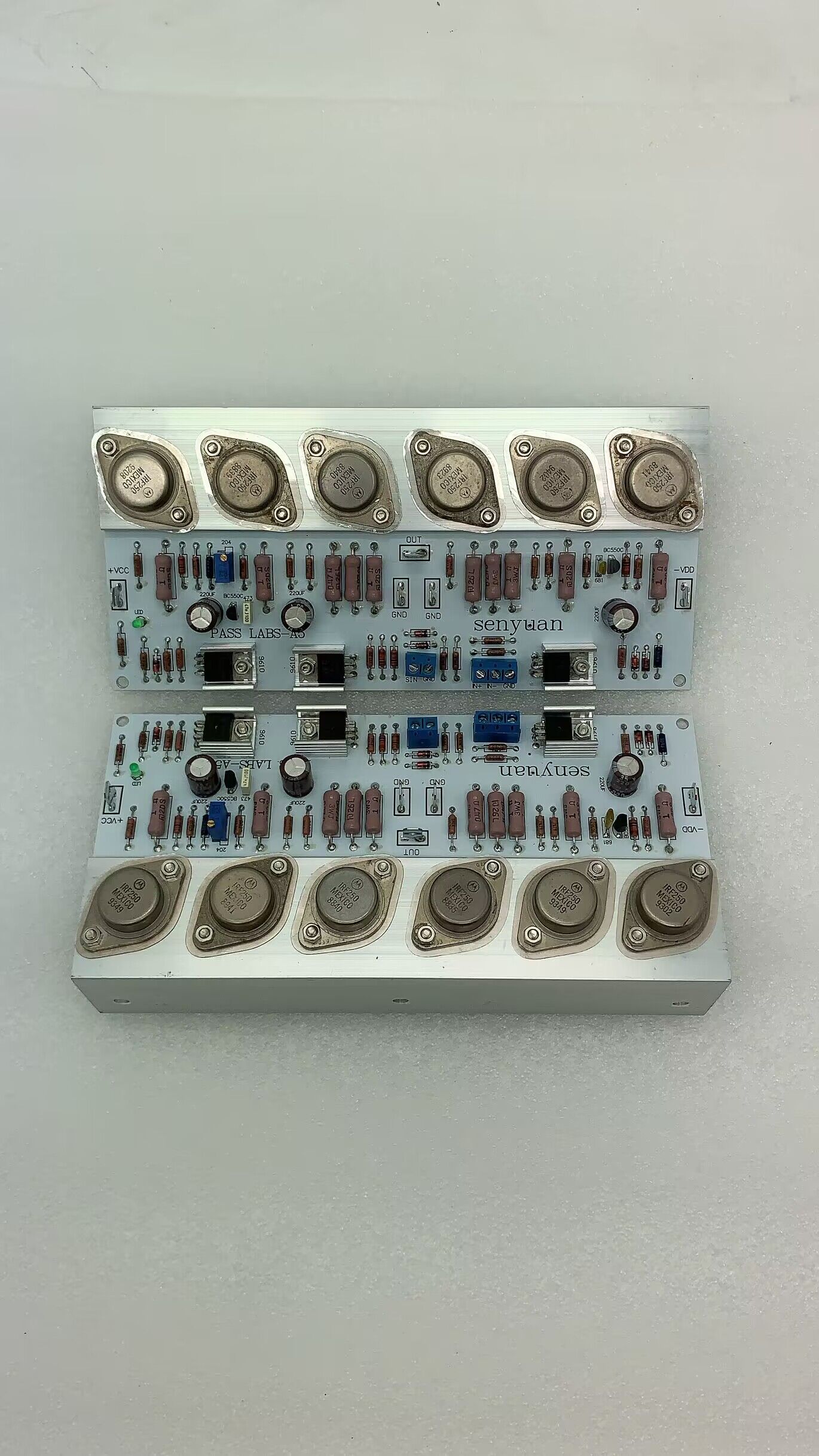

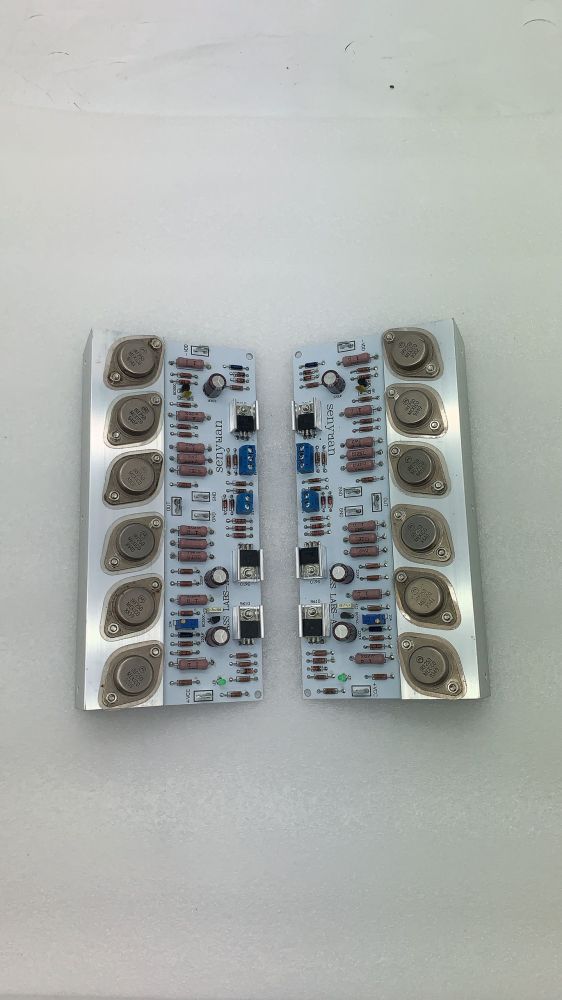

Product details:

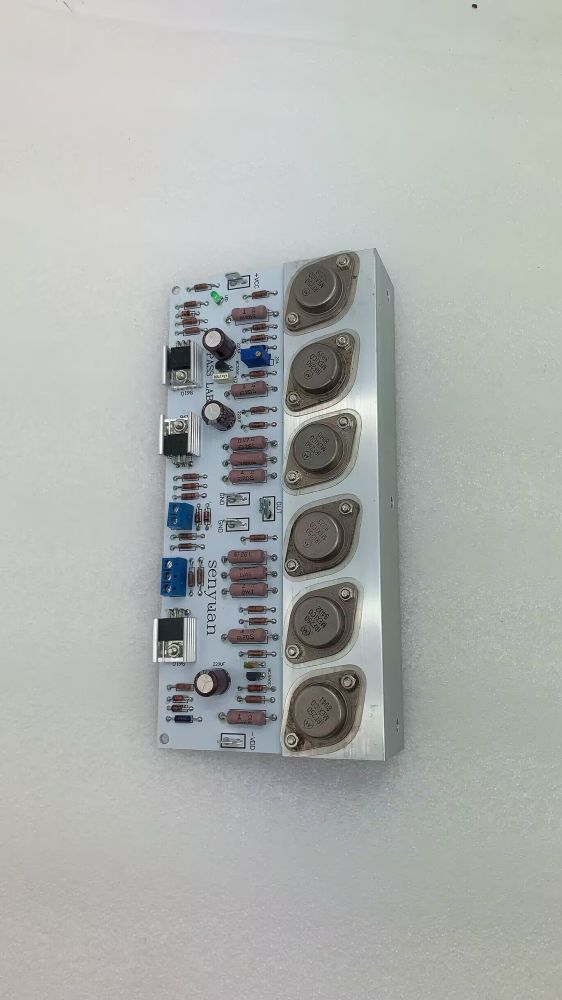

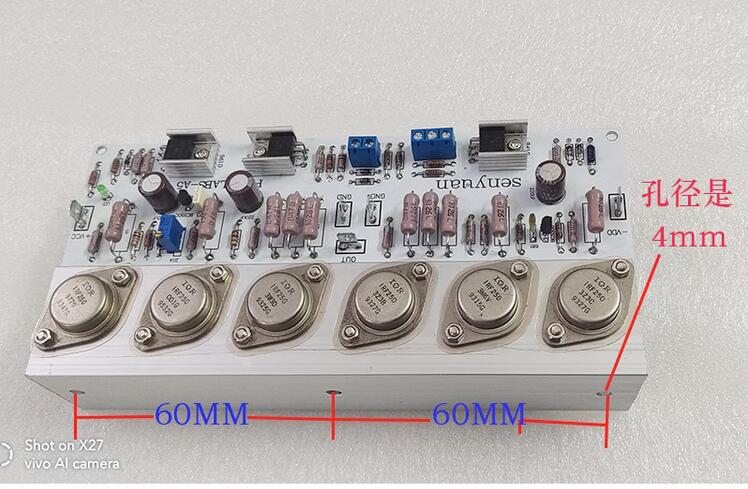

Used IRF250.30A metal packaging genuine Field-effect transistor(Not brand new, do not buy if you mind)The sound will be warmer and more powerful.
Aviation grade aluminum thermal bridge.
Japanese made resistors.American DALE color ring resistor.
American Fairchild Transistor.
Pure Class A design.

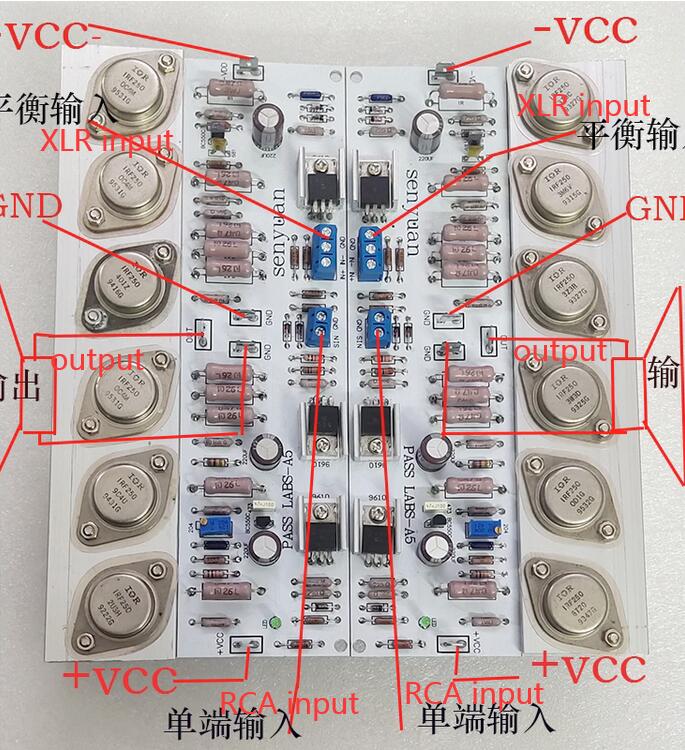

With balanced input and RAC input.
Parameters:
Model: PASS A5

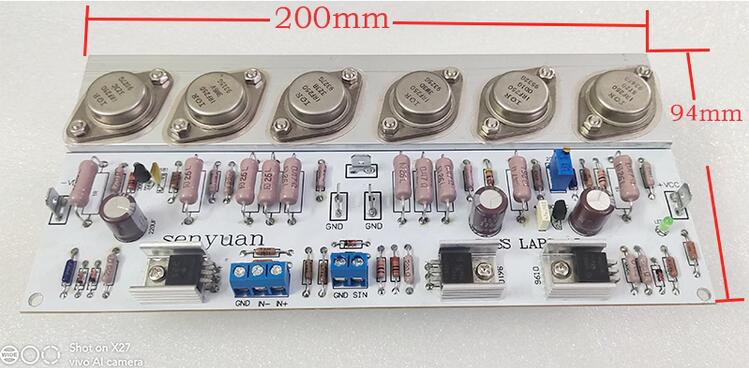

Size: 200 * 94 * 45mm (length * width * height)
Power supply: DC+-30-36V (optimal+-34V), so the transformer needs to use dual 22-26V independent rectifier filters for better power supply effect.
Output power: 50W+50W pure A
Input impedance: 30k
Distortion: 0.05%
Frequency response: 1HZ --100K HZ
Signal to noise ratio:>120db
Input sensitivity: 2V
Input method: balanced input and RAC input
