Product Details:
Referring to the PASS A5 Class A circuit design in the United States, the sound is warm and charming, beautiful and durable.
We use IRF240 and 250 genuine disassembly field effect Transistor (precision paired) The sound will be warmer and more powerful.
Military grade DALE resistor.FAIRCHILD transistor
Static current can be freely adjusted between 300mA-2000mA.
The left and right channels are completely independent and do not interfere with each other.

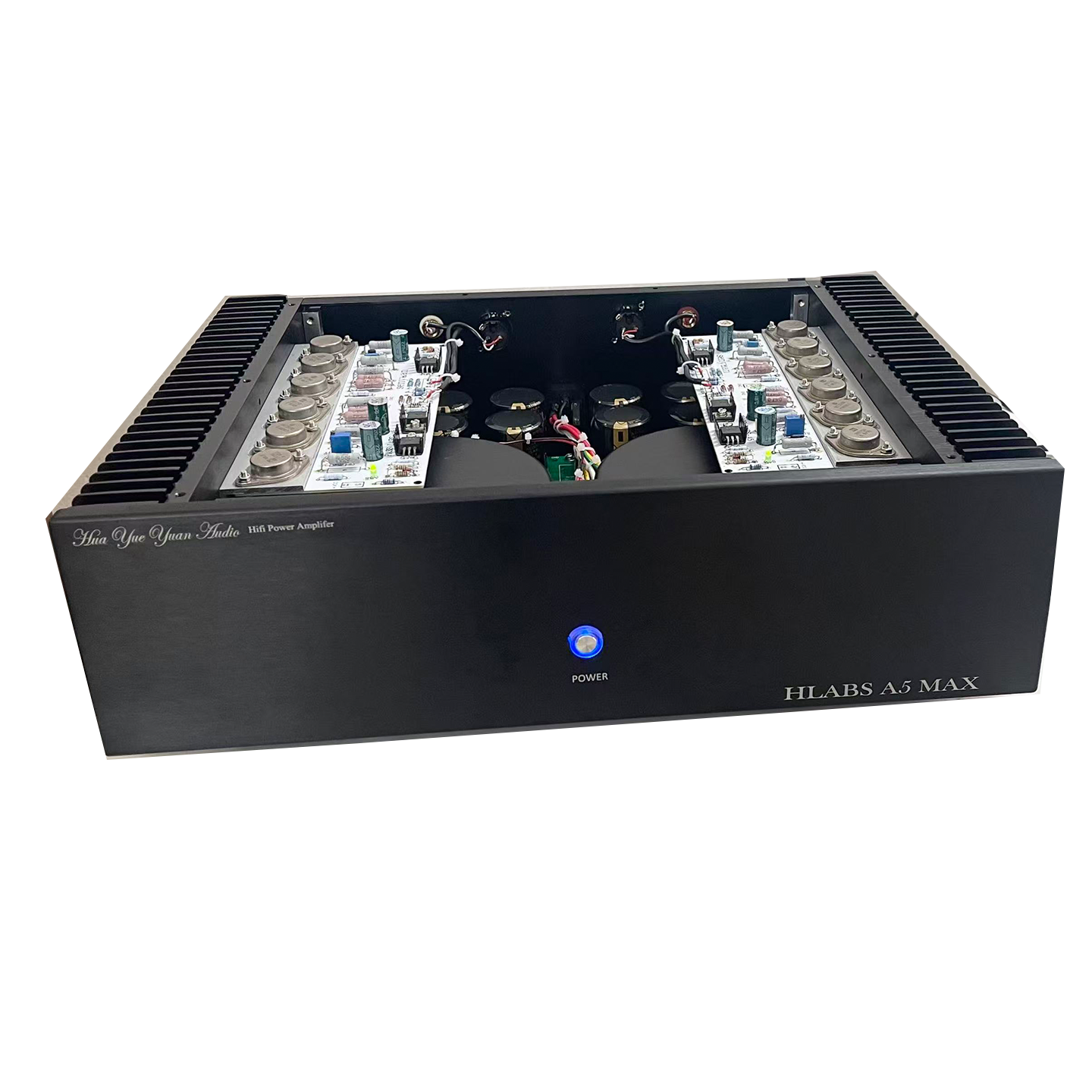

Two shielded toroidal transformers provide independent power supply with almost no magnetic leakage.

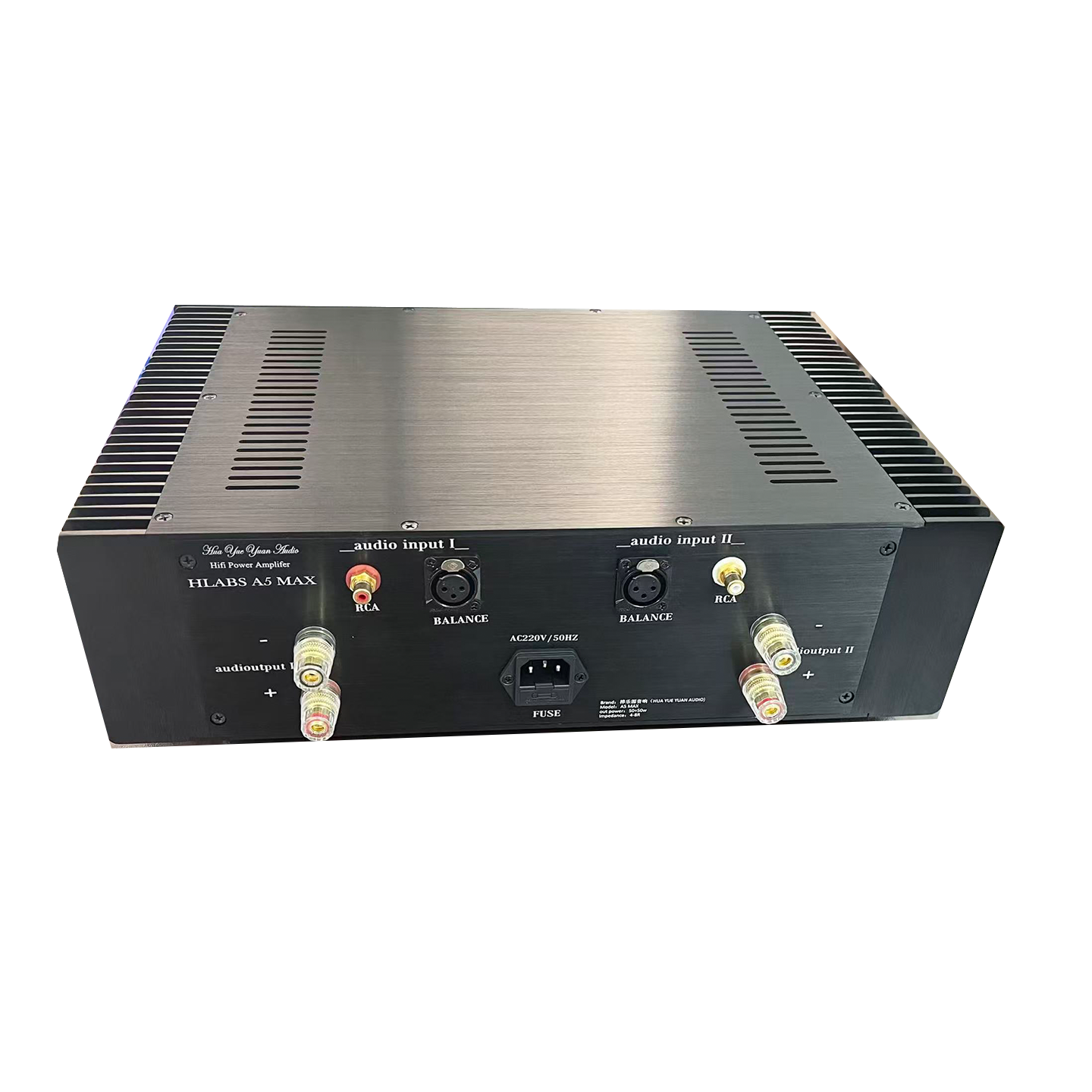

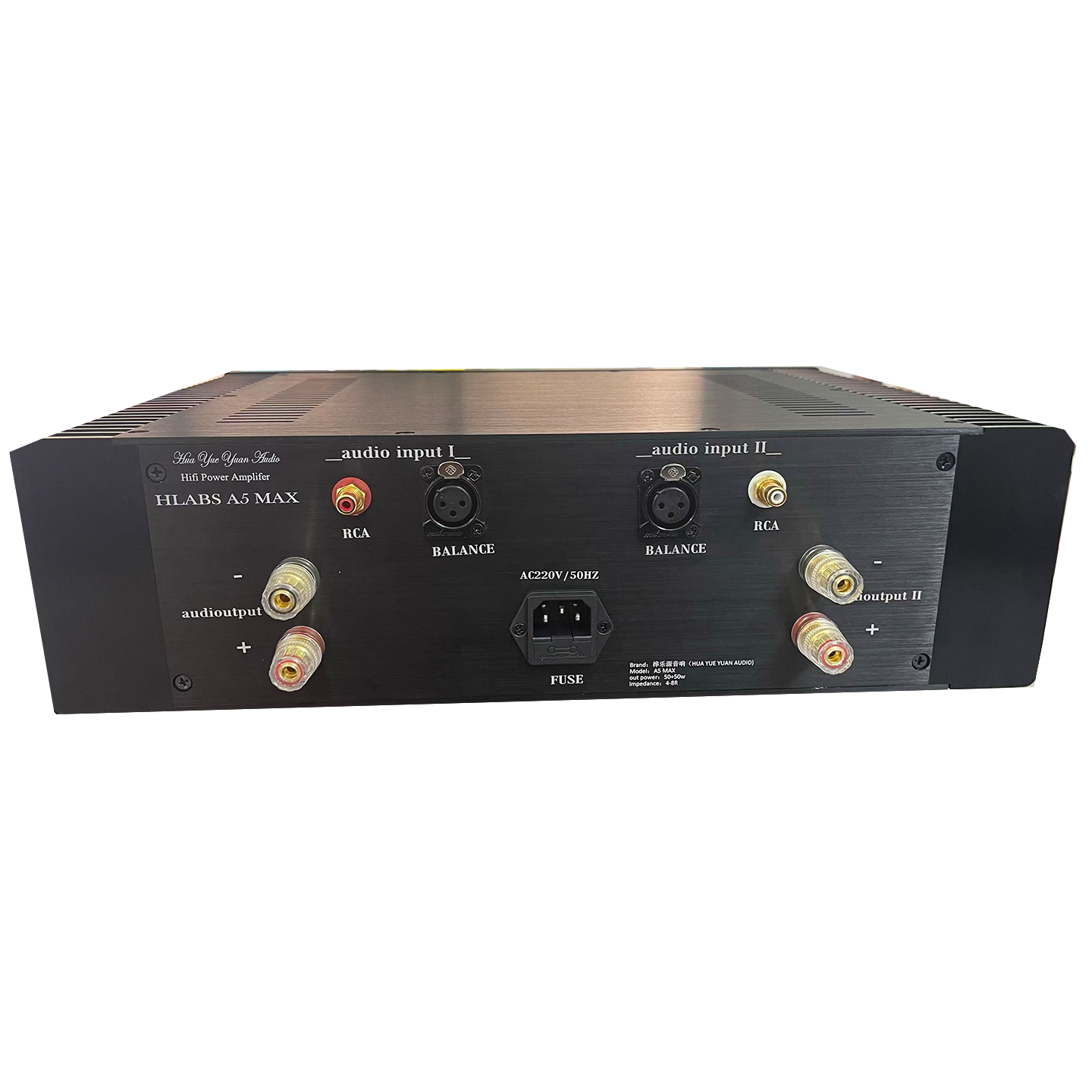

XLR and RCA input modes Convenient and practical
Parameters:
Model: A5MAX
Output power: 50W+50W
Output impedance: 4-8 ohms
Signal to noise ratio: 112db
Working status: Pure Class A
Crossover distortion: None
Harmonic distortion: 0.05%
Input method: XLR/RAC
Size: 430 * 132 * 330mm
Weight: 17.5kg
Package list:

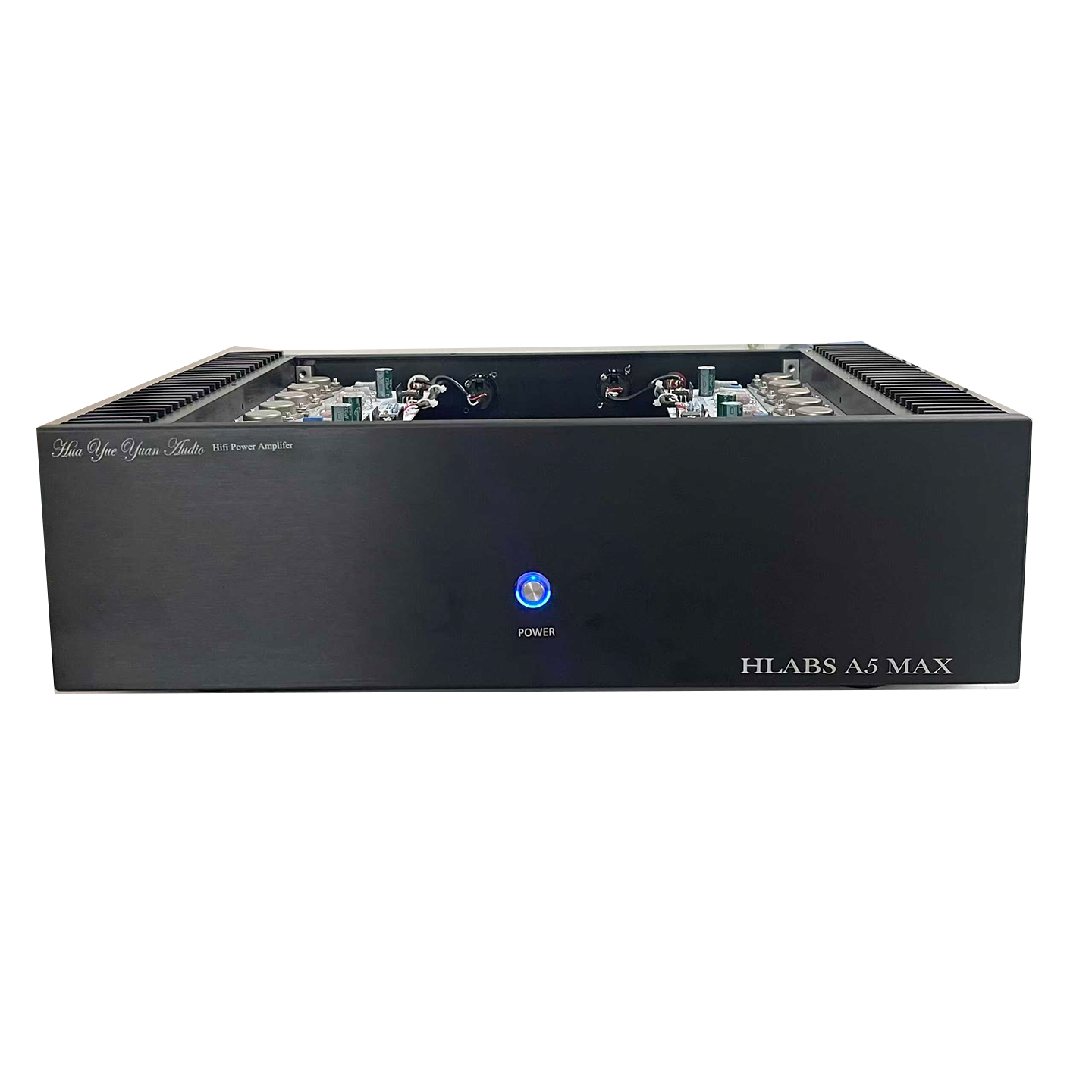

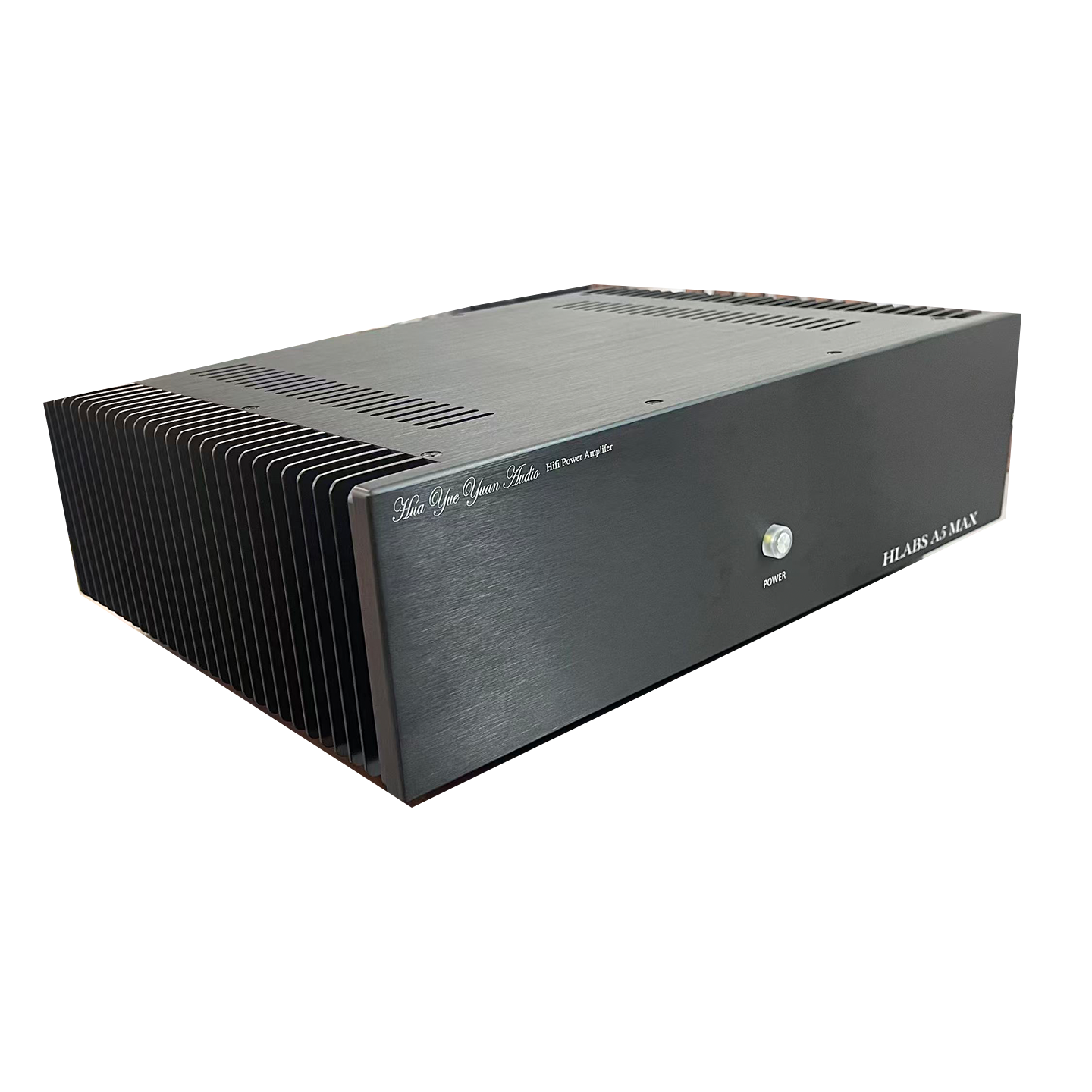

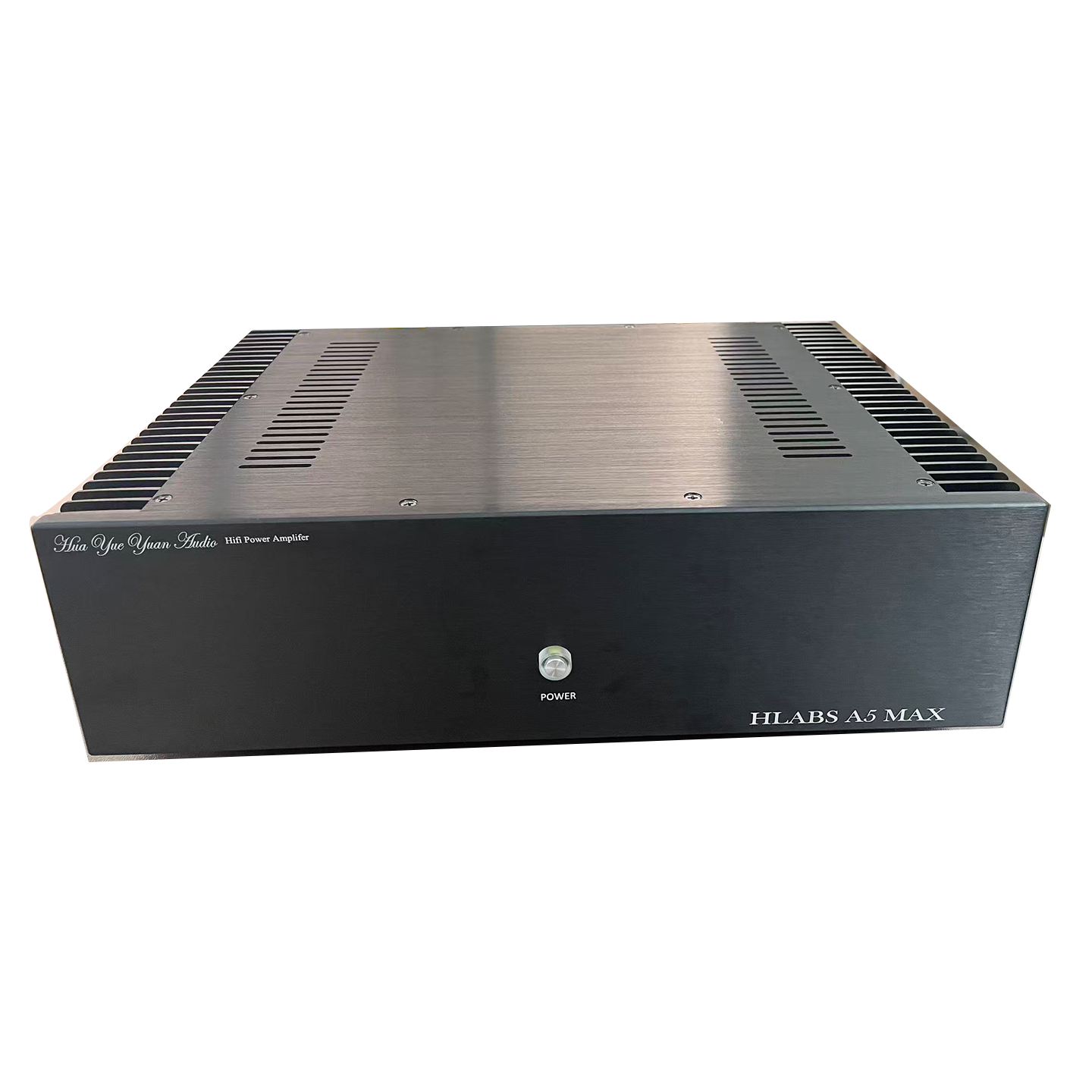

1 × A5 MAX amplifier（For the safe transportation of the amplifier, a power cord is not provided by default）
