Product details:
Product description
Pure

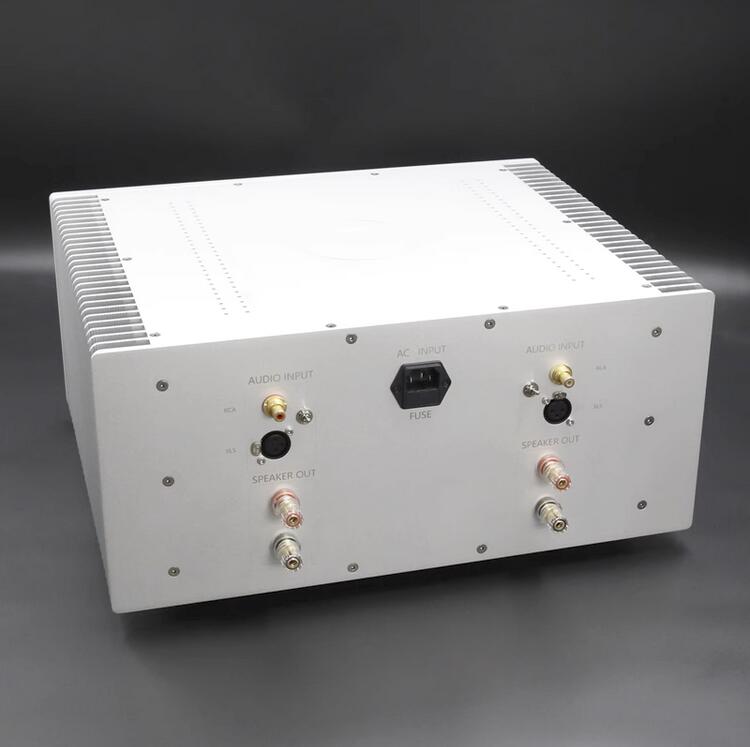

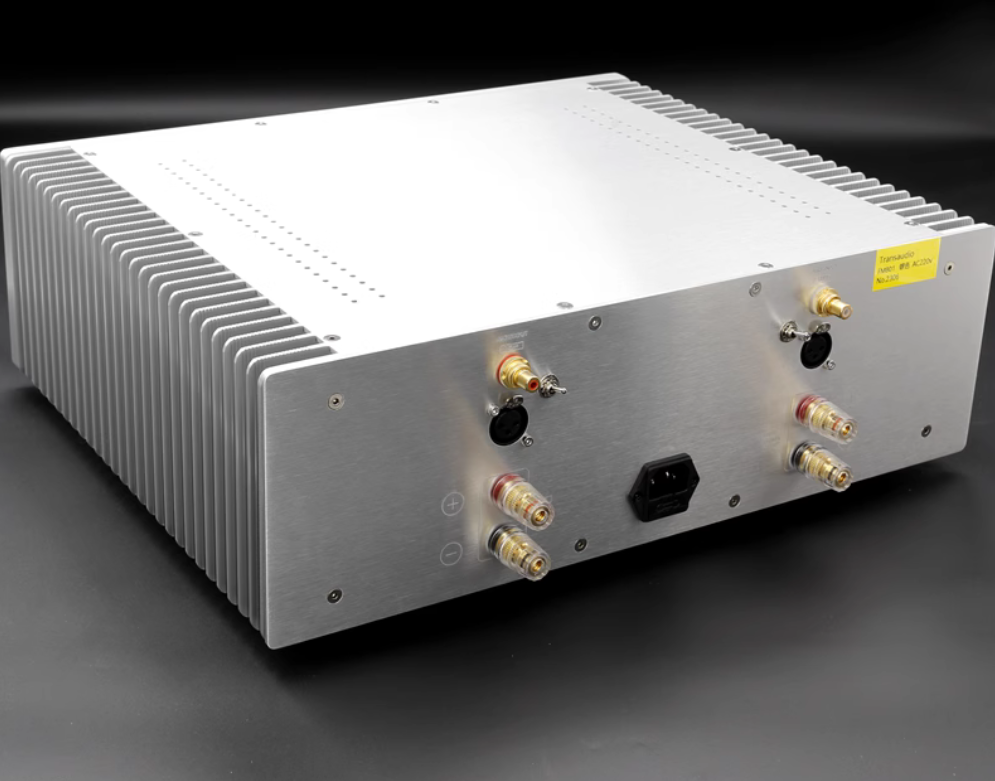

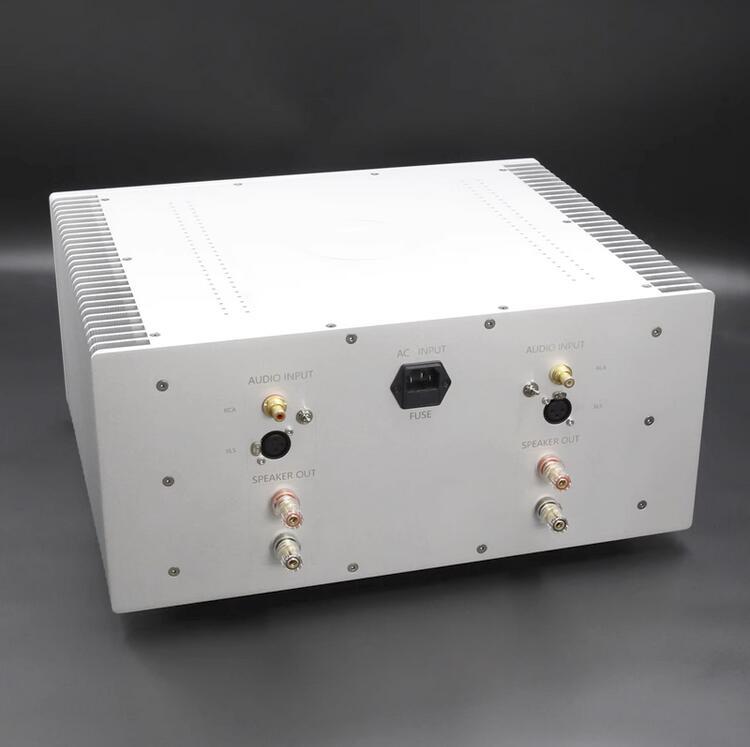

rear stage has a single end & balanced input, can be connected to
two front stage, single end, balance input at the same time, through the
switch

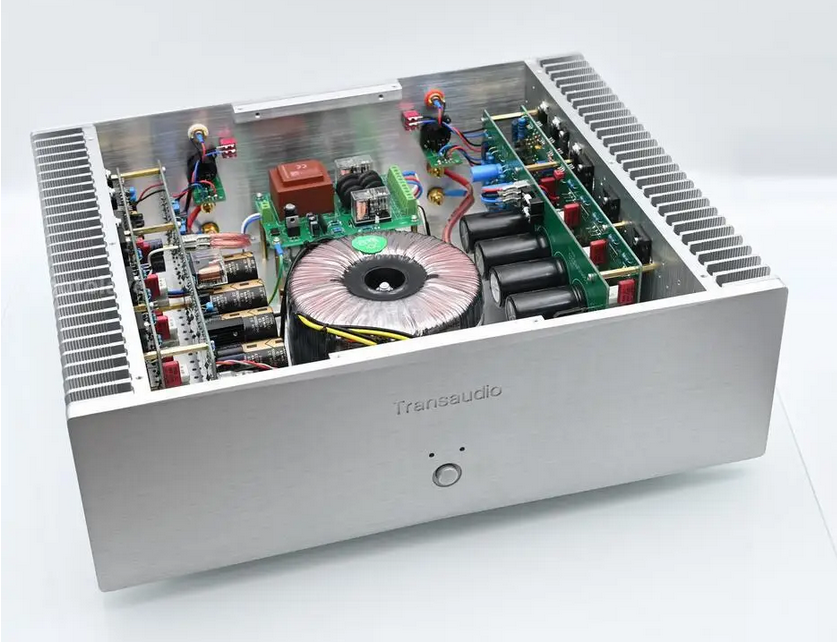

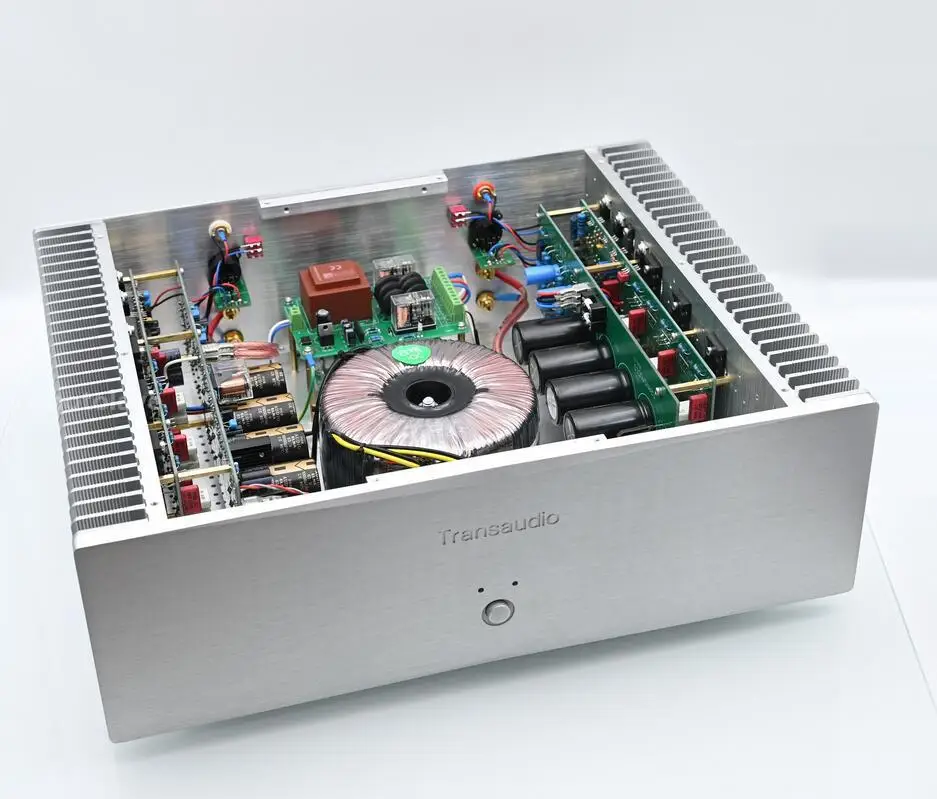

6 pairs or 10 pairs of precision matching ON large tube MJL3281/MJL1302, matching accuracy 1%
Adopt 8 Ammason pairing medium power tube King MJE15032/15033
Static current 400mA*3
Static power consumption 190W
Static current of each pair of tubes is 400mA and 1.2A per channel
800w New Nippon iron transformer left and right channel completely independent power supply
With transformer soft up and anti power interference module
Each channel uses 4 large electrolysis ELNA AUDIO Audio electrolysis 10000uF63V
Comprehensive horn protection over current, midpoint, startup delay, shutdown instant break

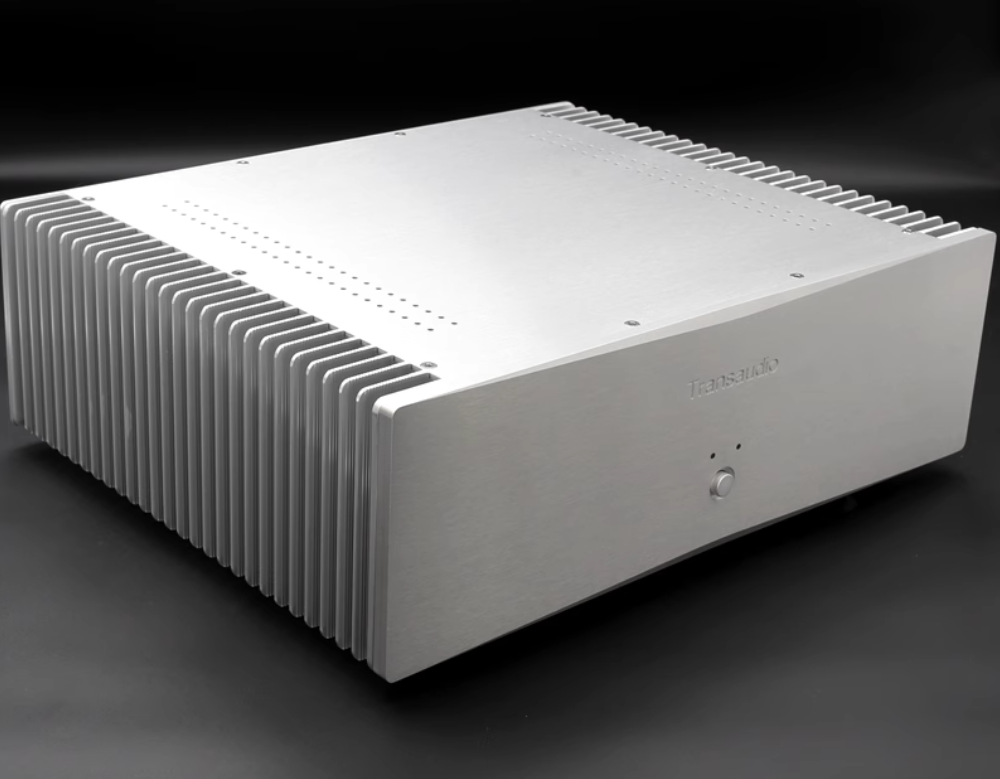

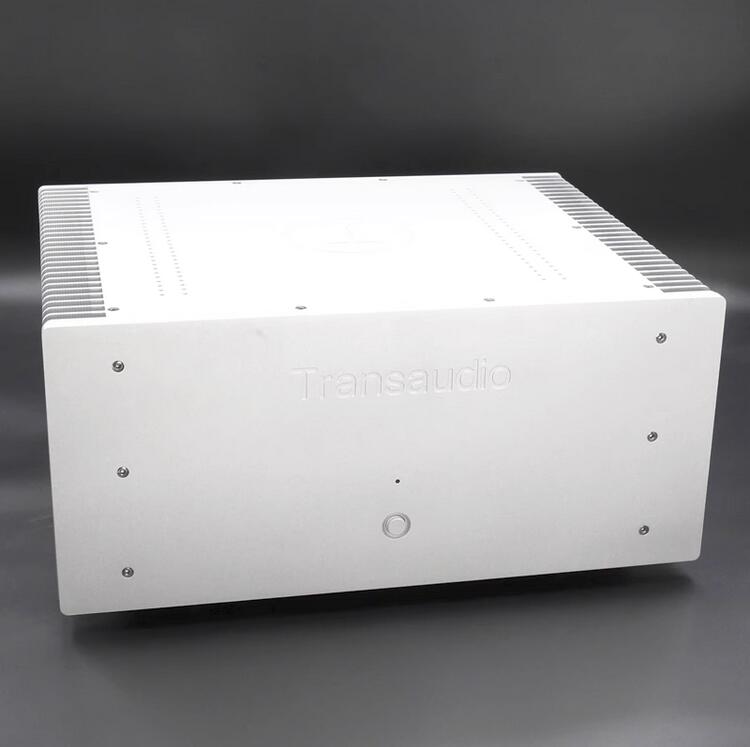

CNC machining standard size all aluminum chassis :W450*L380*H150mm
American ALPHA solder wire welding, welding quality is stable, low internal resistance, bright, strong oxidation resistance
Parameters
Output power: 50W*2/ 8ohm, 100W*2/ 4ohm
