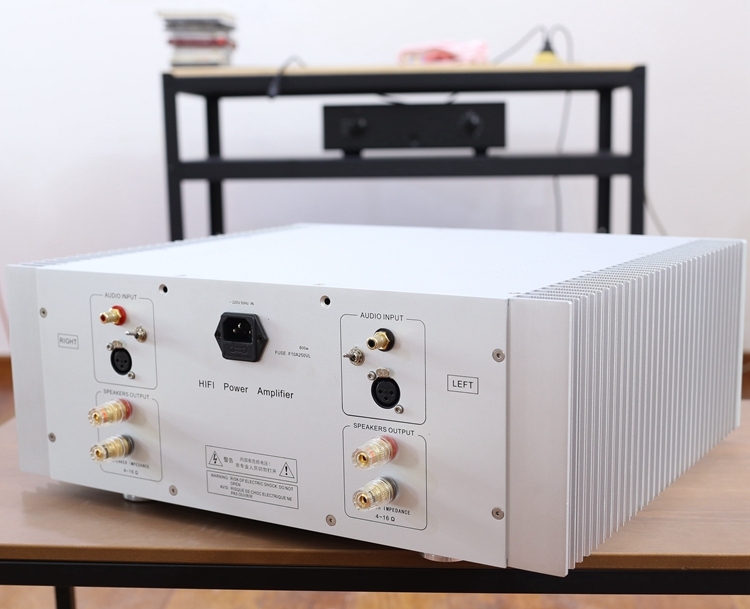

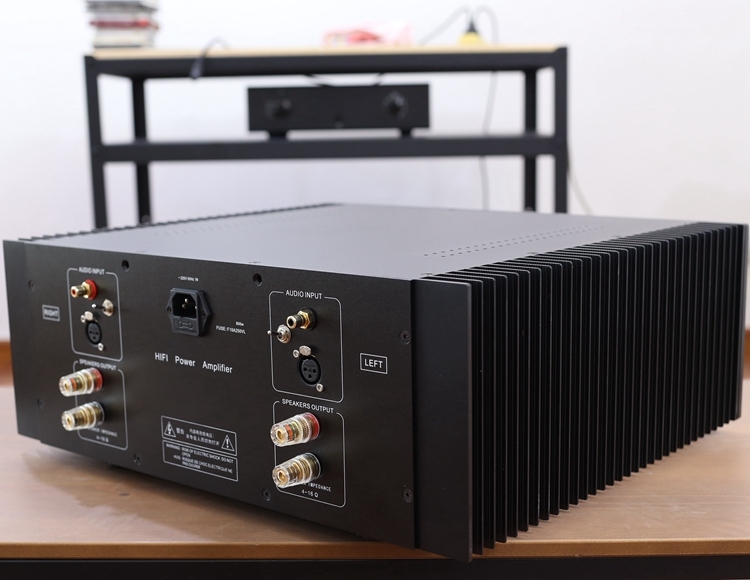

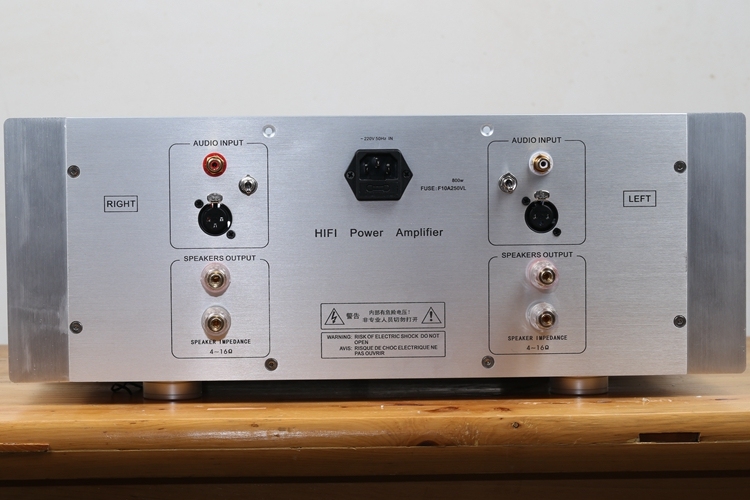

Details:Circuit characteristics:Refer to Burmester 909 circuit design.60W/8 Ω Class A output power.Excellent control, analytical power, and low-frequency performance.RCA/XRL two inputs.Equipped with speaker protection function.

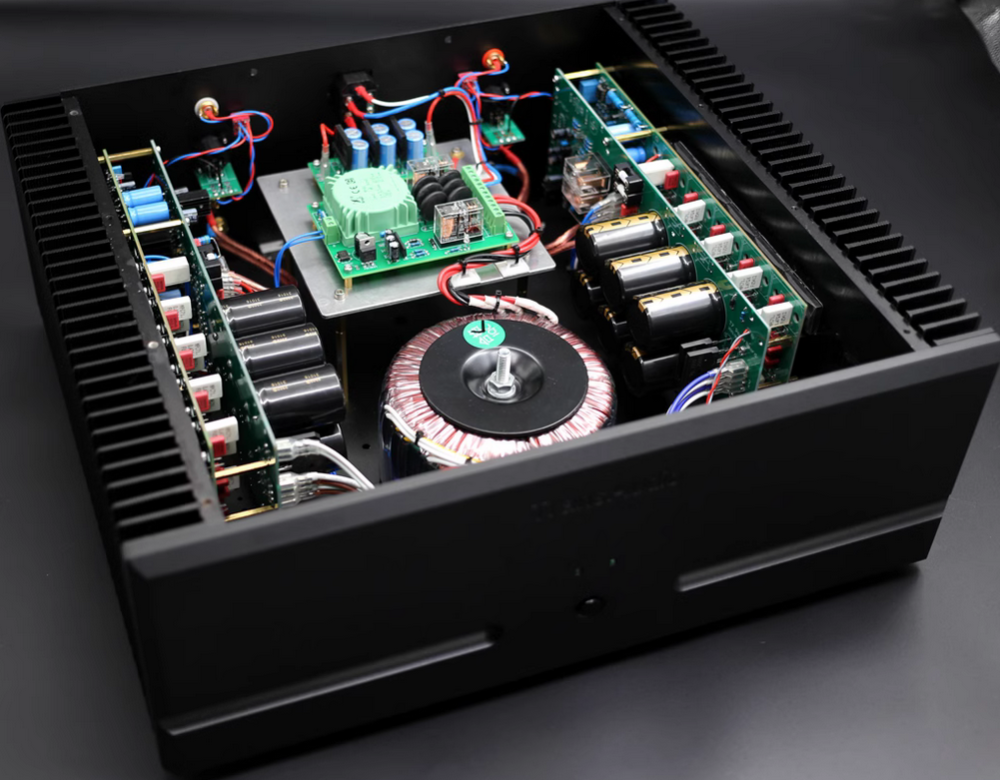

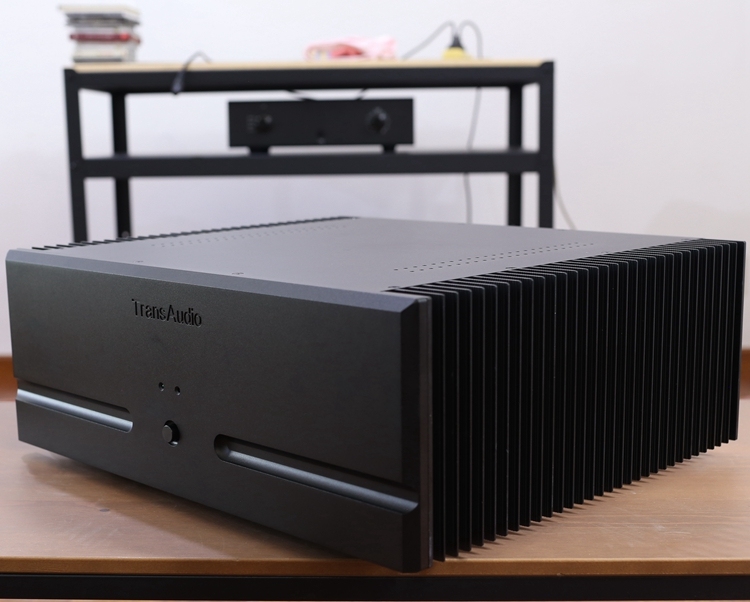

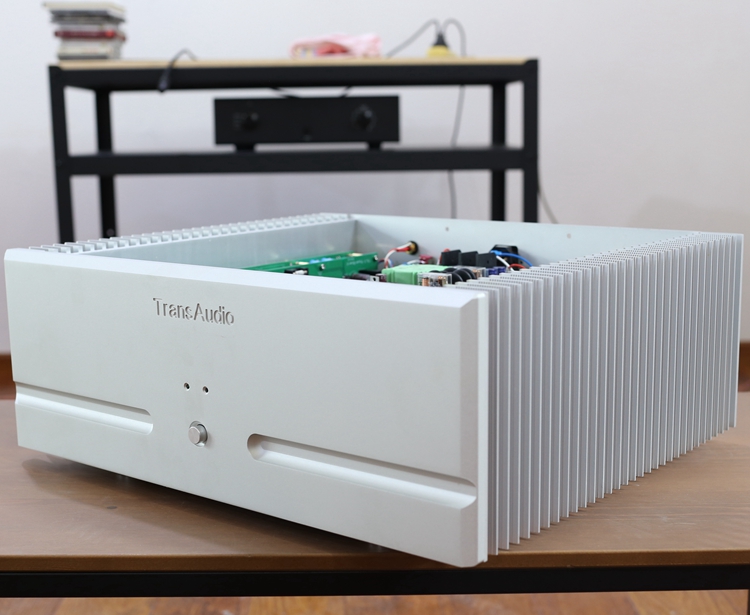

Material:All aluminum chassis with built-in heat sink.
1000W Nippon Steel Transformer
12 ELNA FOR AUDIO 63v10000uF electrolyzers.

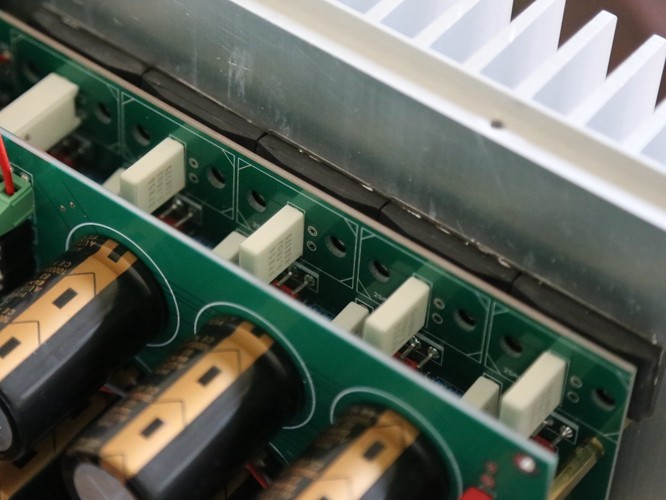

10 pairs of precision paired Sanken transistors C2922/A1216.Pairing accuracy<1%.Excellent thrust and low frequency.

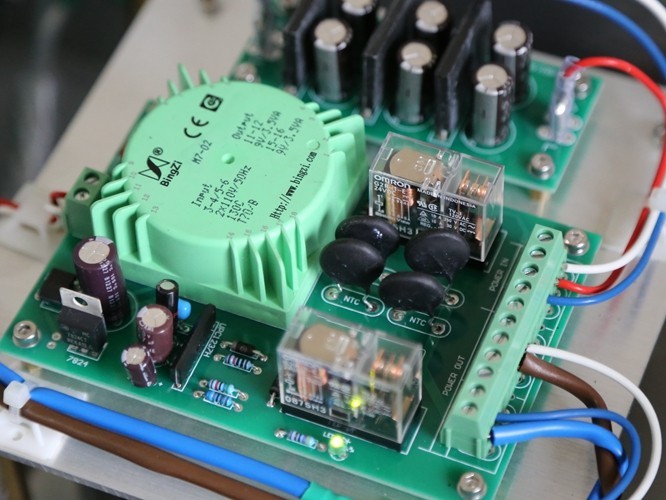

All new components.
Using American alpha solder.
Parameters:Output power: 60 watts * 2/8 ohms, 120 watts/4 ohms, 240 watts/2 ohms
Quiescent current: 300mA per transistor
Amplifier size: 480 * 450 * 180mm
Weight: 25kg
Magnification: 33x
Static power consumption: 190W, 1 kWh per 5 hours
Output noise: 0.4mV
Output distortion: 0.004%

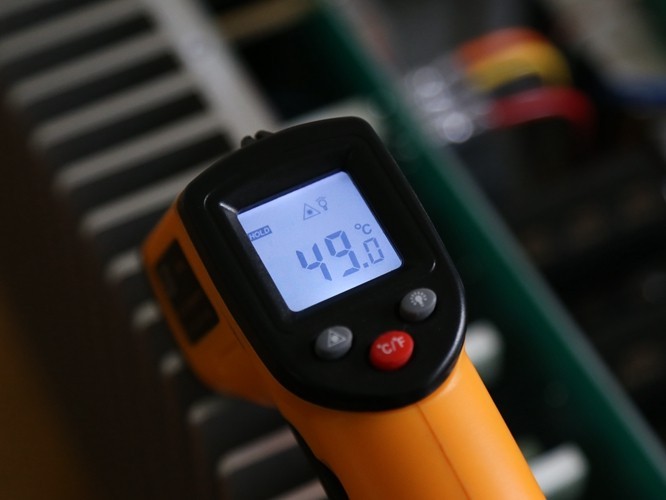

Heat dissipation temperature: 50 degrees for the main radiator
