Product Details:
A9.4 adopts a fully symmetrical X-Amp ultra fast fully DC coupled power amplifier circuit, which can balance signal or single ended signal input Featuring high damping, it can drive all low sensitivity large speakers Rigorous sound, high resolution, first-class control, excellent low frequency.

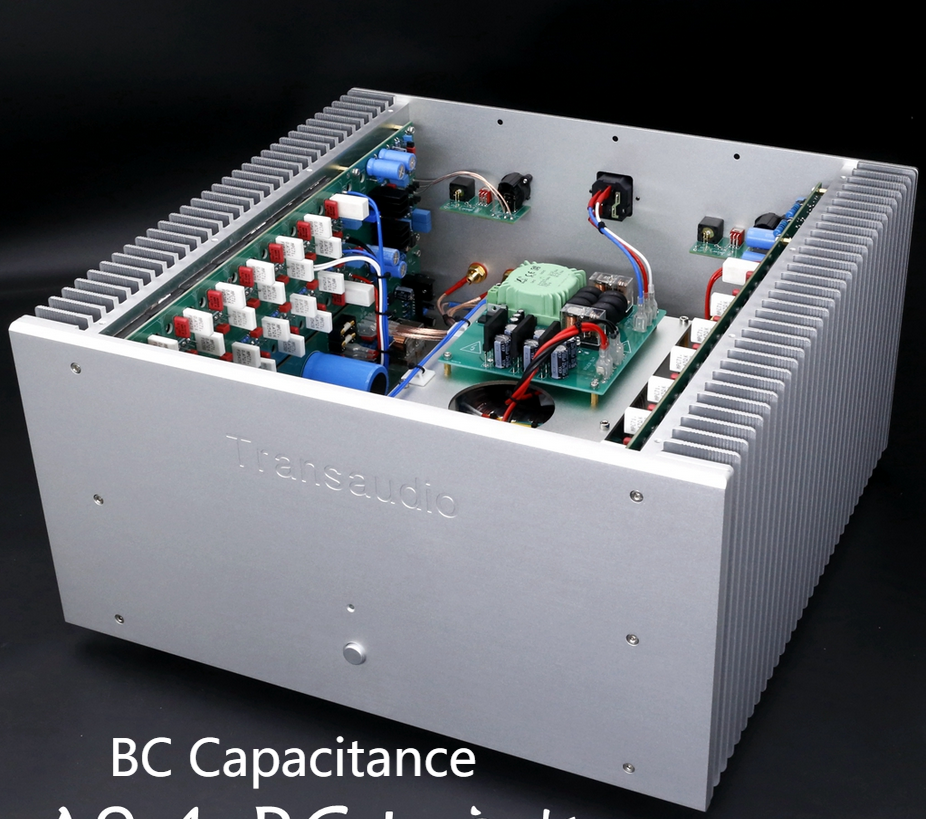

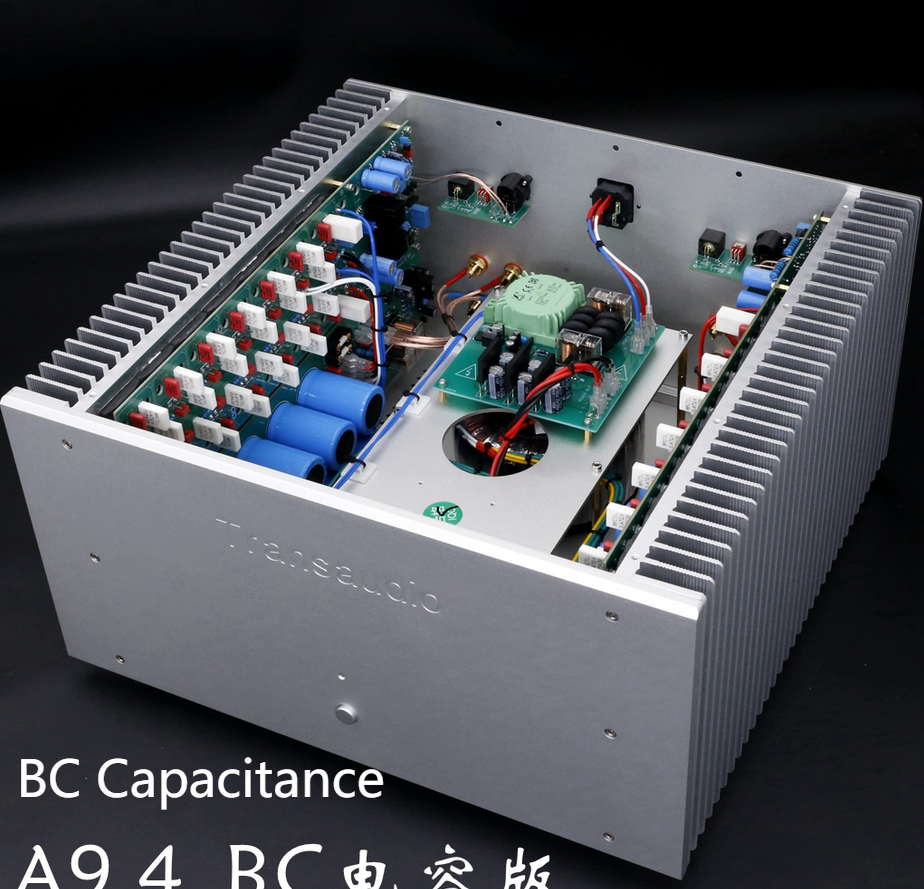

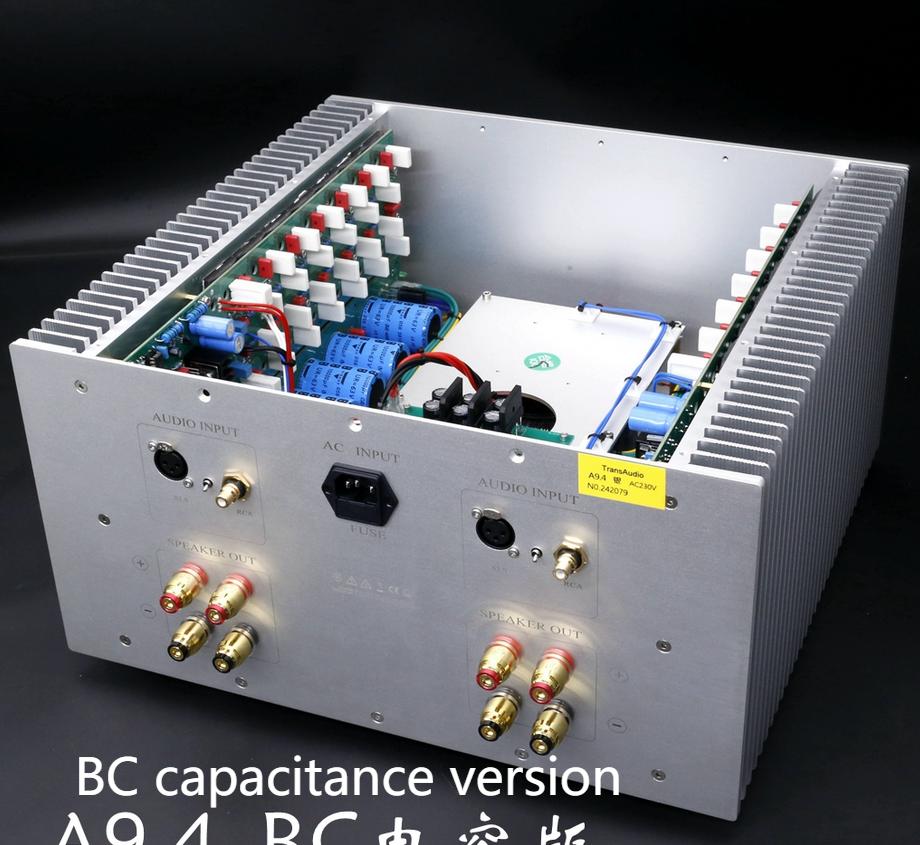

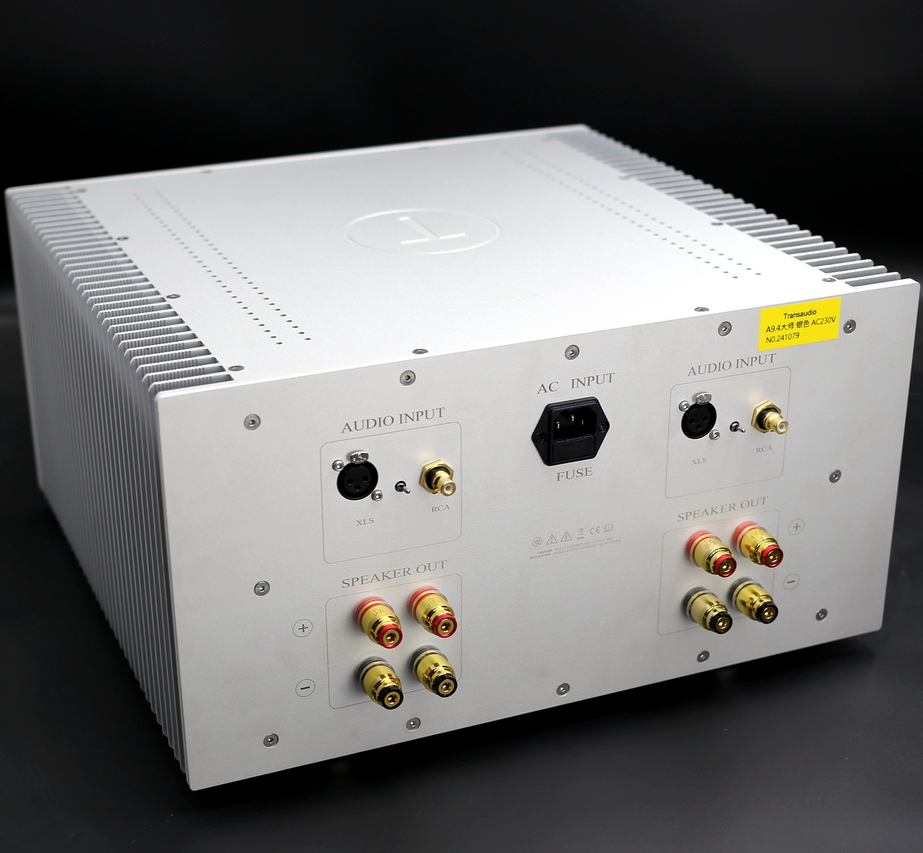

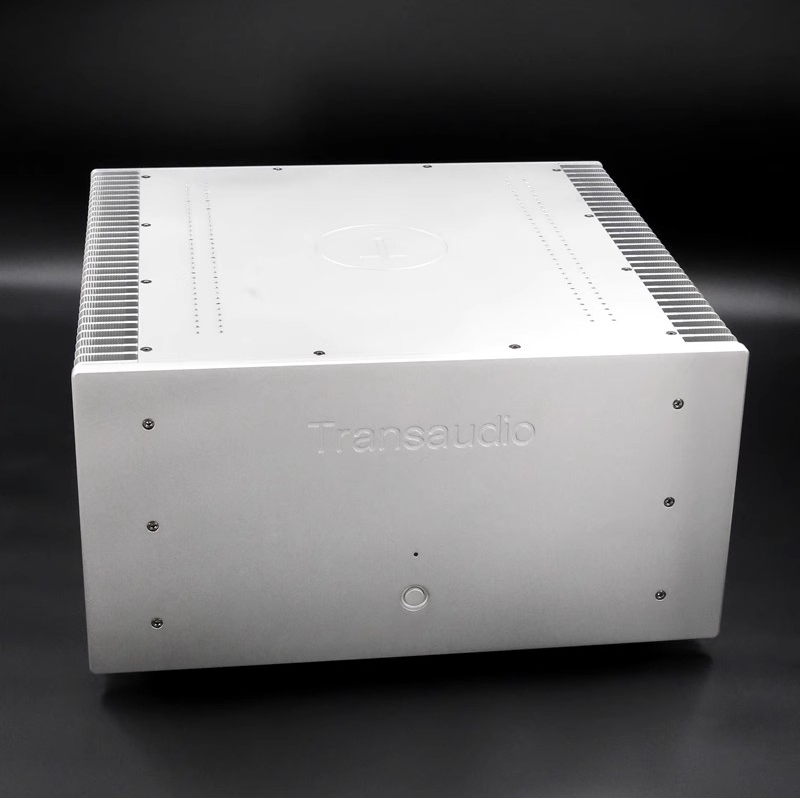

1:) Super large and thick all aluminum chassis Good heat dissipation effect.
2:) Two 600W Nippon Steel transformers provide independent power supply for the left and right channels.

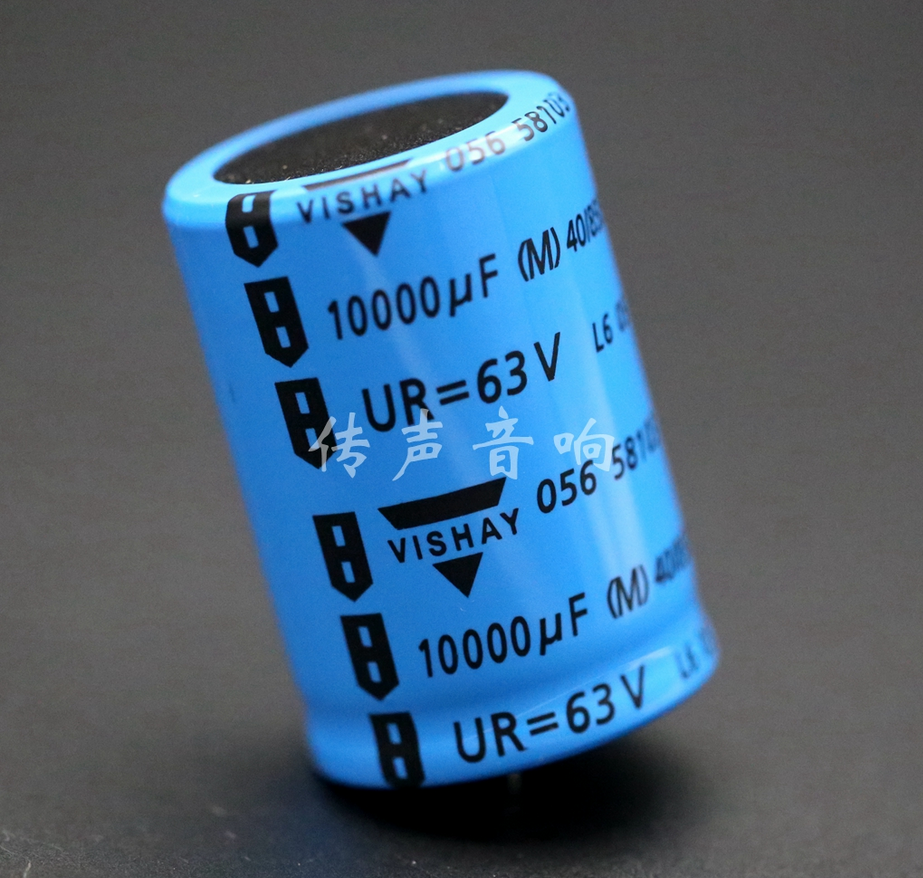

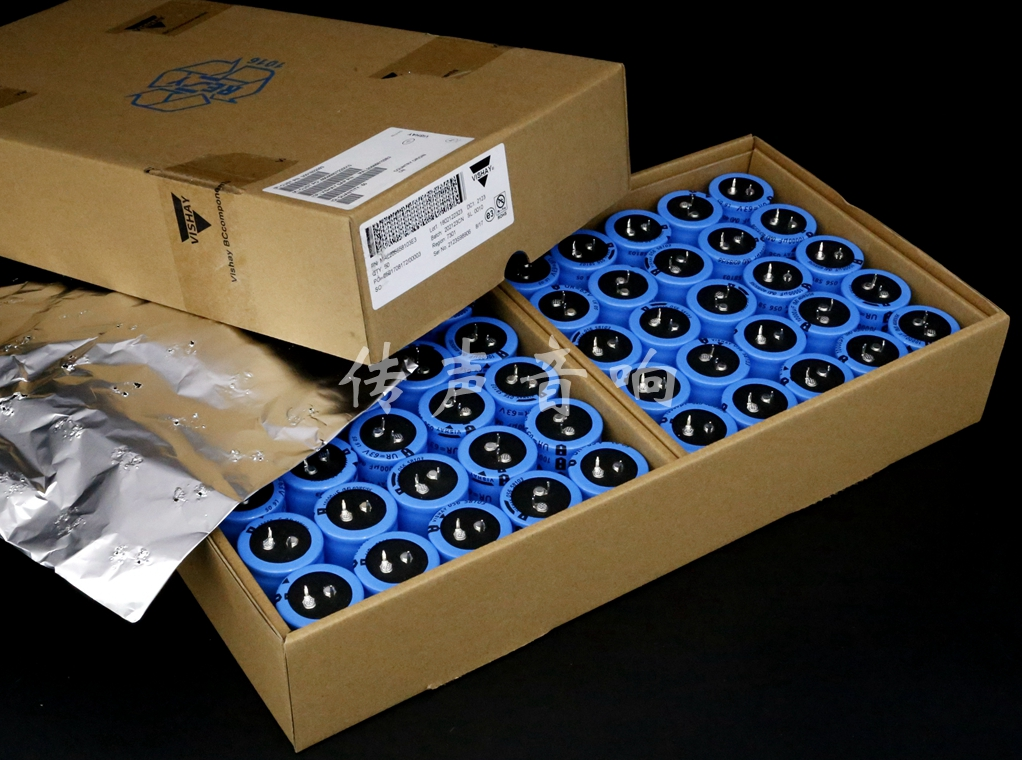

3:) 8 pieces of 10000uF audio electrolysis per channel.

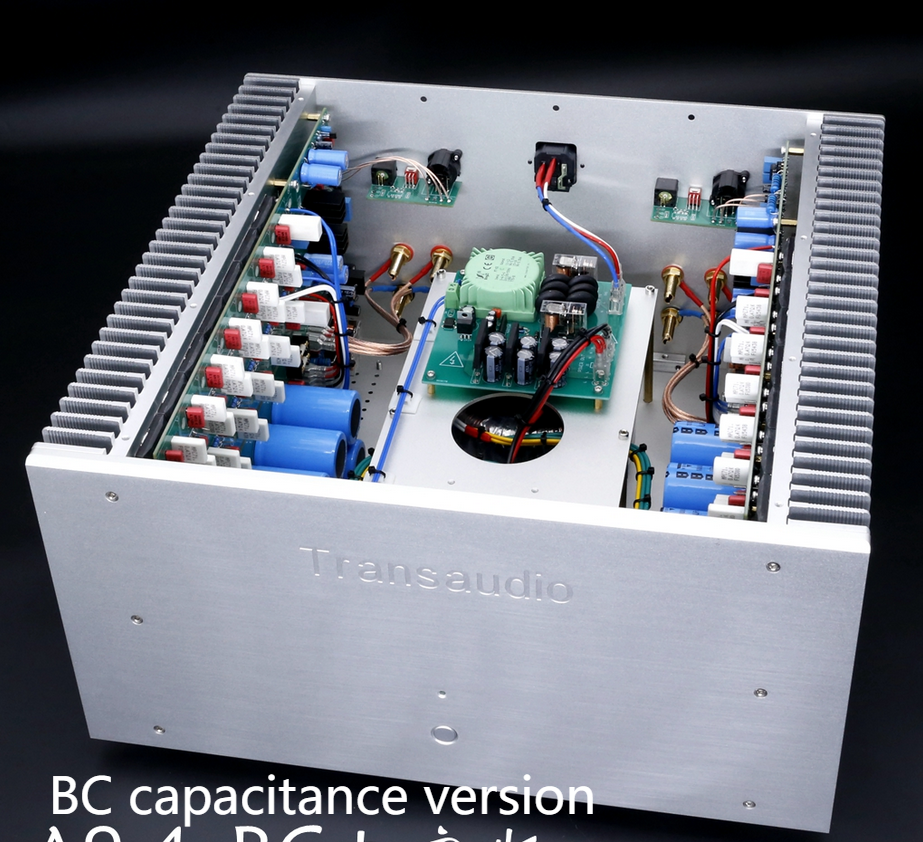

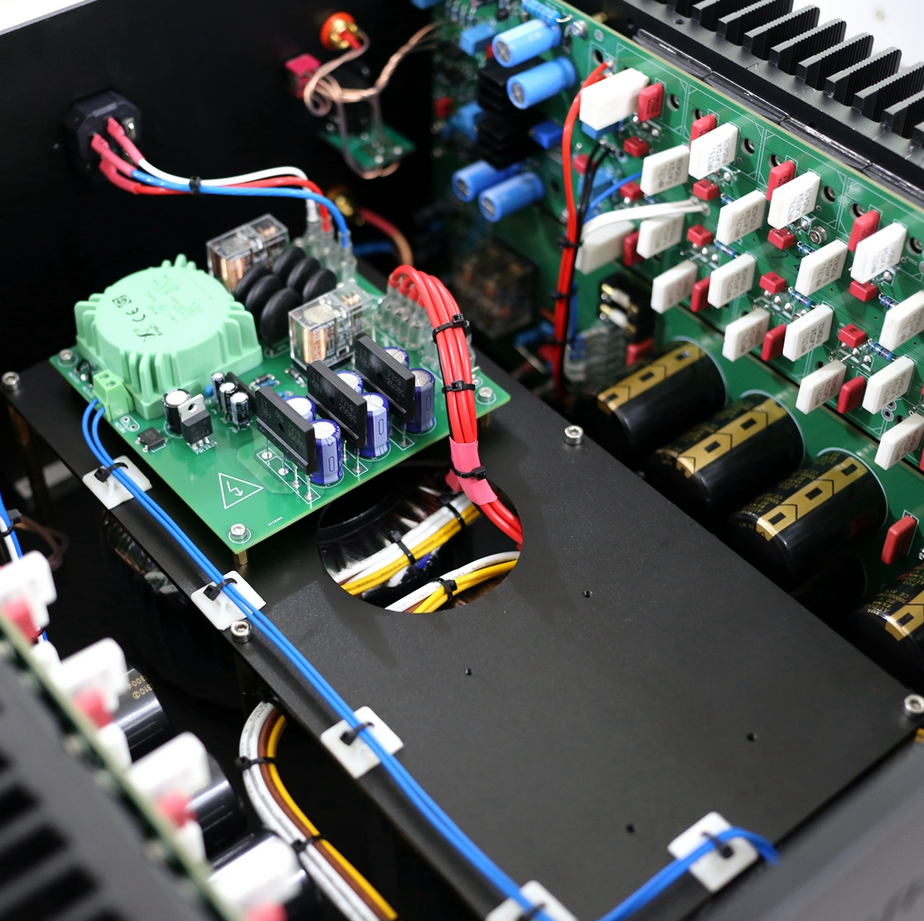

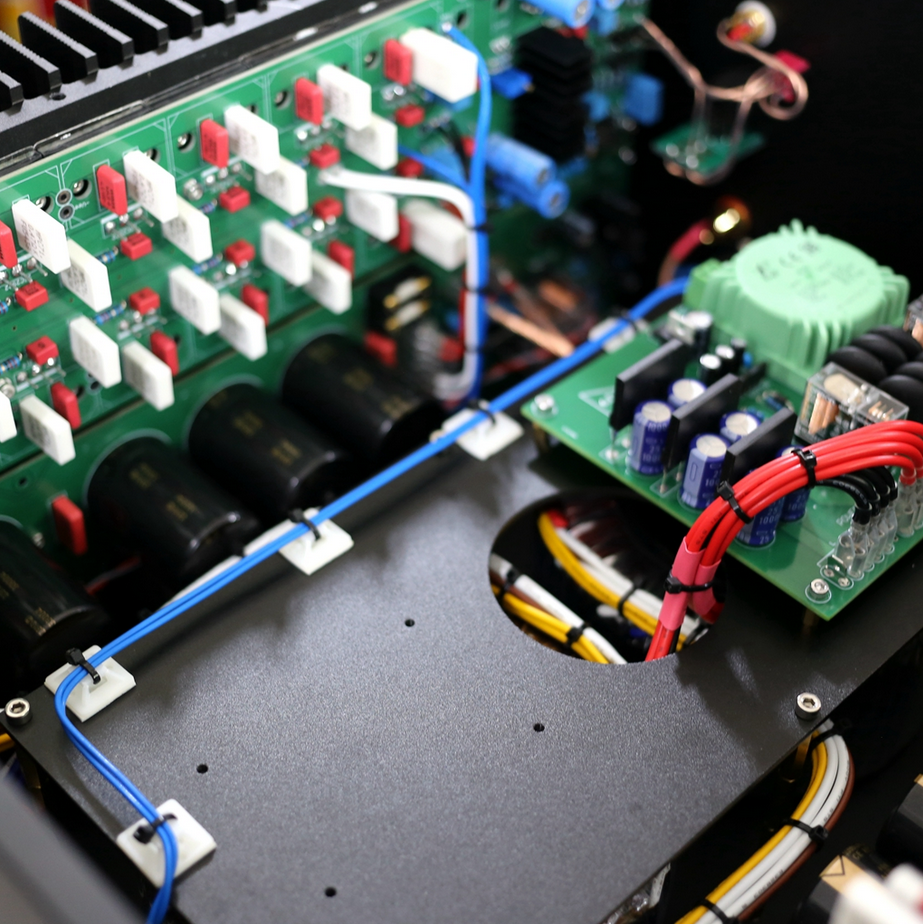

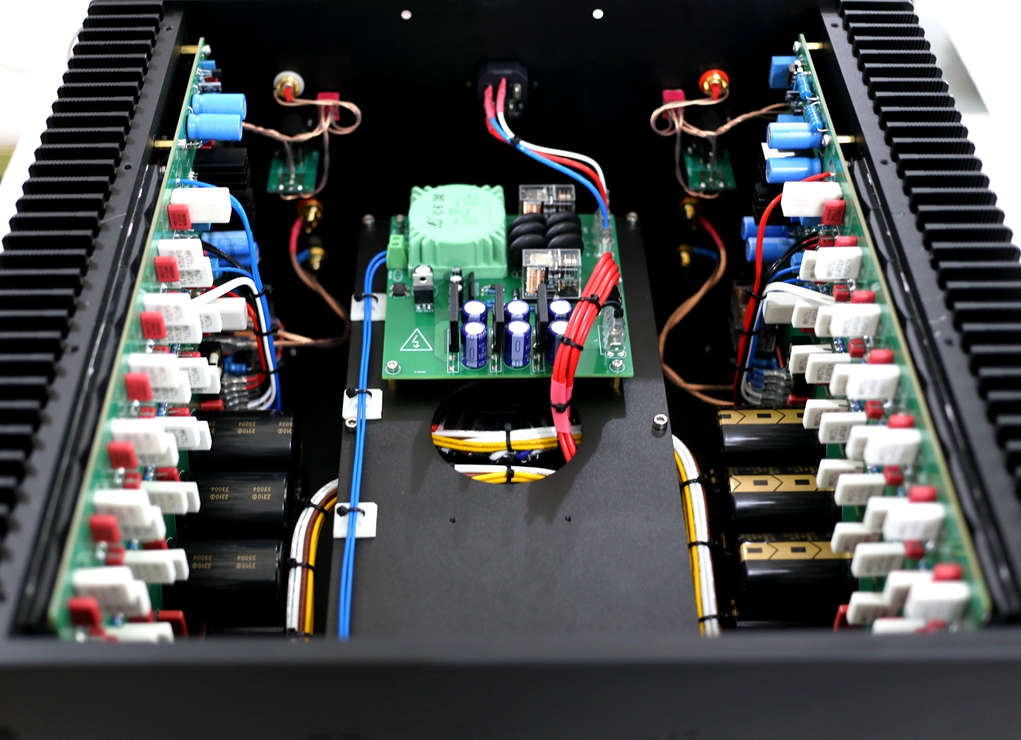

4:) The left and right channels are designed to be completely independent, with the amplifier board, power board, and protection board completely separated from each other.
5:) Each channel has 7 pairs of precision paired Japanese made genuine Sanken transistors.
6:)Each transistor has a maximum static current of 300mA.
7:) A comprehensive speaker protection circuit effectively protects your expensive speaker.
8:) Equipped with startup soft start and power DC filtering function
9:) A9.4 adopts single crystal copper signal cable
Specifications:
Input sensitivity: 1.12Vrms
Input impedance: 33K ohms
Damping coefficient: 2000
Output power: 100W/8 ohms, 200W/4 ohms RMS power, stable output at full power for a long time
Static power consumption: 220w
Supply voltage: AC110V/AC220V
Color: silver or black
Weight: 32kg with packaging
Size: 430 * 430 * 230mm

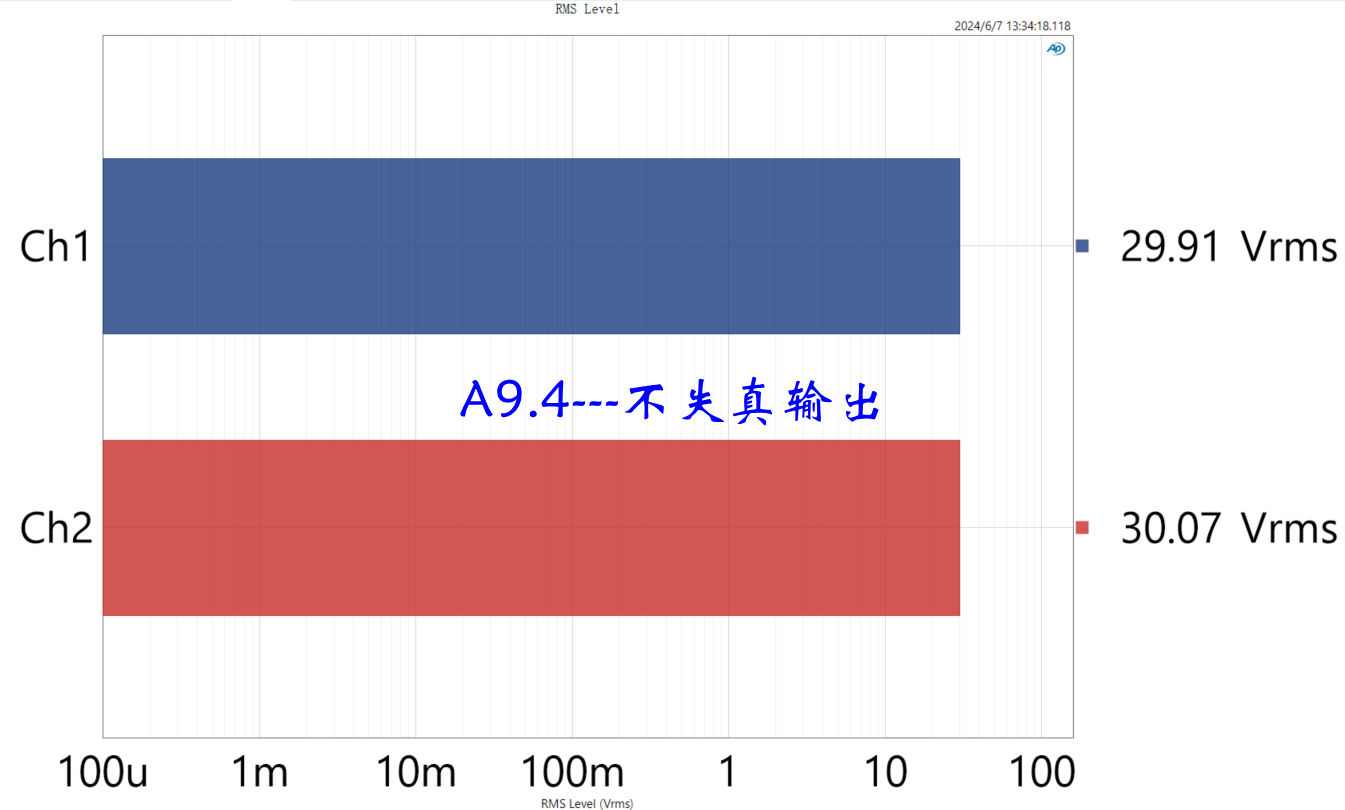

Output effective value: 30.0Vrms

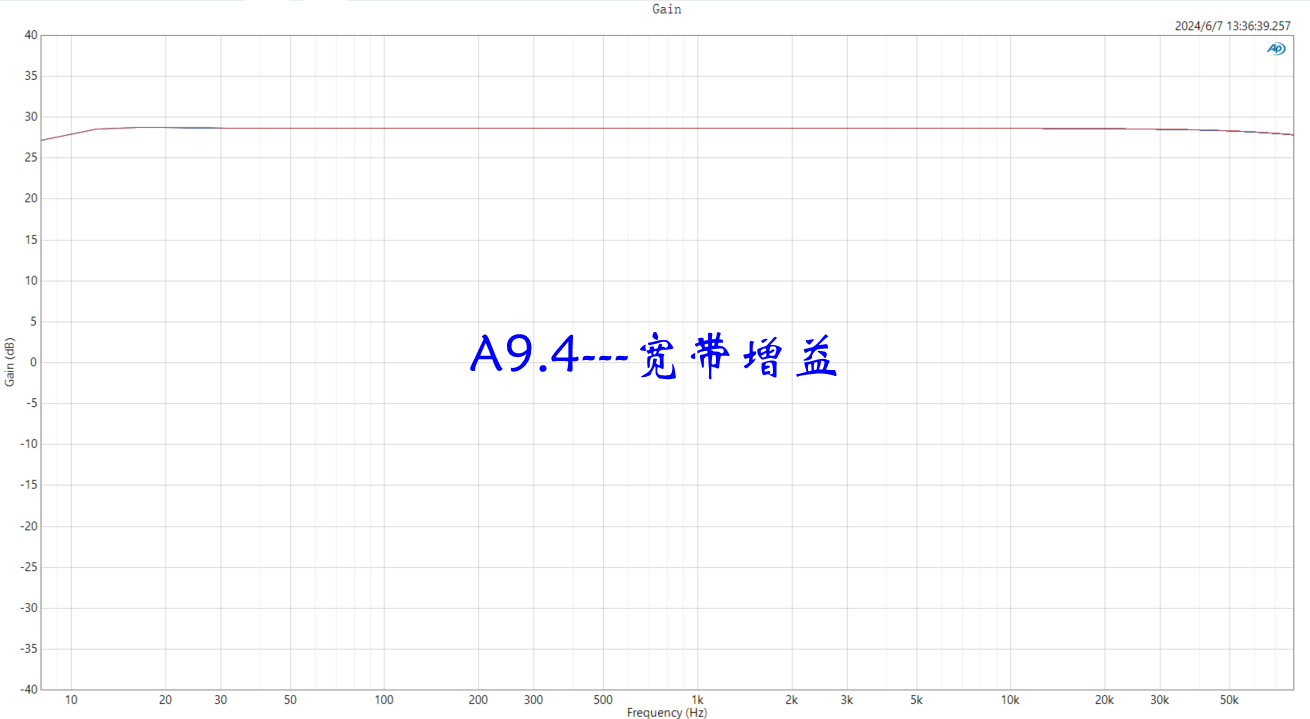

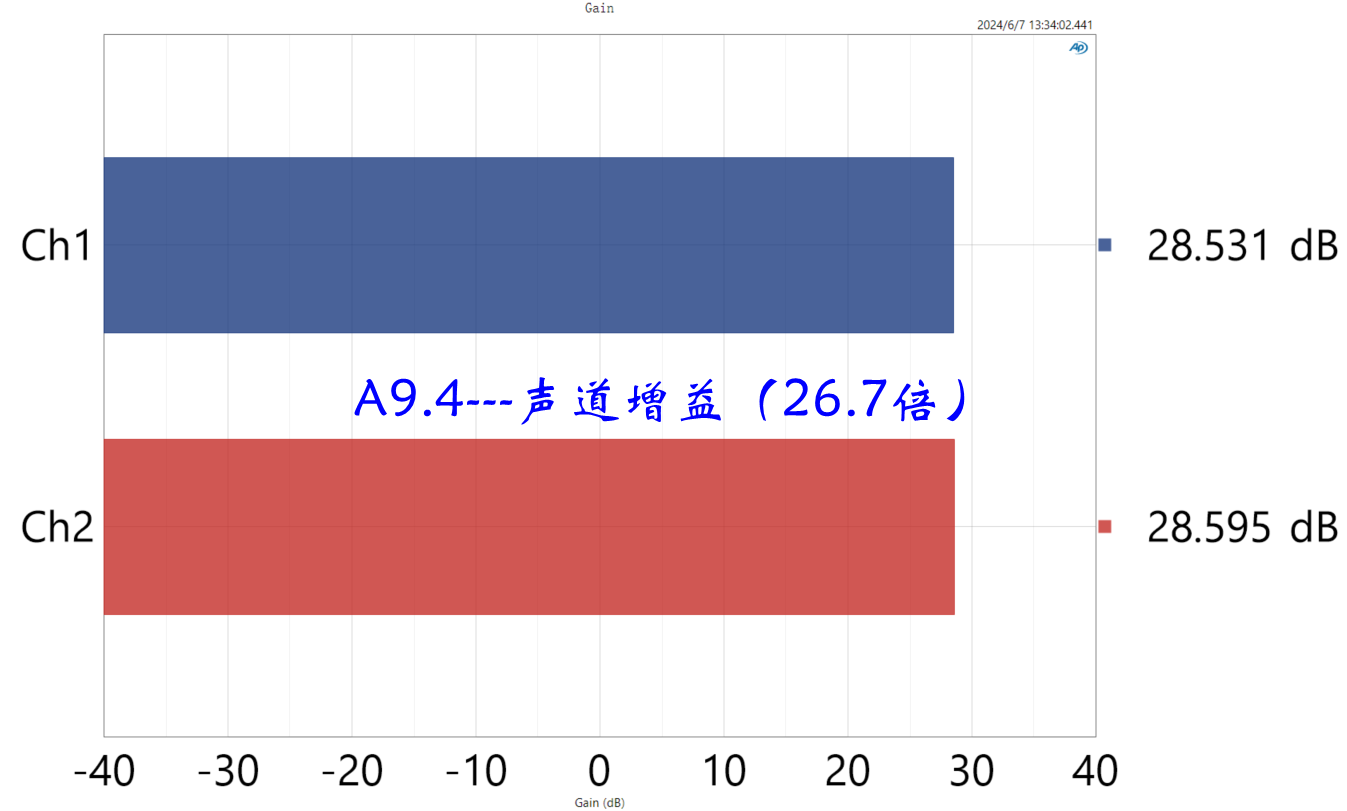

Channel gain: 28.5dB 26.8x

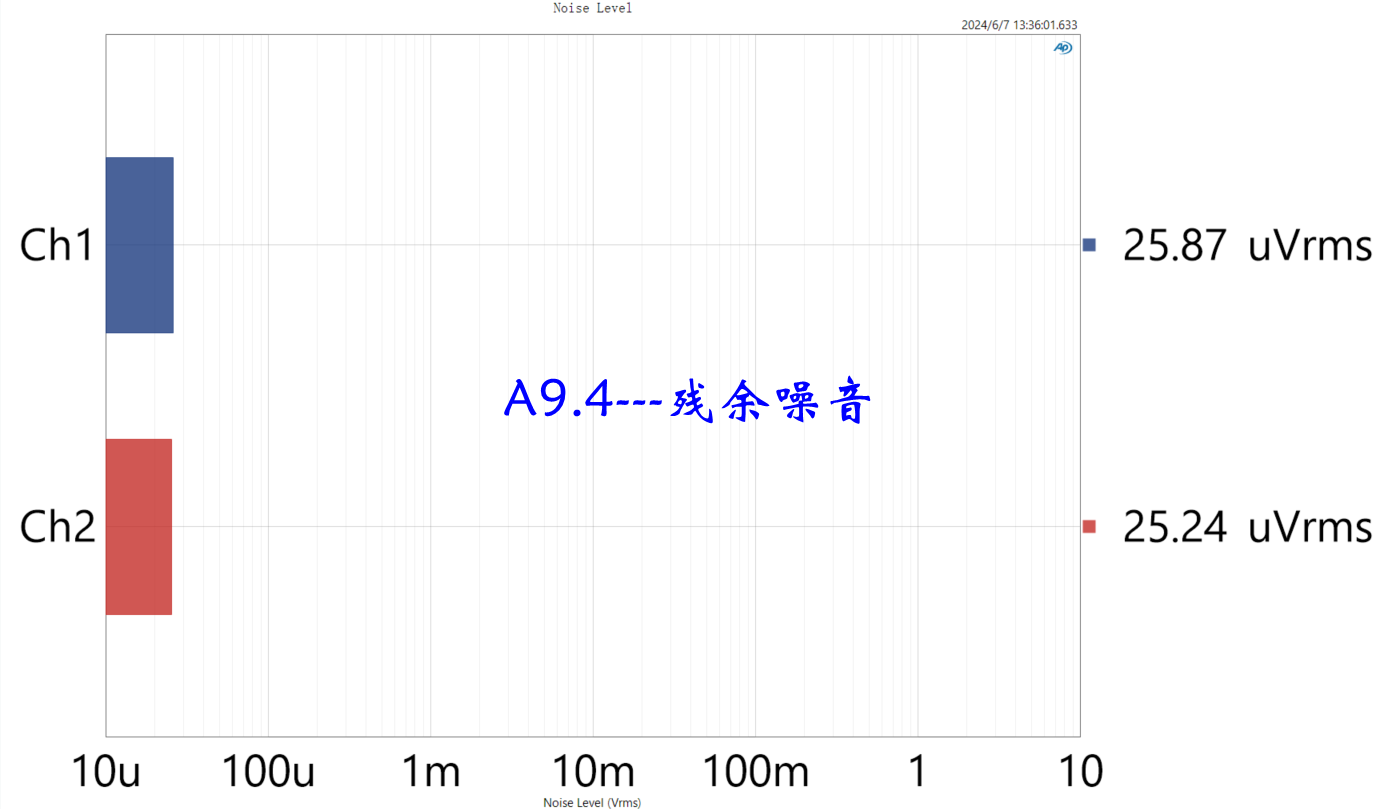

Residual noise: 25.28uV

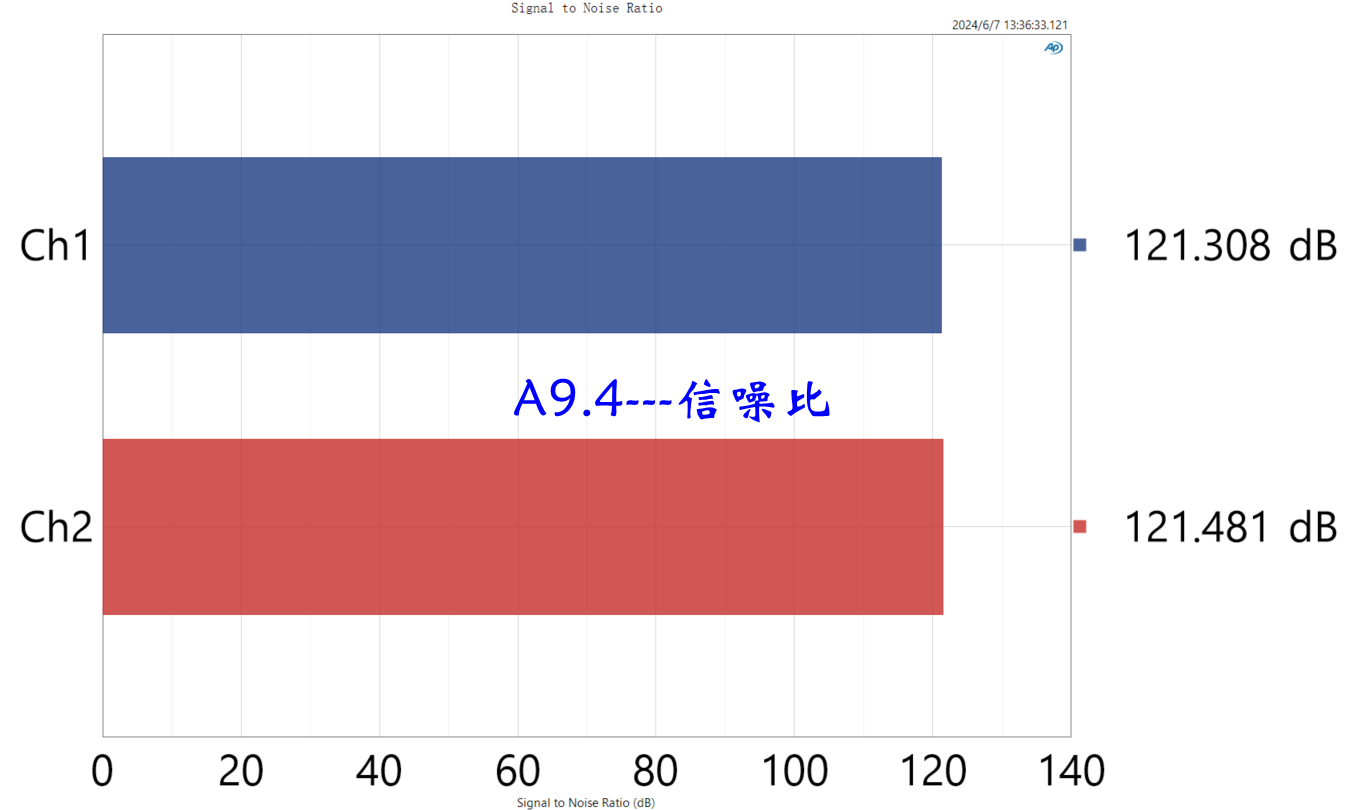

Signal to noise ratio: 121.4dB
Dynamic range: 121.4dB

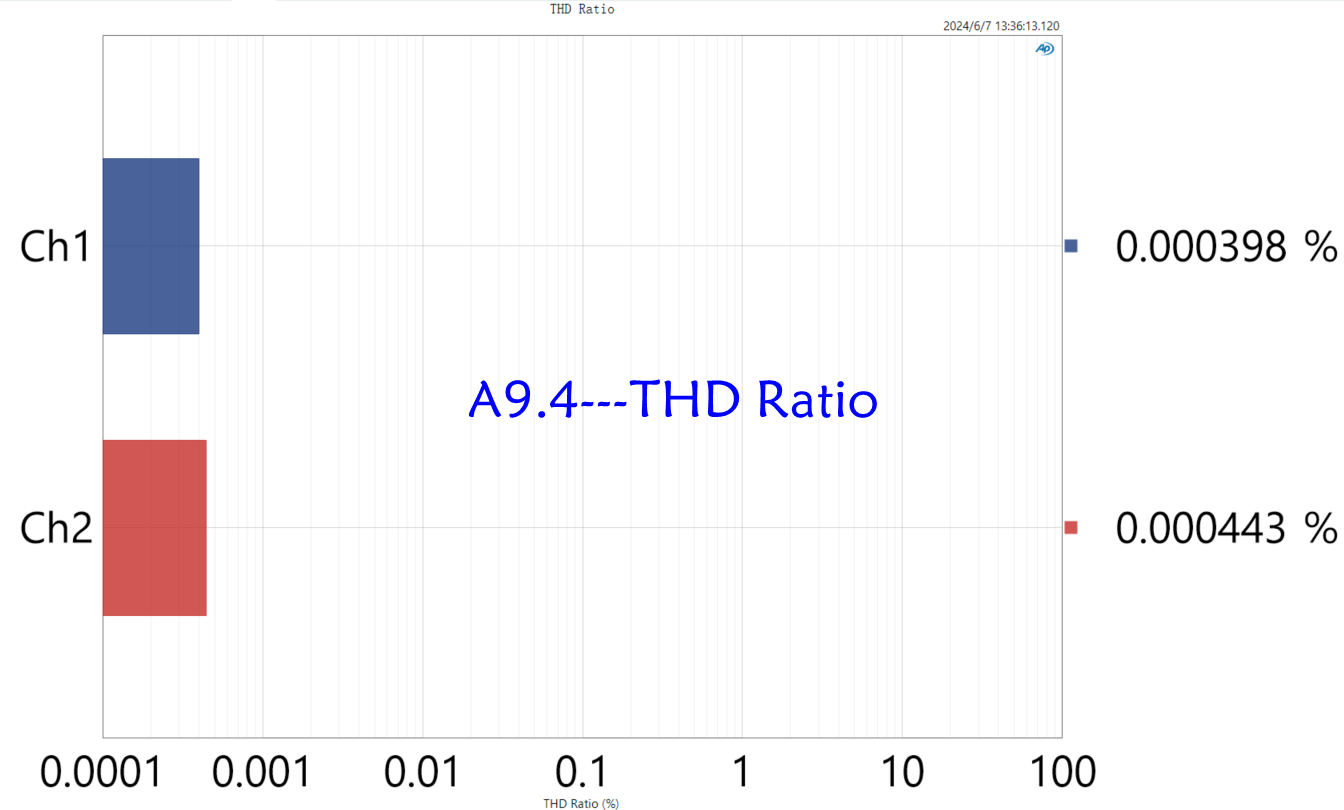

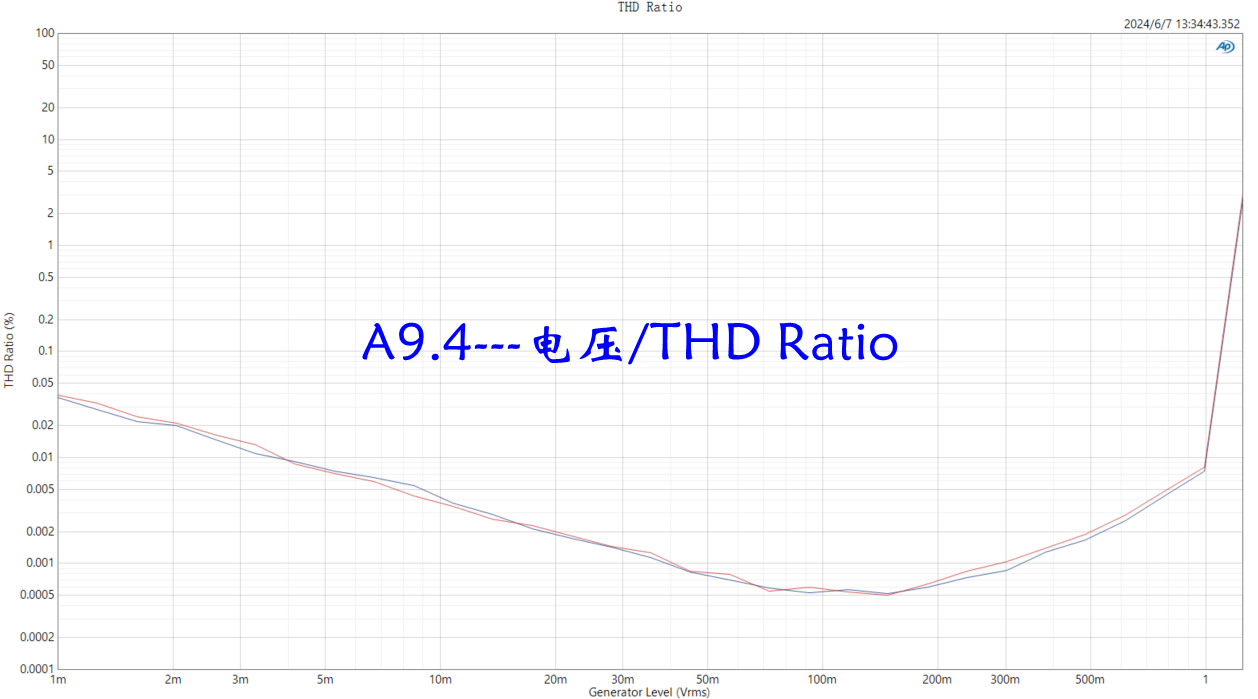

THD distortion: 0.000398%

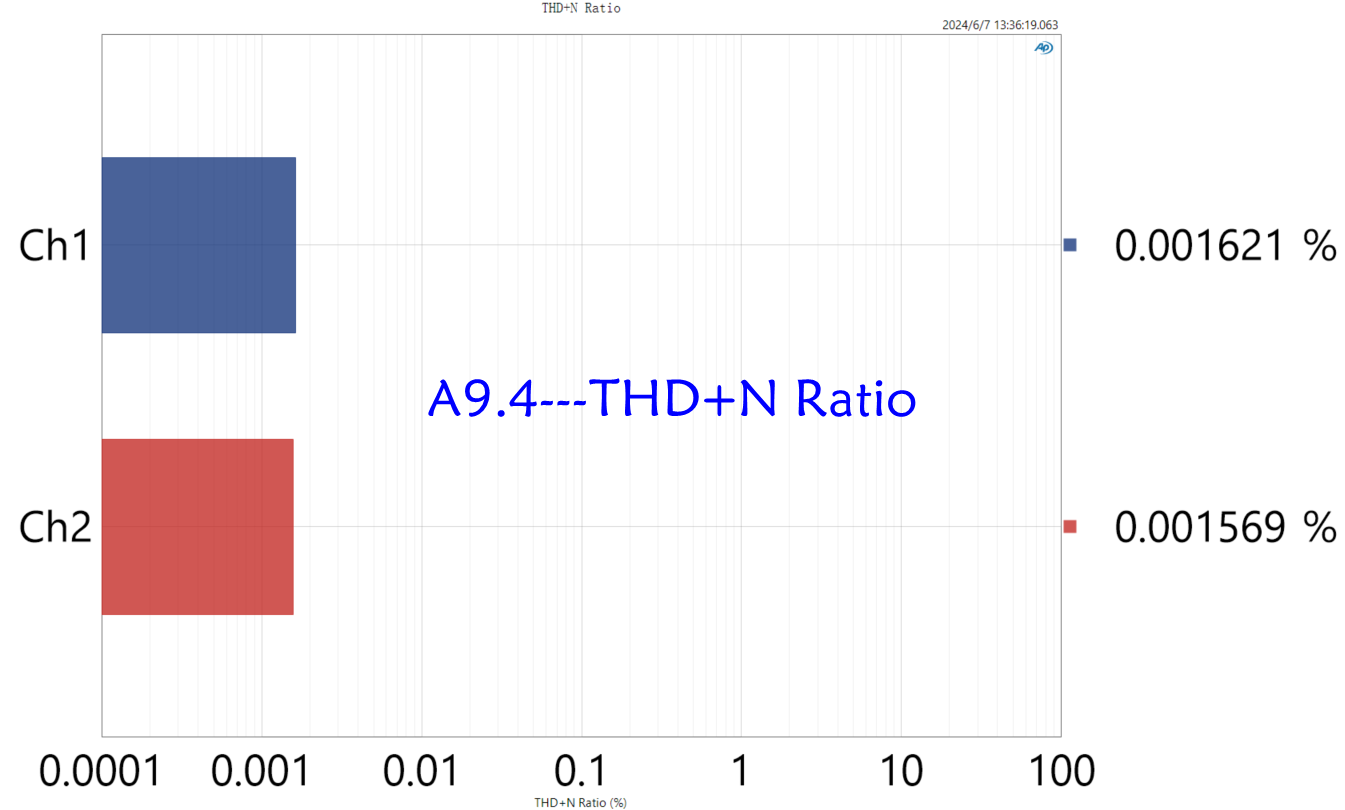

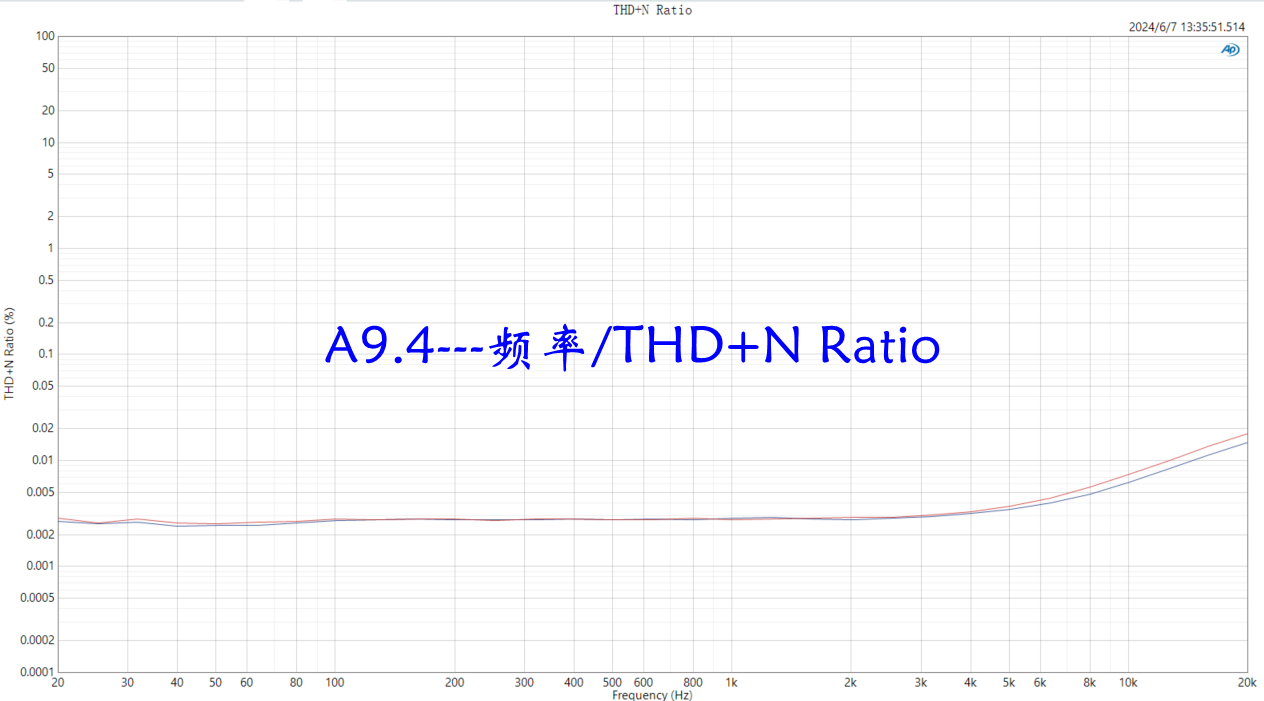

THD+N distortion: 0.0015%

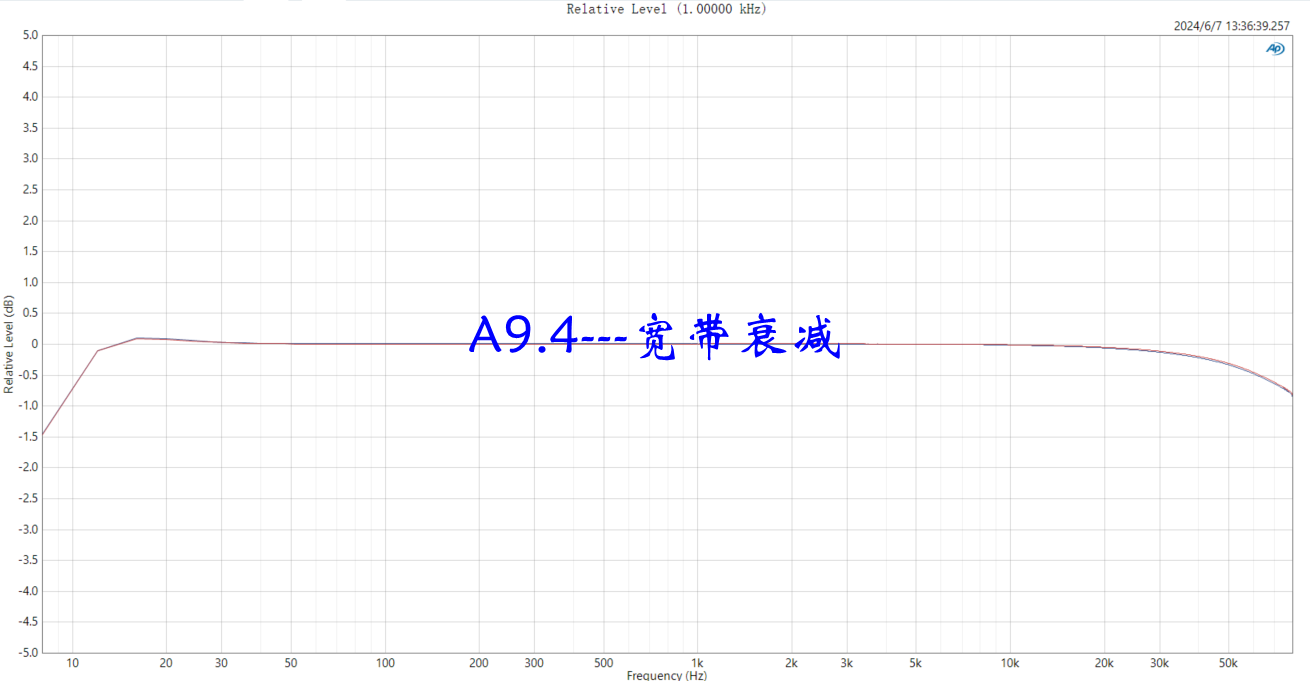

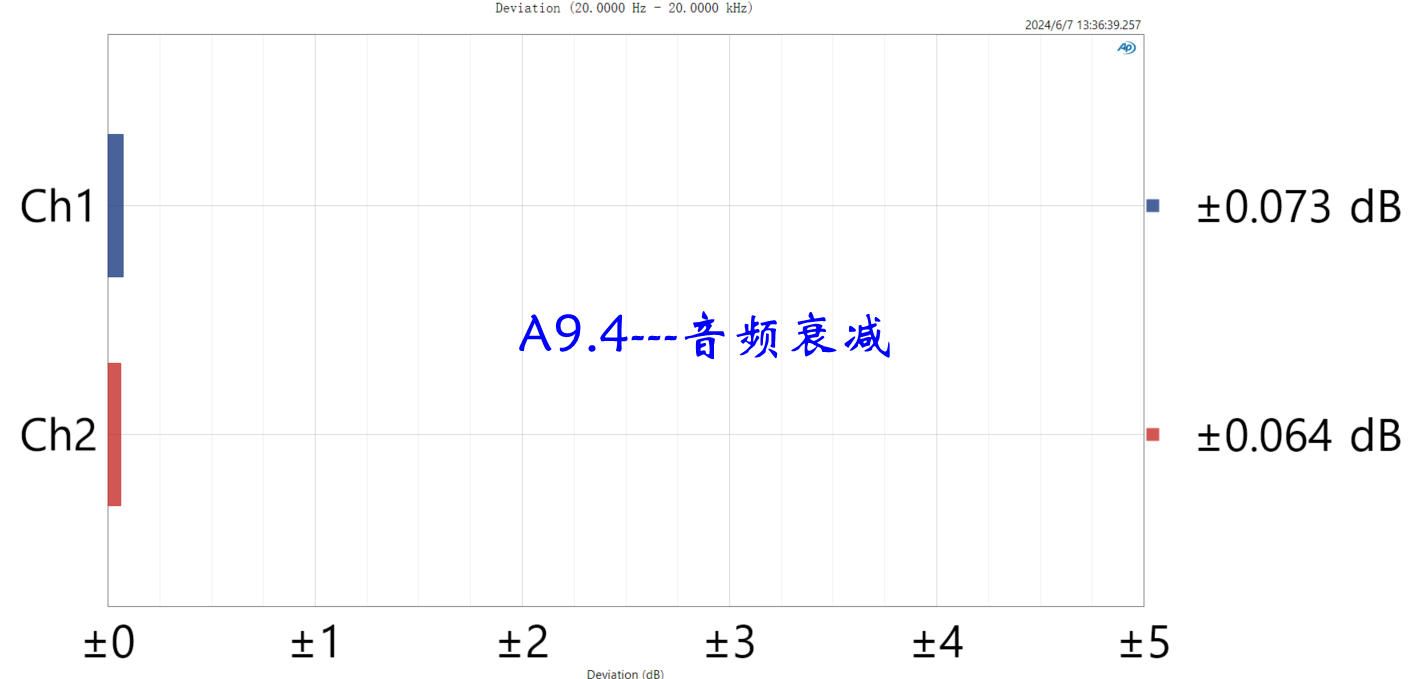

Frequency response bandwidth: ± 0.064dB
Package List:
1 × Finished A9.4 amplifier

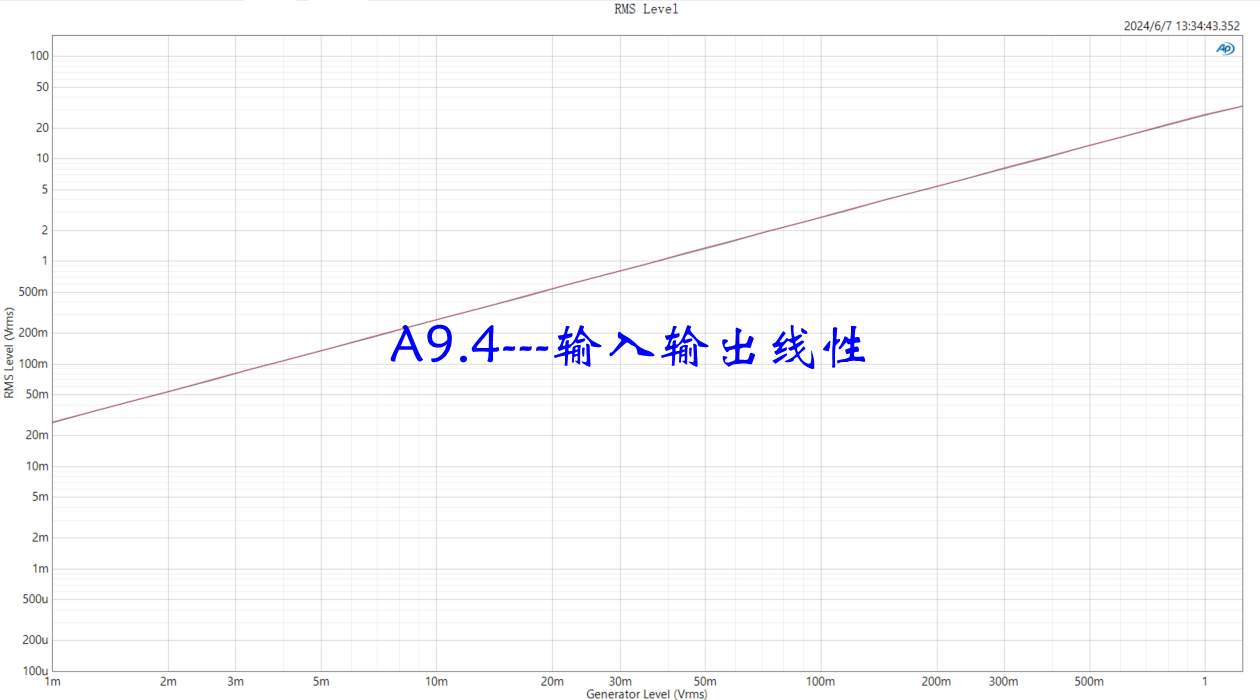

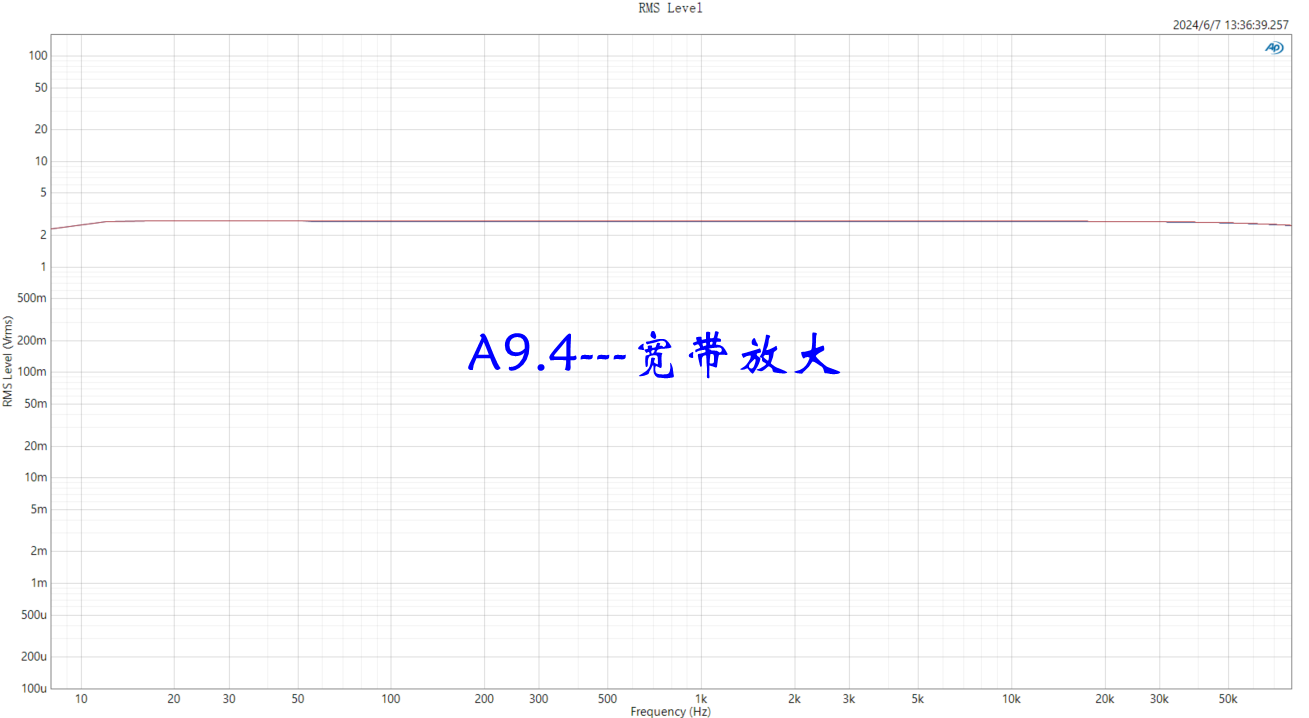

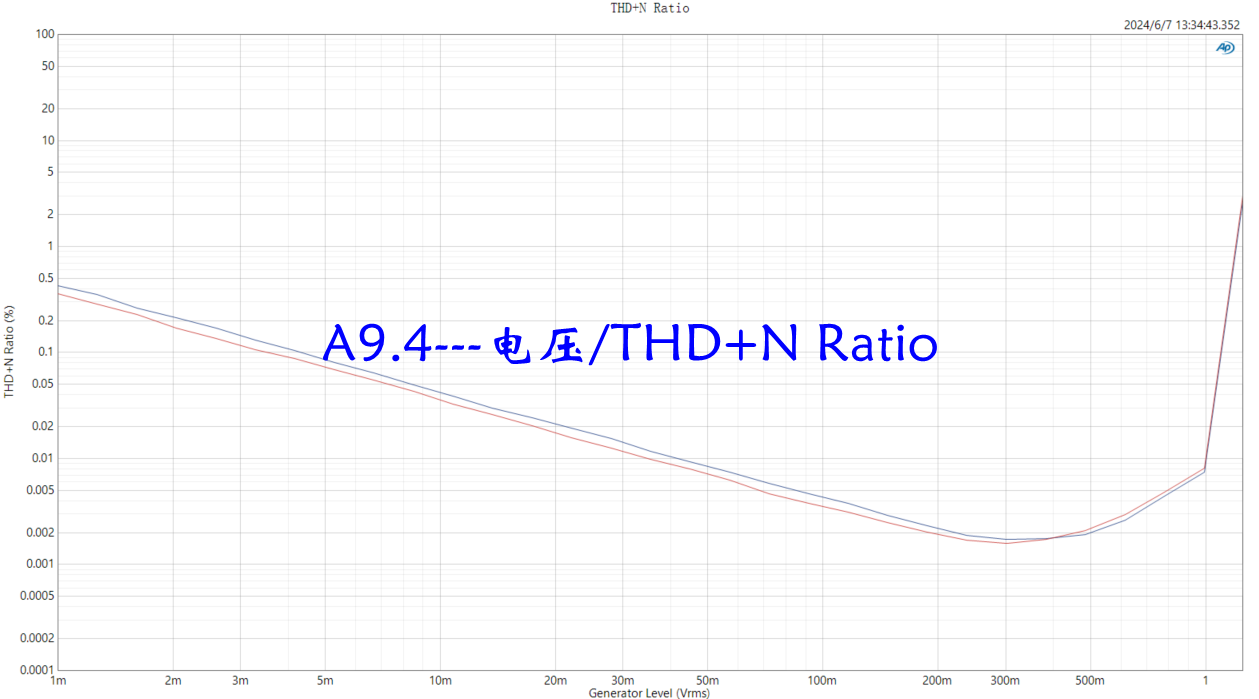

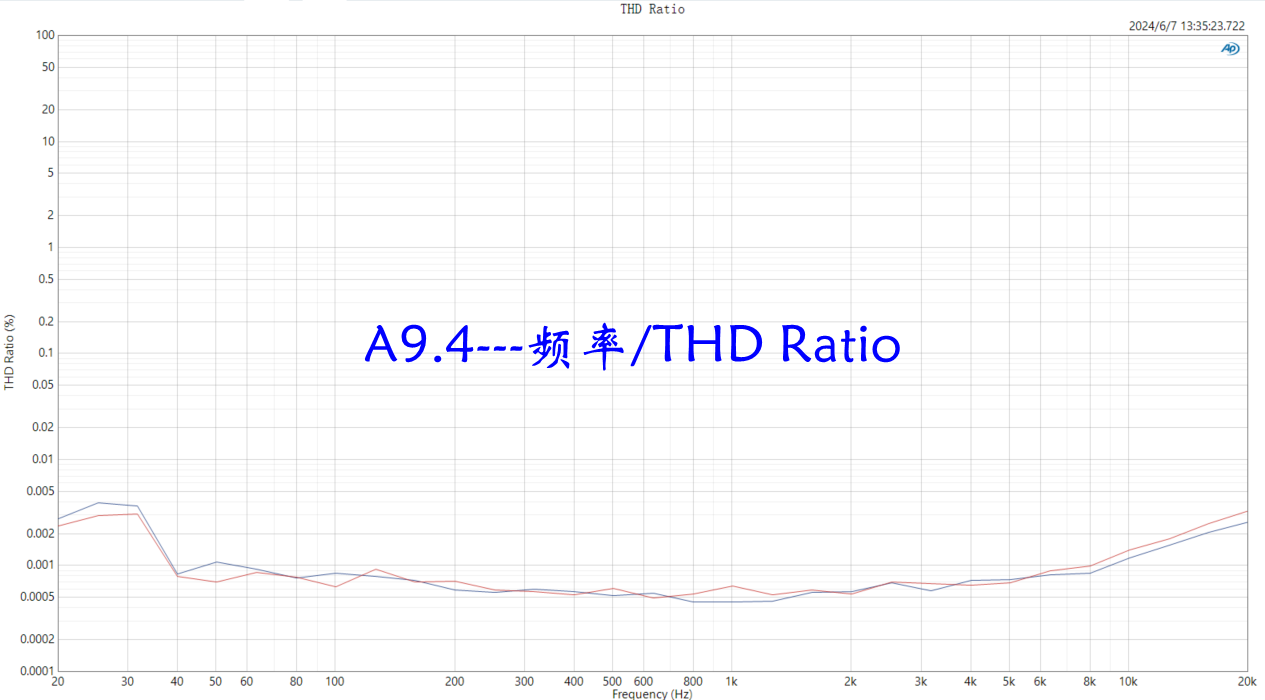

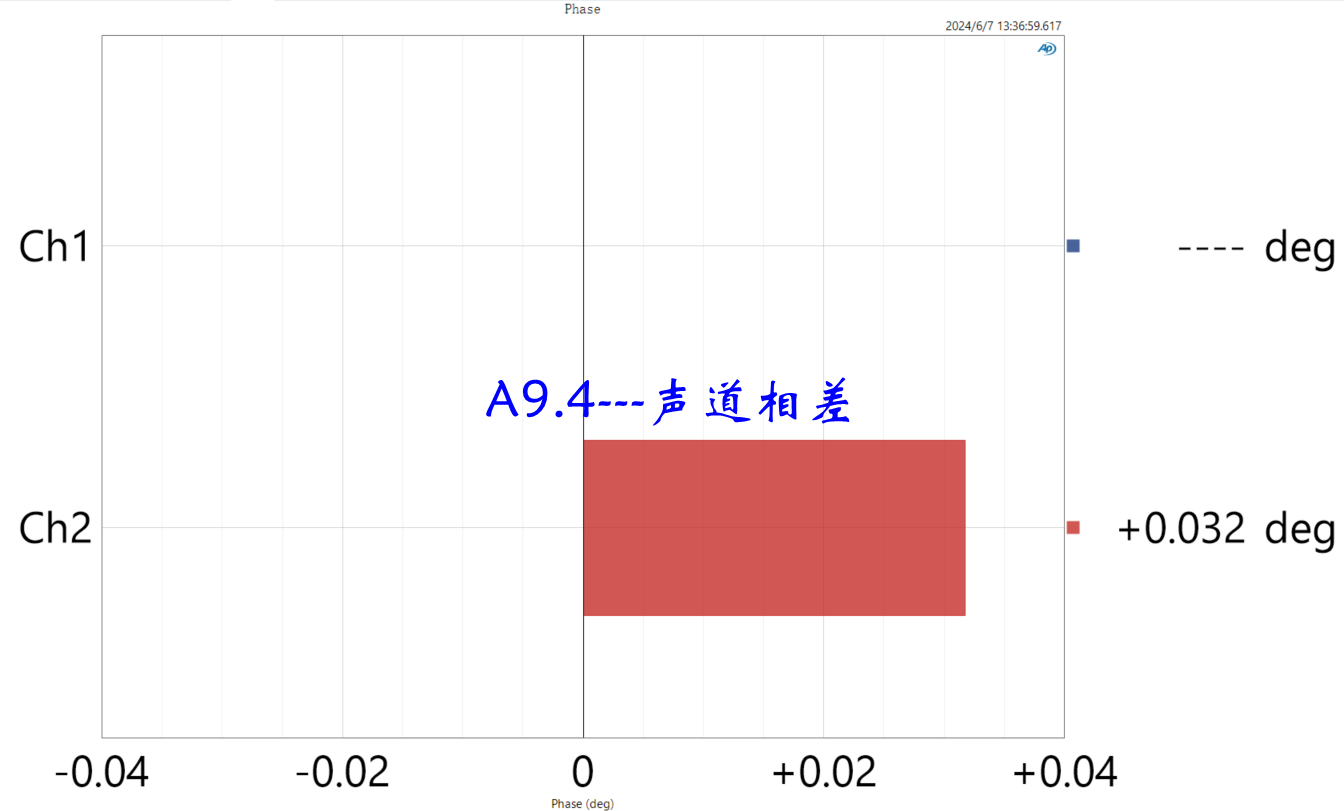

A9.4 Class A amplifier AP measured data with 8 ohms and 800W resistor
