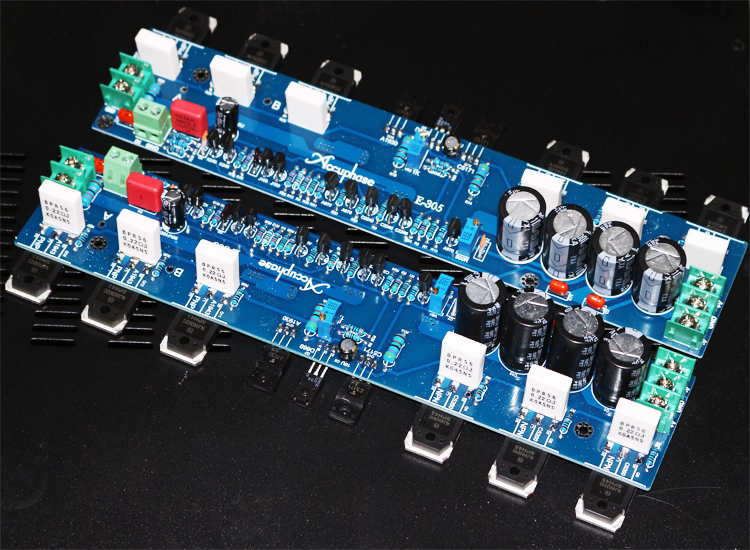

Product Details:
Accuphase E-305 is an excellent differential circuit with excellent sound quality, especially the bass, which is strong and powerful.

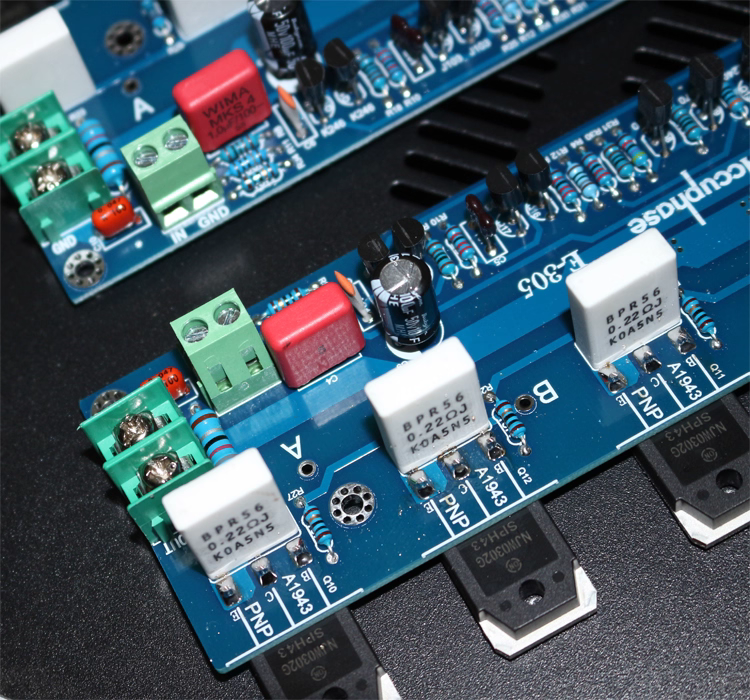

Type A:Equipped with ON 0302/0281 transistors
Type B:Equipped with Toshiba 1943/5200 transistors
Type C:Equipped with ON 4032/4281 transistors
Specifications:
PCB size: 234mm long * 48mm wide
Finished board size: 234mm long * 65mm wide * 33mm high

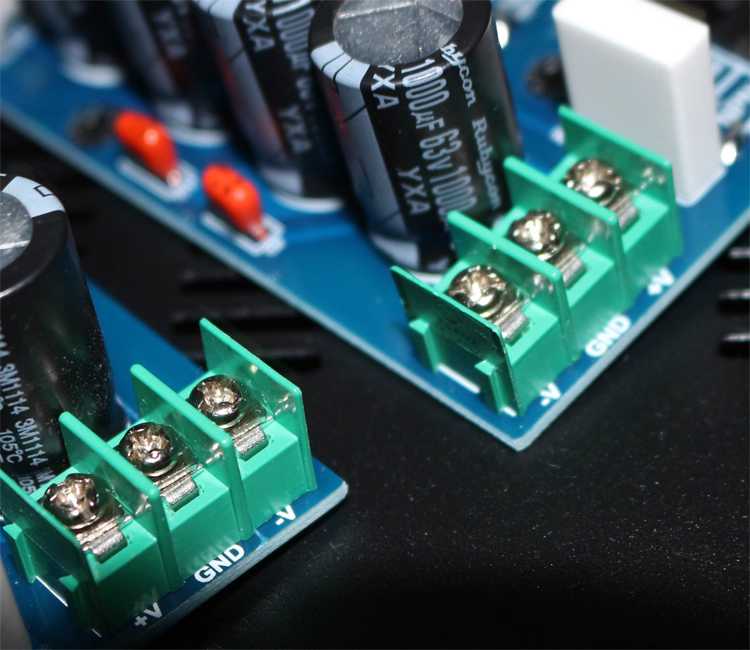

Power supply range: DC dual 30-60V, it is recommended to choose dual DC50V power supply
Power: 250W (total harmonic distortion THD+N<0.1%), DC+-50, 4 Ω load
Total harmonic distortion: 0.08% (20Hz-20Khz)
It is recommended to equip each channel with a heat sink of 3kg or more.

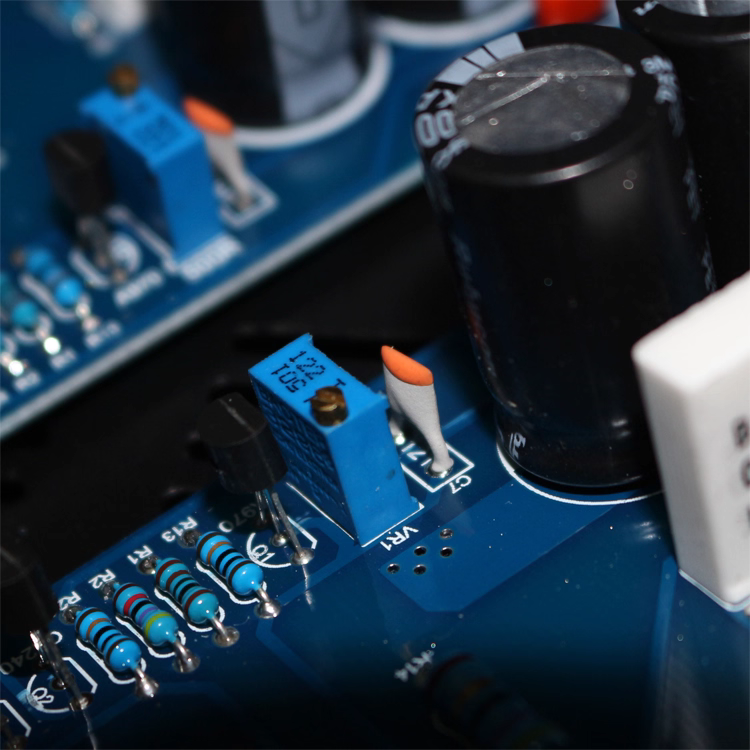

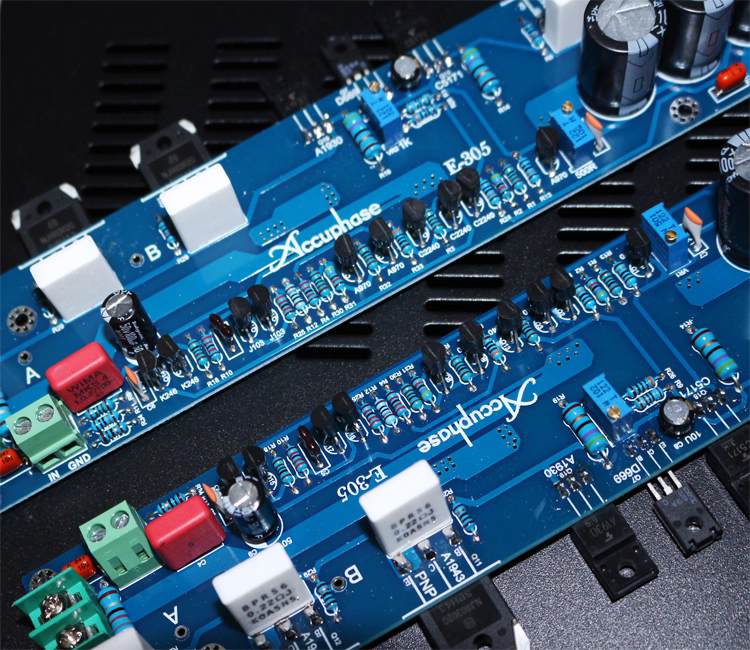

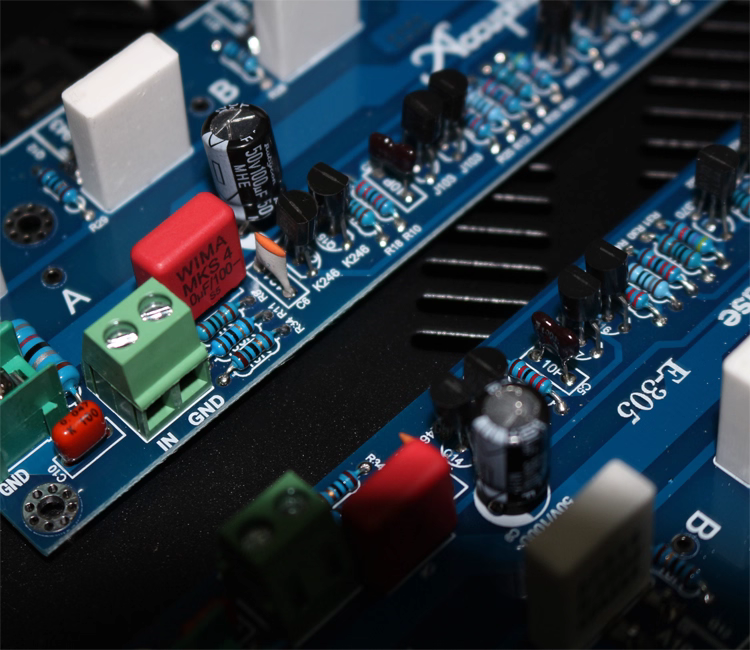

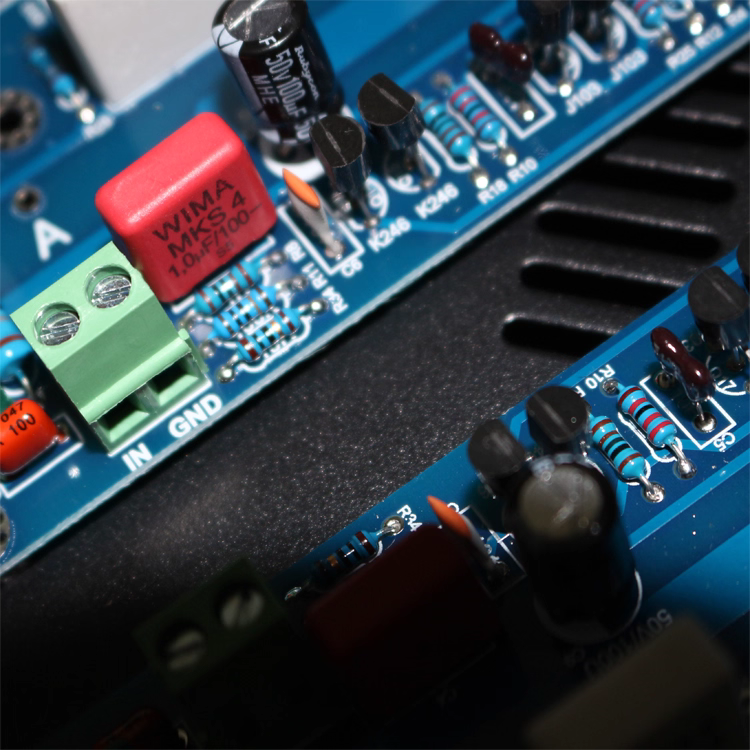

After welding is completed, do a good job of heat dissipation. Before powering on, adjust VR2 clockwise a few turns (to avoid unnecessary losses caused by excessive static current at the moment of power on). After powering on, adjust the midpoint voltage to be close to 0MV. Then adjust potentiometer VR2 (1K) to make the voltage at points AB 22MV. Divide the voltage at points AB by a 0.22 Ω resistor to obtain the static current.
After completing the static current regulation, adjust the VR1 (500R) potentiometer to make the voltage between OUT and GND 0MV, which is generally okay within 10MV.
Package List:
1 pair × E-305 pair amplifier board
We have matching chassis, transformers, power boards, speaker protection boards and other accessories for sale. If you need them, you can contact us
