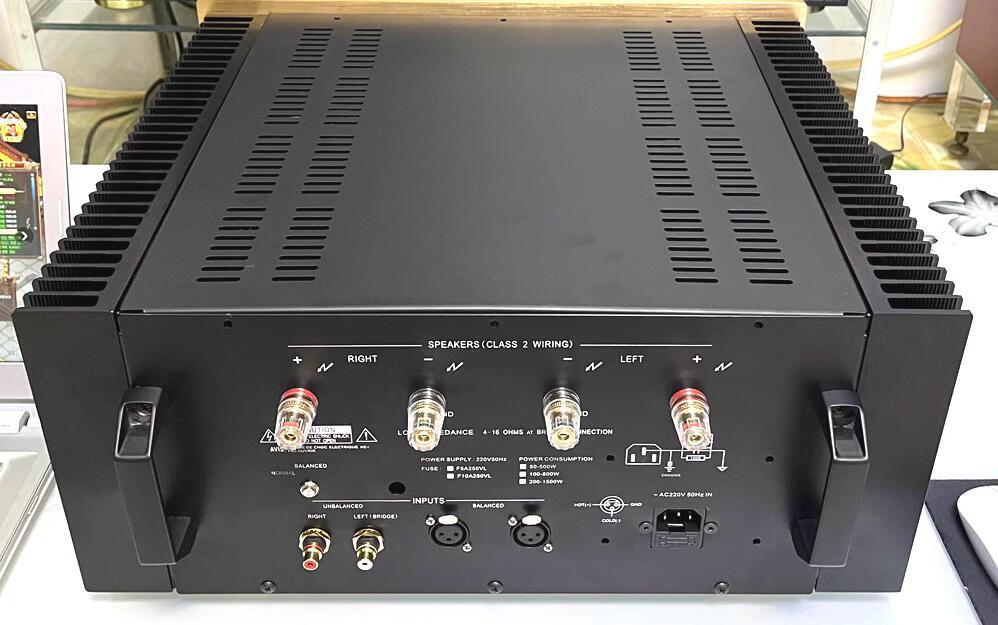

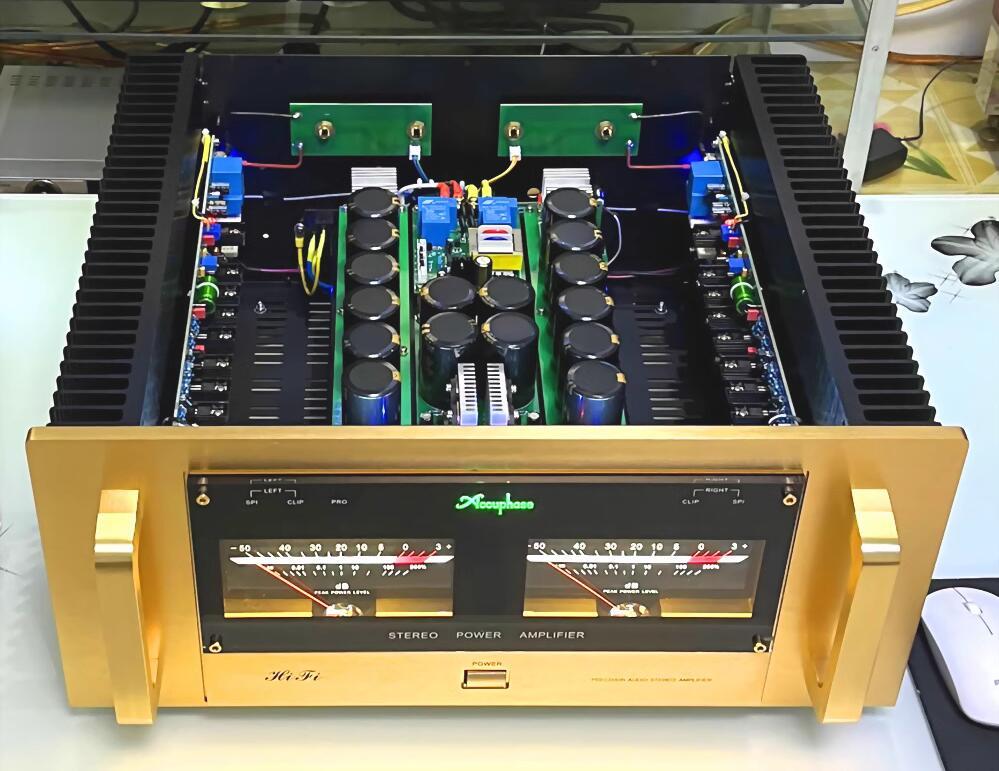

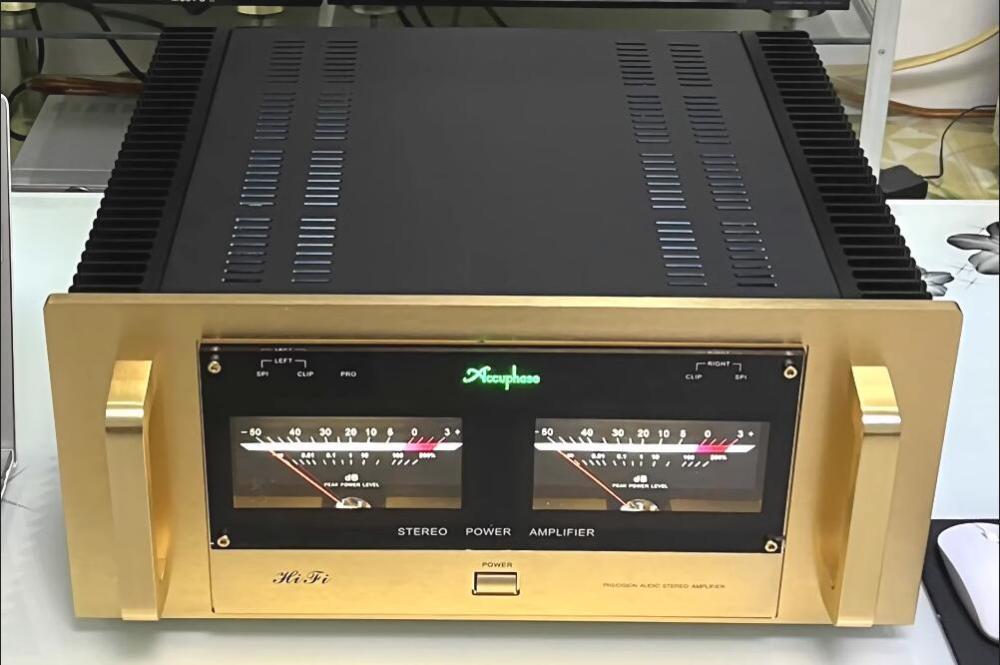

NEW Accuphase E550 circuit Class A stereo power amplifier
The E-550 is a high-end power amplifier produced by Japan's Accuphase company. The final stage uses field-effect transistor output, with a soft to firm tone. It is worth listening to
Material :
The chassis is made of all aluminum alloy with a large heat sink.

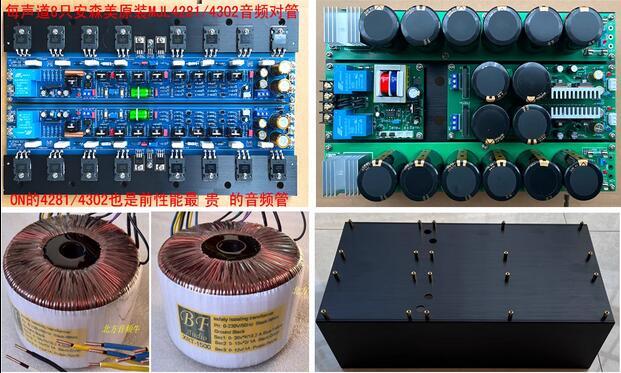

2 customized 500W Toroidal transformers using imported Nippon Steel iron cores.
Each channel uses 80000 UF original imported ENLA audio capacitors.

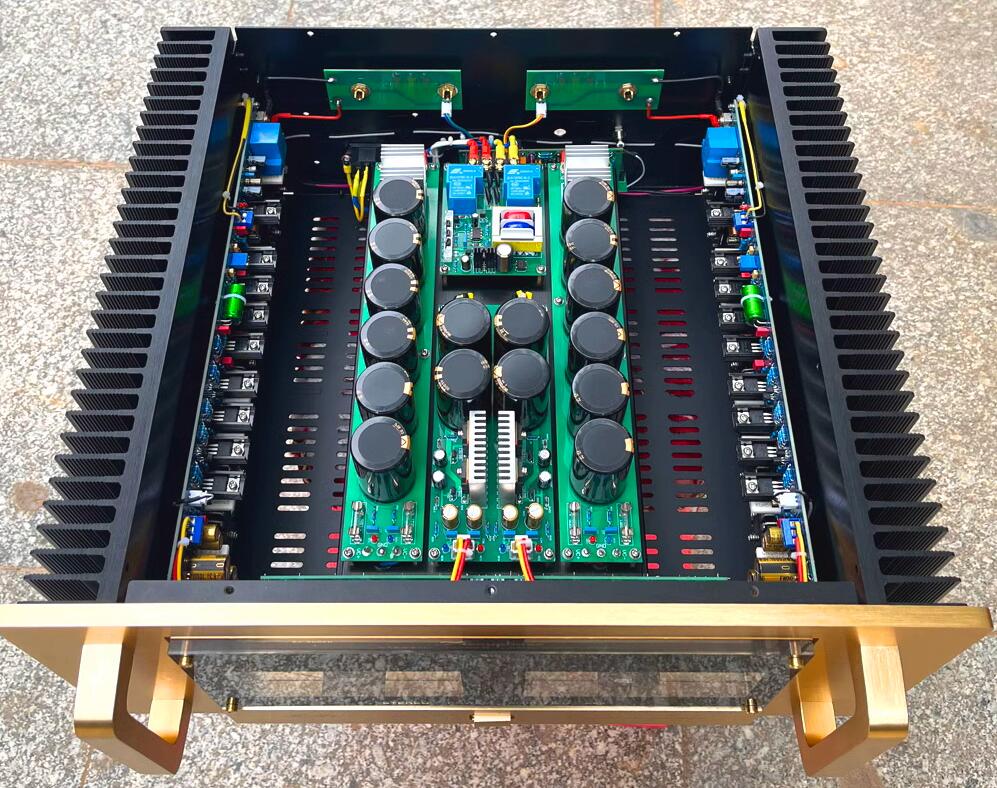

KSA100-MKII High configuration Power Amplifier Board.
The components have been carefully selected, and all transistors have been strictly paired.
The transformer is installed in a shielding cover to minimize electromagnetic interference.
parameters:
Output Power: 80W+80W Class A
Static power consumption: 250W, high volume, full load, maximum power consumption: 600W
Output impedance: 4-8 Ω
Volume: 480 X 500 X 230 (width X depth X height, including front handle and terminal block)
Weight: 32 kg
Notes:
Due to the fact that Class A amplifiers are different from regular amplifiers, the temperature will reach around 50 degrees Celsius after startup. Please place the amplifier in a well ventilated area that is not easily touched by children to avoid burns
This amplifier undergoes a strict 48 hour listening test before shipment.
List:
Finished E550 amplifier X 1(For the safety of transportation, we do not provide AC power cables)
