ALPS 27 Electric motor potentiometer remote volume control board Suitable for Goldmund series chassis

Name: ALPS 27 Electric motor potentiometer remote volume control board Suitable for Goldmund series chassis
Brand: BRZ-hifi-audio
SKU: ALPS 27
Price: 89.18 USD
Availability: InStock

Flash Sale

5.0 (1 Reviews)

3 Sold

~~$98.00~~ $89.18

-9%

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (10)

1/1

Description

Features:

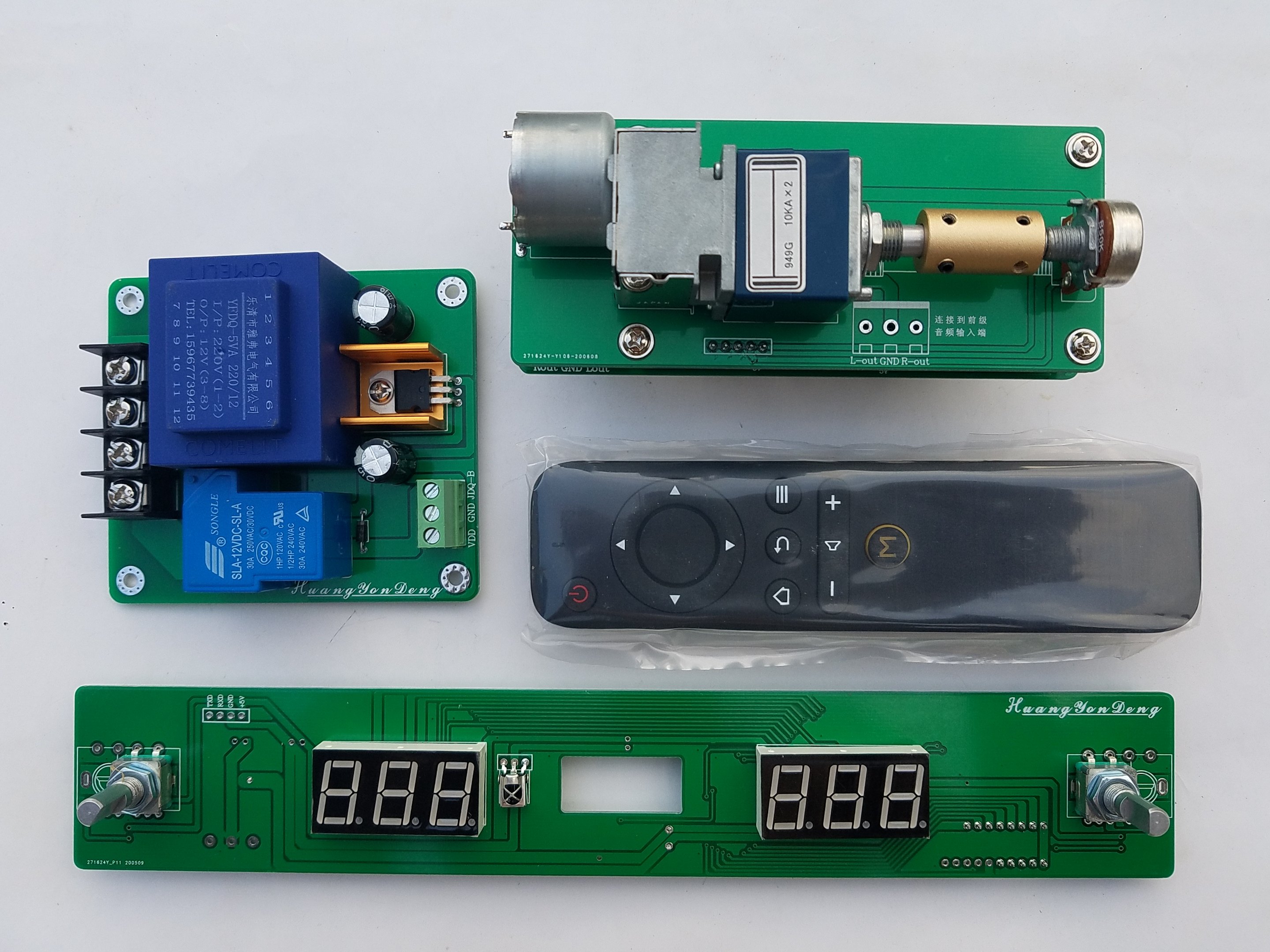

This ALPS 27 electric motor potentiometer volume control board adopts a 100-level design, featuring (Type A potentiometer resistors with values of 10K, 50K, and 100K) controlled by an ALPS 27 electric motor potentiometer, with RCA 4-group input selection and one group output.
● The remote volume control panel features a remote power-on/off function, eliminating the need for additional external components for control.
● The remote volume control panel features a power-off memory function, which means it can return to the state it was in before the last shutdown every time it is turned on.
● The remote volume control panel also features a one-key volume return function. Customers can freely set the volume level they want to return to. That is, no matter where the current volume is set, simply pressing the one-key return button on the remote control will return the volume to the level they have set. (Press the set button on the remote control, the volume display flashes, then press the volume button to set the desired volume level, and finally press the set button again to save the setting.)
● Encoder functions: Press the power switch on the left encoder to turn it on, rotate it left and right to select audio input, press the right encoder to mute, and rotate it left and right to adjust the volume.
● The installation distance for the remote volume control board encoder is 220mm and 240mm, which is suitable for installing a Goldmund-style preamp chassis (the volume board encoder is not installed by default when shipped, and the buyer needs to install it upon receipt of the goods).

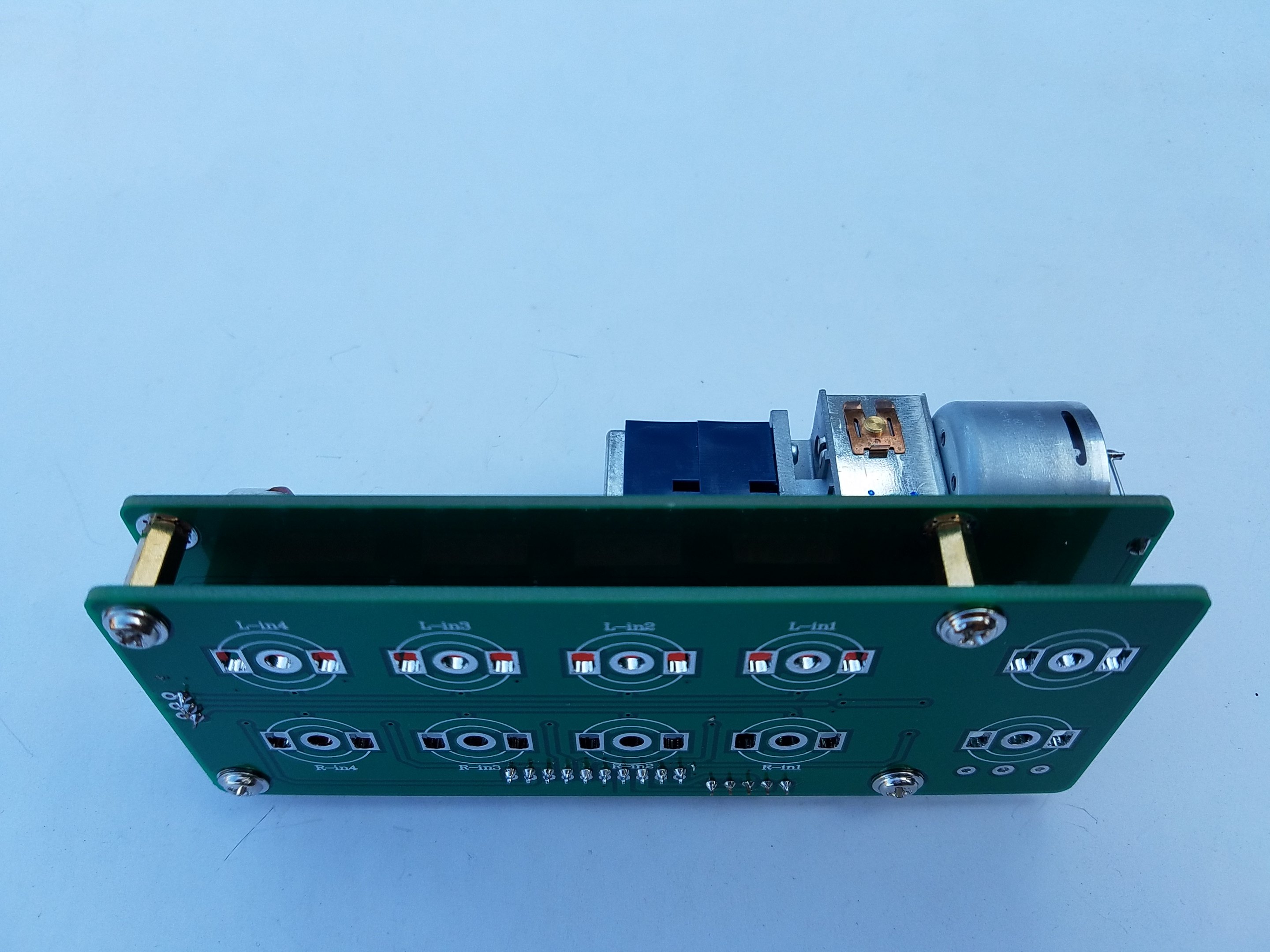

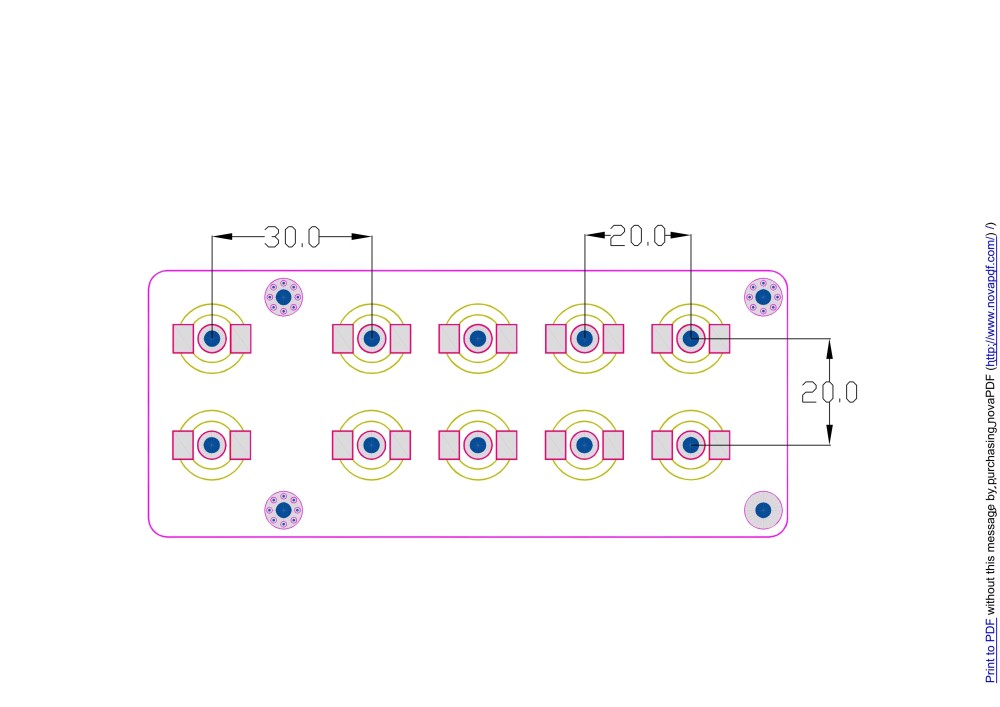

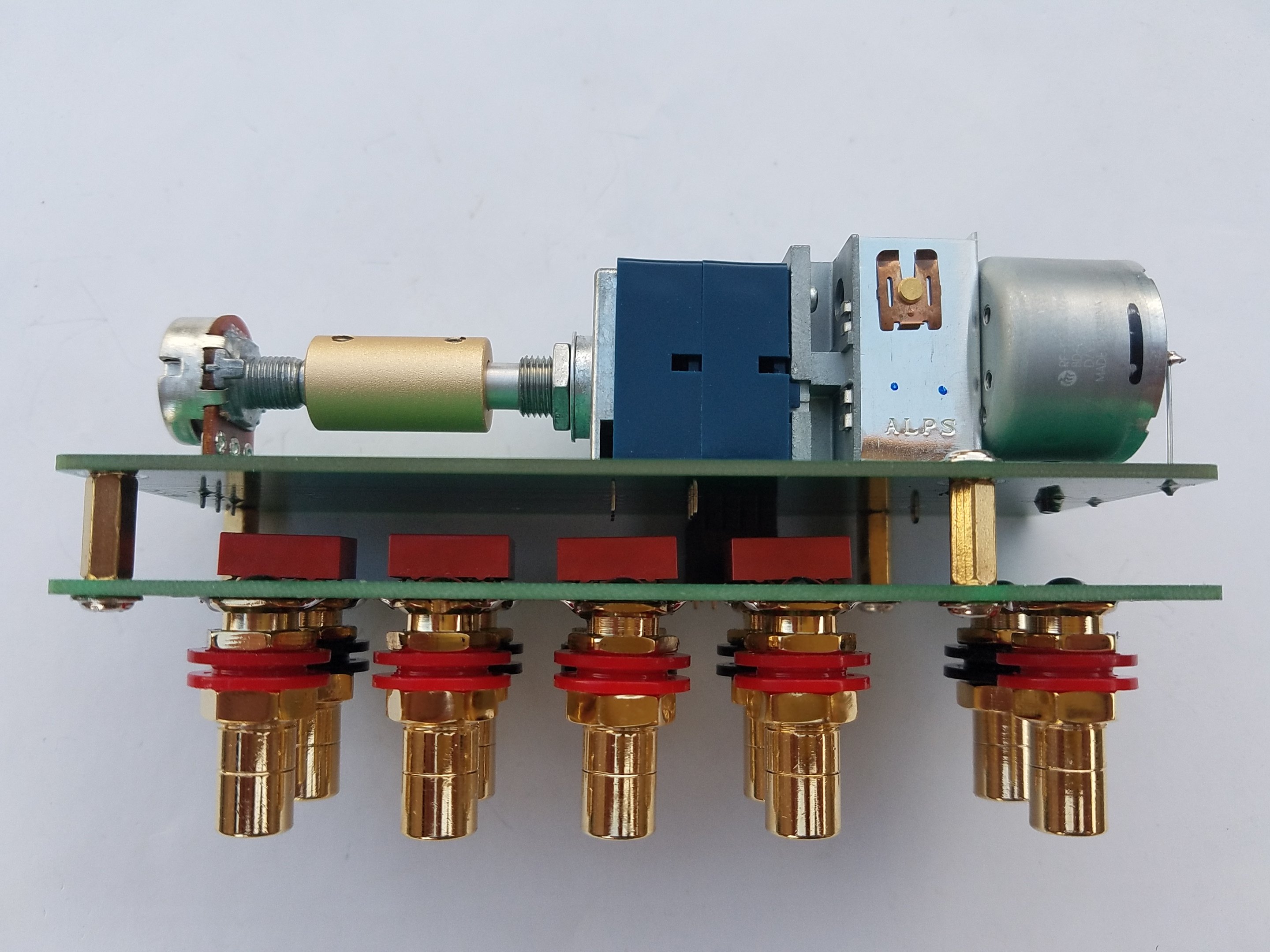

● RCA installation dimensions: input RCA distance 20mm*20mm, distance between the fourth RCA and audio output RCA 30mm

List:

1 set x ALPS 27 electric motor potentiometer remote volume control board

recommended matching chassis

https://brz-hifi-audio.com/products/imitating-goldmund-preamp-amplifier-to-merge-chassis-hifi-diy-aluminum-iron-bonding-case
