Description

Product details:

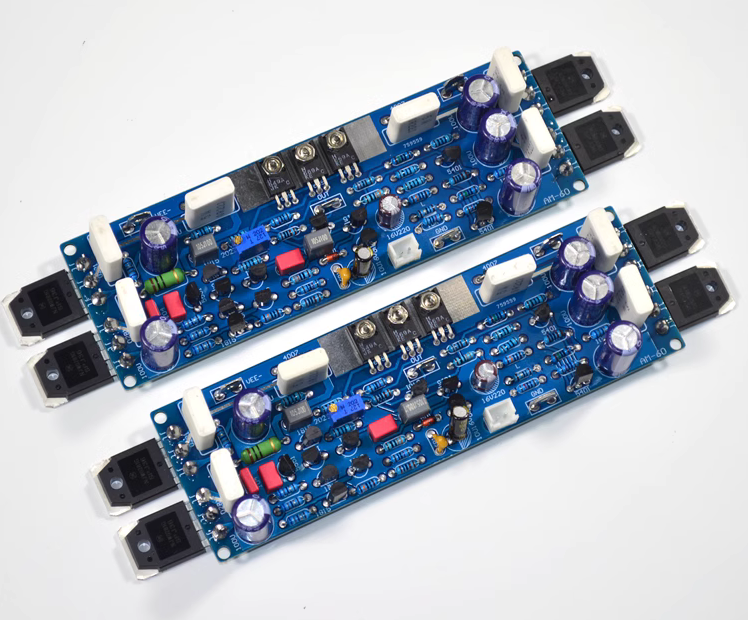

Originating from mature differential circuits, each channel uses two pairs of power transistors for output, making it a good choice for DIY power amplifiers. The board comes with static current adjustment, which can be adjusted to Class A amplifier according to personal preferences (please note to increase the heat sink when adjusting to Class A amplifier)

Parameters:

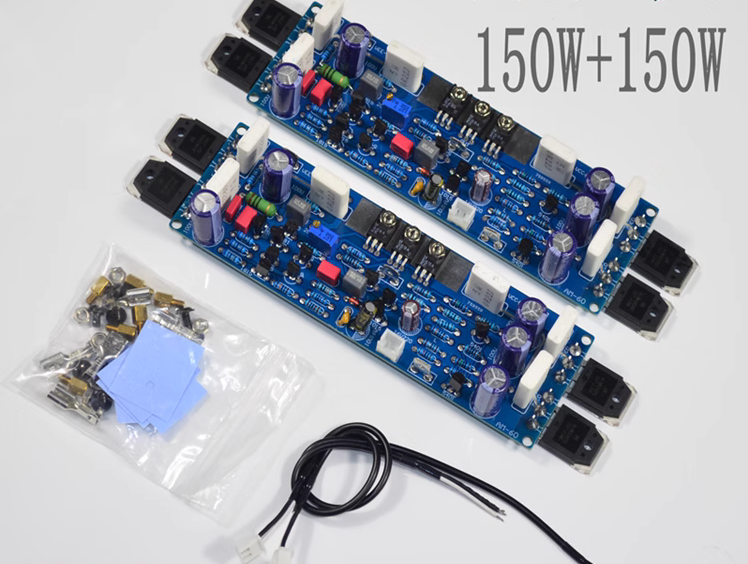

Output power: 150W
Input impedance: 100K
Output impedance: 4-8 ohms

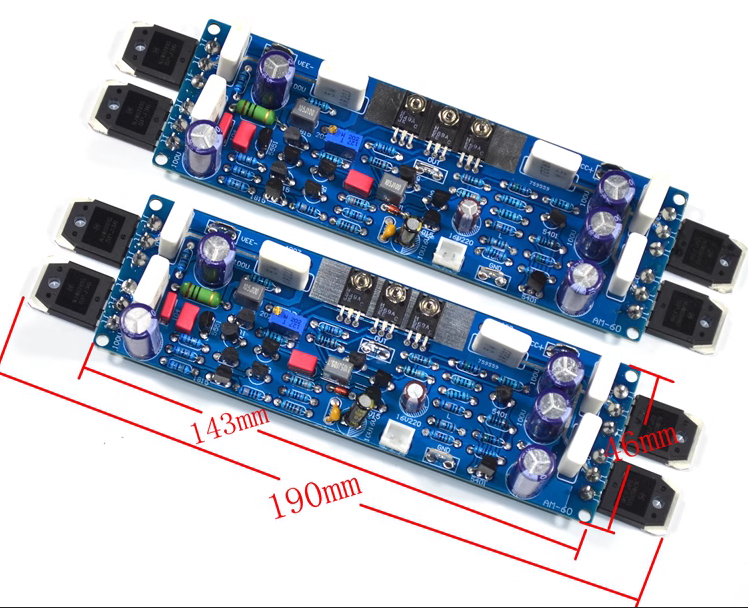

PCB size: 143MM X 45MM

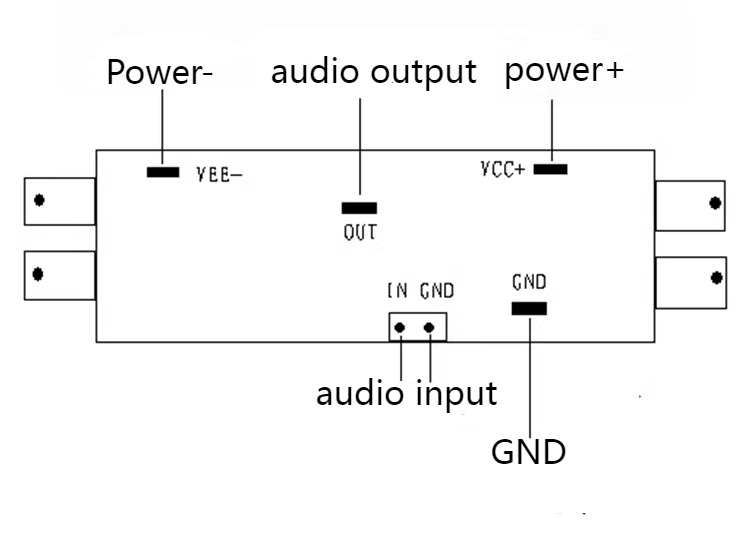

Input voltage: DC+40V-0--40V (positive and negative voltages can be selected within the range of 30-55V). It is recommended to use a transformer with a power of 300W or more and dual 30-35V AC

At the time of shipment, the AB class status has been adjusted. To adjust to A class, a sufficiently large radiator (weighing at least 1KG per channel) is required

List:

1 pair AM-60 amplifier board
