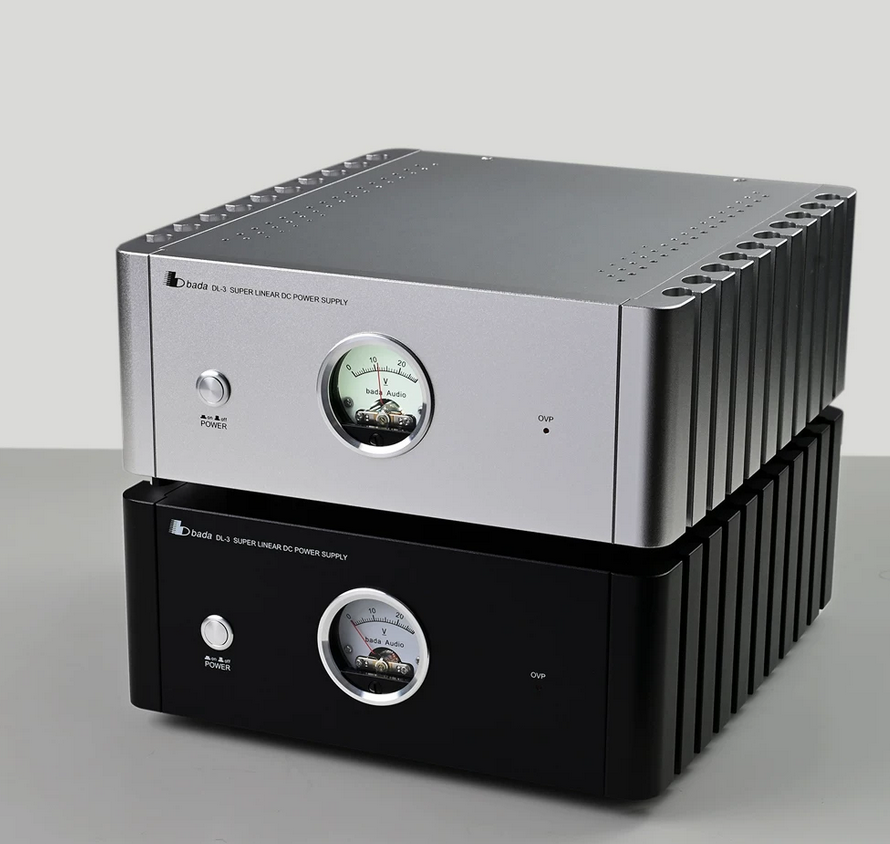

Bada DL3 high power HIFI Linear Stabilized DC Power Supply Dual 12V12A Supports Decoder NAS
Product parameters
MODE:DL-3
Output voltage: 12V ± 0.5% (4 groups in total)
Maximum output total current: 12V/12A
Maximum power consumption: 260W
Protection function: Overpressure protection

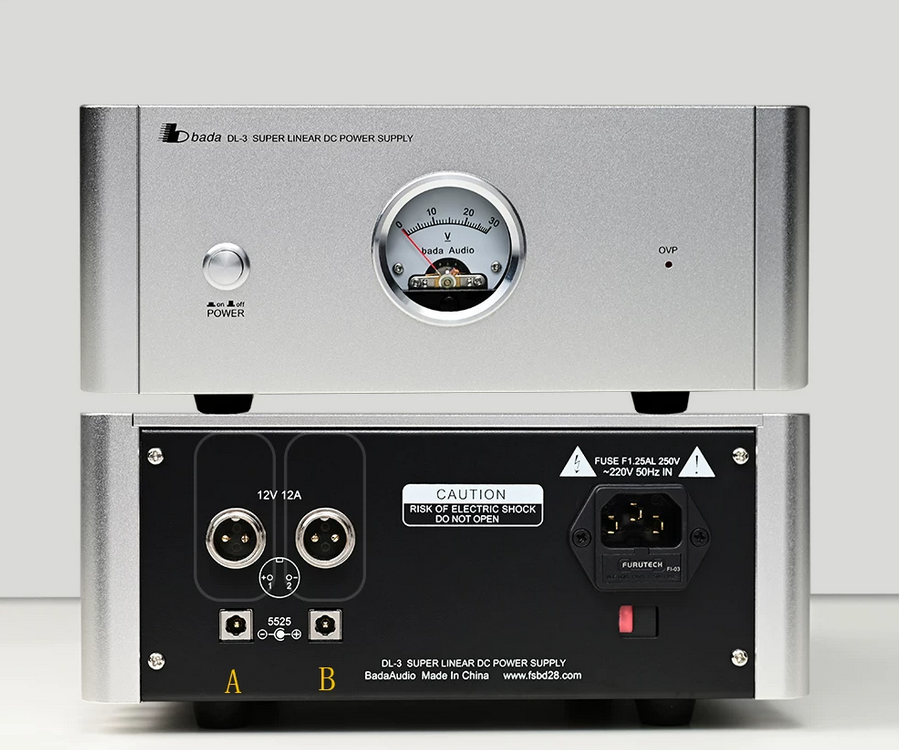

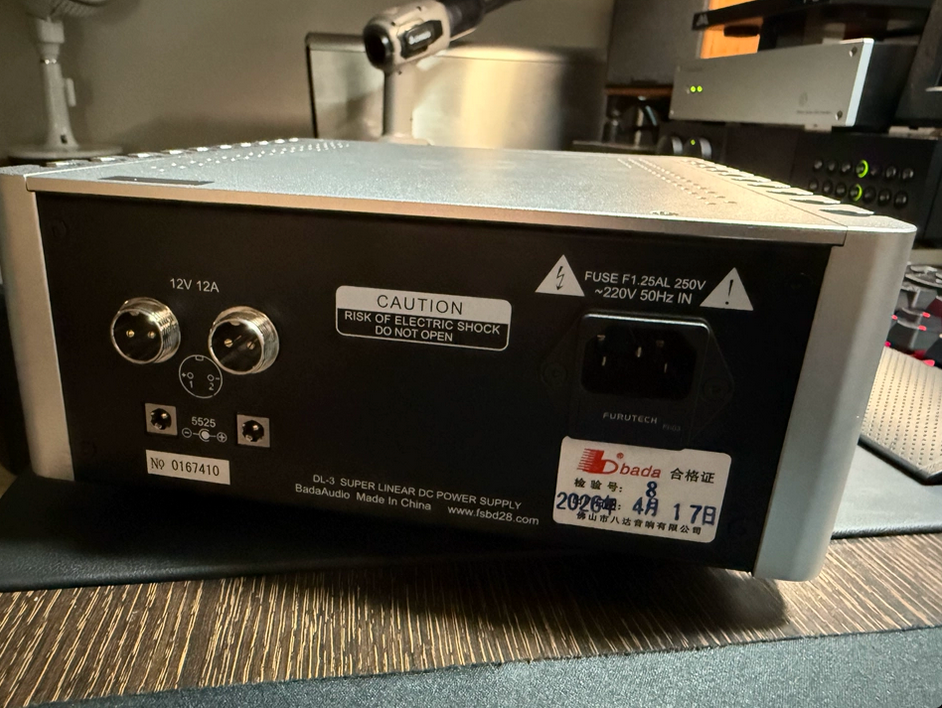

Output interface: Two sets of 5.5X2.5 (positive inside and negative outside)
Aviation interface: GX-16 (1-pin positive, 2-pin negative) two sets
Power size: 230 wide * 252 deep * 100 high (mm)
Packaging size: 360 wide * 330 deep * 160 high (mm)
weight: about 7.5kg
1. Pay attention to details - the sound will naturally sound pleasant Although using surface mount components can save costs and improve efficiency, we insist on using discrete components. We understand the reasons behind this It will naturally be understood without explanation.

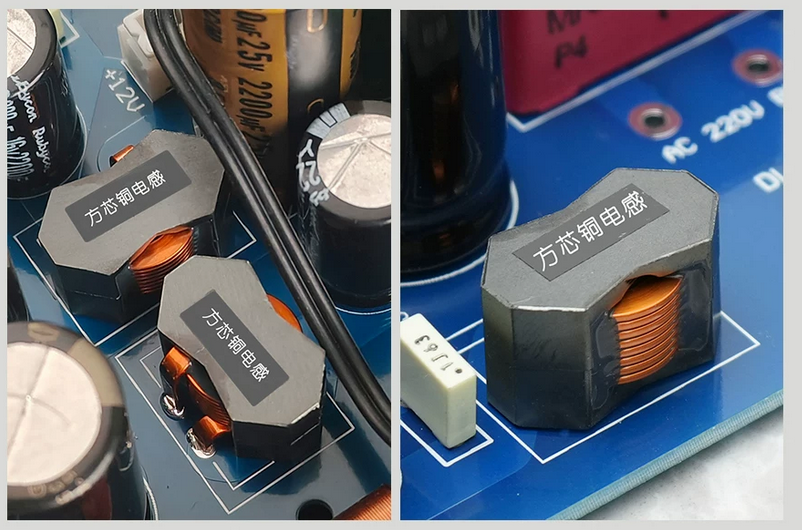

2. High current energy storage inductor - more stable current and better transient performance. Flat square core pure copper wire high current energy storage inductor reduces losses, smooths current, absorbs interference, and provides excellent instantaneous current supply.

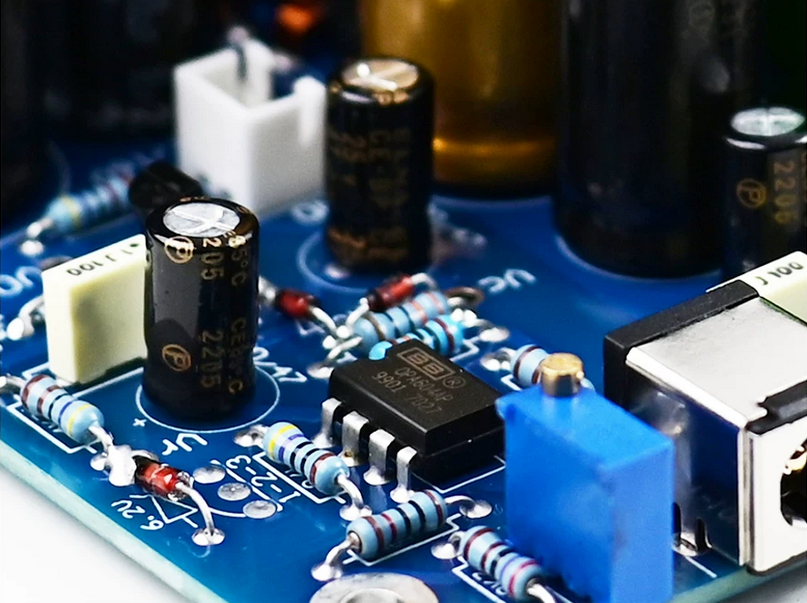

3. High precision low internal resistance voltage regulator circuit with good transient performance and stable output. It uses a popular operational amplifier from BB Company in the 1990s for sampling correction, and a power specific low internal resistance field-effect modulation transistor with high current, good transient performance, and stable output.

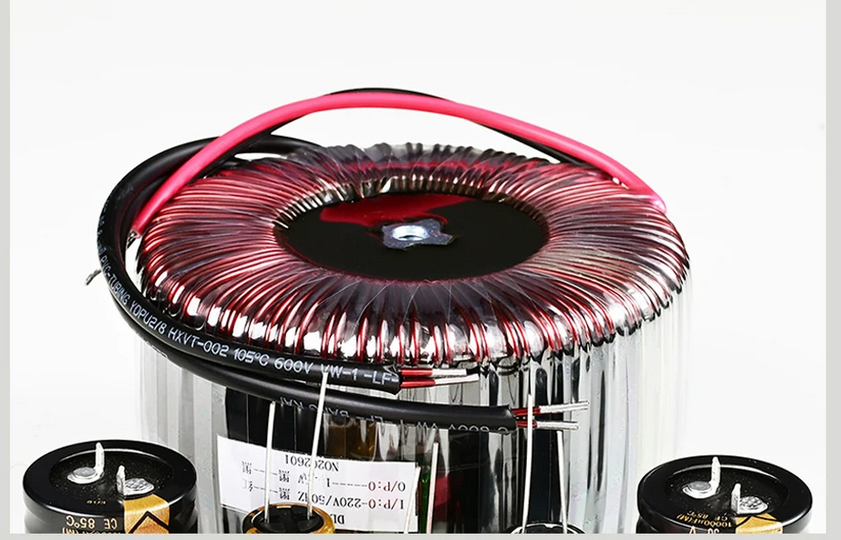

4. Specially customized core transformer - with lower leakage flux and more powerful output. High quality oxygen free copper enameled wire with double winding, secondary copper wire straight out without connection points, low internal resistance and minimal loss, tight wire wrapping, smaller magnetic leakage, less interference, and a dark background like night. A-piece iron core has high efficiency, Japanese quality, and is trustworthy.
5. Materials are used without considering cost, only for the ultimate pure sound performance

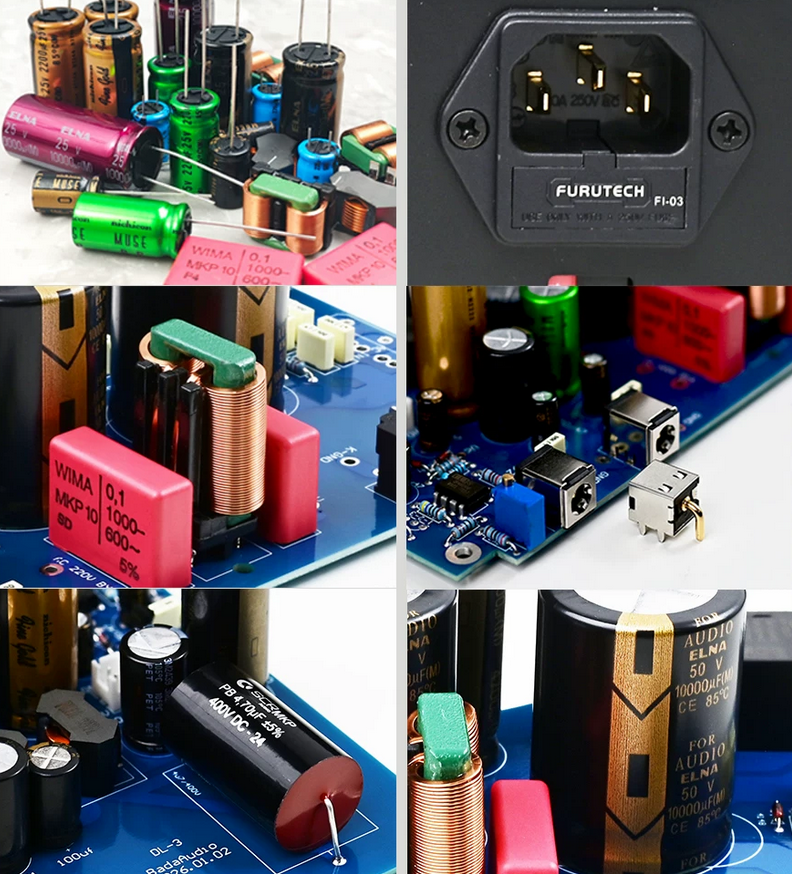

Reasonable combination of fever components: choose Japanese
ELNA , Nikon, and Ruby Sound
Frequency capacitor,
FURUTECH power tailstock, French
SCR , German
WIMA audio capacitor
Wait for the fever device, the sound will naturally balance.

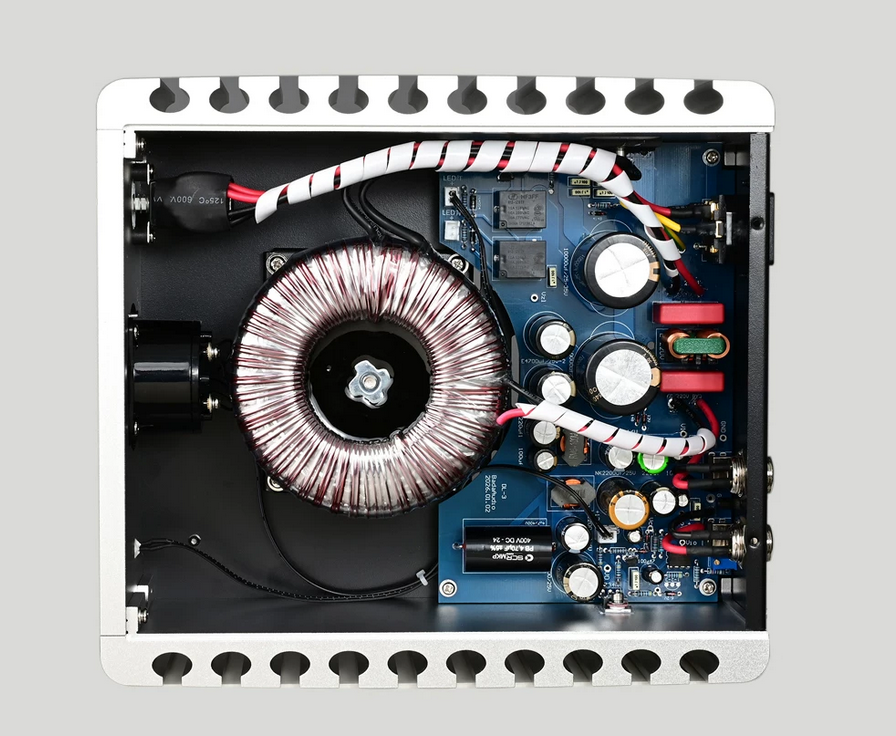

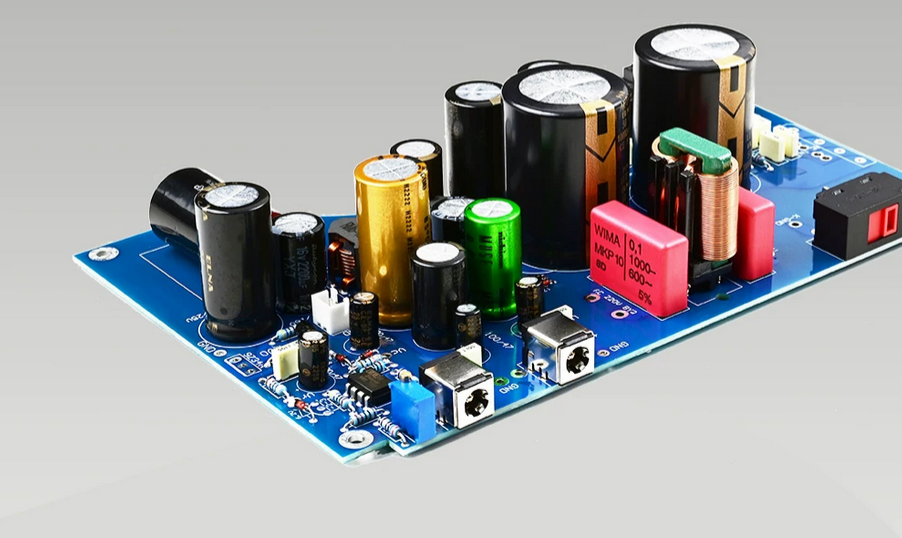

6. Scientific and reasonable internal layout and circuit wiring with minimal interference and pure and beautiful sound Using double-sided boards for wiring, paying attention to the order of current flow, arranging ground wires reasonably, minimizing interference, producing pure and beautiful sound, and creating a peaceful background. The transformer is located at the front panel, and then rectifies, filters, and stabilizes the output Rigorous and orderly arrangement, scientifically reasonable.
7. Safe and reliable protection - no worries

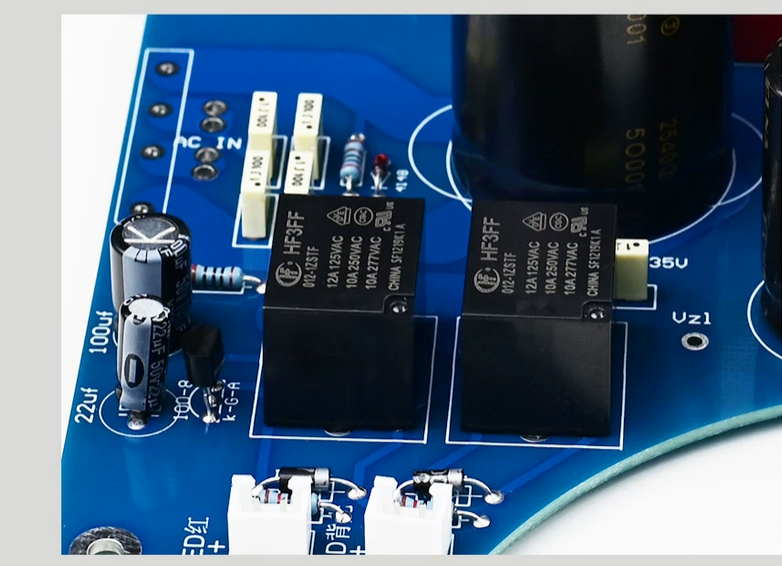

The precision overvoltage protection device composed of silver contact relays ensures the safety of the equipment
Safe backup (voltage output exceeding 12.8V, power protection). provide
Long term warranty ensures you have no worries.

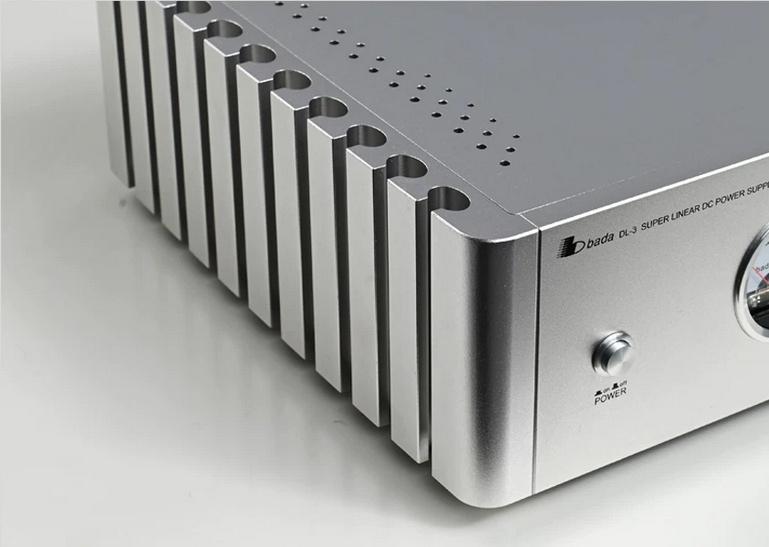

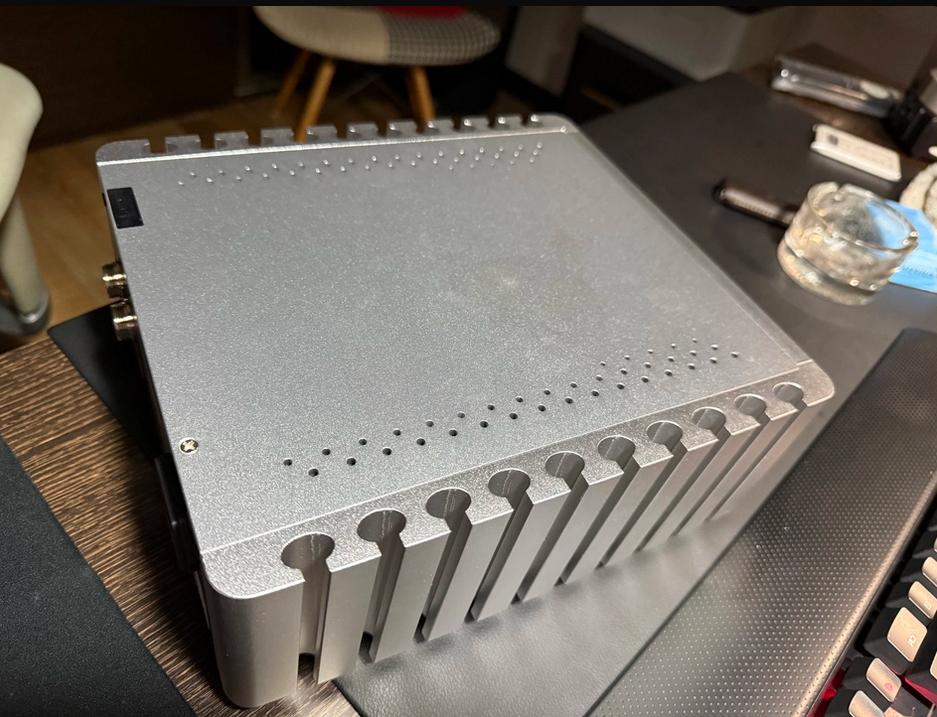

8. Aluminum shell alloy chassis - good shock absorption and heat dissipation.
Solid aluminum alloy chassis, good shock absorption and heat dissipation, sandblasted surface
Oxidation process treatment, resistant to new and non fading.
