base on class YBA Circuit Stereo MM Phono RIAA Amplifier Preamplifier Module HIFI Audio DIY

Notice:

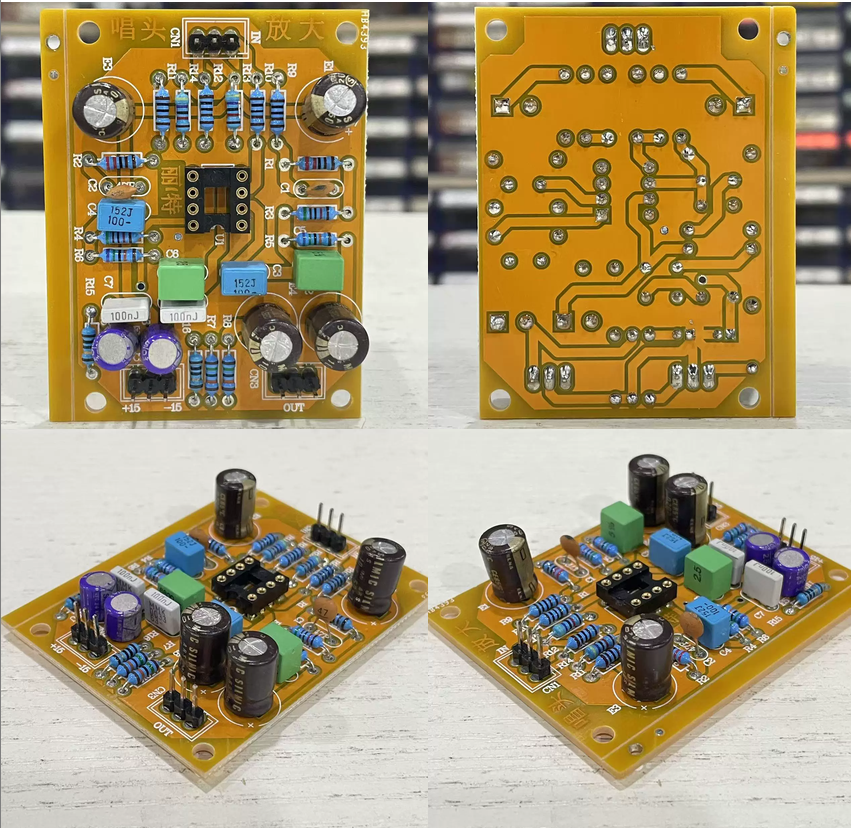

This ia a finished board that has already soldered, Green or Yellow PCB, you just need to connect the speakers, the power supply & sound source will be OK!

Product Description:

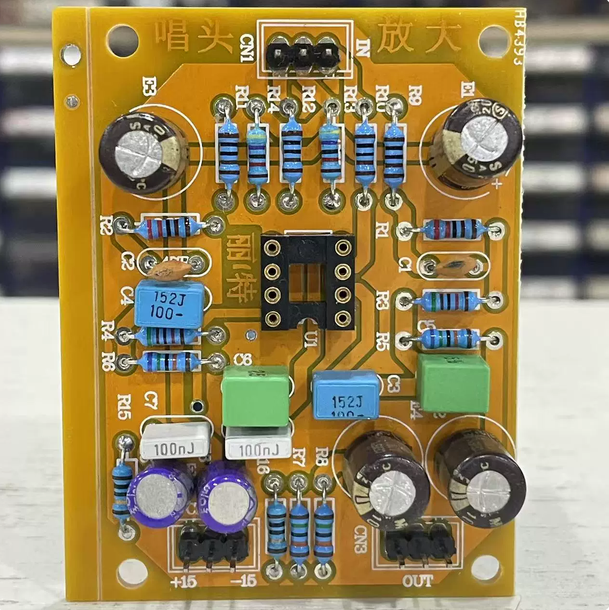

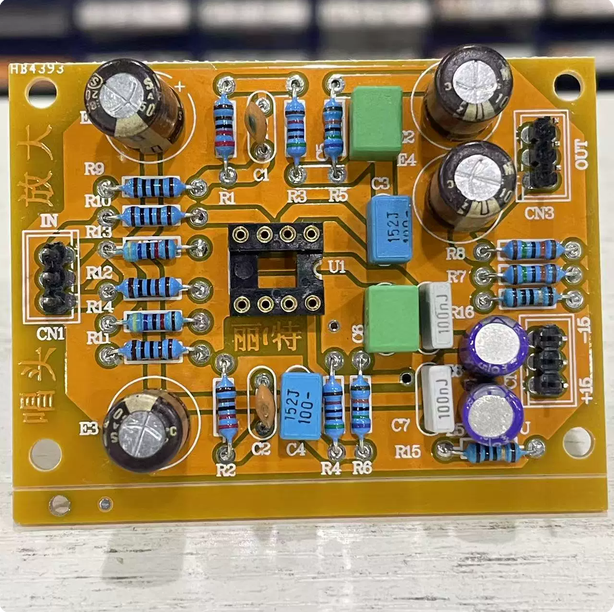

This is a IC phono input finished PCB for MM phono (green) with finished power supply circuit board (blue)

the circuit is referenced to YBA's circuit, can reduce noise and gain for MC phono

Meet RIAA equalization

High Quality PCB with double side gold plated

Use NE5532 IC with clear sound (we use gold plated IC socket and you can upgrade the IC to improve sound performance in simple way)

Board size: MM phono stage - 66mm x 46mm x 15.5mm

PCB thickness 1.5mm

Power supply: ±15V power supply

Recommended op amp: 0PA2604, YD2200

Recommended power board: A13 servo power board

Gain: 100 times
Package Contents
100% Brand New
1 xStereo MM Phono RIAA Amplifier Preamplifier Module Base on YBA Circuit
