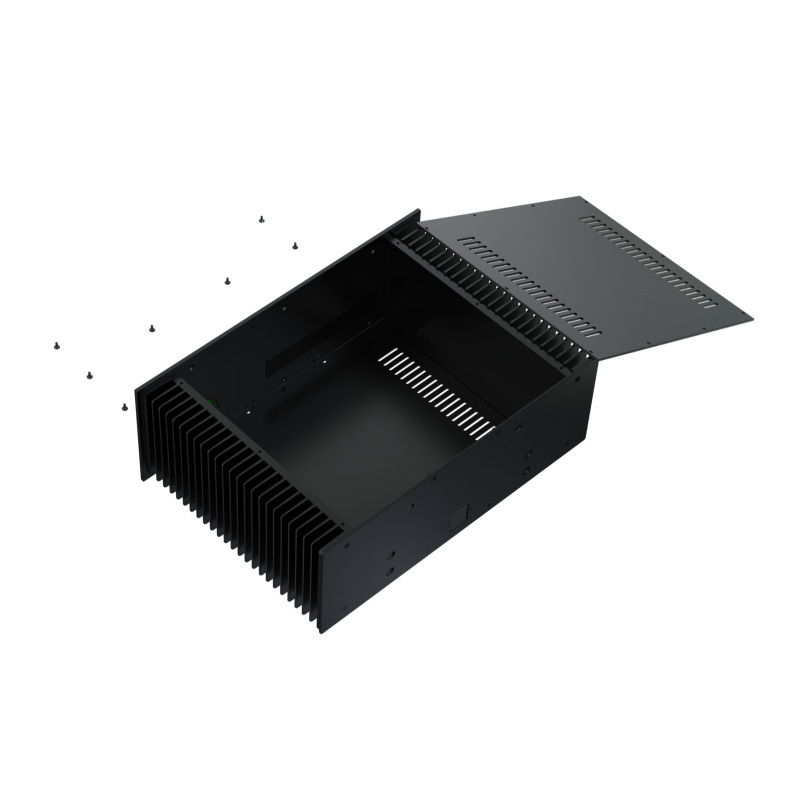

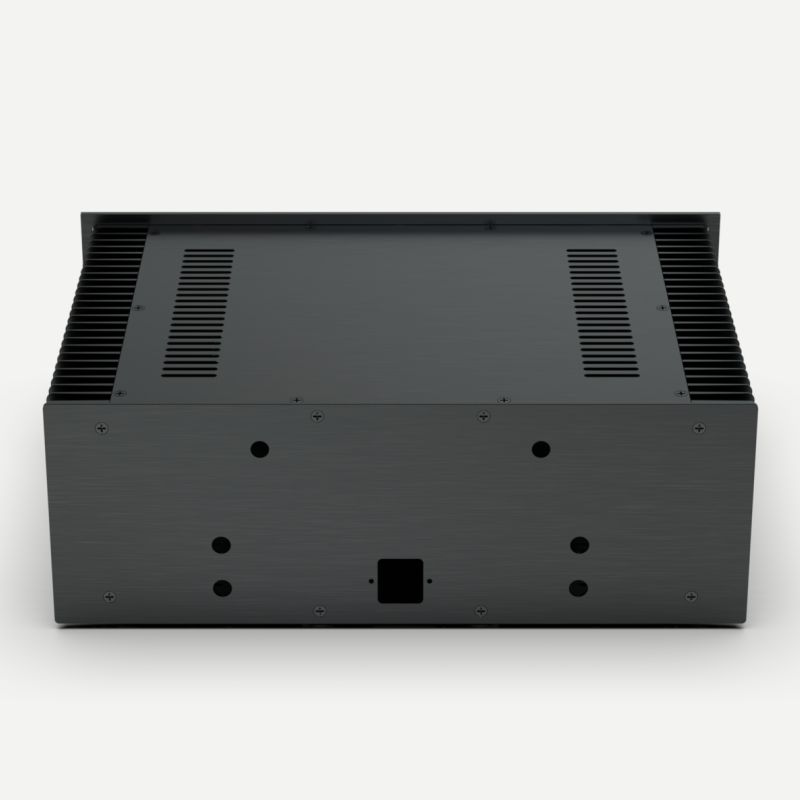

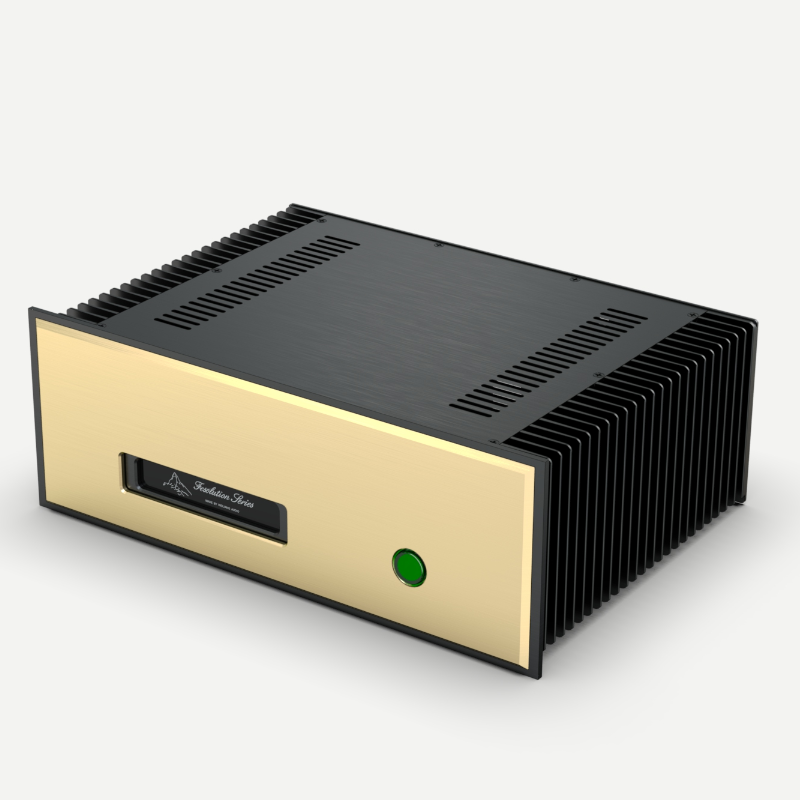

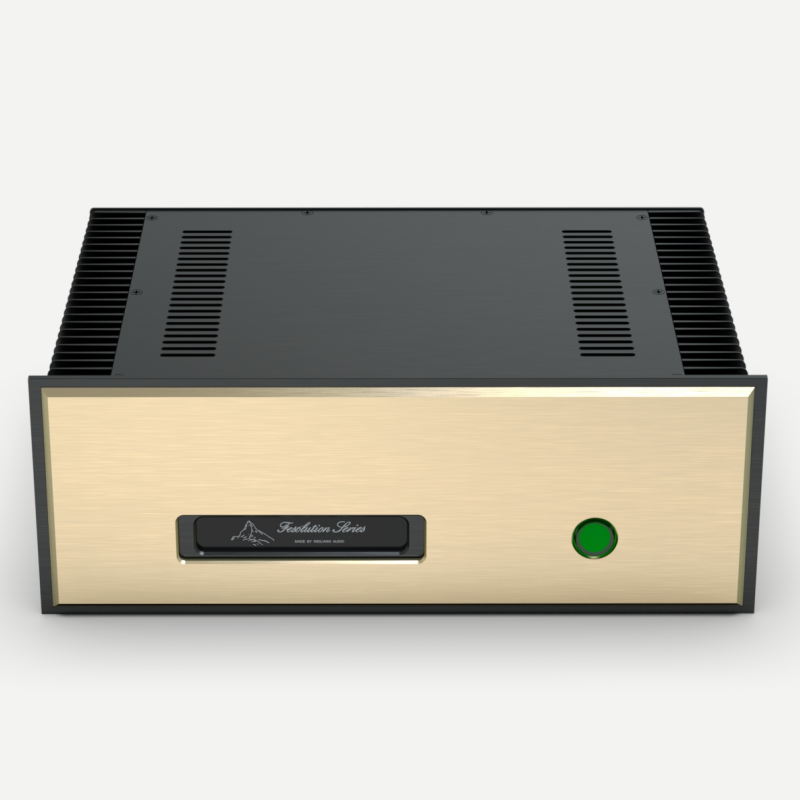

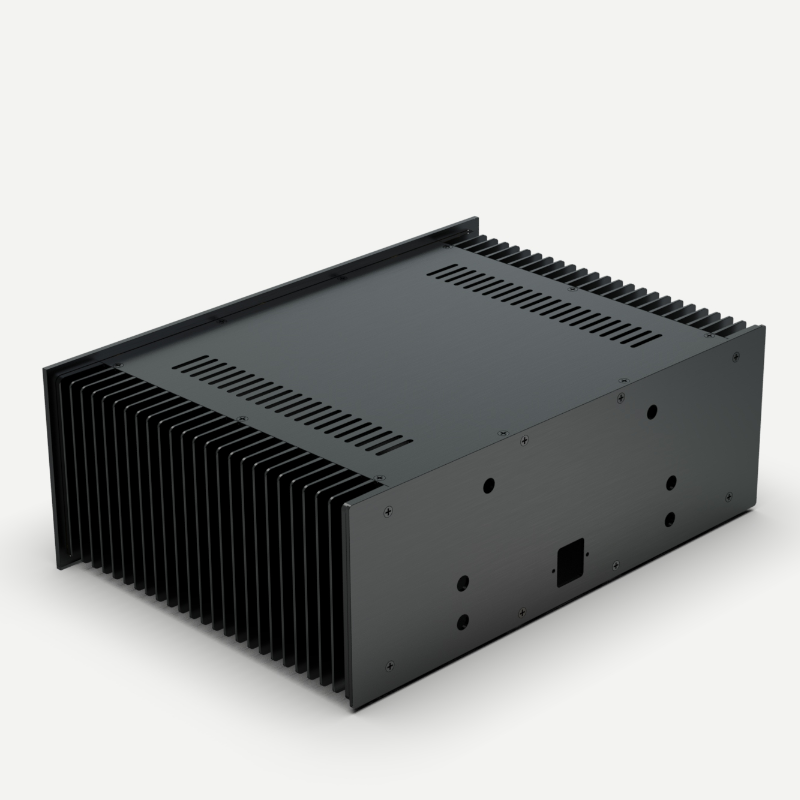

CNC Full Aluminum class A power amplifier DIY chassis Install FM aluminum case
Product Details:
External dimensions: Width 445MM * Height 161MM * Depth 313MM
Internal dimensions: Width 330MM * Height 142MM * Depth 300MM
Unilateral radiator size: Width 145MM * Thickness 50MM * Depth 300MM, Net weight about 2.06KG
350 Depth:
External dimensions: Width 445MM * Height 161MM * Depth 363mm
Internal dimensions: Width 330MM * Height 142MM * Depth 350mm
Unilateral radiator size: Width 145MM * Thickness 50MM * Depth 300MM, Net weight about 2.39KG
400 Depth:
External dimensions: Width 445MM * Height 161MM * Depth 413 mm
Internal dimensions: Width 330MM * Height 142MM * Depth 400mm
Front panel material thickness: 6MM
Back panel material thickness: 5MM
Upper and lower cover material thickness: 3MM
Package list:
1 × Aluminum case
1 × Power switch
1 × Power outlet
1 × Acrylic sheet
1 set × Rubber machine feet
