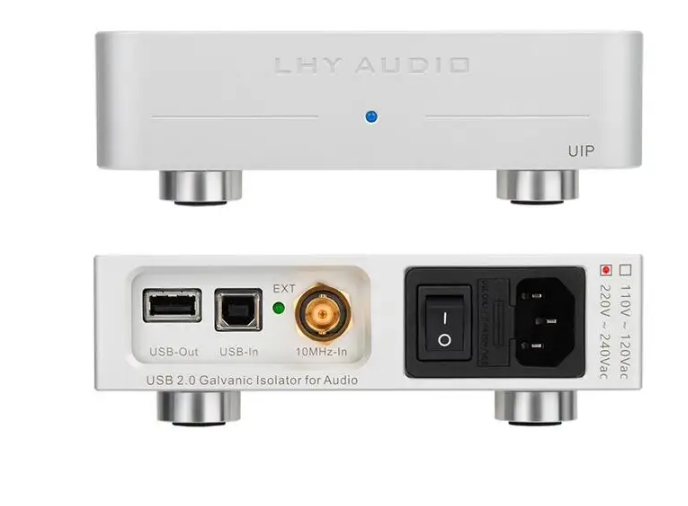

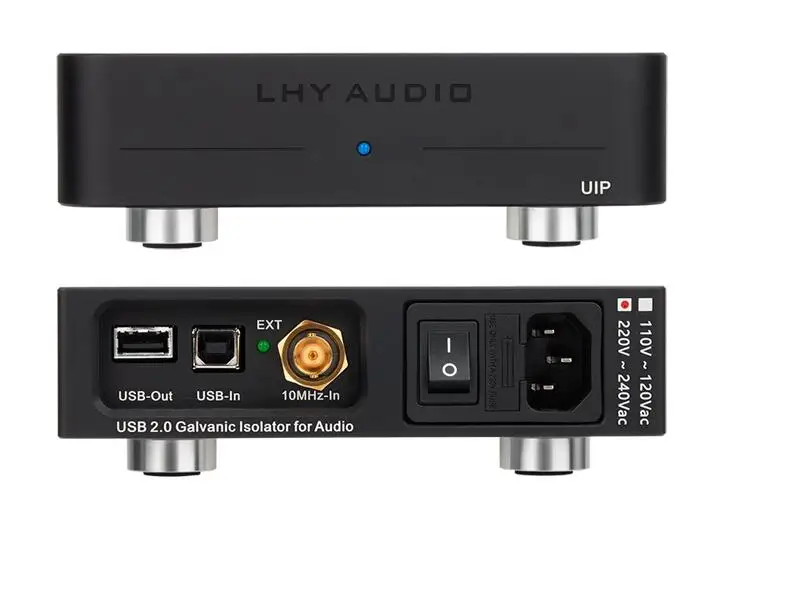

The main selling points of UIP USB audio isolator are:

1. The latest ADI480MBPS high-speed isolation chip

2. Fully linear pV low noise power supply

3. OCXO+PLL clock system

4. External clock input port

5. Aluminum alloy luxury integrated shell

Specification parameters:

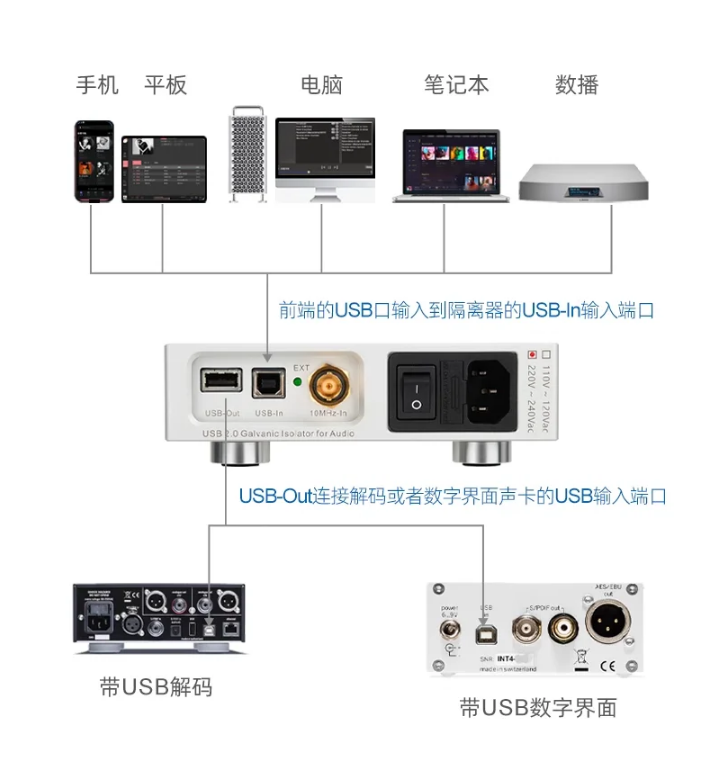

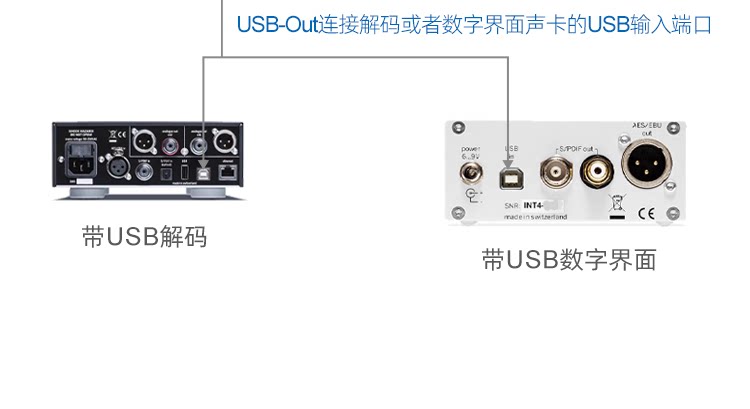

Number of ports

USB A-Outx 1, USB B-In x 1, BNC-in x1BNC external reference clock 10MHz input port

Input impedance 50 Ohm/75 Ohm, 0dBm-20dBm, CMOS square wave 0.3V-3.3Vpp, sine wave 0.5-3.3Vrms

Technical indicators

480Mbps (DSD512 has a bitrate of 45Mbps)

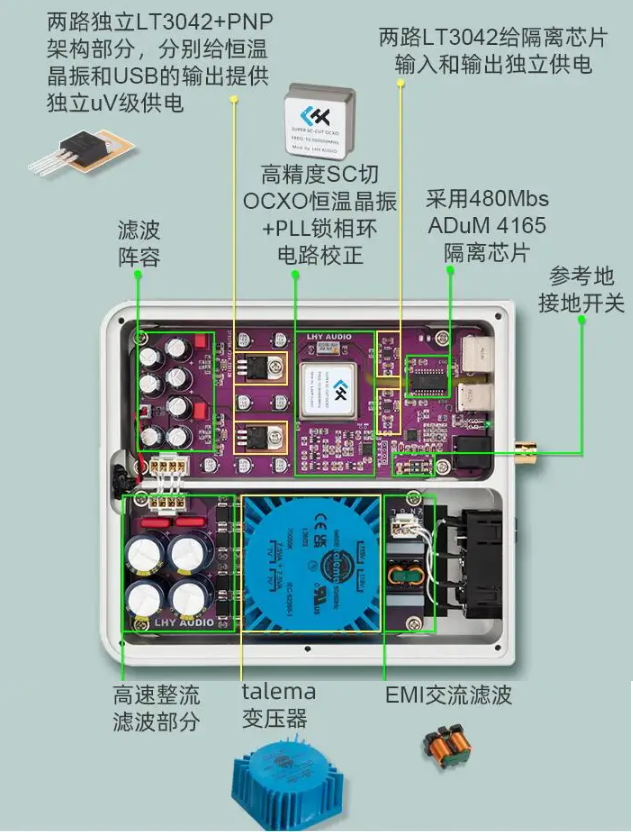

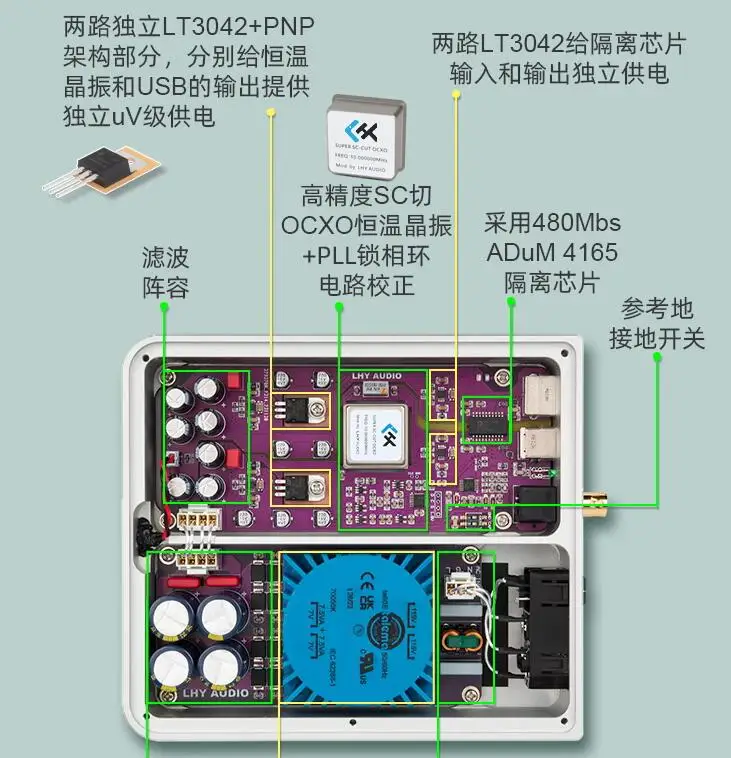

Voltage stabilizing circuit

2-way LT3042+PNP and 2-way LT3042

Core clock

Imported OCXO constant temperature crystal oscillator+PLL circuit

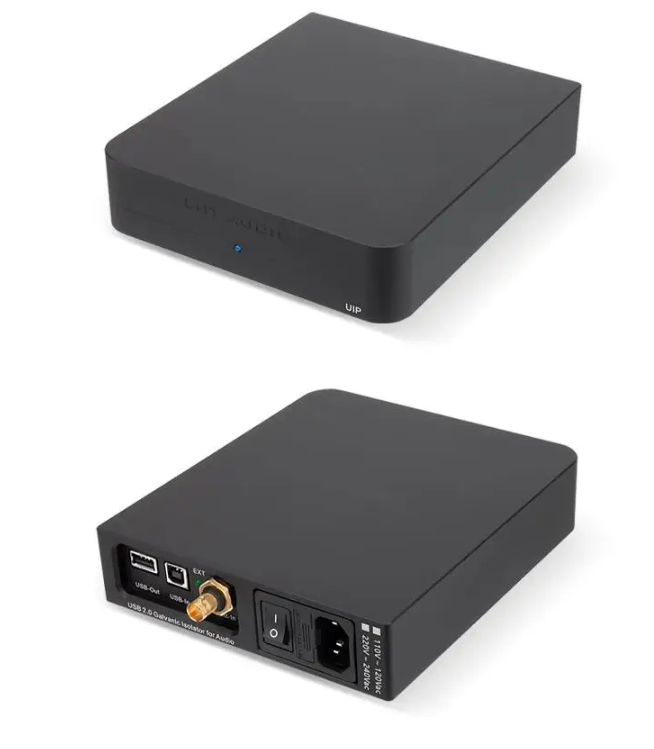

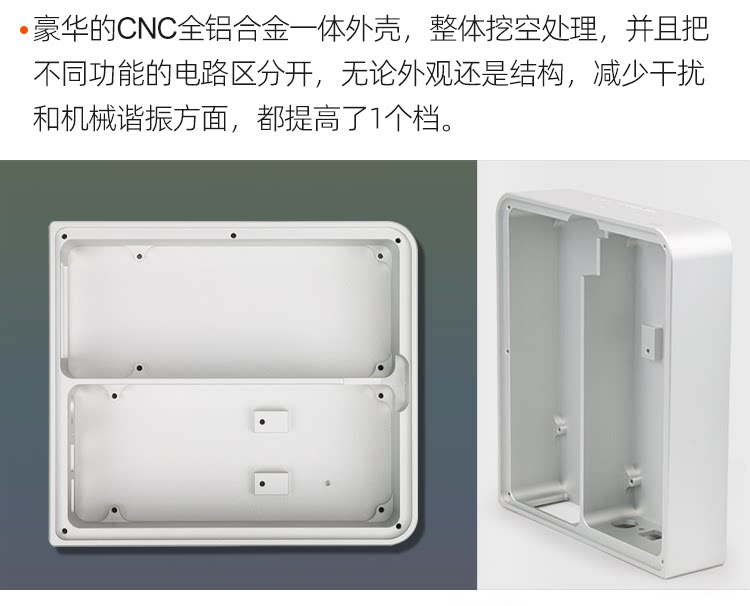

Shell type

Integrated aluminum alloy processing

External dimensions

one hundred and fifty × 175x50mm (width x depth x height)

weight

1.5Kg

voltage

Factory 220-240VAC (customizable 110-120VAC)

power dissipation

7W; Fuse size 5x20mm/1.0AL
