CS3310 Volume control panel infrared remote control preamp 4-channel audio source selector

Name: CS3310 Volume control panel infrared remote control preamp 4-channel audio source selector
Brand: BRZ-hifi-audio
SKU: CS3310 Volume controller
Price: 64.4 USD
Availability: InStock

Flash Sale

5.0 (1 Reviews)

3 Sold

~~$70.00~~ $64.40

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (10)

1/1

Description

Product Details:

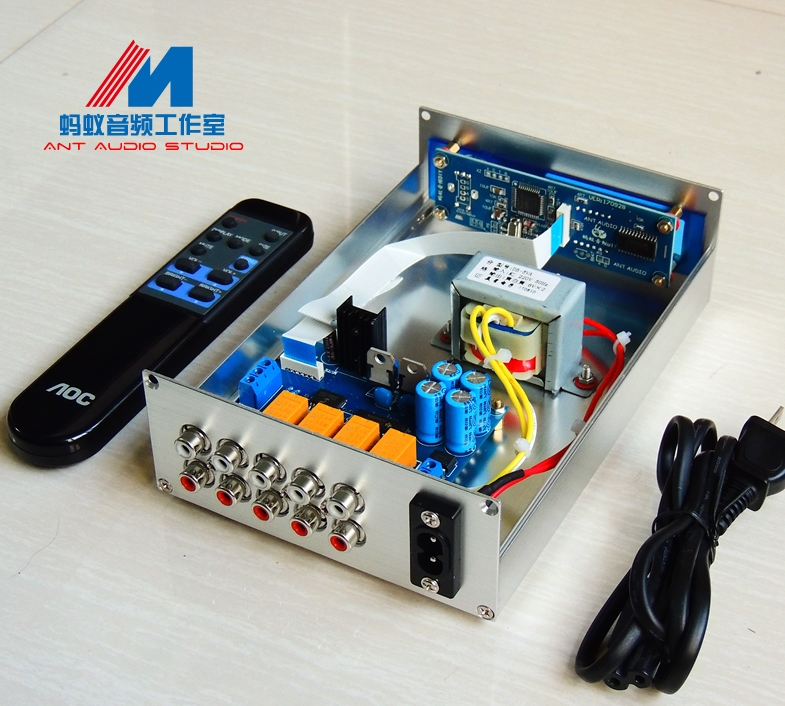

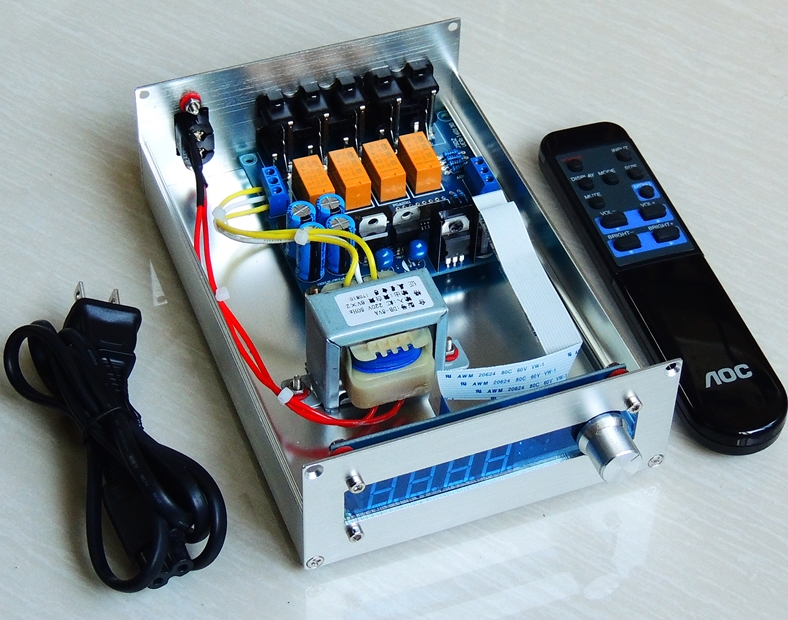

This CS3310 volume control board adopts a new version of control program, with switching function, simple and stable circuit, and the motherboard has preamp amplification function, which can be turned on or off according to needs. It adopts CNC machined aluminum alloy shell, showing high-end performance.

This is a pure volume control (without amplification function, can be seen as a potentiometer with remote control function).

It can also be transformed into a preamplifier with 10x magnification capability as needed. It's up to you to decide whether it's a volume control or a preamplifier. You can switch between the two functions by setting the P1 port on the motherboard.

Made of all aluminum shell and CNC machined, with a simple and elegant appearance.

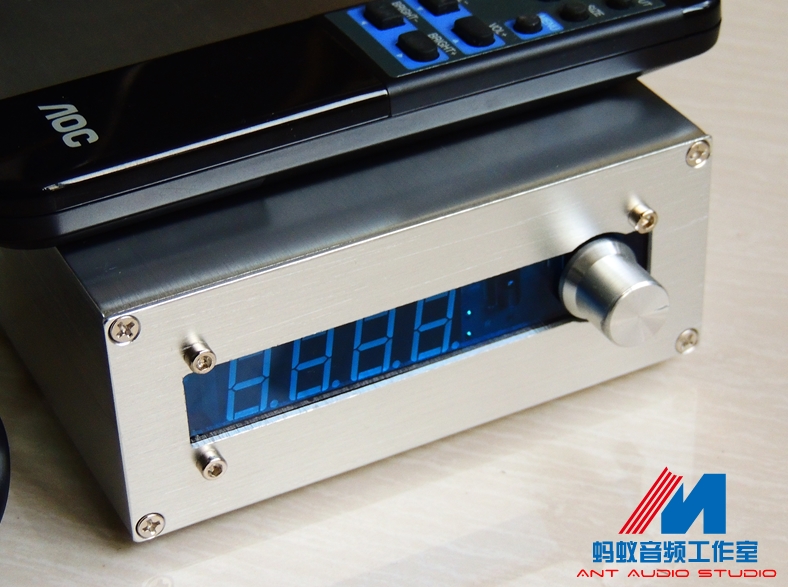

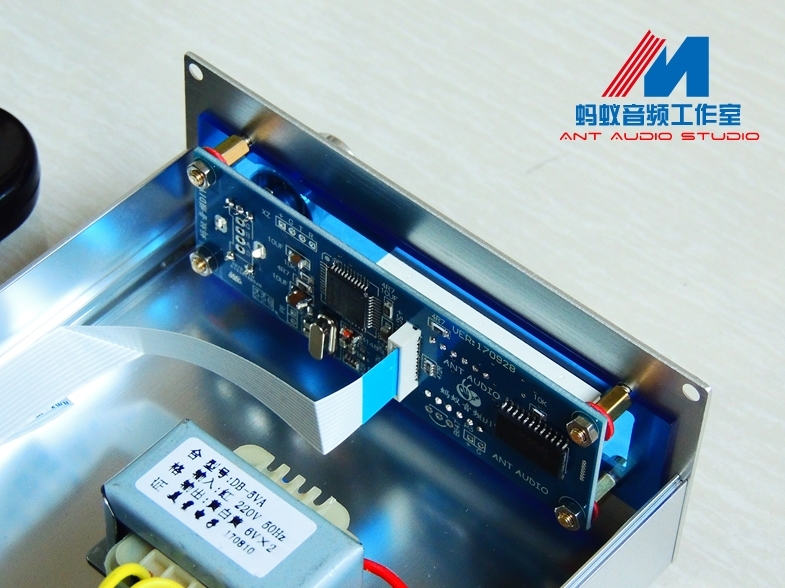

Equipped with a 4-digit LED digital display screen to show real-time machine status.

Up to 4 sets of stereo sound frequency source devices can be connected, with centralized management of one wiring.

Original American CS3310 voice control chip

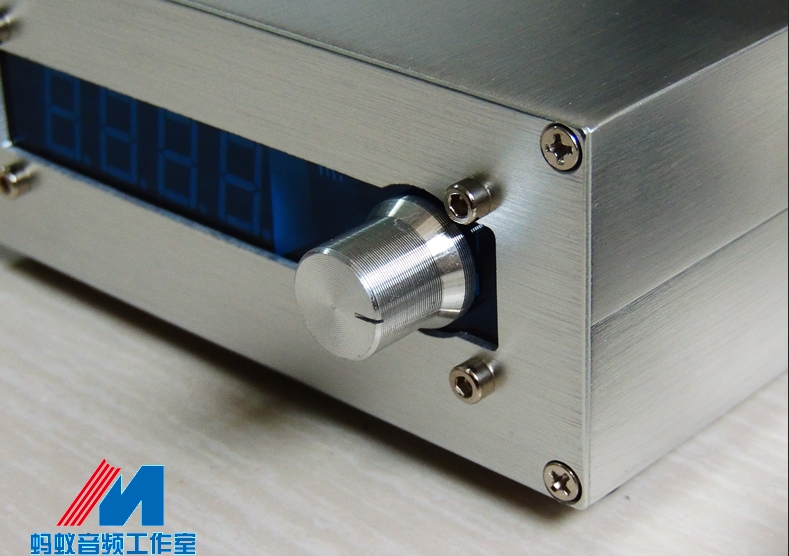

Multi functional coding switch operation method (1 switch can achieve the following 5 functions)
1.Left rotation is volume-
2. Right rotation is the volume+ Press and hold for more than
3 seconds to turn off the device
4.Press once during standby mode to turn on the device
5.Press and hold to select audio source function.

P1 port introduction: When open circuit, this system operates in pure potentiometer mode with a maximum gain of 0DB Because this function is commonly used in foreign smartphones, when short circuited, the system activates the amplification function of 0DB-31.5DB
P2 port introduction: When the circuit is open, the memory function is turned on, which means that the volume value of the previous shutdown will be read every time it is turned off and then turned on again. When the circuit is short circuited, the memory function is turned off, which means that the volume value of each startup is -46DB

Specifications:

Input voltage: AC 110V /220V

Package List:

1 × CS3310 Volume controller
