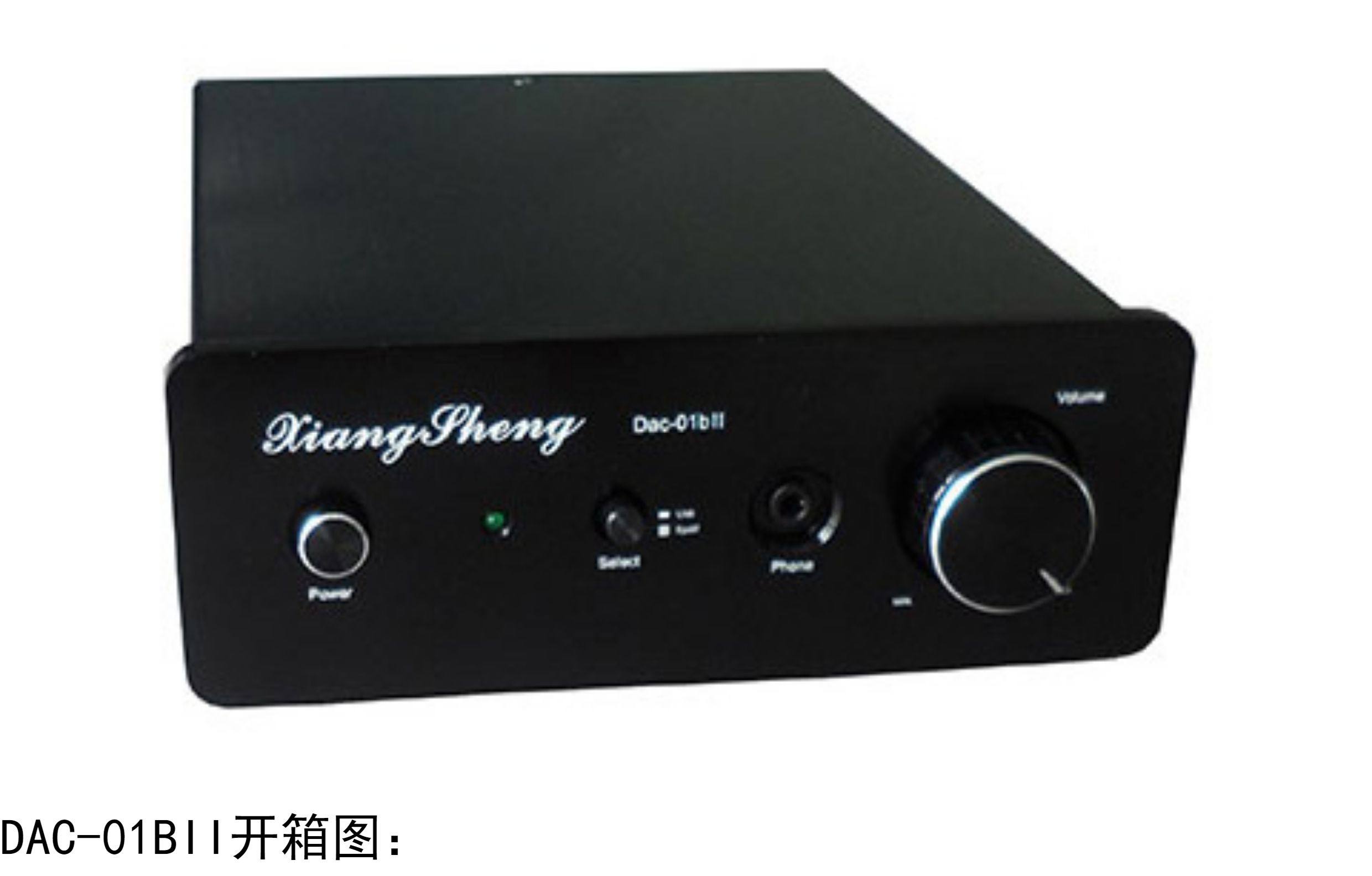

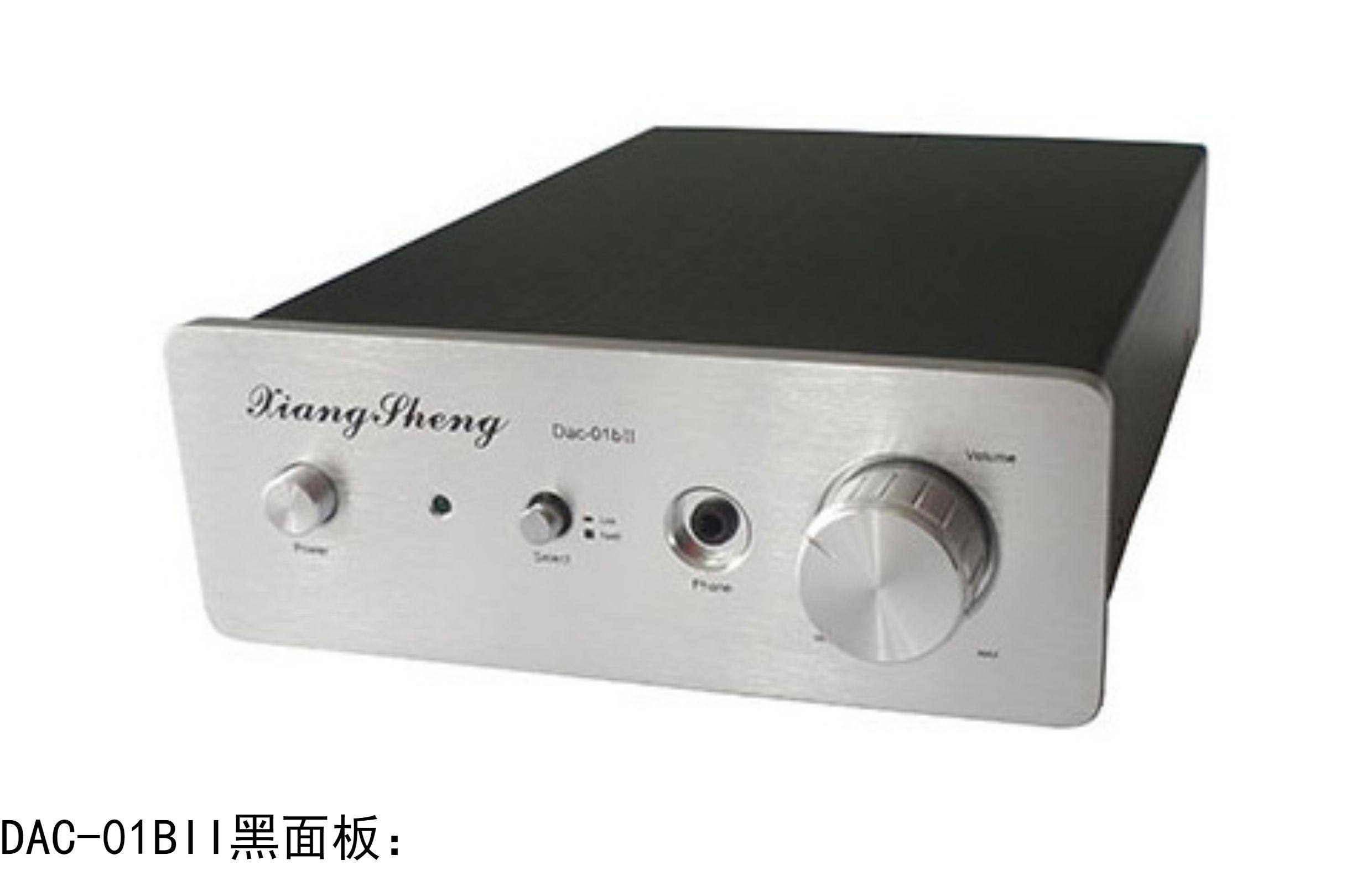

DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier

SKU:
Flash Sale
5.0 (1 Reviews)
2 Sold
$90.00 $81.90
-9%
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • front panel color:
    silver
    black
  • input voltage:
    AC110V
    AC220V
  • USB Type:
    xmos
    9023
Quantity:
-
+
Add to Favorites (4)
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
1/1
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • DAC-01BII Dual-core decoder coaxial fiber USB asynchronous XMOS with headphone amplifier
  • Description
Features:

The volume knob controls only the headphones by default.
.
● All circuits of the DAC-01BII decoder, including digital reception, decoding, and I/V conversion filtering, are based on official technical support from CIRRUS. The output level is greater than 2000mv to ensure that dynamics, details, and layers are not compressed
● The DAC-01BII decoder features signal input switching capabilities for coaxial, optical fiber, and USB inputs.
● The DAC-01BII decoder features one stereo RCA output.
● The DAC-01BII decoder features an headphone amplifier output.

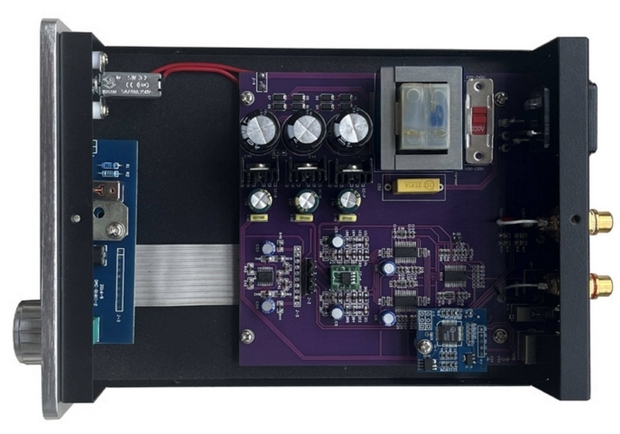

● DAC-01BII adopts a double-sided PCB design with excellent craftsmanship.
● DAC-01BII utilizes high-quality components such as resistors and capacitors to ensure pure sound quality, high resolution, minimal coloration, and a wide soundstage.
● The output RCA and coaxial ends are gold-plated to reduce contact resistance.

Parameters:

● W150*D210*H55mm
● Frequency response: 20Hz-30KHz
●Signal-to-noise ratio: 96db
●Distortion: <0.001%
●Supports 16bit and 24bit digital streams
●Supported sampling frequencies: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
●Output level: >2000mV
●Dynamic range: 117db
●Input impedance: 75Ω
●Output impedance: 600Ω
●Headphone output impedance: 32-600Ω
●Headphone output power: 1000mW-300mW
●Input voltage: 110V/220V
●Weight: 1.8kg

List:

1 x DAC-01BII decoder（To ensure transportation safety, no power input cable is provided by default）
