Feature:
Using JRC's most high-end MUSES03 op amp, this op amp is better than OPA627. The vocals are natural and delicate, with rich overtones and good sound field positioning.
Technical Specifications:

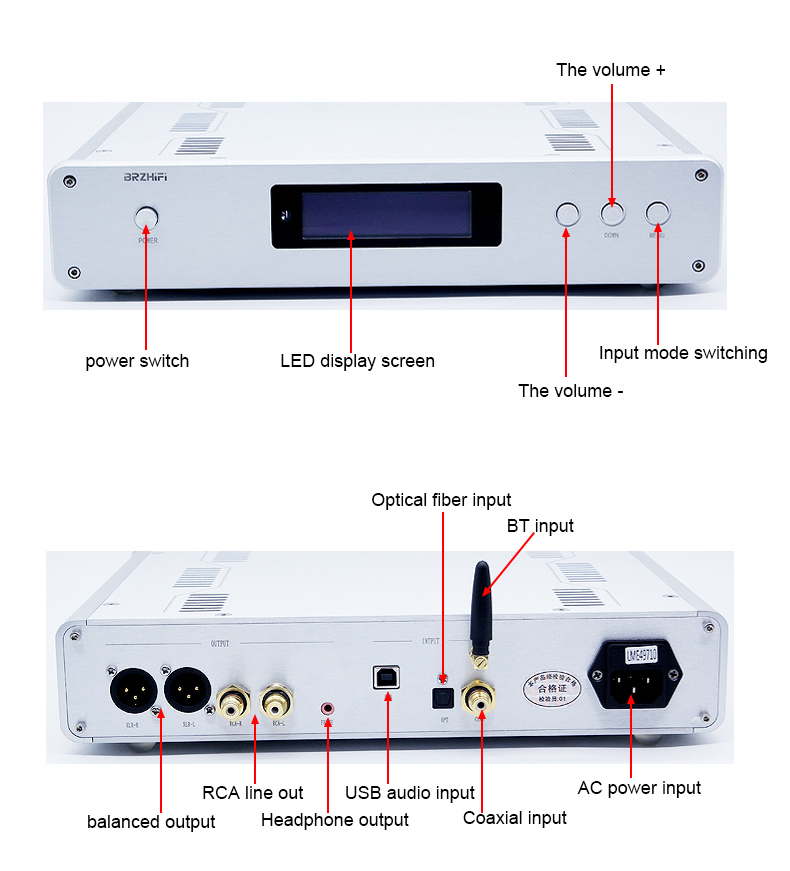

Input interface: coaxial, optical fiber, bluetooth, USB-PC/mobile phone OTG
Output interface: XLR balanced interface, RCA interface, 3.5 headphone jack

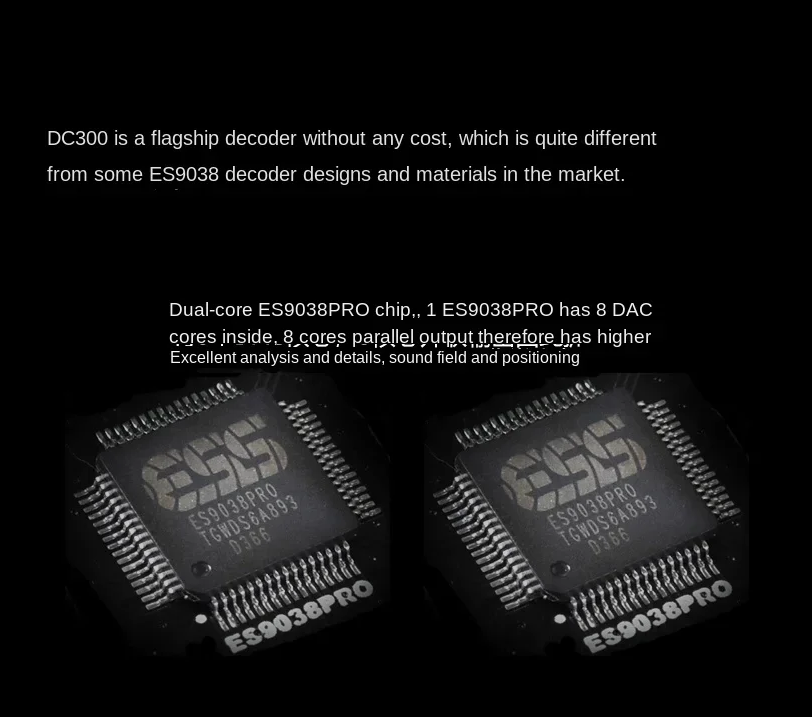

Decoding chip: ESS ES9038PRO*2

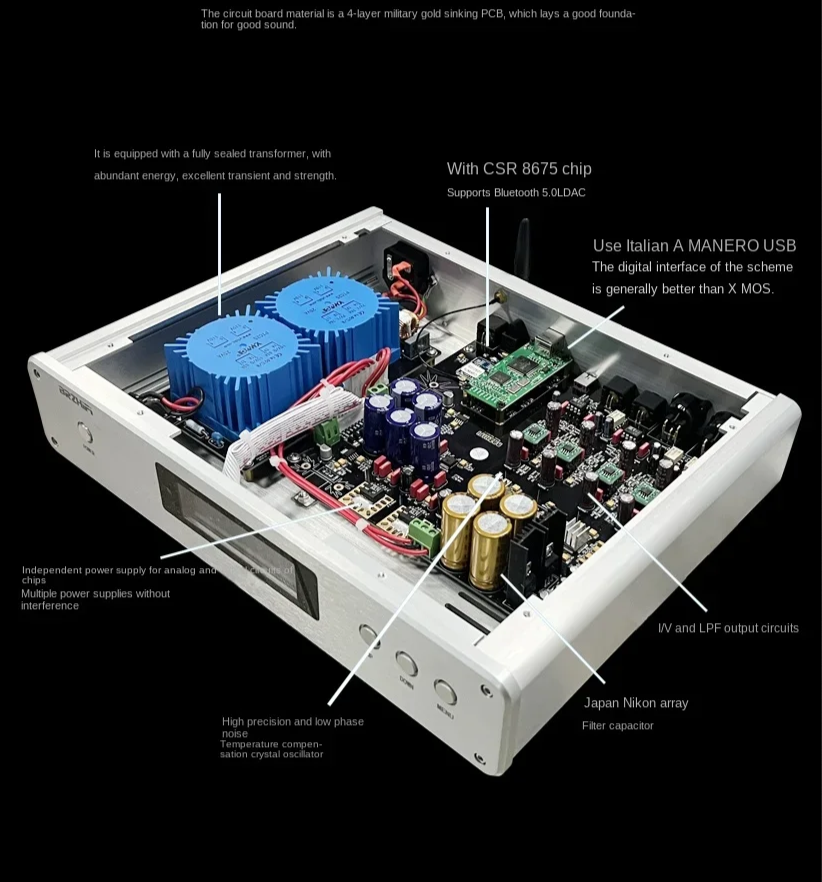

Op Amp: OPA1612*4+LME49710*2 / OPA1612*4+Muses*2
Headphone amplifier chip: TPA6120A2
Bluetooth chip: CSR8675
Bluetooth protocol: 5.0 supports sbc, aac, aptx, aptx-LL, aptx-HD
PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
DSD: DSD64-512 (2.822, 3.072, 5.644, 6.144, 11.2896, 12.288MHz)
Frequency response: 5-25KHz+-O.1db
Total harmonic distortion: -122dB
Dynamic range: 137dB
Signal to noise ratio: 130dB
Headphone power: 32Ω/7O0mW300Ω/180mW
Headphone impedance: 16-600Ω
Single-ended rated output: 2.8Vrms
Balanced rated output: 5.6Vrms
Whole machine power: <=15W

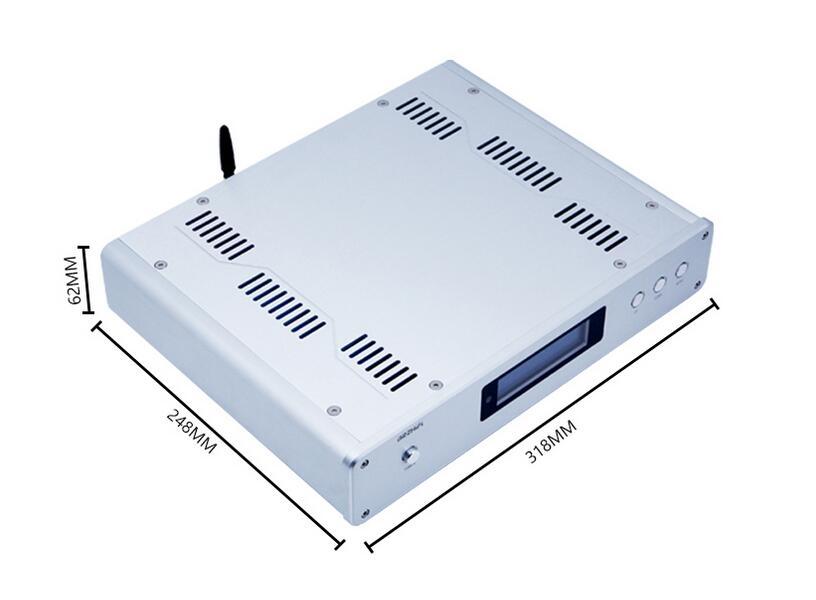

Size: 316*248*62 mm
Weight: 5KG with packaging

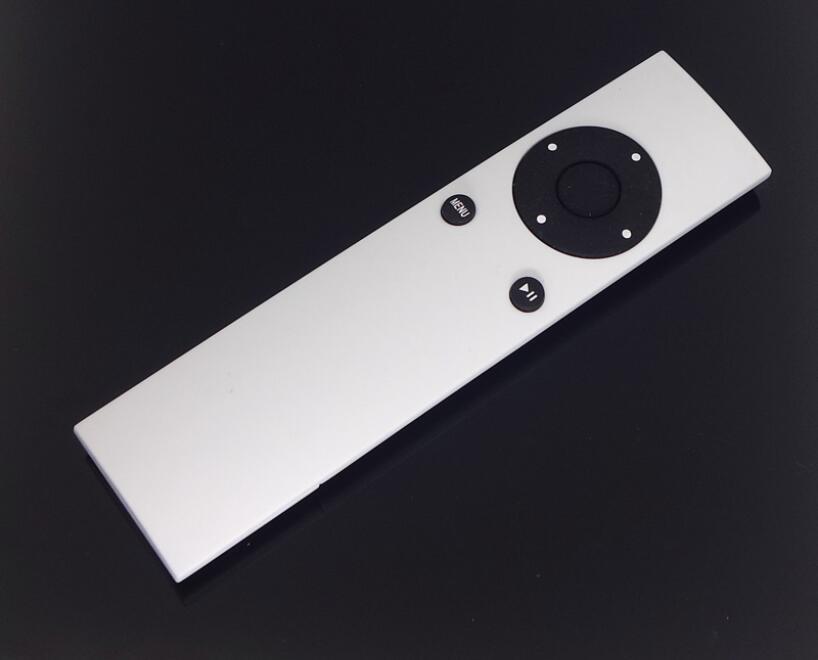

Accessories: DC300*1 remote control*1
DC300 User Manual
Link: https://pan.baidu.com/s/1QS5HHyBGQ7Lmc1jmD9fGeQ
Extraction code: b2xv
Amanero driver installation and FOOBAR setup tutorial
Link: https://pan.baidu.com/s/1uUn-AAqjN9kWxfEEx-_zzw
Extraction code: 2333
