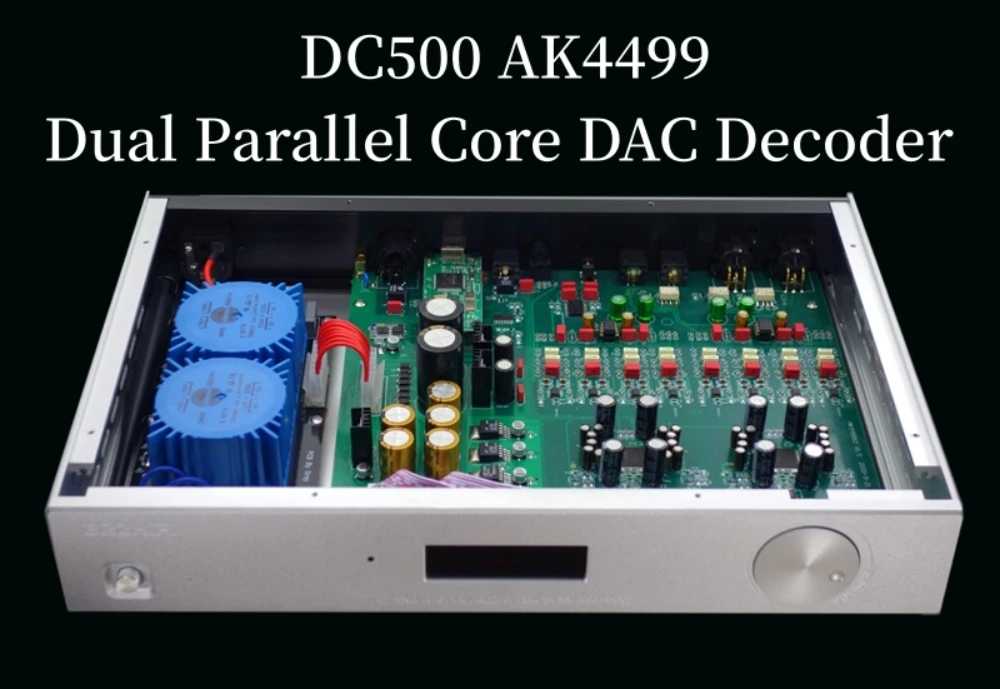

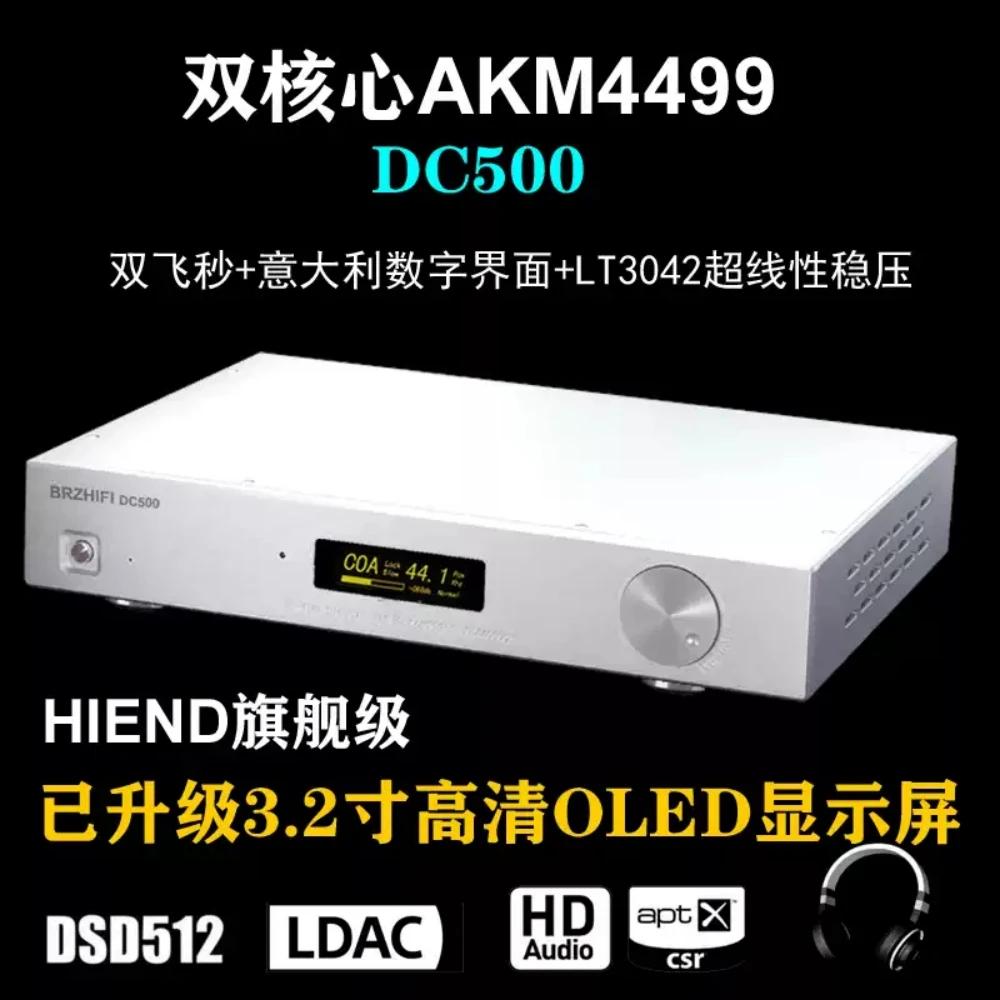

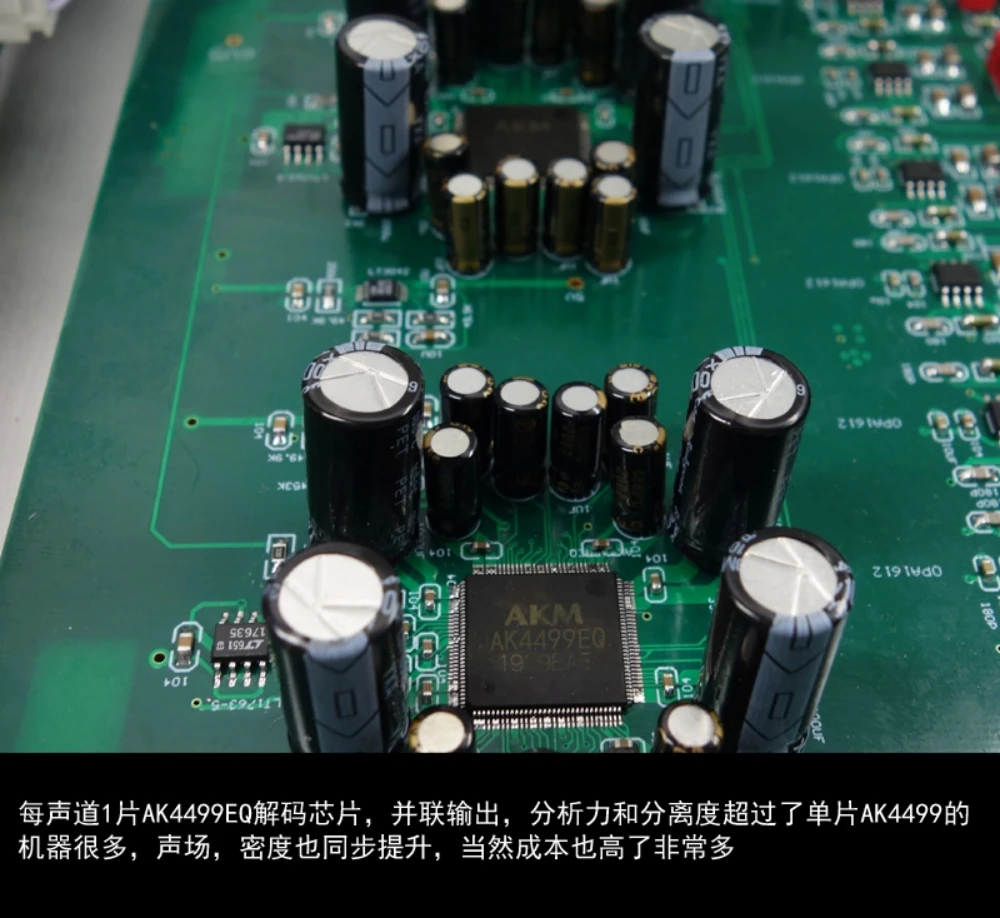

This product is a dual AK4499EQ decoder, not a typical single core AK4499EQ decoder. The LPF output is the cutting-edge operational amplifier MUSES03. The AK4499 decoder currently being shipped has been upgraded to a high-definition OLED display!
After the iconic AK4497EQ from Asahi Kasei AKM Electronics Co., Ltd., a new VELVETSOUNDVERITADAC has been developed
AK4499EQ。 This product, as the first AKM to adopt current output mode, has achieved the world's highest level of low THD+N He
High S/N. Featuring THD+N of -124dB (AK4497EQ of -116dB) and a single channel signal-to-noise ratio of 140dB
(AK4497EQ is 131dB) There is a significant improvement compared to the previous flagship product AK4497EQ.
This is a decoder at the HI END level, which includes layers, details, positioning, air quality, vocals, density, and more
Very ideal, you can be picky.

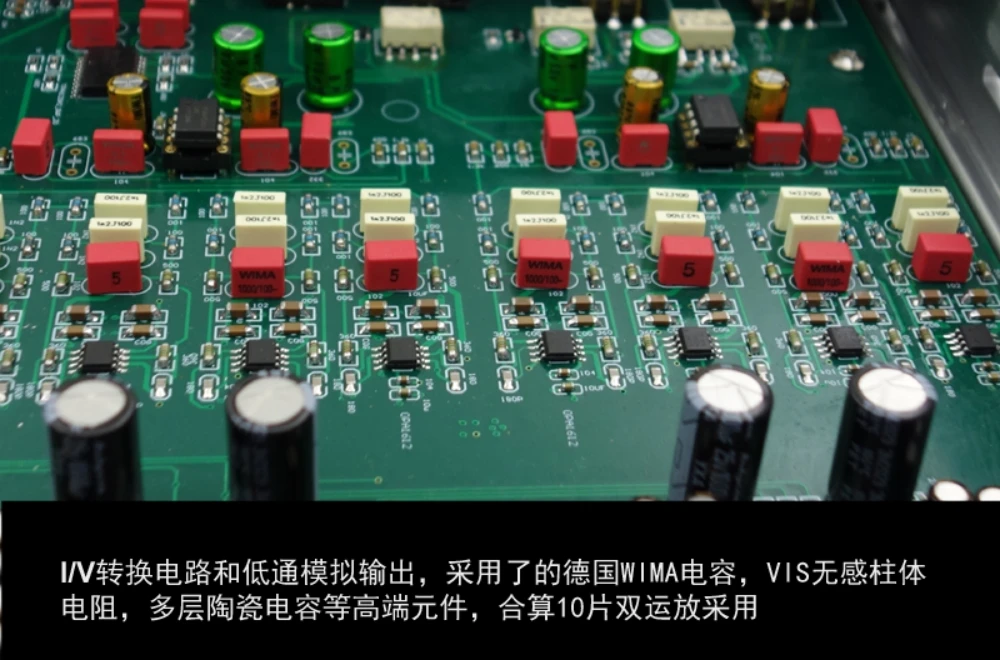

*8-channel hybrid discrete IV conversion circuit and independent adder circuit, fully meeting the high current requirements of AK4499, ensuring from the source

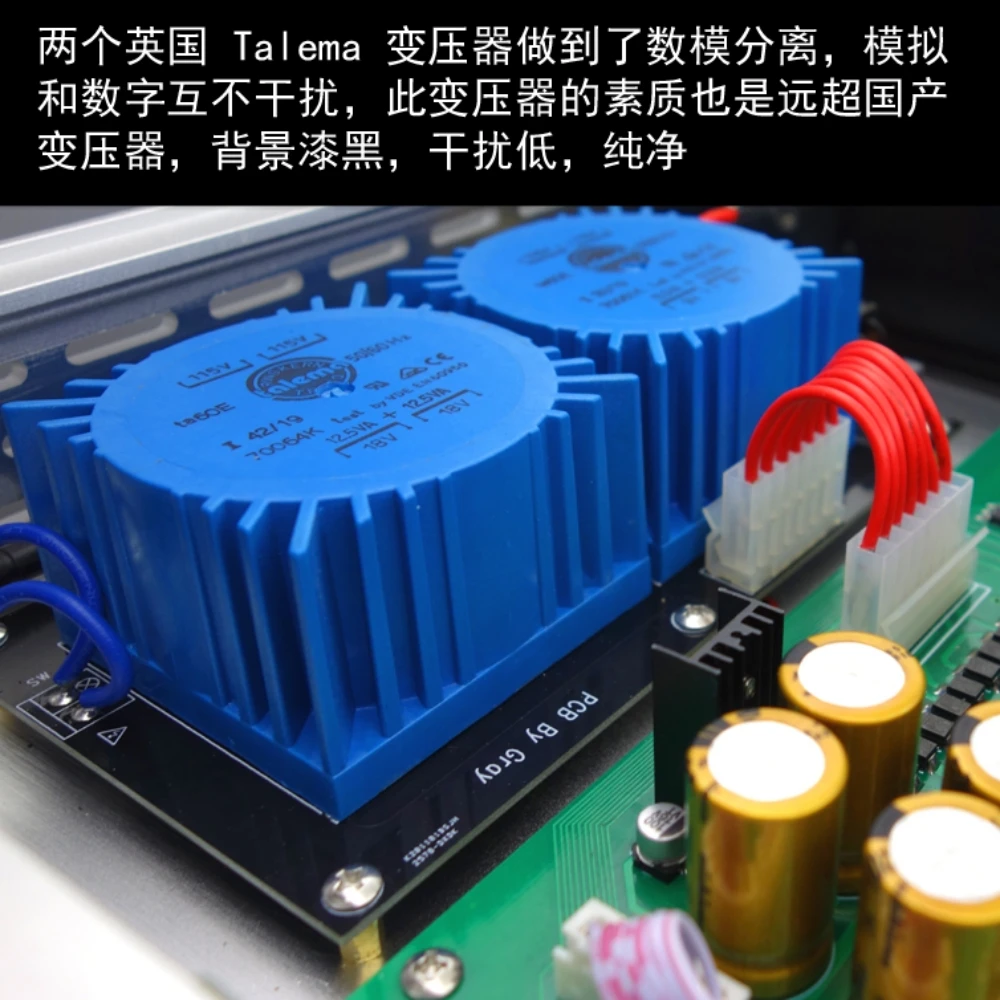

*Two 30W audio dedicated ring transformers from the UK are used for digital simulation, with completely independent power supply and no interference with each other;

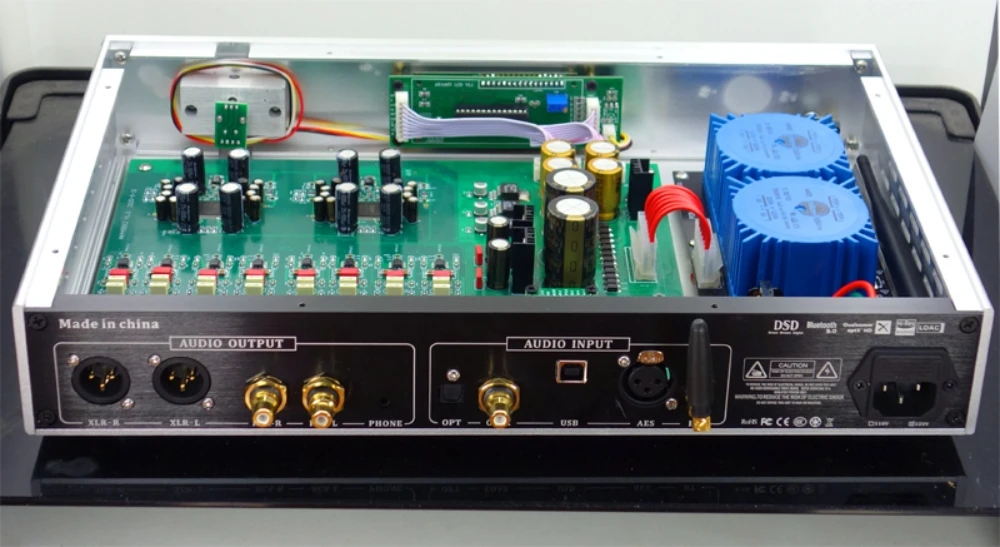

*Native fully balanced architecture, no conversion, complete four-way output; It also comes with a headphone monitoring system, which can be directly connected to headphones

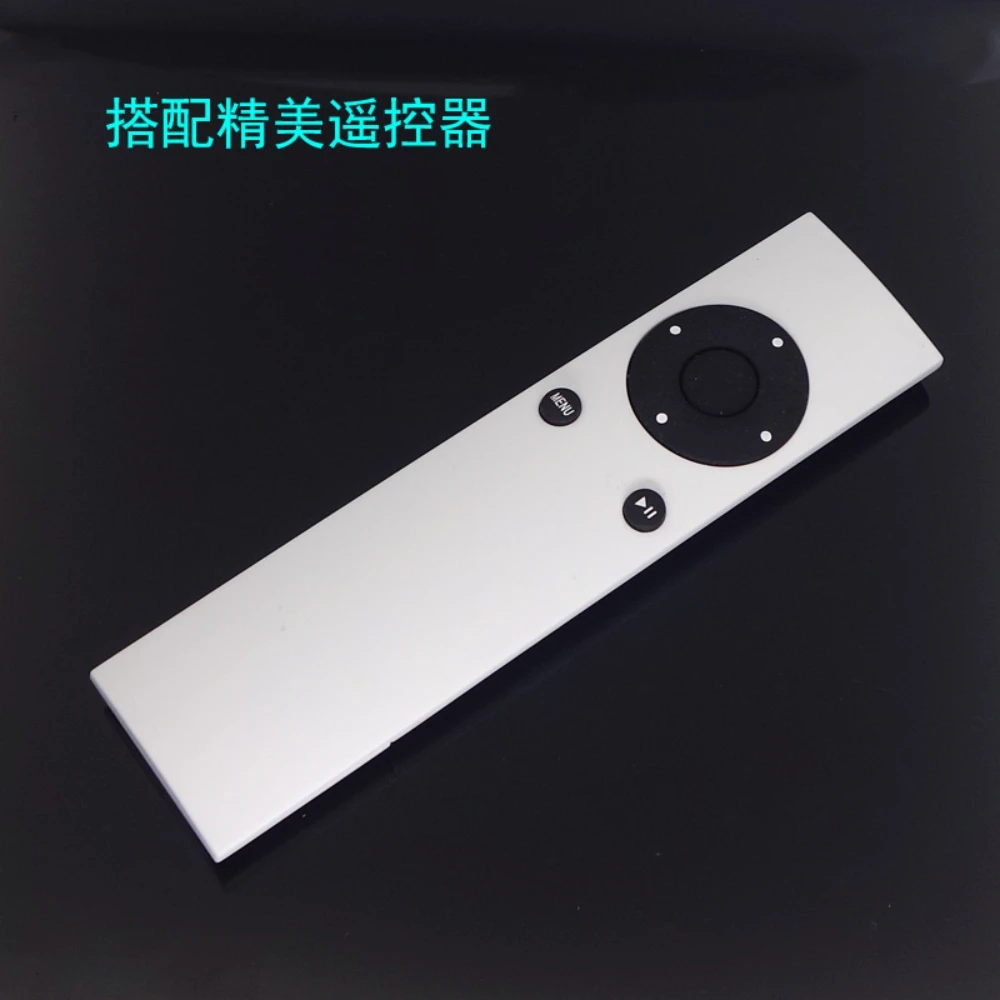

*Support high-quality digital volume adjustment, with remote control for easy volume adjustment

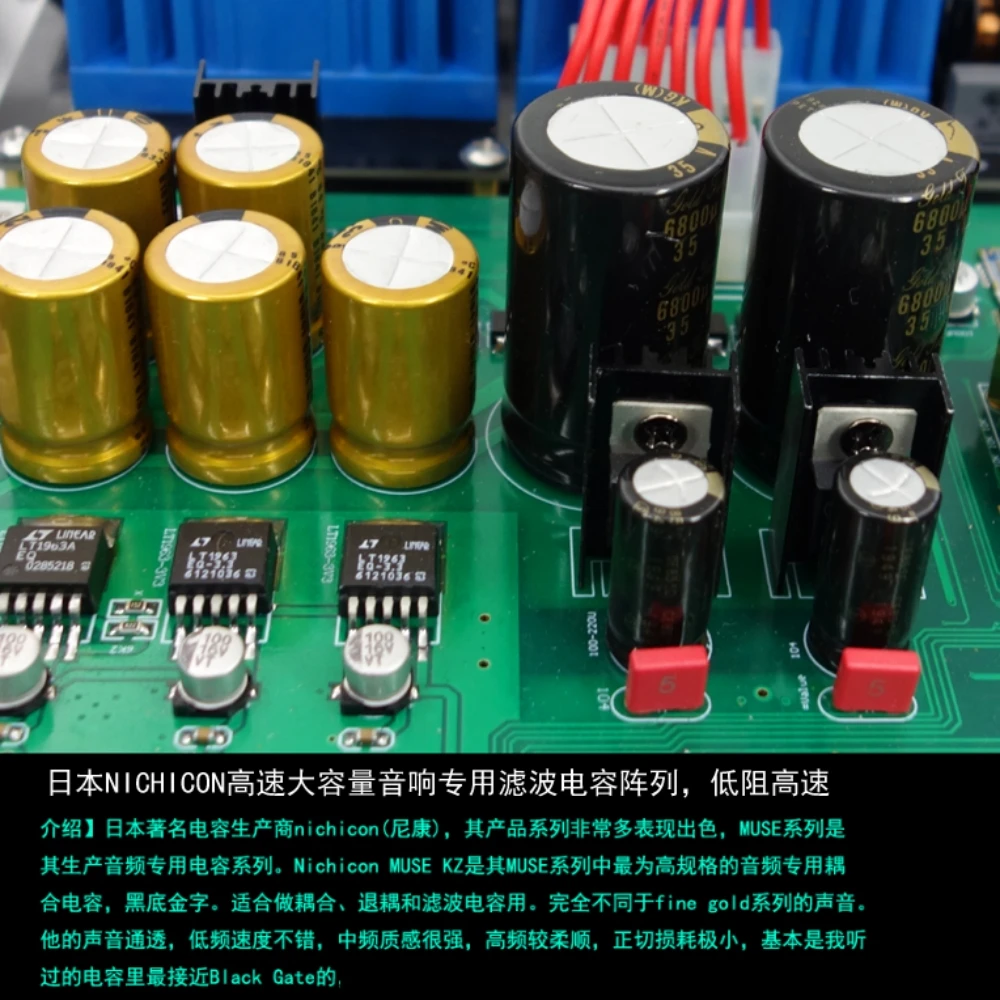

*Using Japanese signature series capacitors and Lingte LT high-end voltage regulators at all costs, Jung super regulated linear power supply

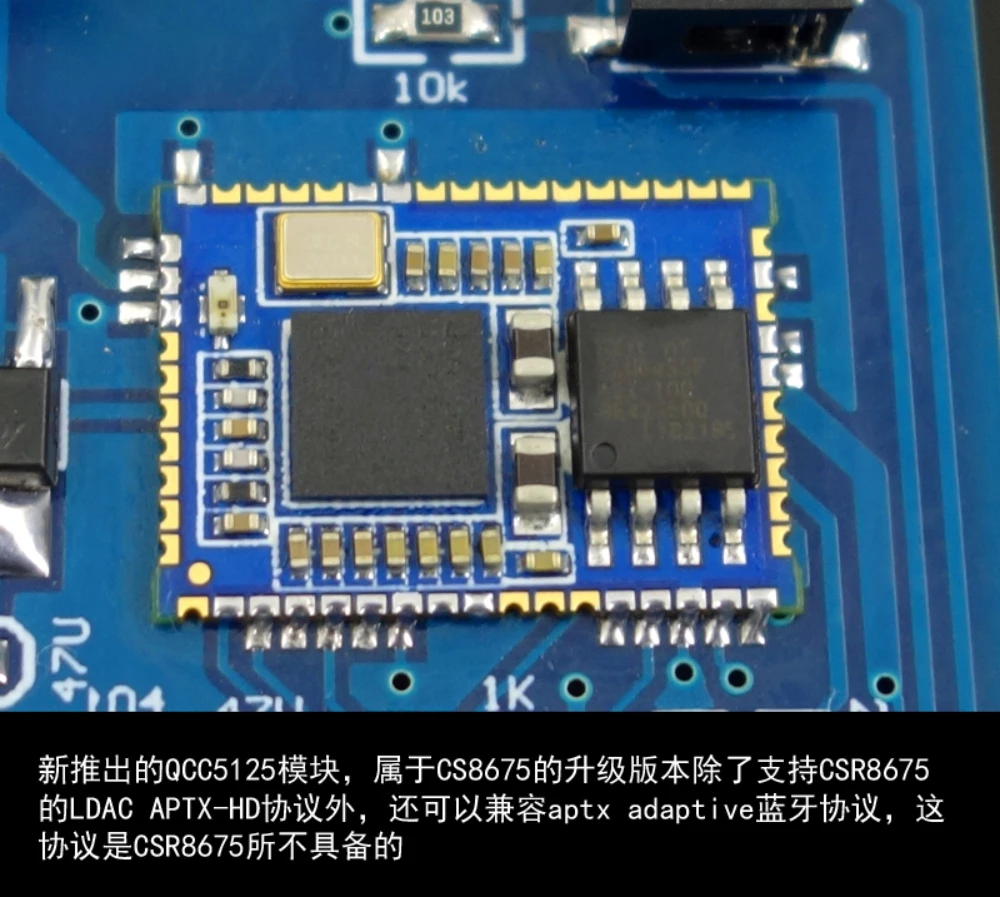

* Perfectly supports DSD master tape playback, supports USB, coaxial fiber, and Bluetooth multi input, supports Bluetooth 5.0, compatible with APTX-HD and LDAC lossless formats
Rich digital filtering
There are 6 types of PCM: Short Delay Sharp Roll-off/Short Delay Slow Roll-off/Sharp Roll-off/Slow Roll-off/Super Slow
Roll-off/Low Dispersion Short Delay Filter，
There are two types of DSD: Filter 1/FiIter2;
Line output: RCA output level single ended 3.0Vrms @ 0dBFS, balanced 6.0Vrms @ 0dBFS
Frequency response: 5-30KHz+-0.1db
XLR interface definition: American standard (1 ground, 2 hot, 3 cold)
AK4499 decoder specifications
Standard input interface:
SPDIF， Coaxial, fiber optic, Bluetooth AES
Input frequency: 44.1K, 48K, 88.2K, 96K, 176.4K, 192K, 16-32BIT automatic recognition DSD64-512
Single end rated output: 2.8Vrms
Balanced rated output: 5.6Vrms
Frequency response: 5-20KHz+-0.1db
Whole machine power:<=30W
Chip parameters:
Total harmonic distortion: -124dB
Dynamic range: 137d
Machine size: 380X60.5X248mm
Weight: 4.0KG
Accessories: 1 USB cable, 1 remote control
DC500 User Manual
Baidu Cloud Storage: https://pan.baidu.com/s/1obABTSHg1-yTGyq0uI9tGg

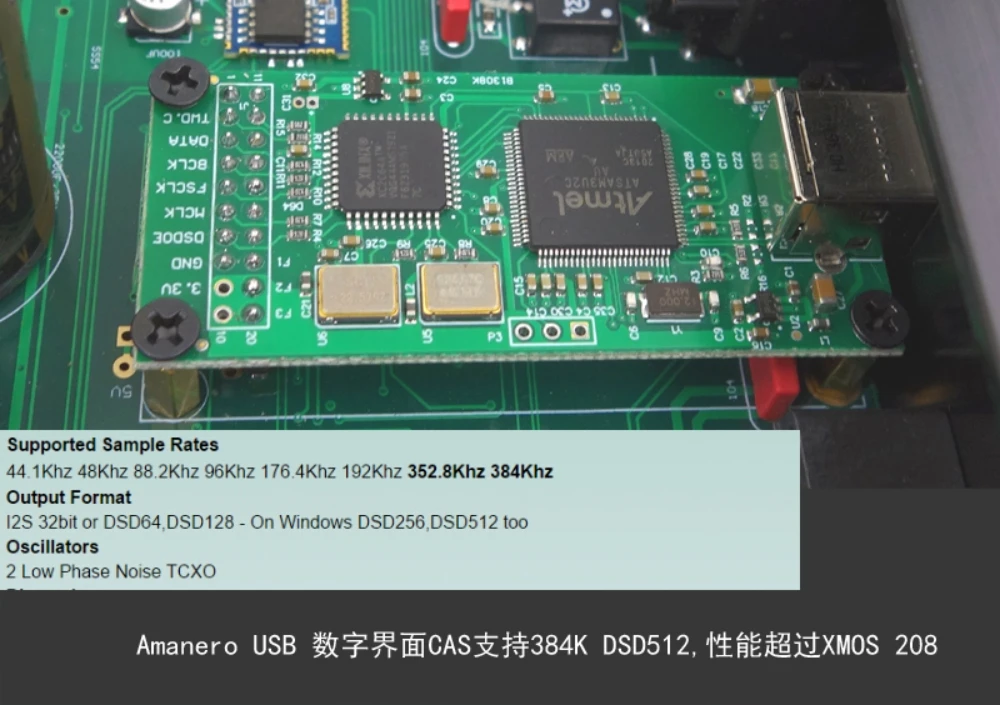

Driver link: https://amanero.com/drivers.htm
User Manual: How to Translate
Link: https://pan.baidu.com/s/1QoGuUFbR0Kq5zd4BISfEFQ
Extraction code: 2333
Driver and FOOBAR2000 player setup tutorial
Link: https://pan.baidu.com/s/1uUn-AAqjN9kWxfEEx-_zzw
Extraction code: 2333
At present, the LPF output has been upgraded to MUSE series' most high-end operational amplifier MUSES03 super high-end operational amplifier, with very realistic and natural sound, and sweet human voice. The conversion rate is as high as 35V per microsecond, far exceeding MUSE02 and MUSE01, not to mention the cheap LME49860. The IV part is OPA1612, and the conversion distortion is as low as 0.000015%!
