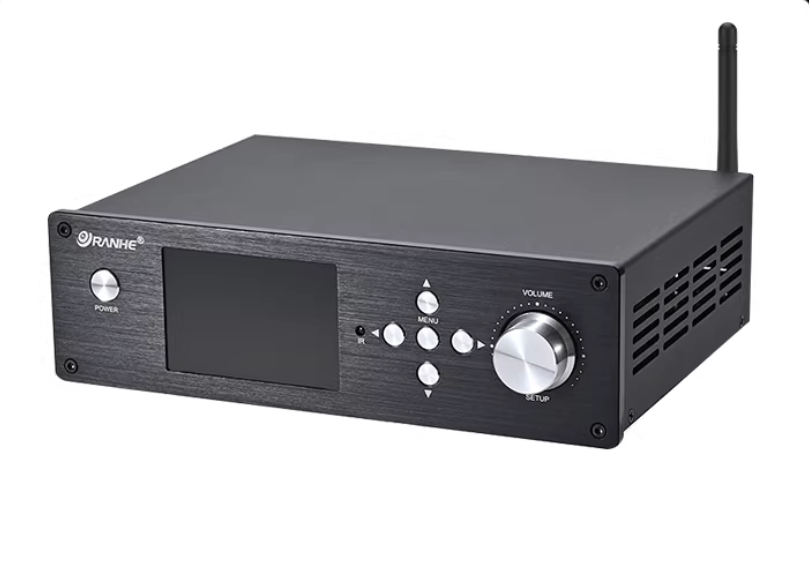

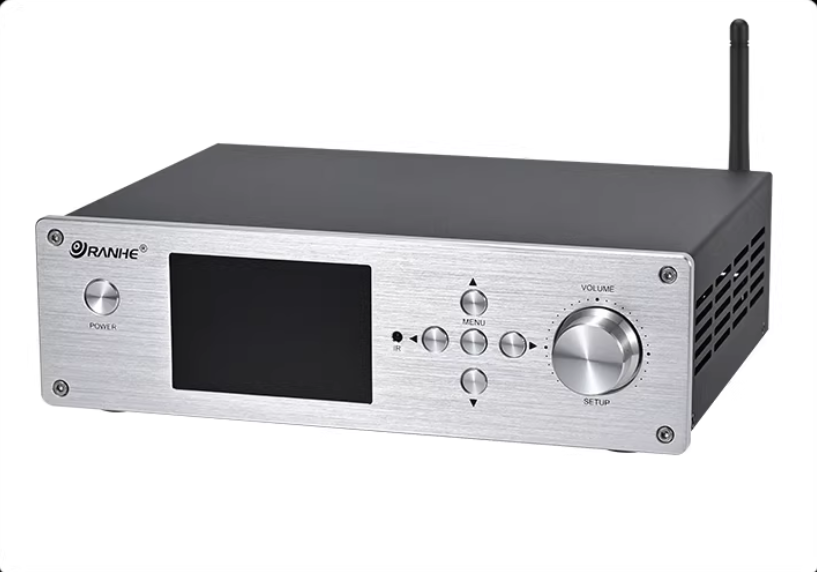

Desktop HIFI Digital Music Player Dual ES9039Q2M DAC QCC3084 Bluetooth 5.4 Decoding Music Turntable Support DSD256 DTS Decoding
DSD Lossless Hi-Fi Bluetooth 5.4 Music Master Tape Player Hard Drive Digital Turntable DTS Decoding Dual 9039
Note: The product system supports English display
Description of differences between various versions
Standard Version
Internally equipped with 1 ESS9038Q2M DAC chip
Comes with 5532 operational amplifier chip / QCC5125 Bluetooth chip
The USB-PC interface does not support PCM 32BIT/768KHz and DSD512 decoding
PRO Version
Internally equipped with 2 ESS9038Q2M DAC chips
Comes with 5532 operational amplifier chip / QCC5125 Bluetooth chip
The USB-PC interface does not support PCM 32BIT/768KHz and DSD512 decoding
PRO Upgraded Version
Internally equipped with 2 ESS9038Q2M DAC chips
Comes with LME49720 operational amplifier chip / QCC5125 Bluetooth chip
The USB-PC interface does not support PCM 32BIT/768KHz and DSD512 decoding
MAX Version
Internally equipped with 2 ESS9039Q2M DAC chips
Comes with 5532 operational amplifier chip / QCC3084 Bluetooth chip
The USB-PC interface supports PCM 32BIT/768KHz and DSD512 decoding
MAX Upgraded Version
Internally equipped with 2 ESS9039Q2M DAC chips
Comes with LME49720 operational amplifier chip / QCC3084 Bluetooth chip
The USB-PC interface supports PCM 32BIT/768KHz and DSD512 decoding
Product Description

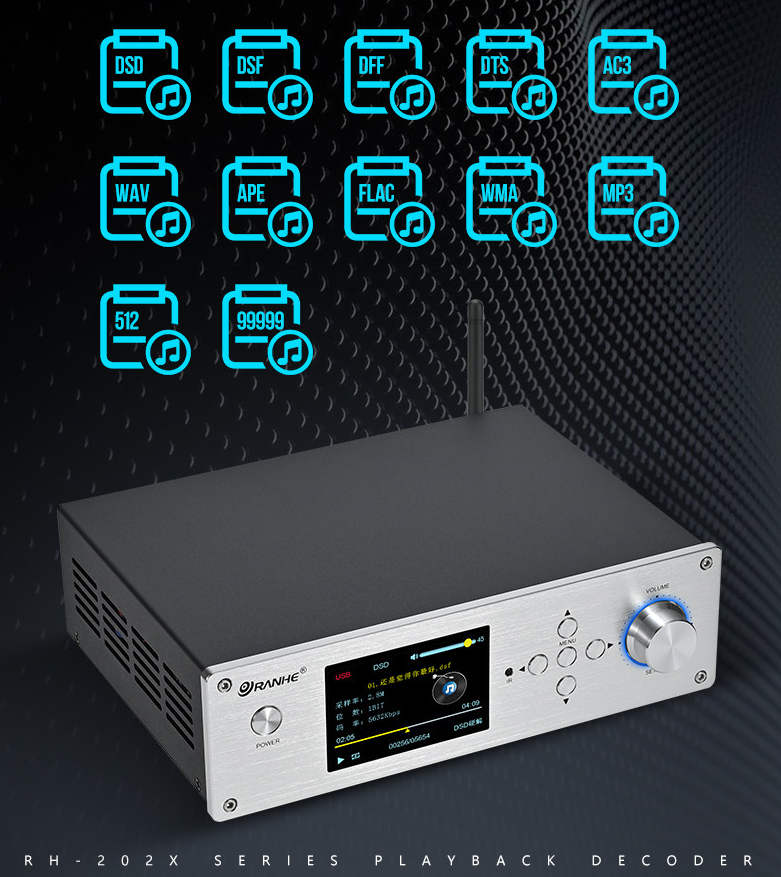

1: Supports playback of DSD, DSF, DFF (DSD64-DSD256) format music, DTS, AC3 format music, as well as WAV, APE, FLAC, WMA, MP3 and other formats. It supports storage and playback of 512 folders and 99,999 songs.
2: Supports DSD playback, Dolby AC3 and DTS decoding, imported CPU technology, and powerful sound card decoding function.

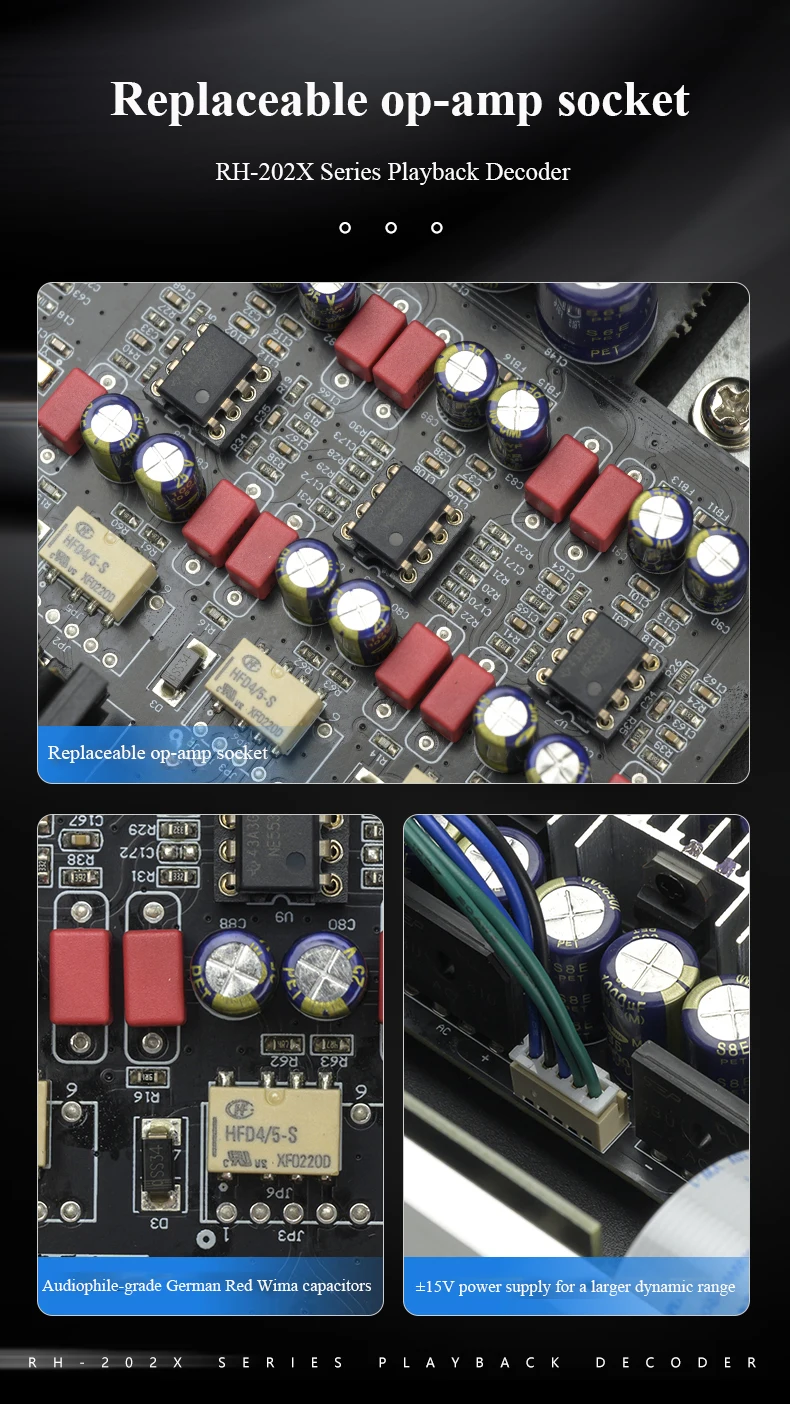

3: Adopts ES9039Q2M as the main decoding chip, with independent operational amplifiers for each channel, providing higher signal-to-noise ratio and better audio separation. It features high sampling accuracy and low distortion, maximizing the restoration of details from high-quality audio sources. It supports 32BIT/PCM768K and DSD256, with a signal-to-noise ratio (DNR) of up to 130DB and a distortion (THD+N) of -126DB, delivering excellent decoding capability and superior analog audio listening experience.

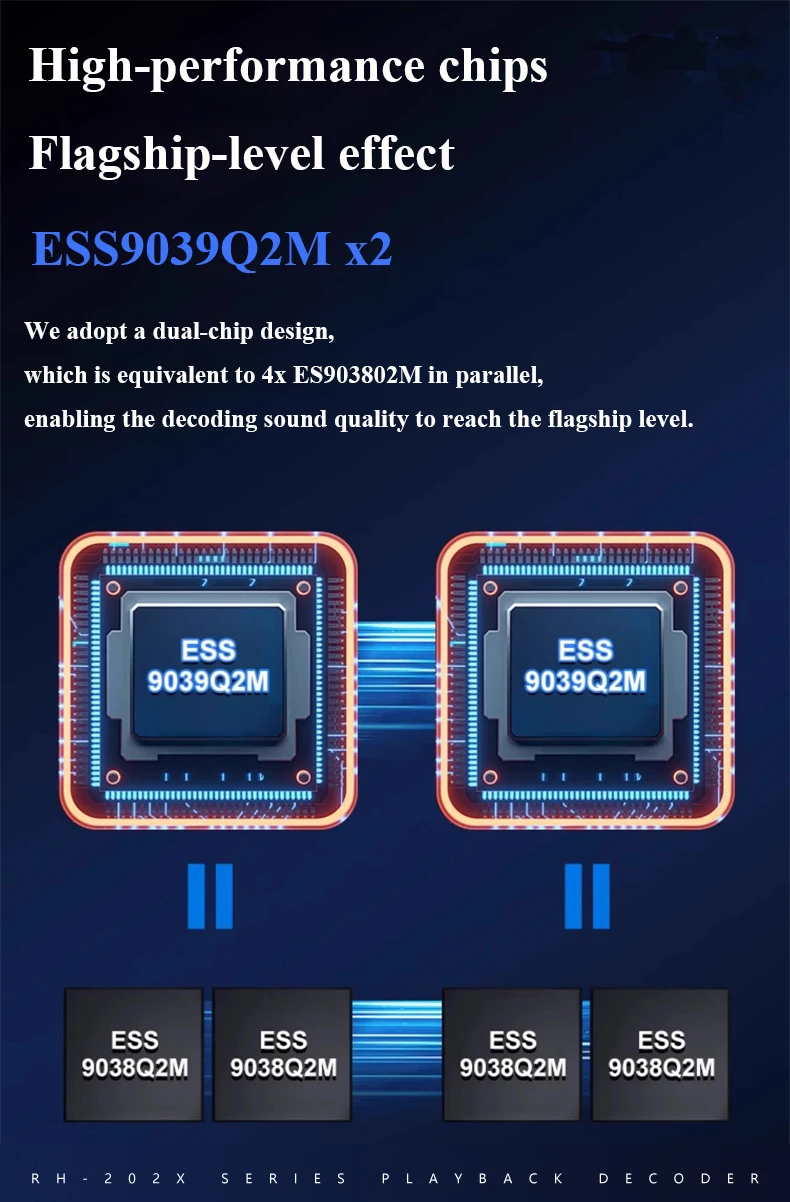

4: ESS903902Mx2, we adopt a dual-chip design, which is equivalent to 4xES903802M in parallel, enabling decoding sound quality to reach the flagship level.

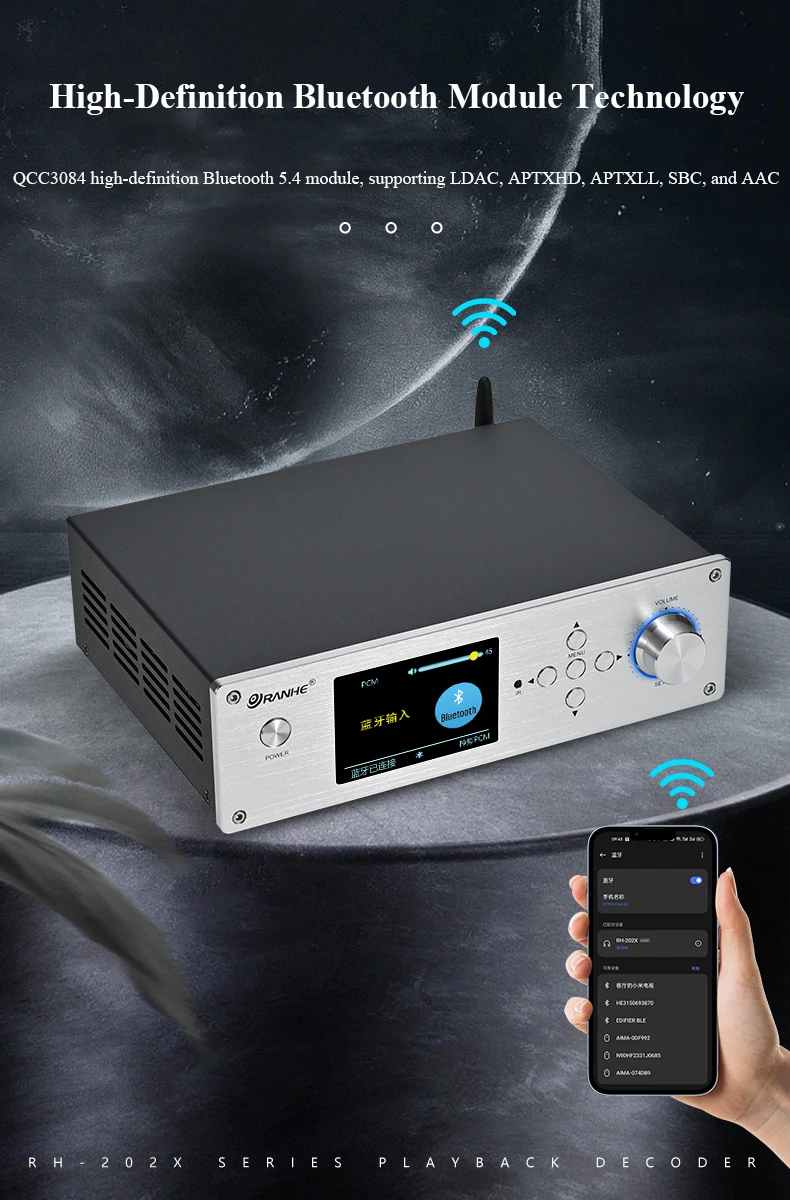

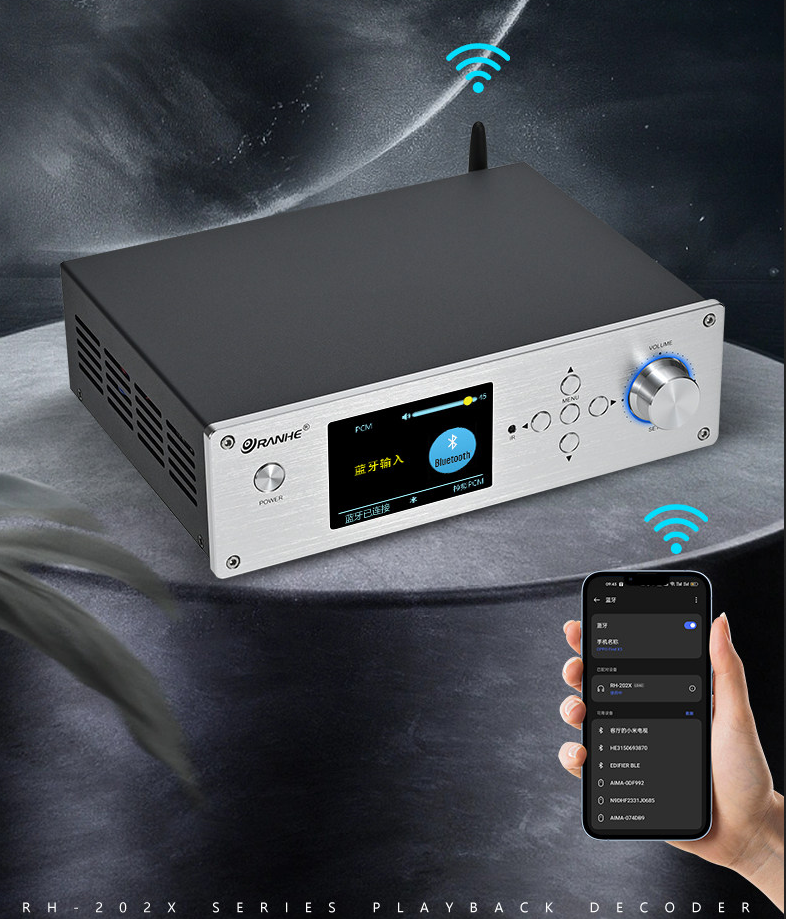

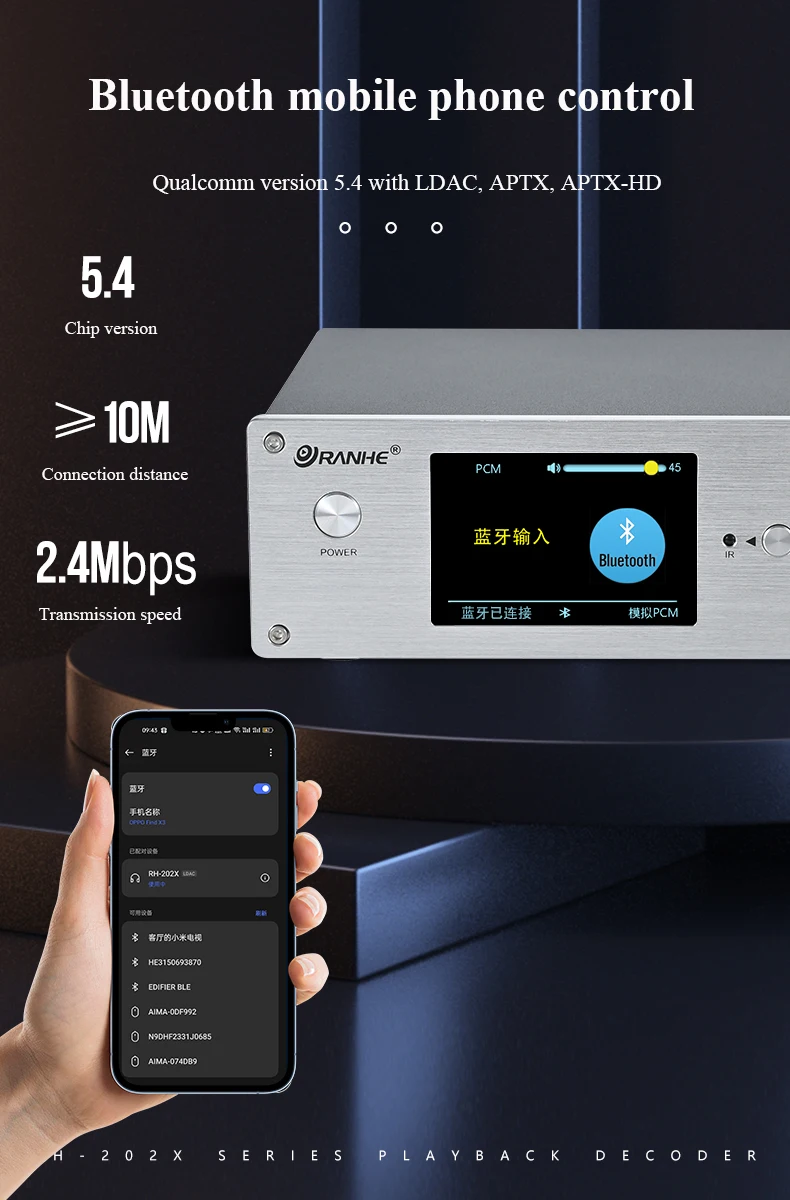

5: QCC3084 high-definition Bluetooth 5.4 module, supporting LDAC, APTXHD, APTXLL, SBC, AAC.

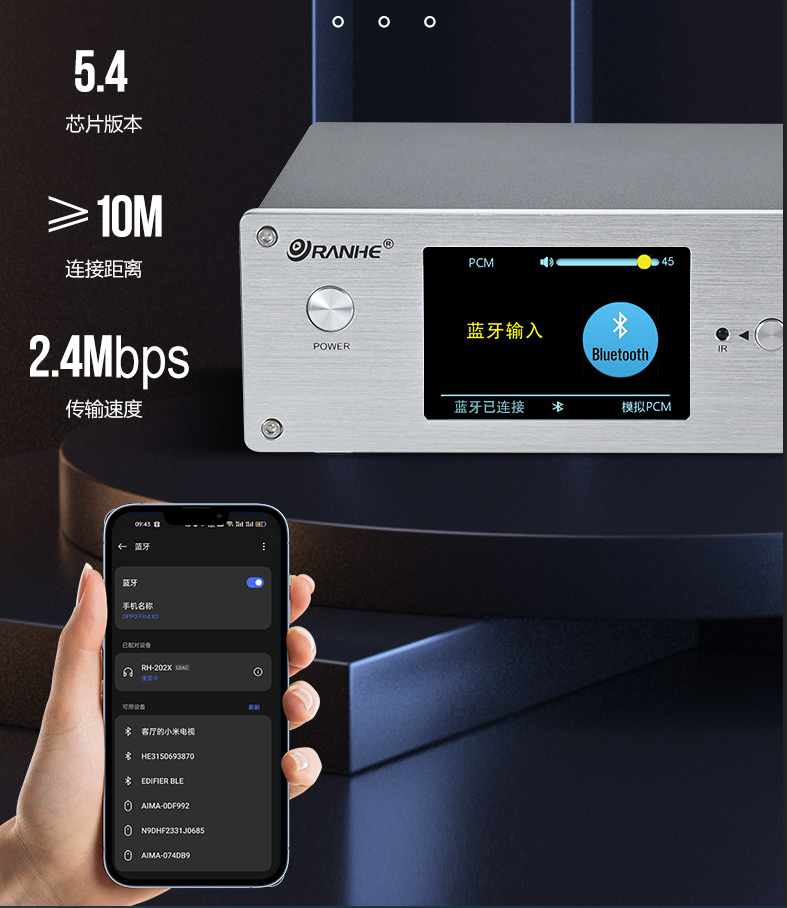

6: High-performance Bluetooth 5.4 chip with 80% improved response. Equipped with a high-performance Bluetooth 5.4 chip, it supports Bluetooth dual-mode fast transmission, with 0 latency and no lag.

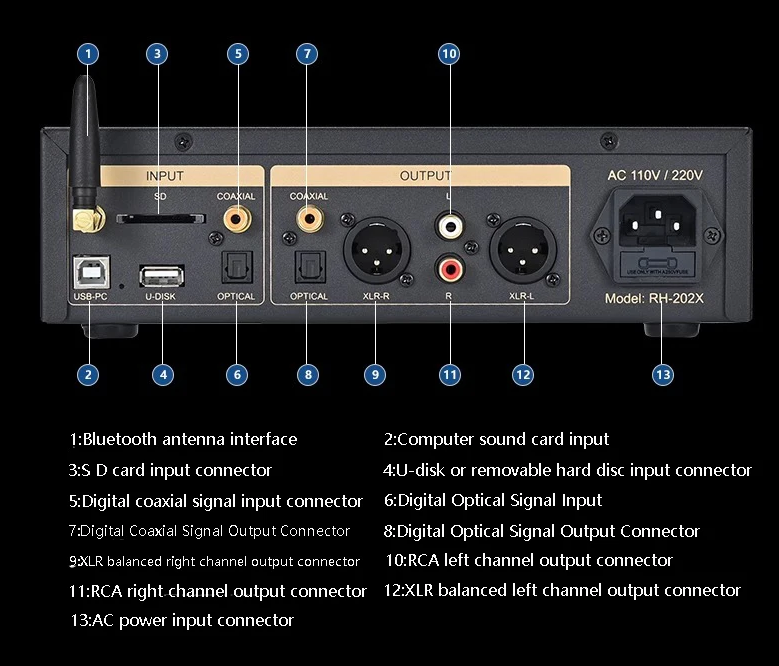

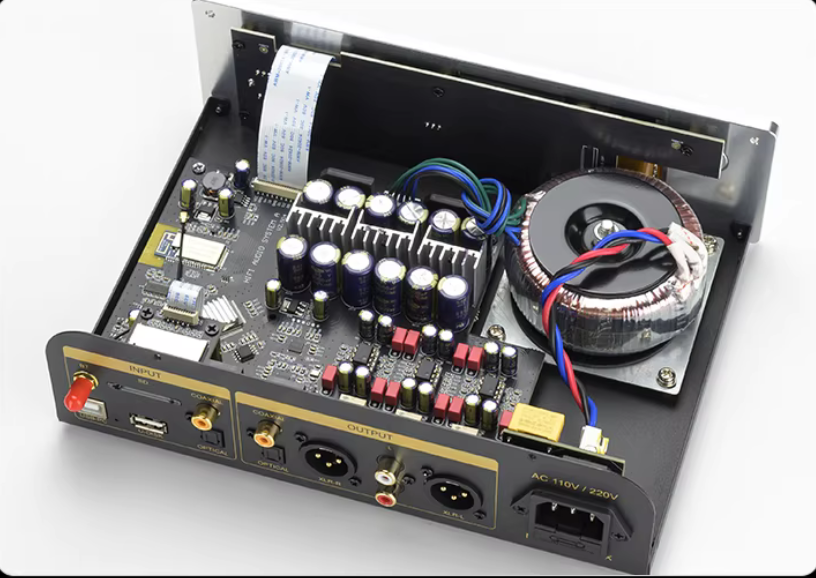

7: Can be directly connected to a pure power amplifier for use, controlled by the RH-202X digital player, with output via XLR or RCA connectors. When playing DSD audio, set the output mode to hardware-decoded DSD; for other formats, you can choose analog PCM output. When connecting to a power amplifier with decoding function via optical fiber or coaxial cable, you can select analog output or digital source output for multi-channel audio. Choose digital PCM output mode for compressed two-channel output, and digital DOP output mode for DSD digital audio output.

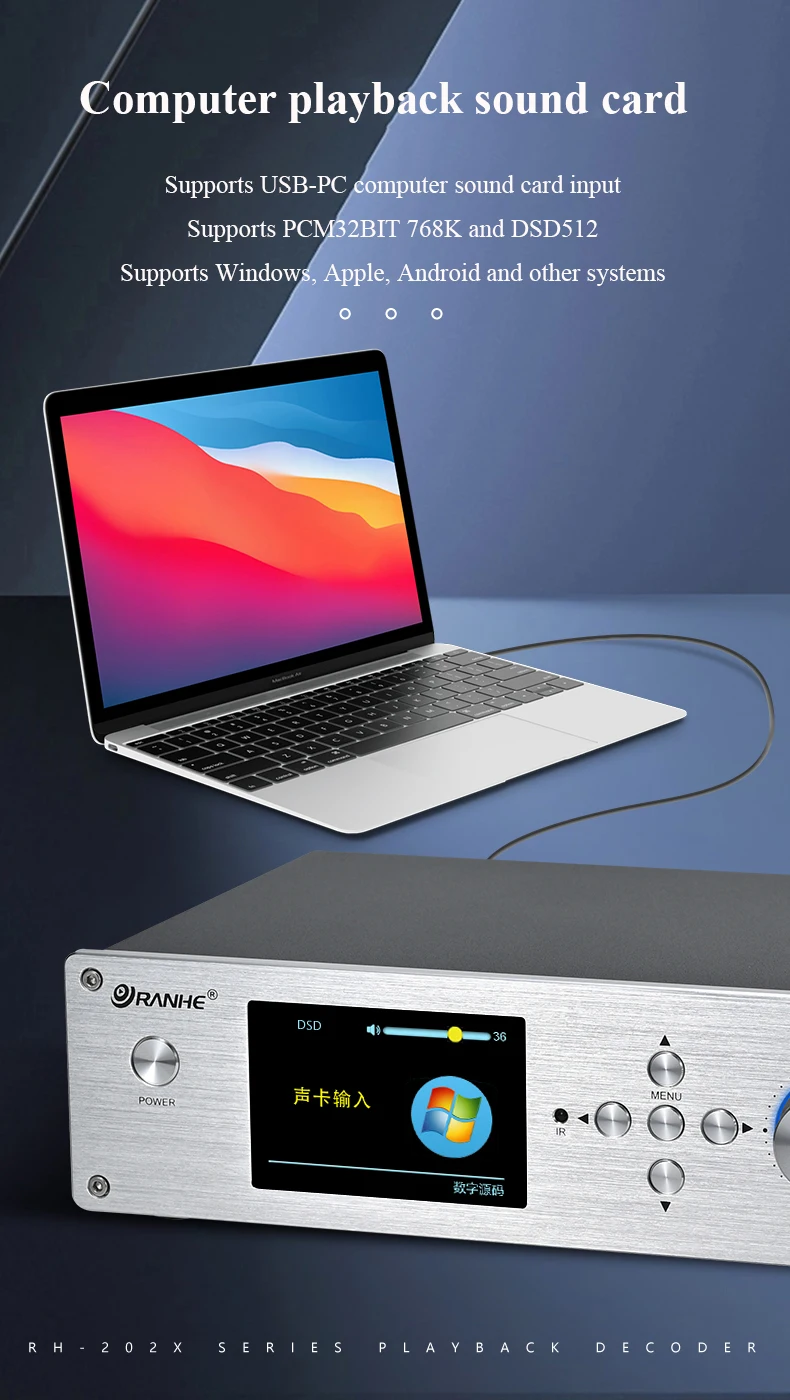

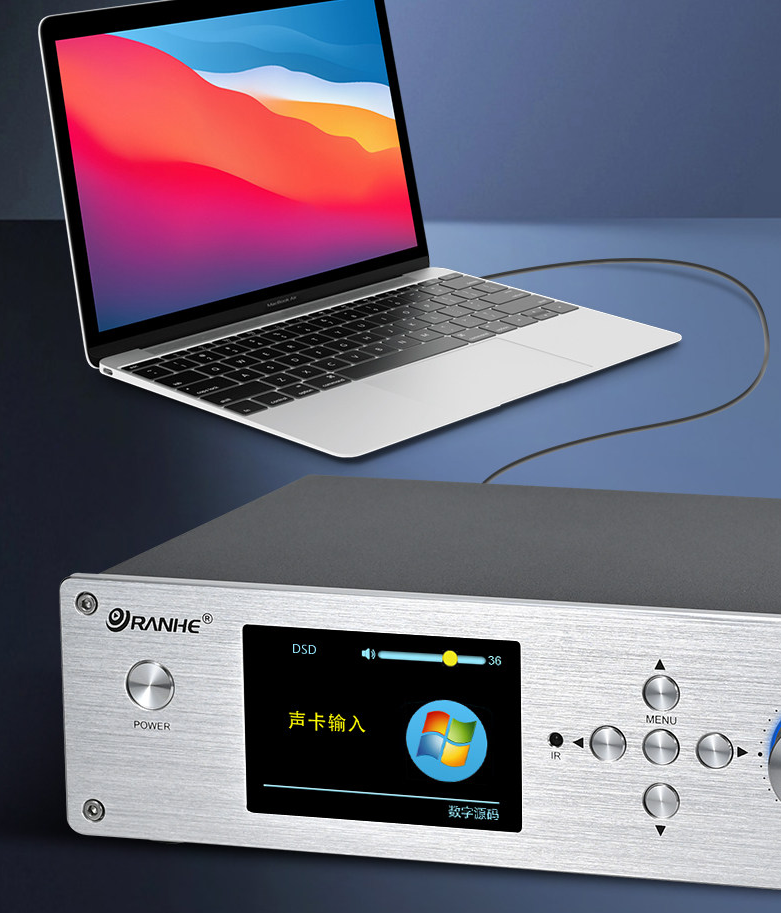

8: Supports USB-PC computer sound card input, supporting PCM32BIT 768K and DSD512, and compatible with Windows, Apple, Android and other systems.
9: Supports multimedia playback from USB drives, mobile hard drives and SD cards. The maximum capacity of USB drives and SD cards is 128G in FAT32 format. For hard drives, 2.5-inch or 3.5-inch mobile hard drives (external power supply required) with a maximum capacity of 2T are supported, and the hard drive must be in FAT32 format.
Product Parameter
Supported digital audio decoding formats: DOLBY DIGITAL(AC3)/DTS/PCM
USB/SD playback audio formats: MP3 / APE / FLAC / WAV / DTS / AC3 / DSD256 / SACD ISO
DSP sampling frequency: 32 ~ 768KHz
Bluetooth parameters: Qualcomm classic chip, version 5.4. Supports LDAC-HD/LDAC/APTX
DSP bit rate: 16 ~ 32 BIT
Digital input level: 0.1 ~ 1.5VP-P
2.0 Analog Output (1KHZ@0DB): ≥2V RMS
2.0 Balanced Output (1KHZ@0DB): ≥1V RMS
Signal-to-noise ratio @0DB (CCIR/ARM): ≥130DB
Total Harmonic Distortion (THD+N): ≤0.03% (120DB)
Frequency response: 20HZ ~ 20KHZ
Maximum working current: 2.5A
Power supply voltage specification: AC 220V-230V 50Hz or AC 110V-120V 60Hz
Operating temperature: -10 ~ +60°C
Operating humidity: 10 ~ 90%RH (no condensation)
Storage humidity: 5 ~ 95%RH (no condensation)
Enclosure dimensions: 240MM*180MM*70MM
Net weight: 2250G
