Digital RF Power Amplifier VHF 136-170Mhz 40W Radio DMR Amplifier FM Radio Power Amp

Features:
- Elegant Appearance: Black oxidized all-aluminum casing

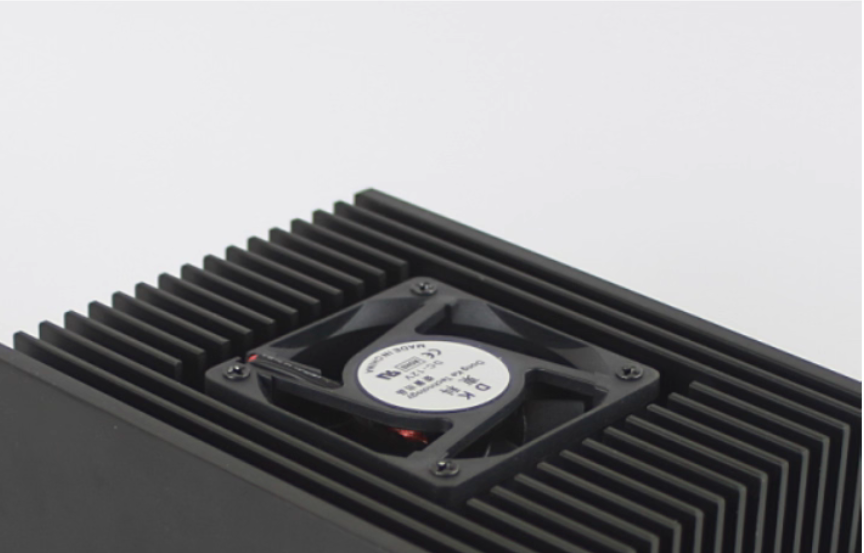

- Cooling fan works when the temperature is more than 40℃

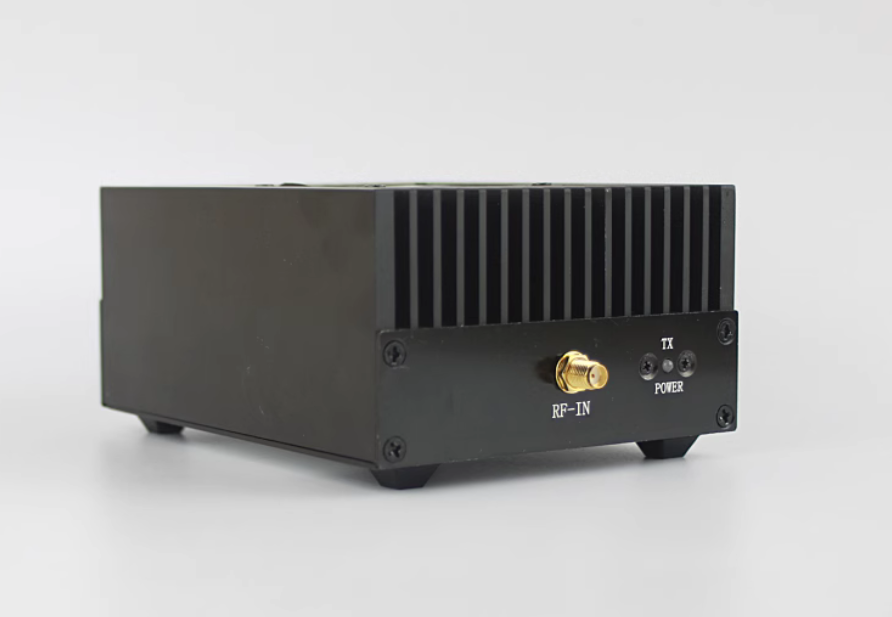

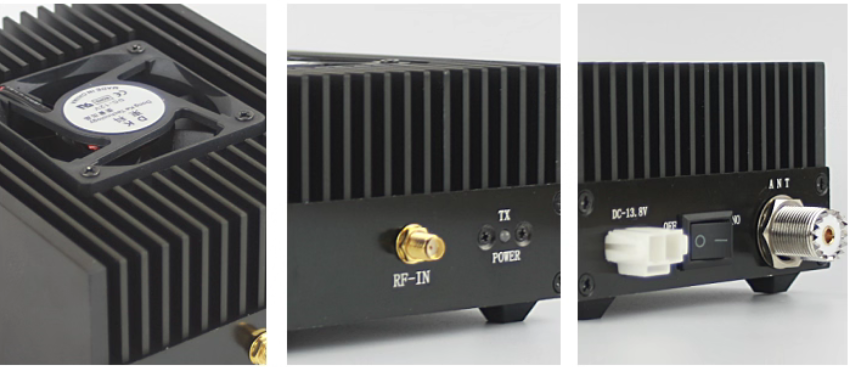

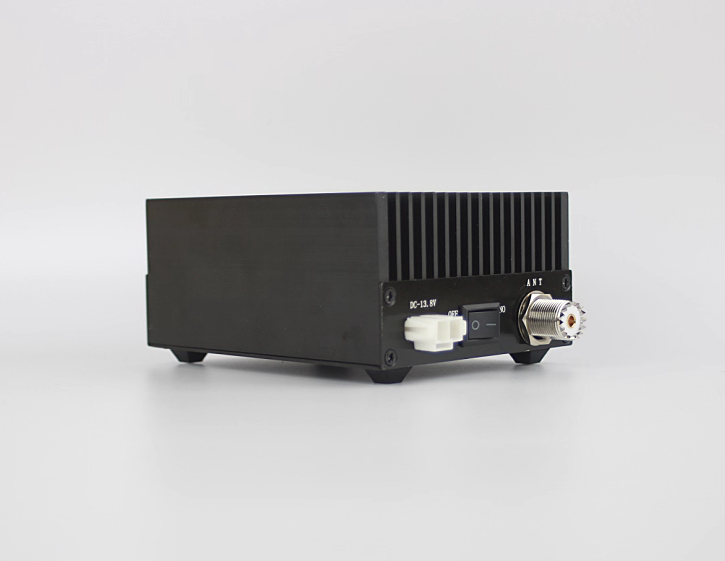

- RF-IN port, RF-Out port to connect external antenna (antenna not included)
- Dual-color LED Indicator: Green shows standby status; Red shows transmitting status

Parameters:
- Item Name: RF Power Amplifier
- Input Power: 1-5W
- Modulation Mode: DMR, C4FM, DPMR, CW, FSK, P2S, FM
- Transmitting Frequency: 136-170MHz
- Receiving Frequency: 50-1,000MHz
- Working Mode: Half Duplex (Cannot receive and transmit at the same time)
- Receiver Loss: -1DB±0.4
- Output Power: 40W
- Power Supply: DC 10-14V
- Standby Current: 10-30MA
- Cooling Way: Cooling fan works when the temperature is more than 40℃

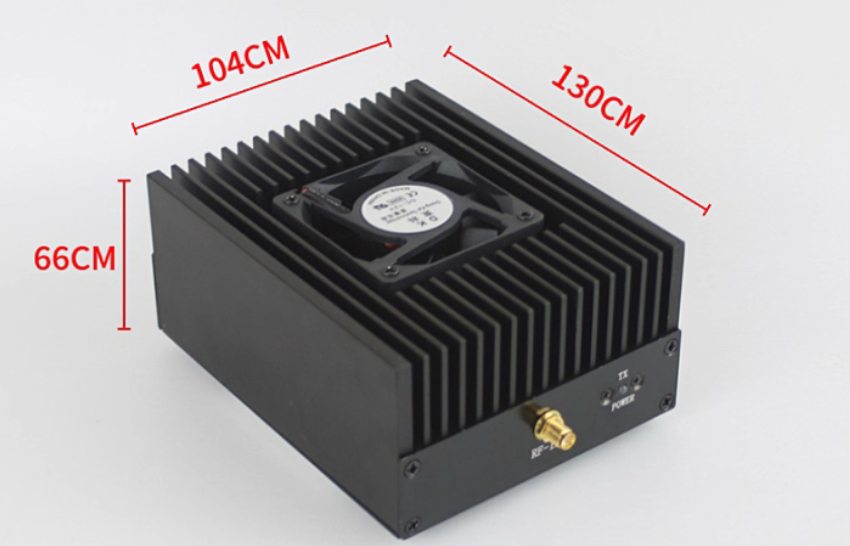

- Size: 130 x 104 x 60mm (L*W*H)
- Weight: 880g

Package Included:
- 1 x RF Power Amplifier

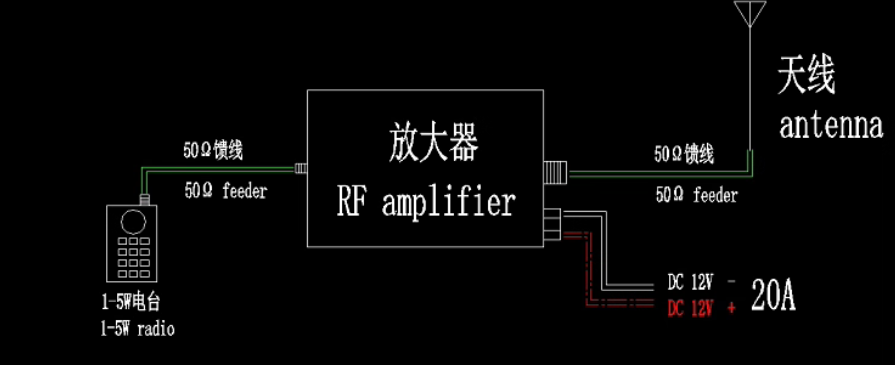

How to Use it:
