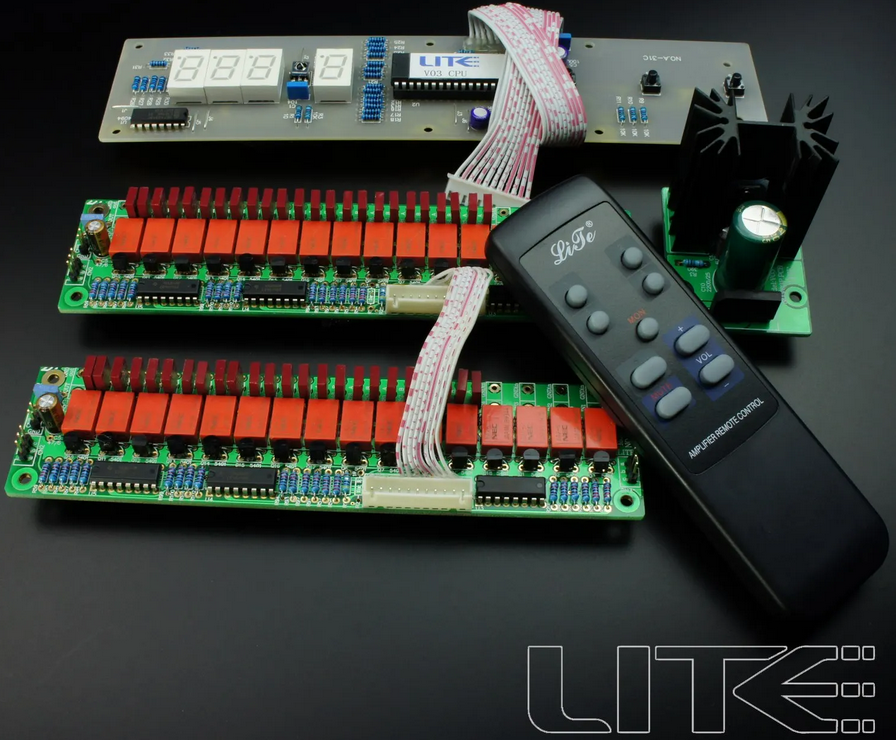

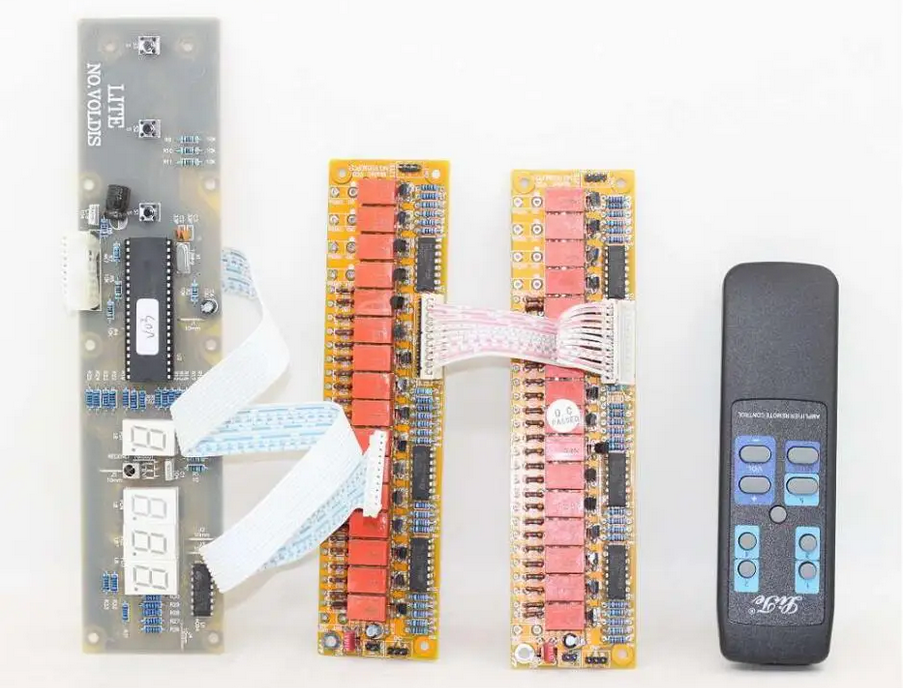

Dual Channel Amplifier Progressive Volume Remote Control board for amplifier DIY LITE V03 ( IRC Resistor Version)

V03 can perform a total of 100 volume controls from 0dB to -99dB. Easy to install and long life.

Four sets of signal inputs are available for remote or panel control, and relay switching.

MONO MONO MONO design, one channel per board, supporting the left and right independent adjustment of volume, can also be composed of 4 motherboards balance input, balance output, or more channel volume control.

Product parameters

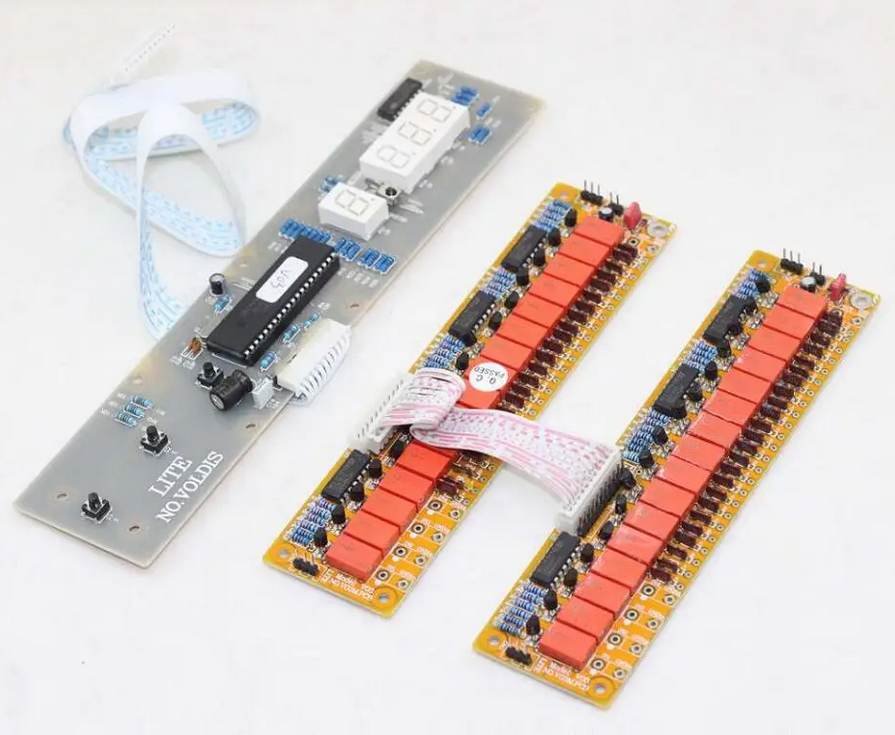

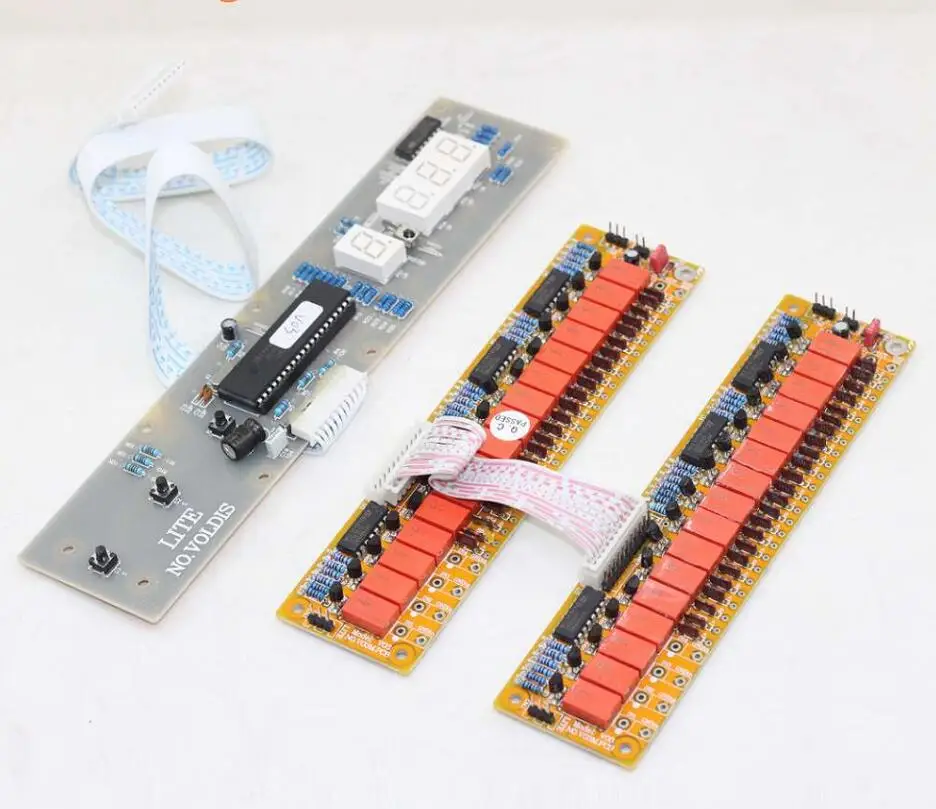

Size: motherboard 180mm×45mm (2 pieces in total),

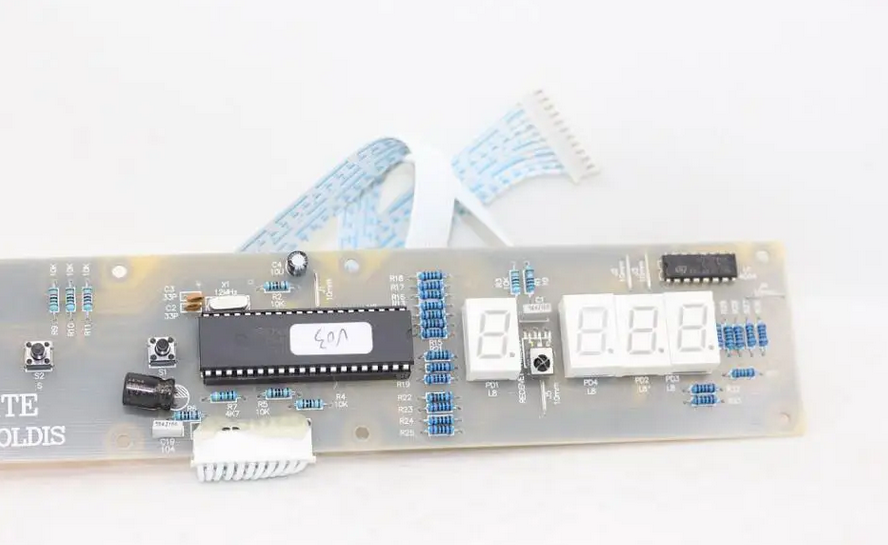

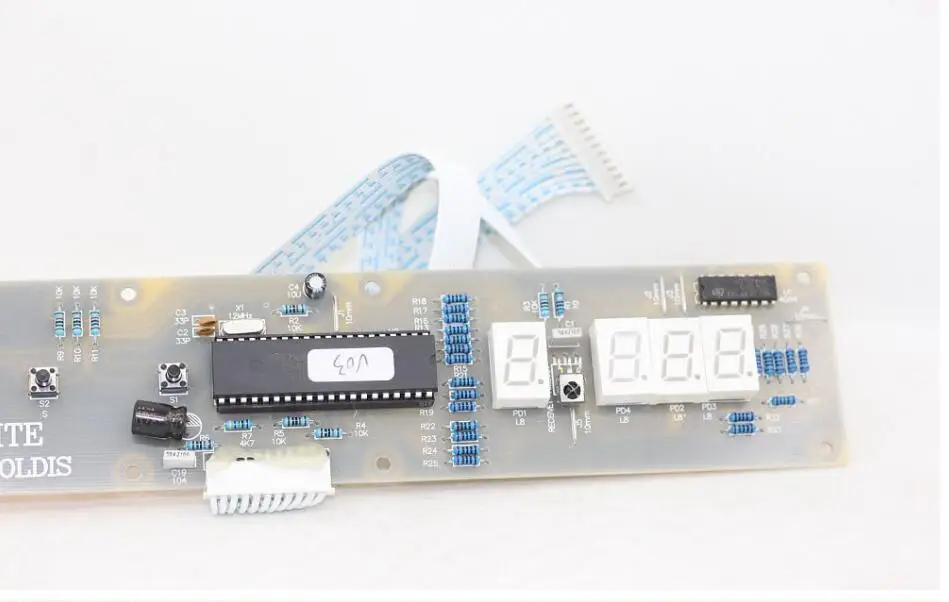

Display board: 230 mm x 54 mm

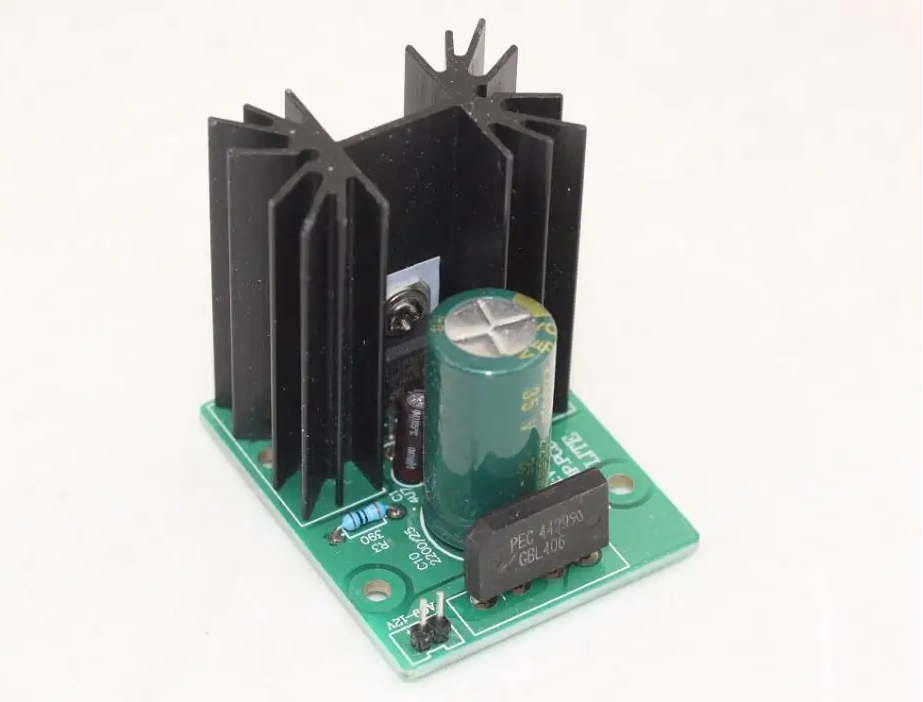

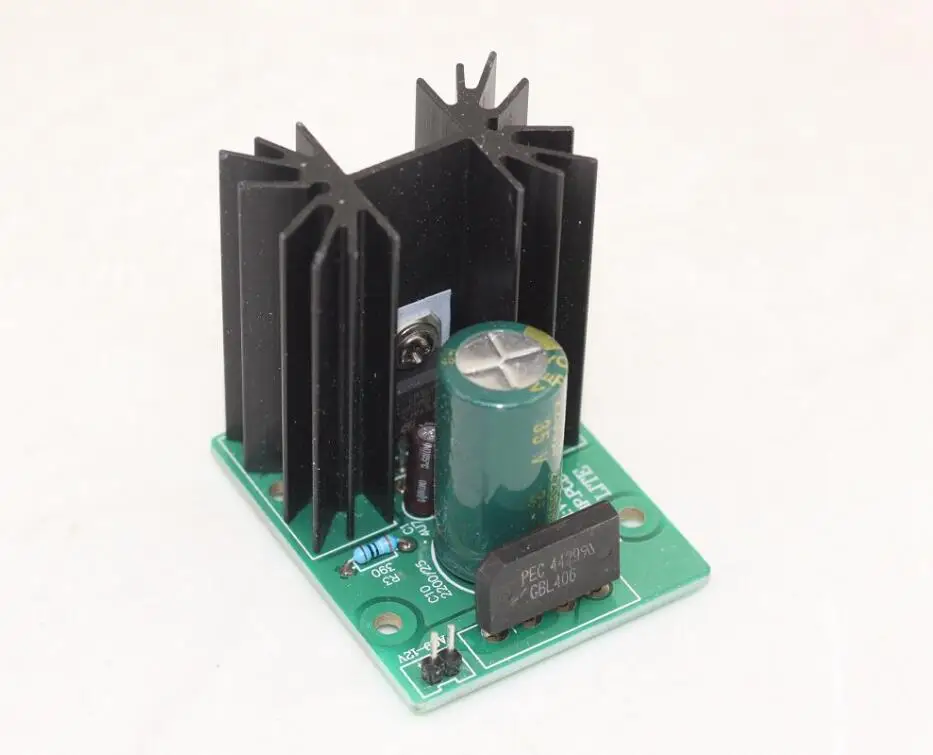

Power board: 55mm×45mm

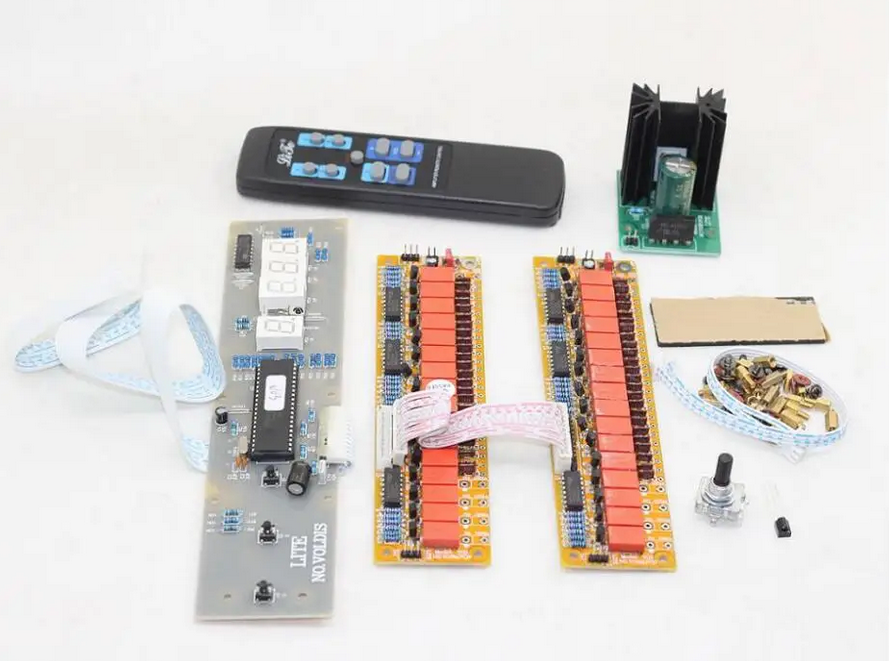

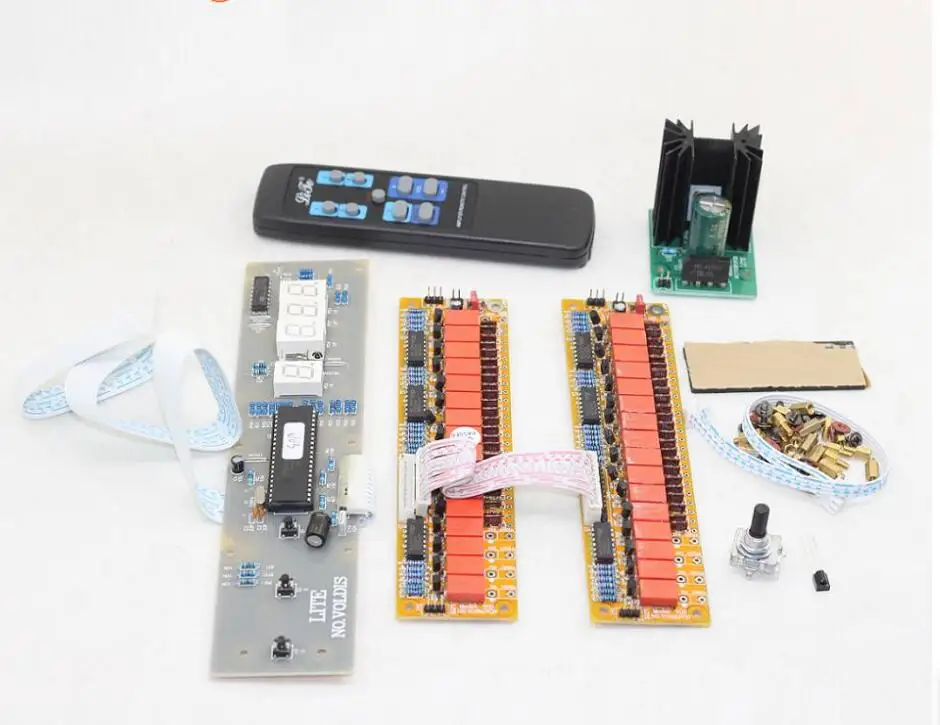

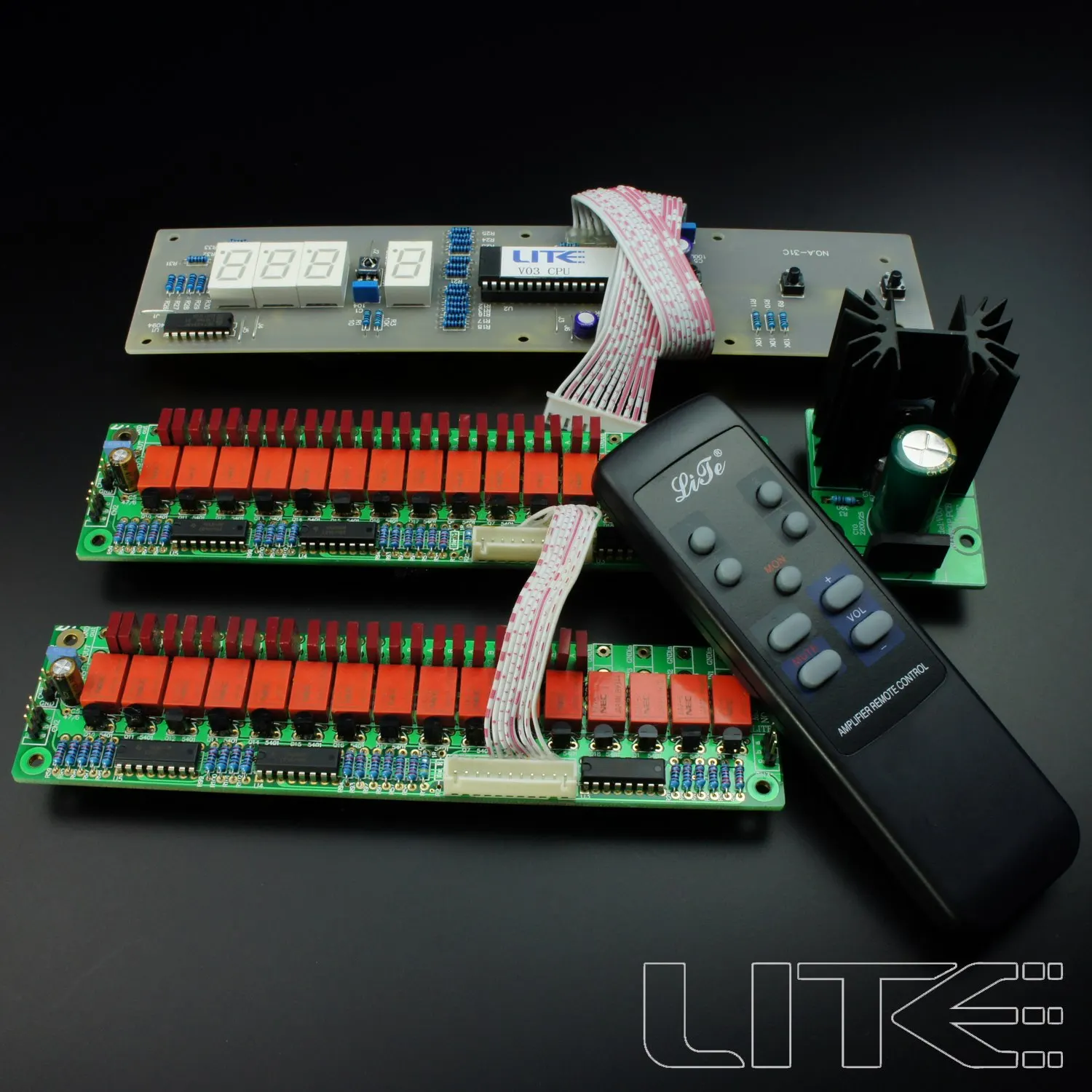

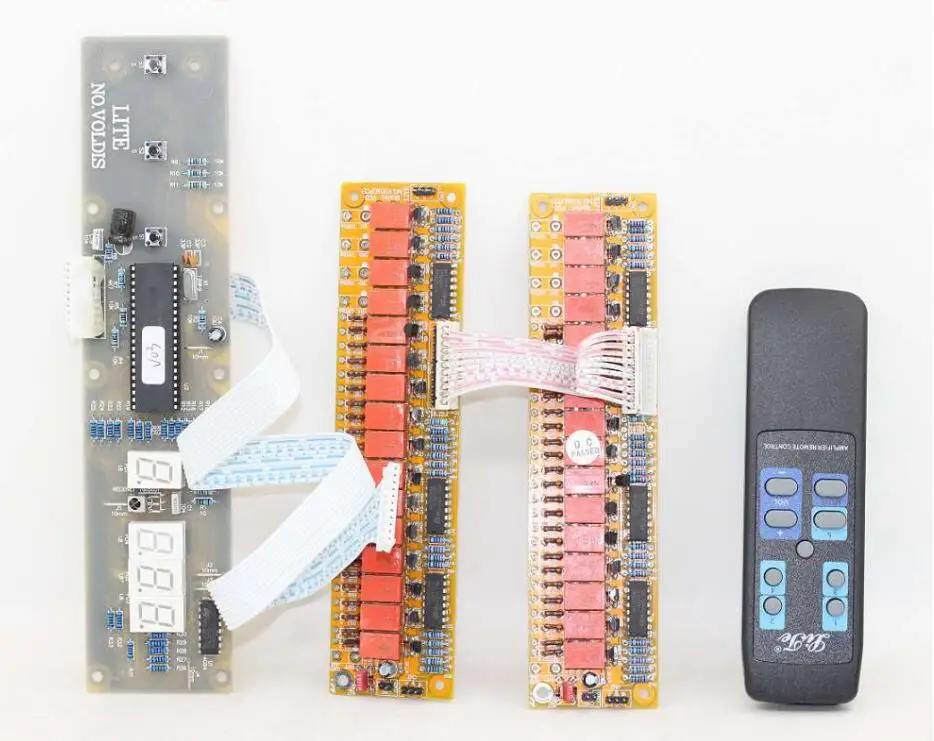

Packing included

Main board ( IRC resistance assembly) ×1 sets,

Display board ×1 ,

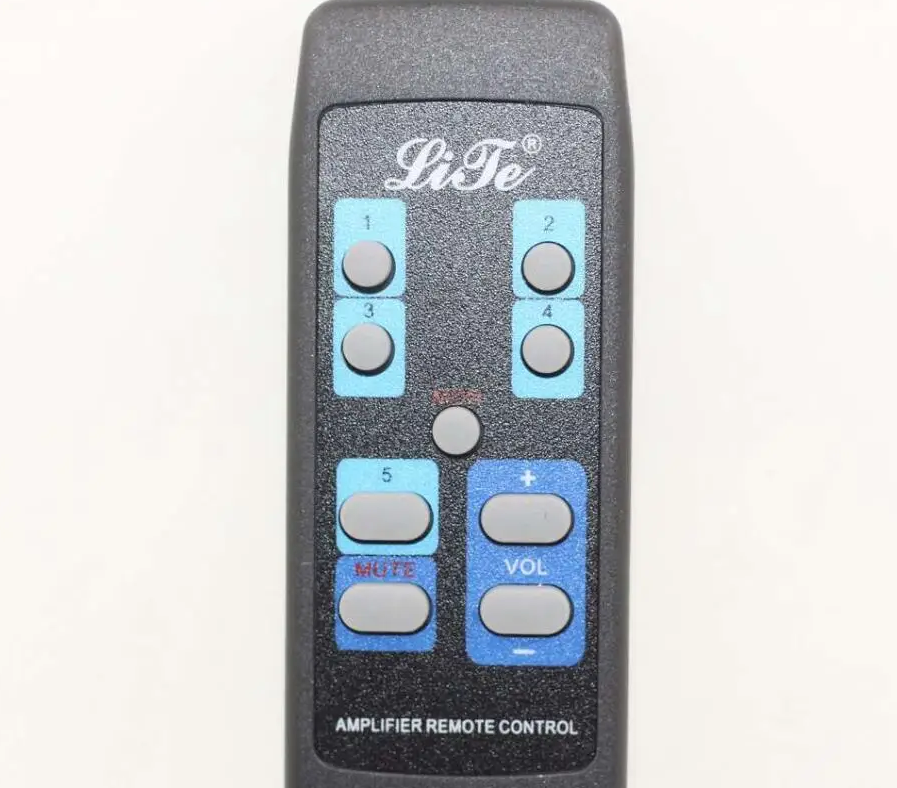

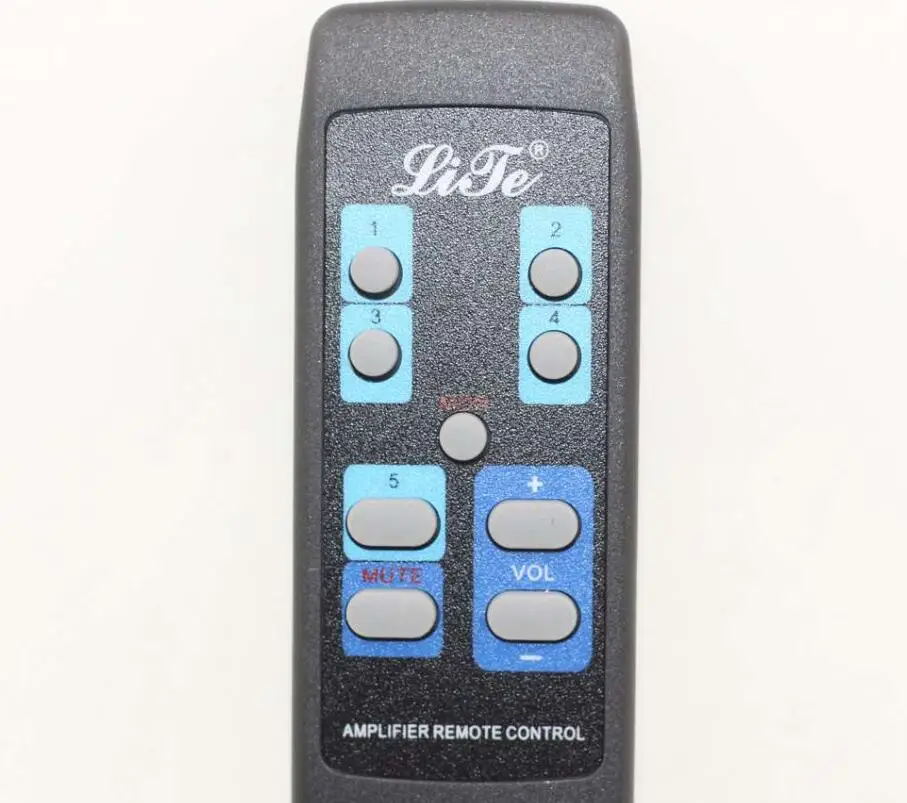

Remote control ×1,

Special screw package ×1,

Circuit diagram ×1
