Bluetooth PIN code: 8888
Currently, the USB sub cards of the product have been modified to AMANERO sub card modules
Product Description
1: With 2 ESS9038Q2M decoder chips and 4 op-amp outputs for significantly enhanced sound quality. More details. Better layering, and musical experience.

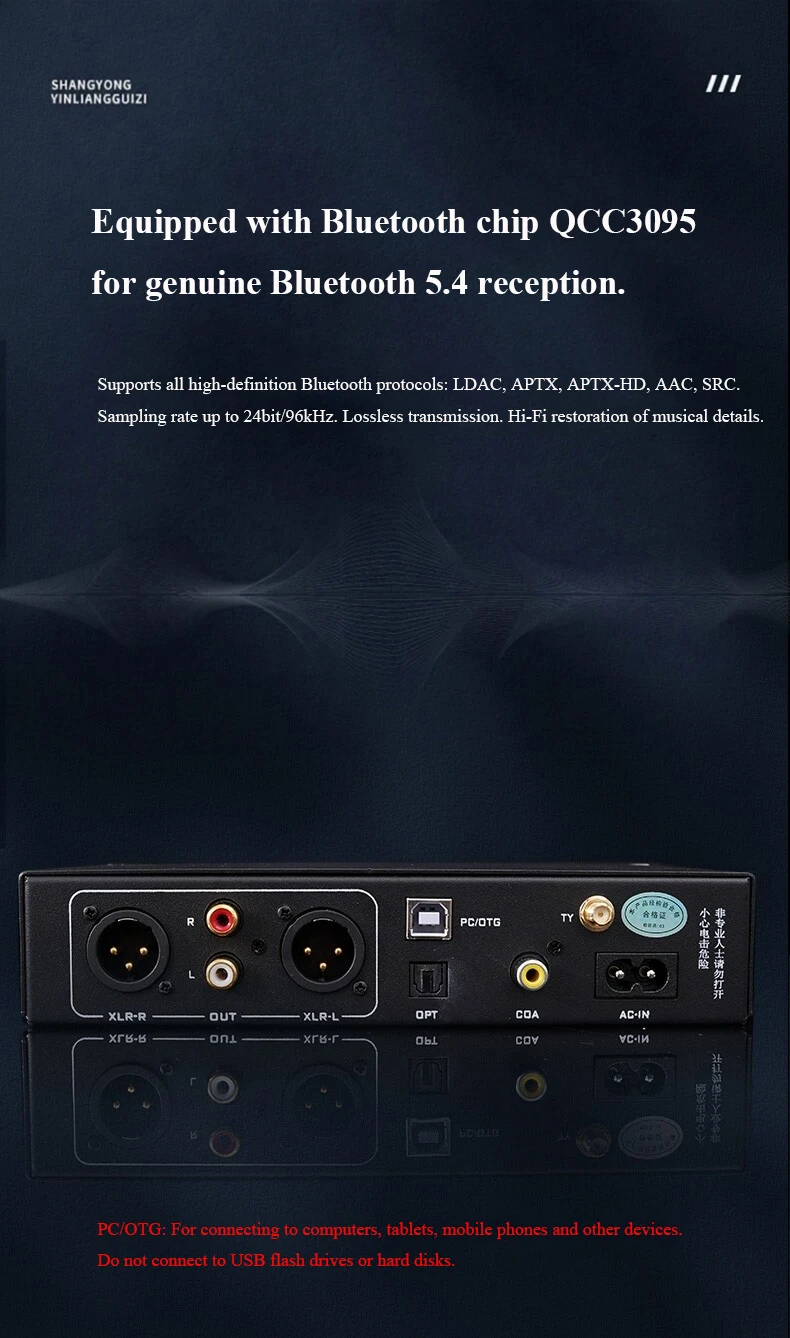

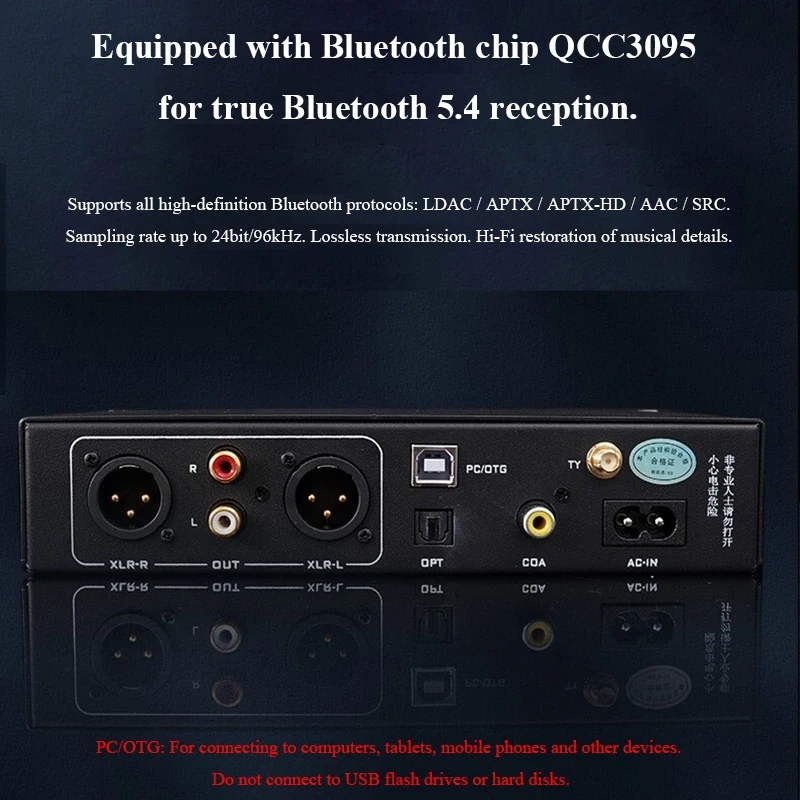

2: Equipped with QCC3095 Bluetooth chip for true Bluetooth 5.4 reception.Supports all high-definition Bluetooth protocols: LDAC/APTX/APTX-HD/AAC/SRC.Sampling rate up to 24bit/96kHz. Lossless transmission. Hi-Fi restoration of musical details.

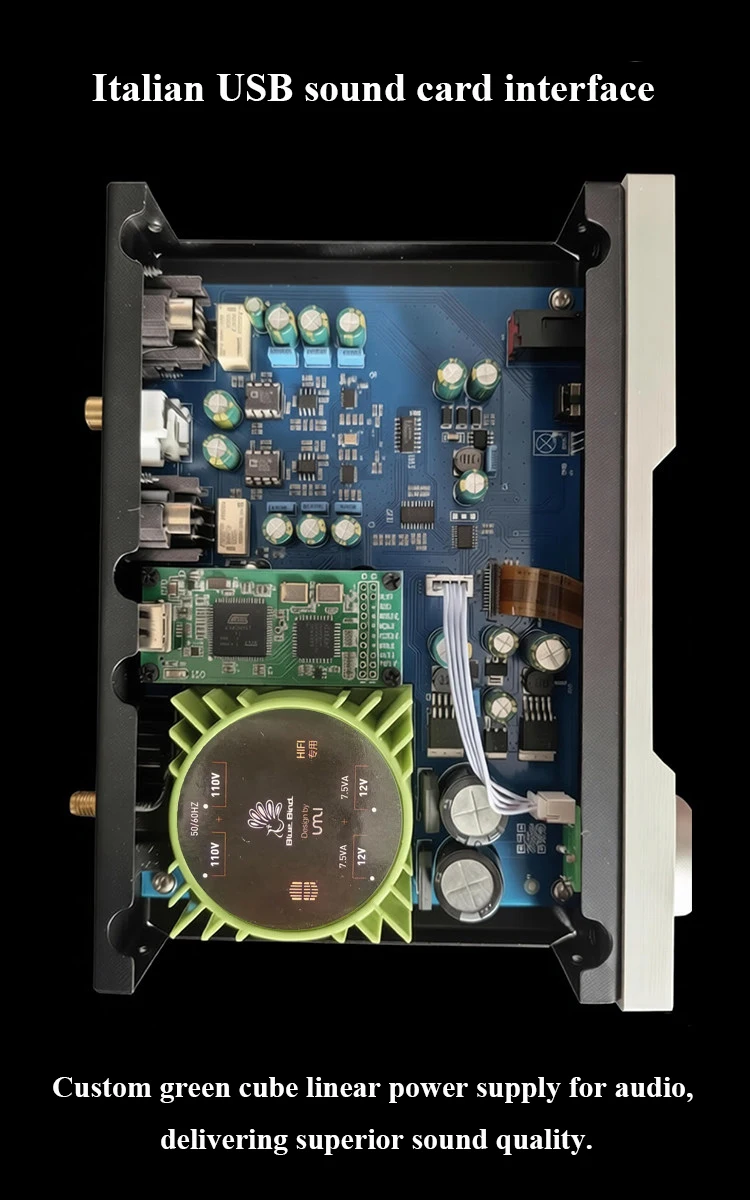

3: Italian USB audio interface

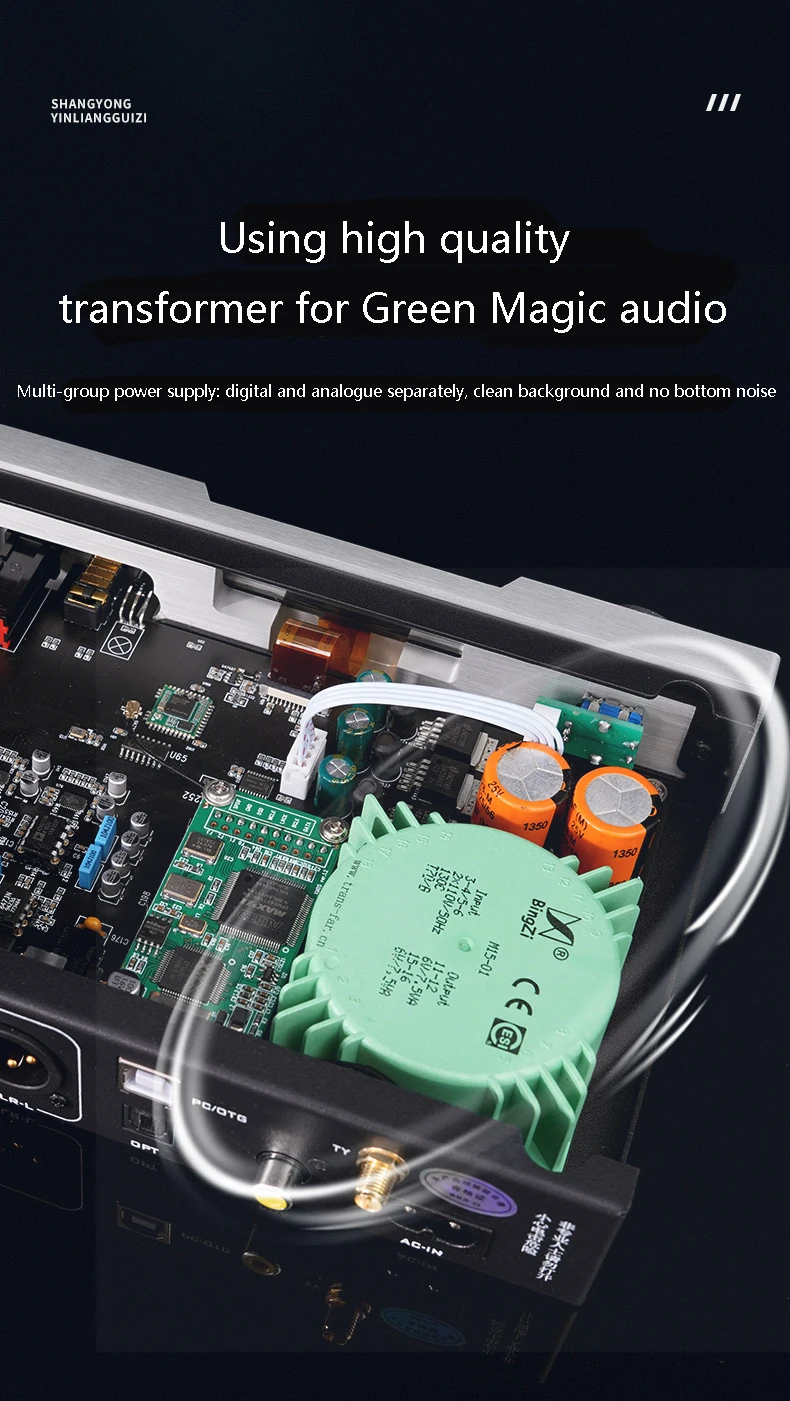

4: Using high quality Green Magic audio special transformer. Multi-group power supply grouping power supply: digital, analogue separate power supply, clean background without bottom noise.

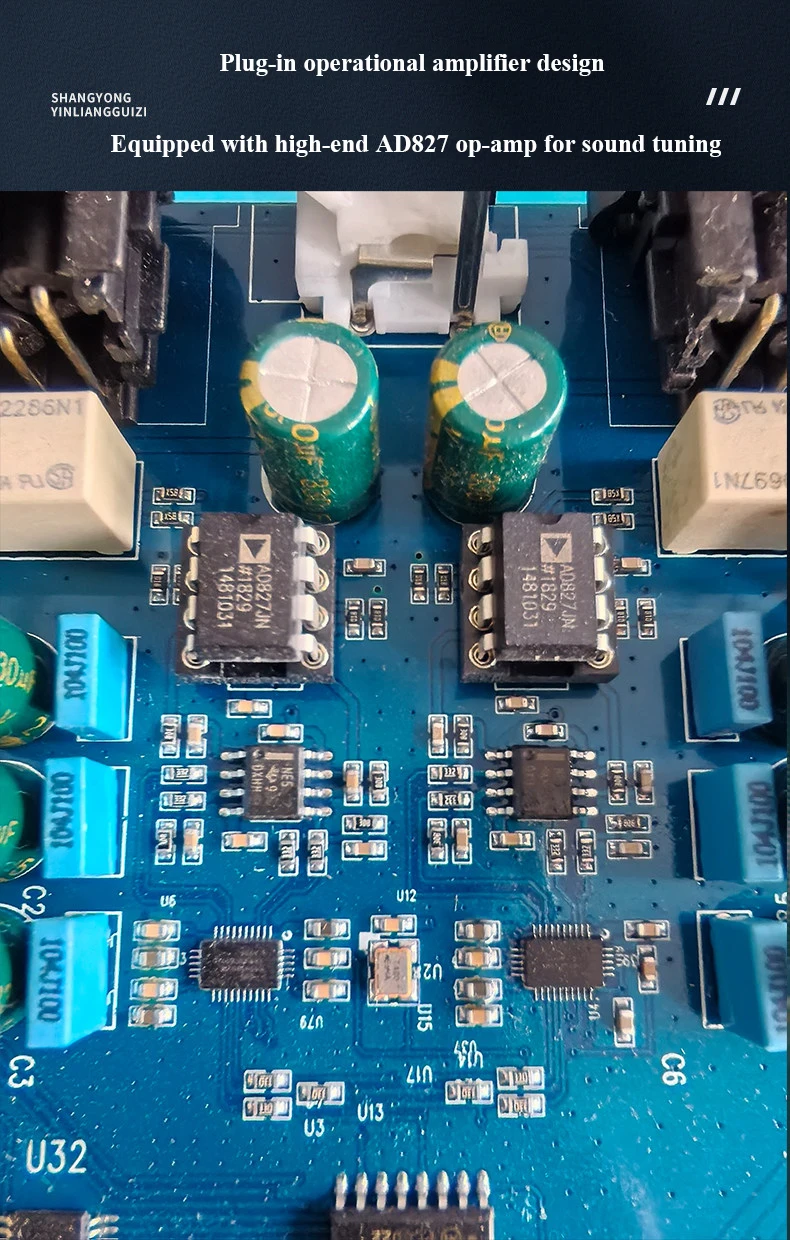

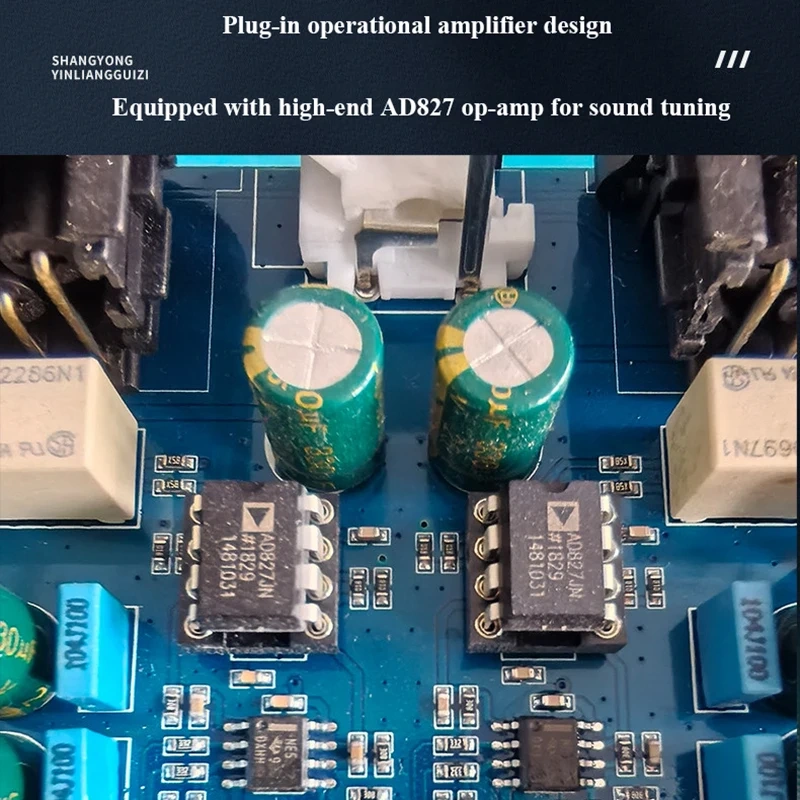

5: 4 op-amps with plug-and-play design. Convenient for audiophiles to replace different op-amps to experience different sound quality effects.
Product parameters
Product net weight: 1.2KG

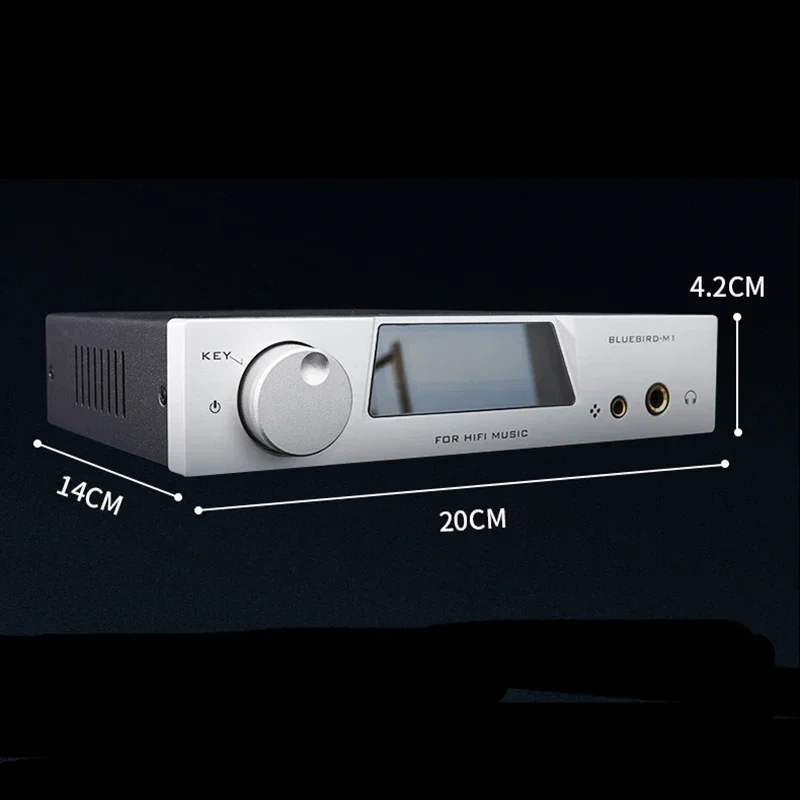

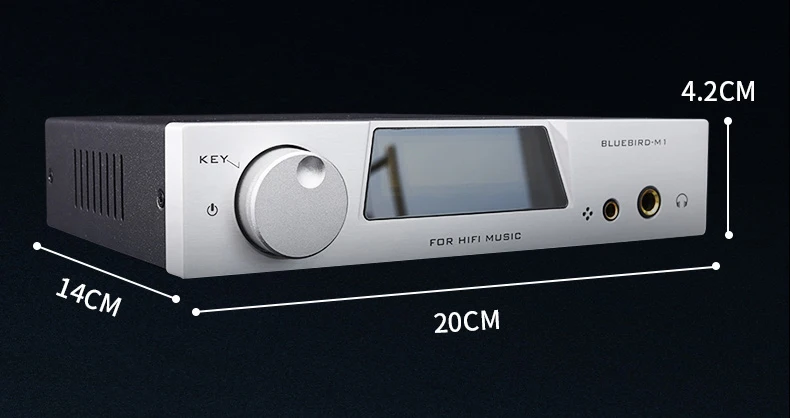

Product size: 200*140*42mm
Power consumption: <12W
Sampling rate: OTG sound card: 16bit-32bit/44.1k-192k, DSD64-DSD512 (automatic recognition)
Coaxial: 16bit-32bit/44.1k-192k, DSD64-DSD128(Auto-ID)
Optical: 16bit-32bit/44.1k-192k, DSD64-DSD128 (automatic recognition)
Bluetooth protocol: SRC,AAC,APTX,APTX-HD,ADAPTIVE,LDAC(24bit/96k)
Decoder chip: ESS9038Q2M*2
Bluetooth chip: QCC3095
USB sound card: Amanero USB
Op-amp configuration: AD827*2+NE5532*2
Single-ended output level: 2.6VRMS
Balanced output level: 5.8VRMS
Frequency response range: 5-21KHz/±0.1dB
Signal to noise ratio: >123dB@1KHz
Total harmonic distortion: -112dB
Dynamic range: 142dB
