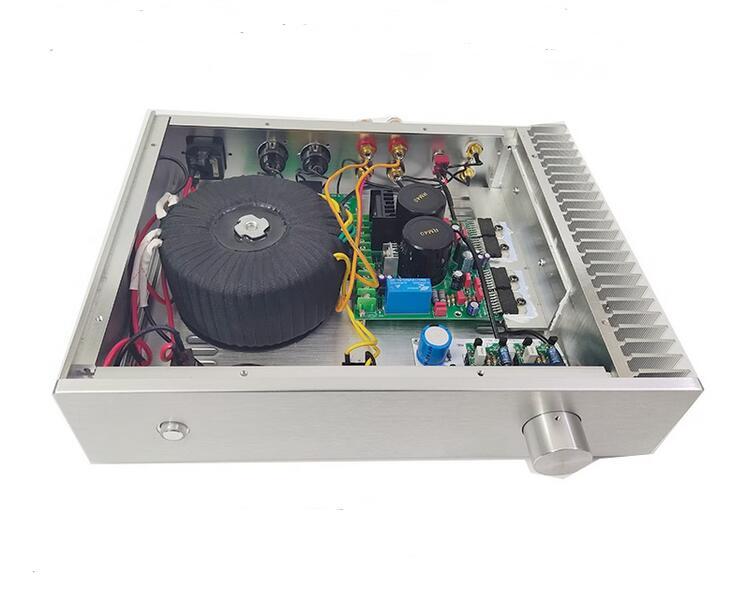

Dual parallel TDA7293 95W+95W HIFI Merge amplifier with balance input Reference LINN LK140 circuit

Product details:

LINN LK140 has high thrust, beautiful sound, and gorgeous mid to high frequencies, making it unforgettable for a long time after listening to it.

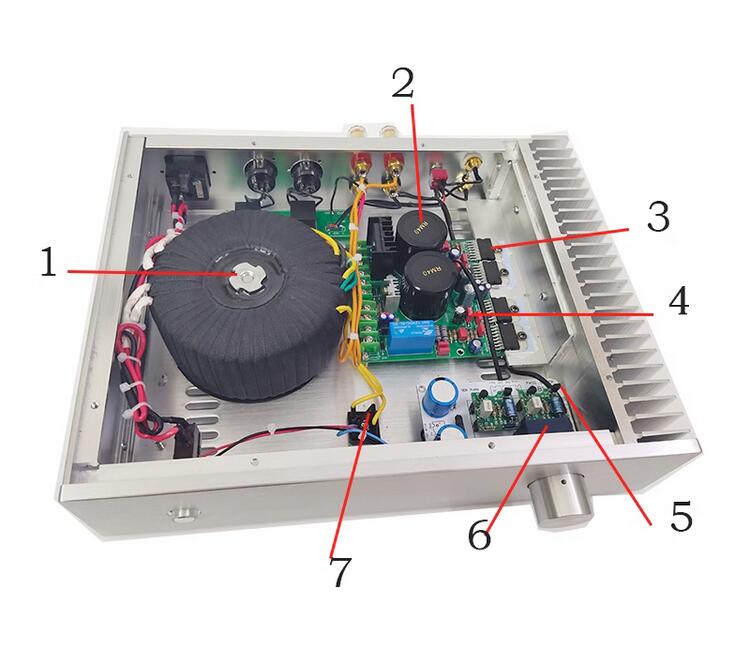

1. New 300W Customized Nippon Steel Black Cloth Toroidal Transformer.

2. NOVER50V/10000uf capacitor in the UK.

3. New ST7293 chip.

4. German WIMA capacitor.

5. Single ended K170 field-effect transistor Class A preamp.

6. Japan ALPS27 volume potentiometer.

7. Preamp rectifier bridge.

Parameters:

Input voltage: AC115V/AC230V


Amplifier board size: L100 * W100 * H50mm (does not include radiator size)

Input impedance: 47KR

Signal to noise ratio: 110DB

Channel: 2.0 (dual channel)

Input level sensitivity: 1.5V

Output power: 95W+95W (8 ohms) 150W+150W (4 ohms)

Harmonic distortion: THD0.003%


Size: W320 * L248 * H70mm (excluding front and rear protrusions)

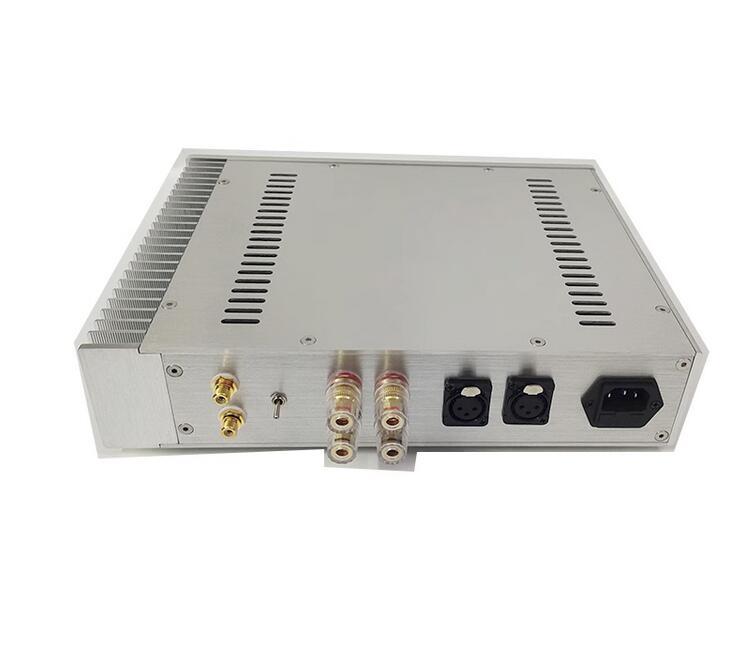

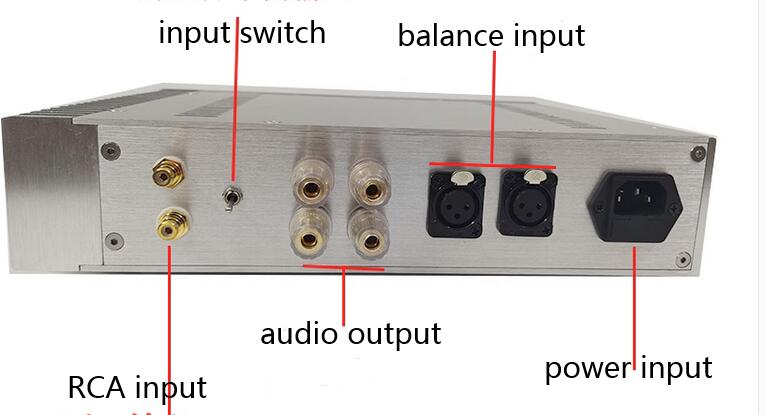

Input and output methods: balanced input and RAC input
