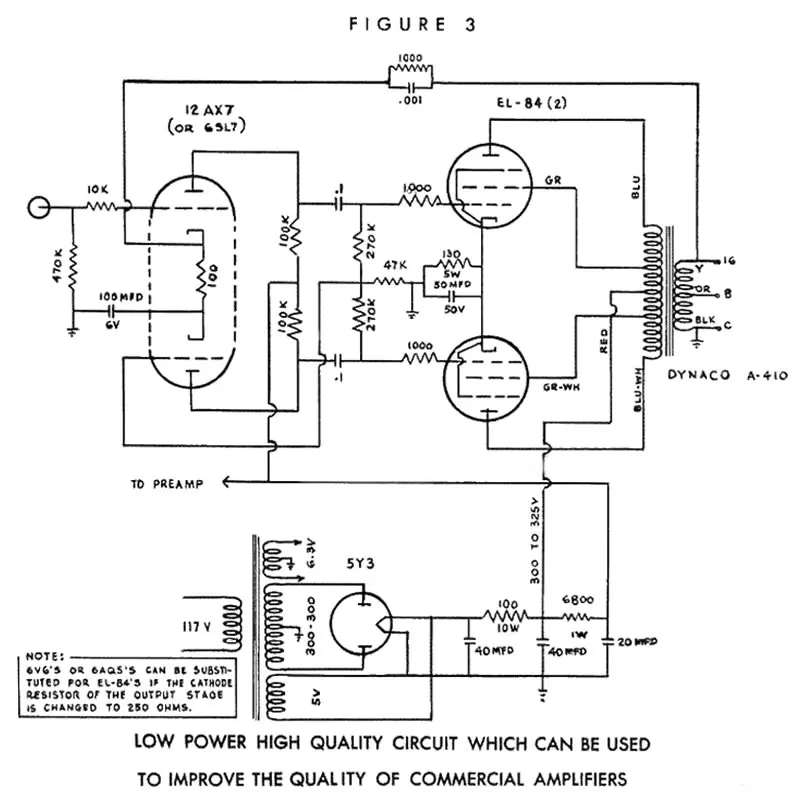

The DYNACO 6P14 push-pull circuit is very cleverly designed. The 12AX7 has two tubes and two functions. It is both voltage amplification and automatic balanced phase inversion. The 1K resistor is the crowning touch. This resistor is the cathode bias resistor of 12AX7. It also forms the inverted phase tail with the secondary of the output transformer, and is also the loop negative feedback resistor! One and three positions saves parts and reduces noise and distortion. The power stage adopts ultra-linear (UL) structure, which balances the balance between efficiency and distortion. After a slight modification, the output power can reach 10W THD=0.4%, and the damping is greater than 4.0. Such a simple line has such an excellent indicator! The power supply part of the shop made some improvements, changed to three-level CRC filtering, the whole machine S / N can be up to -107db A weighting (absolute residual noise voltage 160uV) so low noise floor is basically the ear can only stop to the speaker A little bit of noise.
Mainly used for imported component assembly:
RF107*4 Fast recovery diode rectification, as close as possible to the bile rectification effect.
330U/400V electrolytic filter*1
220UF 400V ELNA electrolytic filter*1
150UF 400V PHILIPS Electrolytic Filter*1
TE 0.22UF/630V MKP Capacitance Interstage Coupling*4
Metal film precision copper foot resistance
Silver-plated ceramic tube holder with multiple color LEDs illuminating the bottom of the tube (requires what color message to indicate)
Copper foot binding post

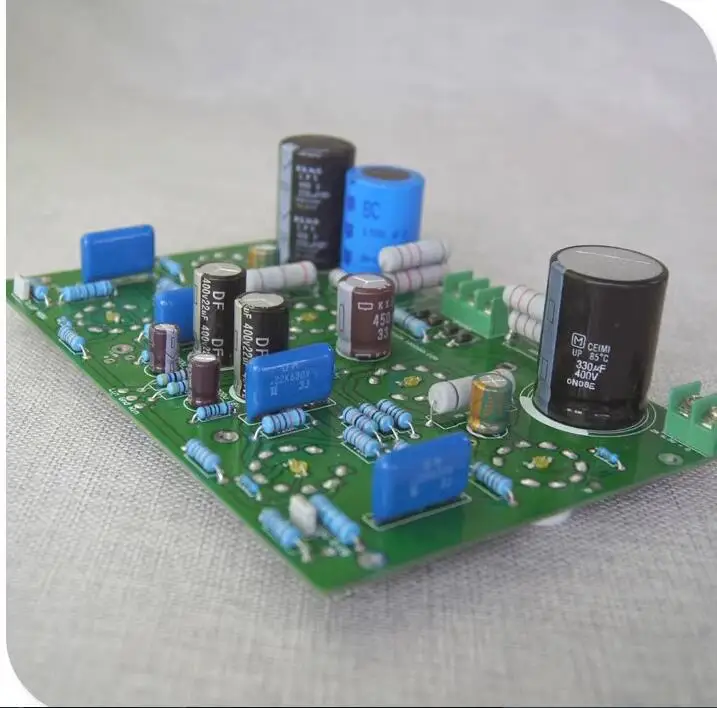

PCB size 192MM*126MM, board thickness 1.6mm, double-sided tin plate, copper thickness 1 oz. The design of the circuit board of the machine strictly follows the grounding principle of grounding, and is carefully laid out. Even if the AC filament wire is on the board, the noise floor is extremely small. In the case of no choke, the speaker 10CM with the maximum volume leaving the sensitivity of 90DB can not hear the noise.

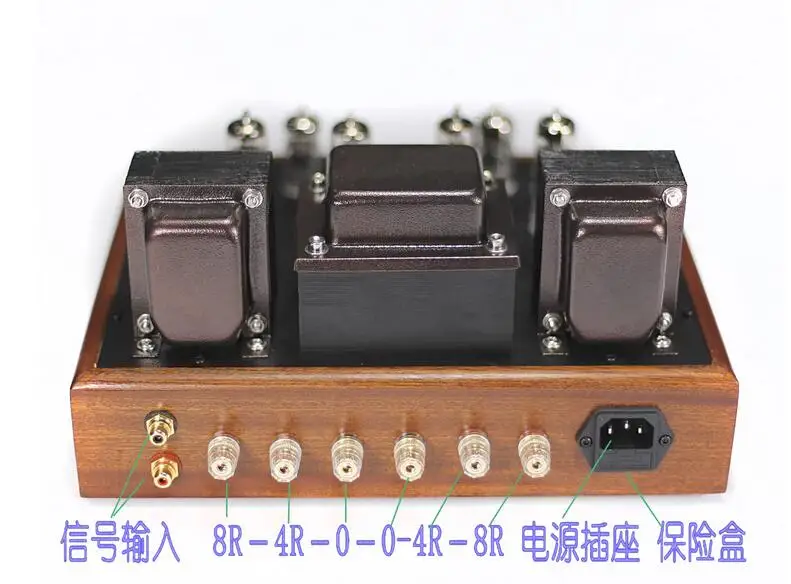

Pure copper plated RCA lotus seat and speaker terminal

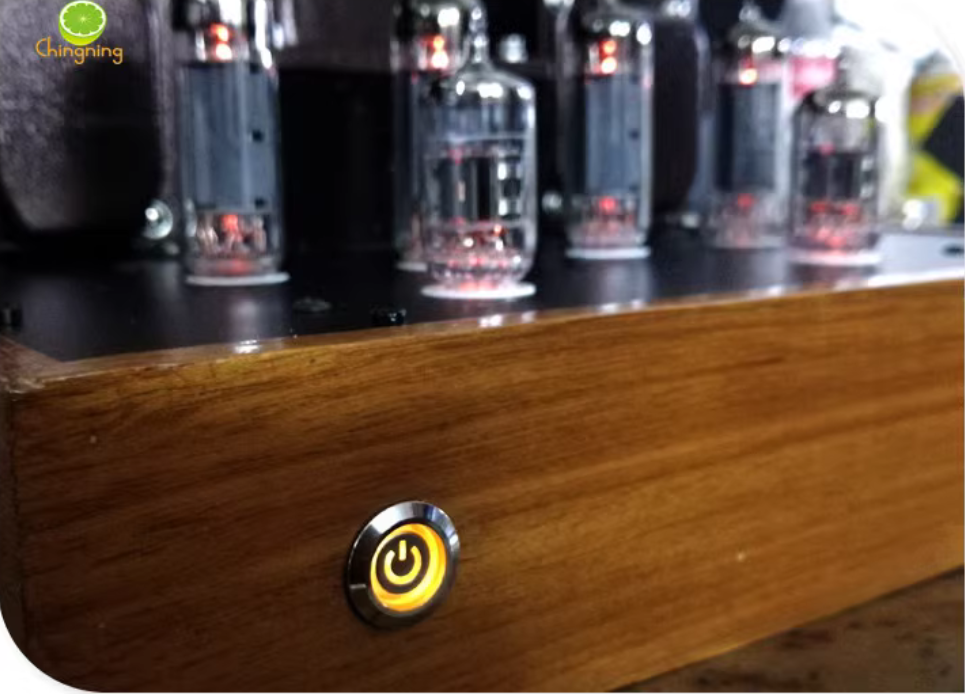

Angel Eye Stainless Steel Lighted Power Switch

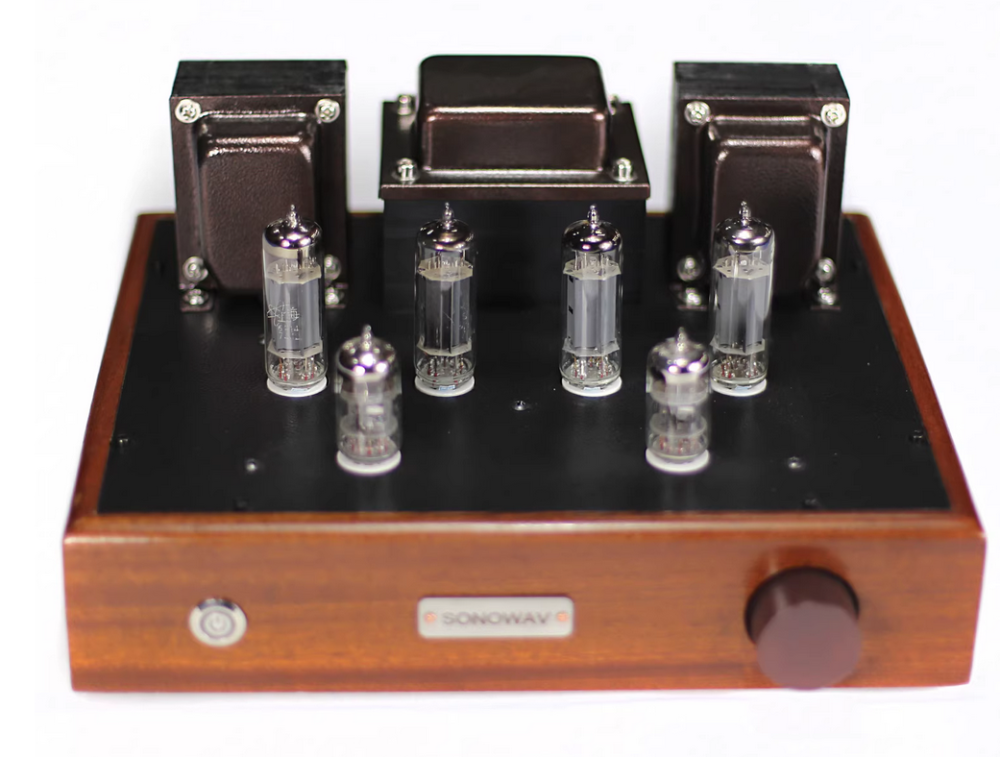

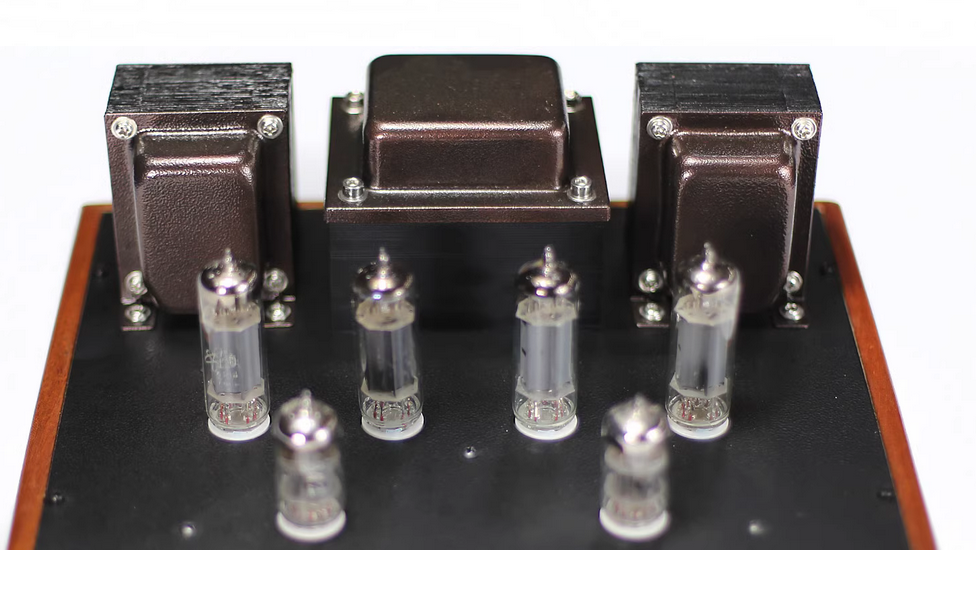

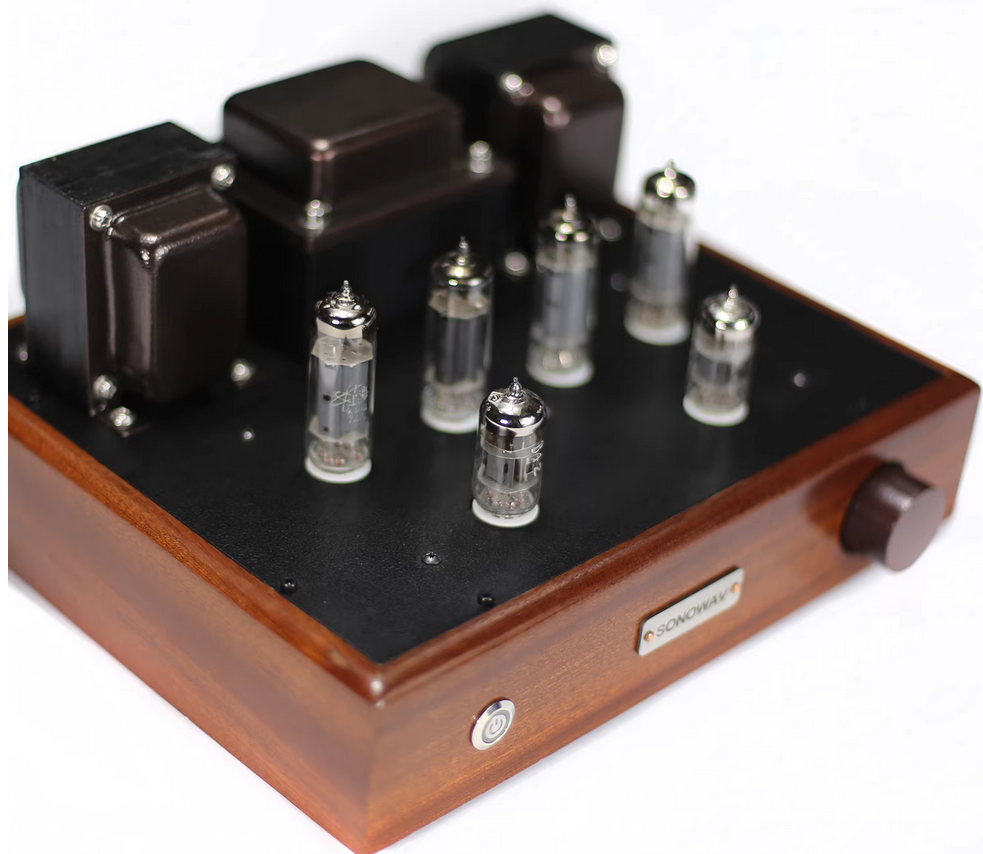

The tube adopts four 6P14 power tubes in Beijing (which can be directly replaced by EL84) and two 12AX7 push tubes (which can be directly replaced by ECC83).

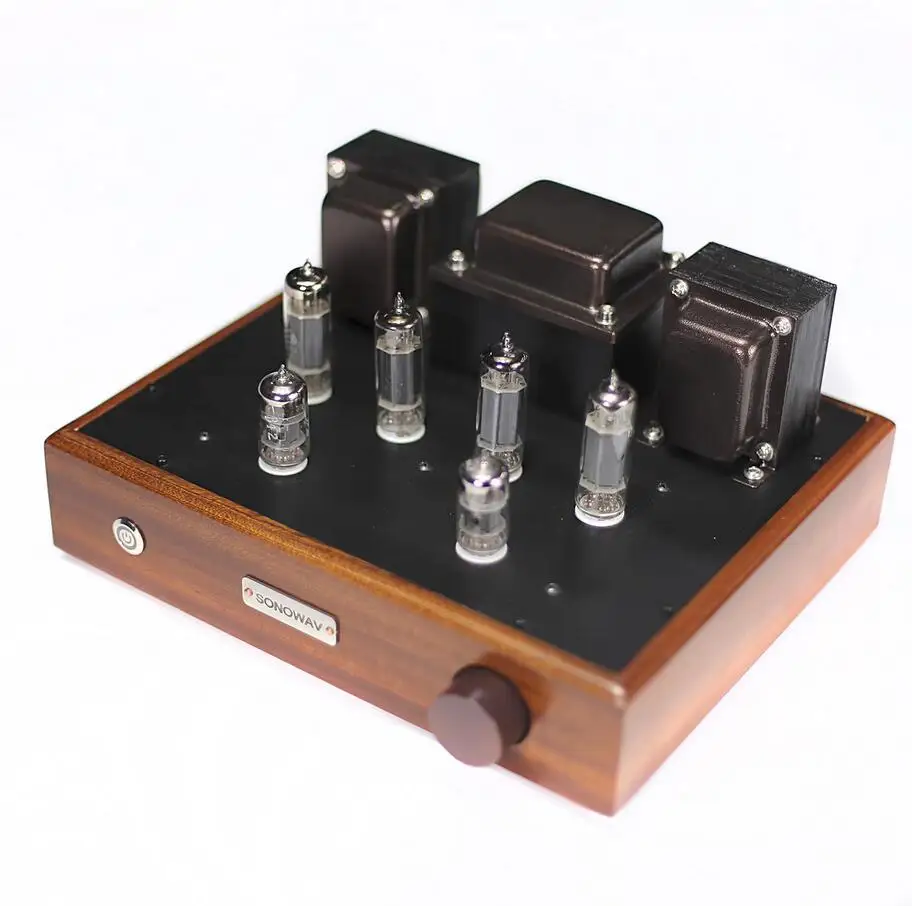

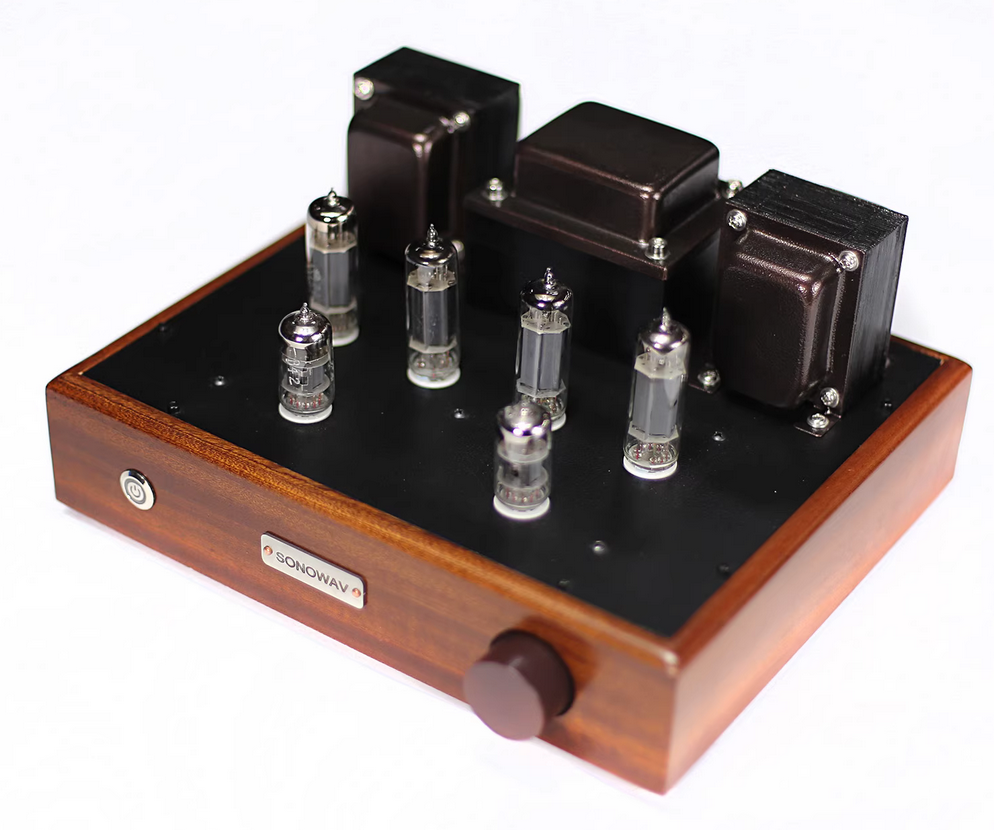

Machine size: 30CM wide, 28CM deep (including knobs and binding posts), 15CM high (including electronic tube and machine feet)
Box: Teak wood case with thickness of 20MM, the top plate is treated with 1.6MM thick iron plate paint.
Output transformer (No.: OP763501) Core size 76×35, Japan Z11 piece, purple gold paint side cover. The frequency response range is 20HZ-30KHZ and the power is 30W.
Power transformer (No.: ZL965007) core specification 96×50, domestic H50 annealed silicon steel sheet, purple gold paint top cover, power 160W.
Net weight of the whole machine: 7.9KG
The equipment used in this machine is excellent. The capacitors used in the following pictures are for reference only. If there are any changes in the purchase batch, no further notice will be given, but we will replace them with the same grade components.

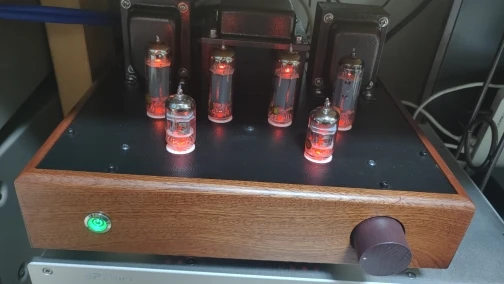

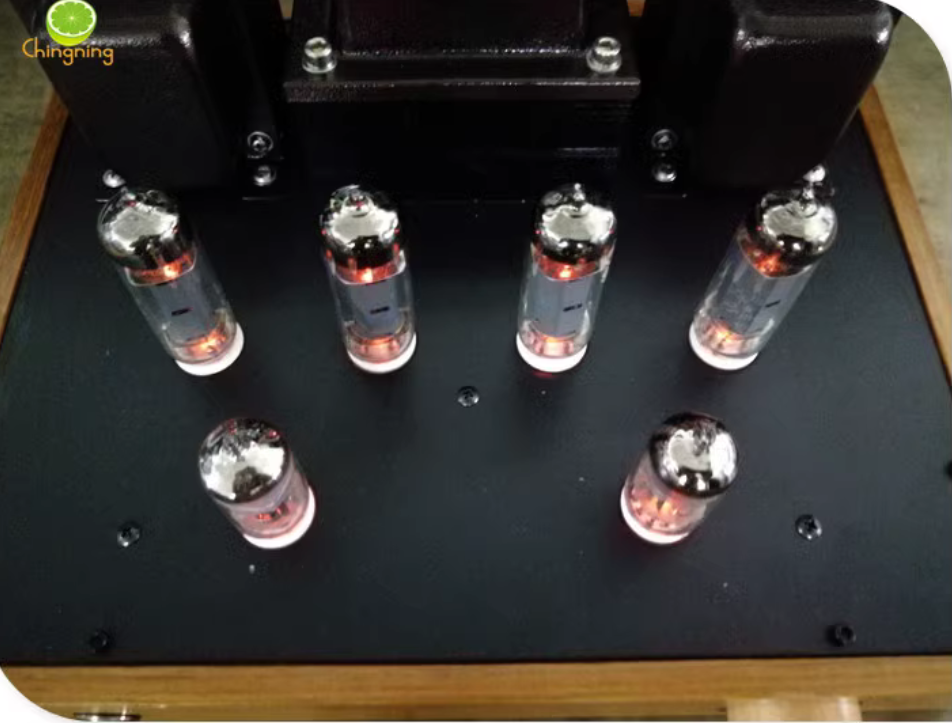

The bottom of the tube is equipped with an orange-emitting LED. The boot effect is fascinating at night and it feels very warm!

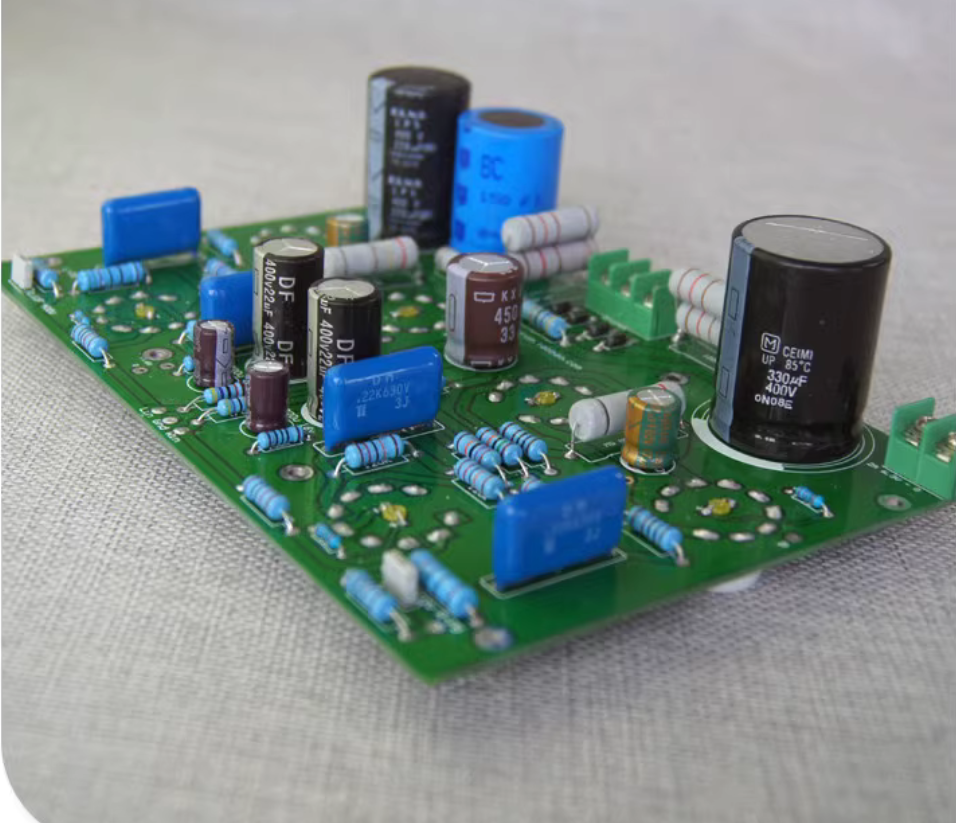

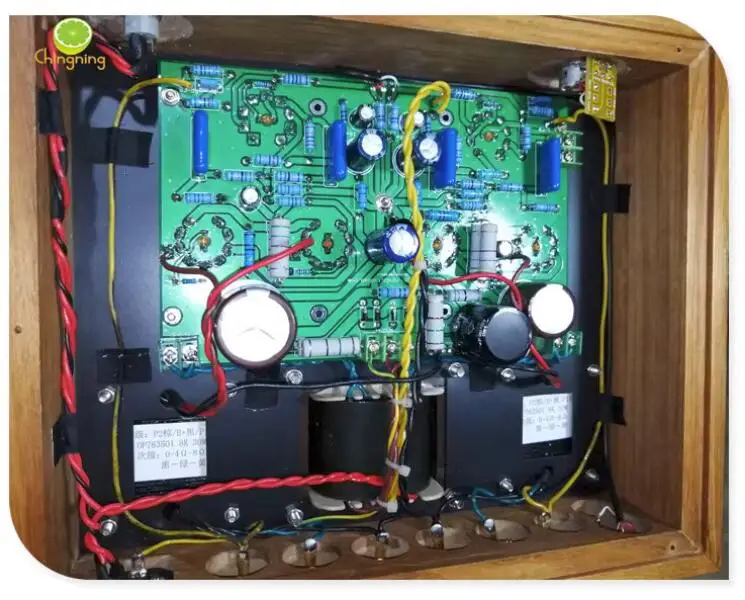

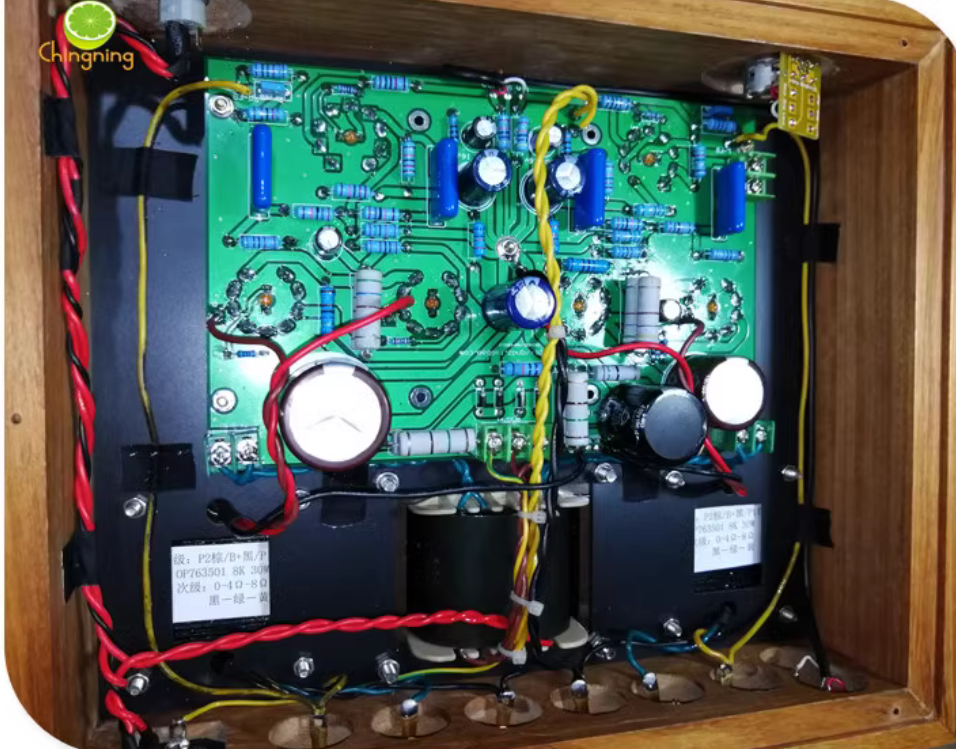

[internal board]

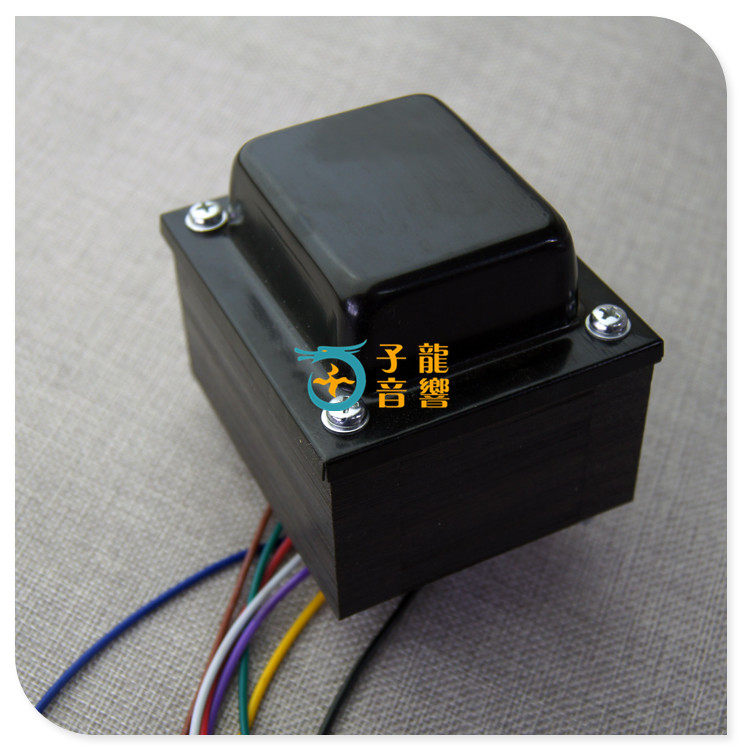

150W power transformer

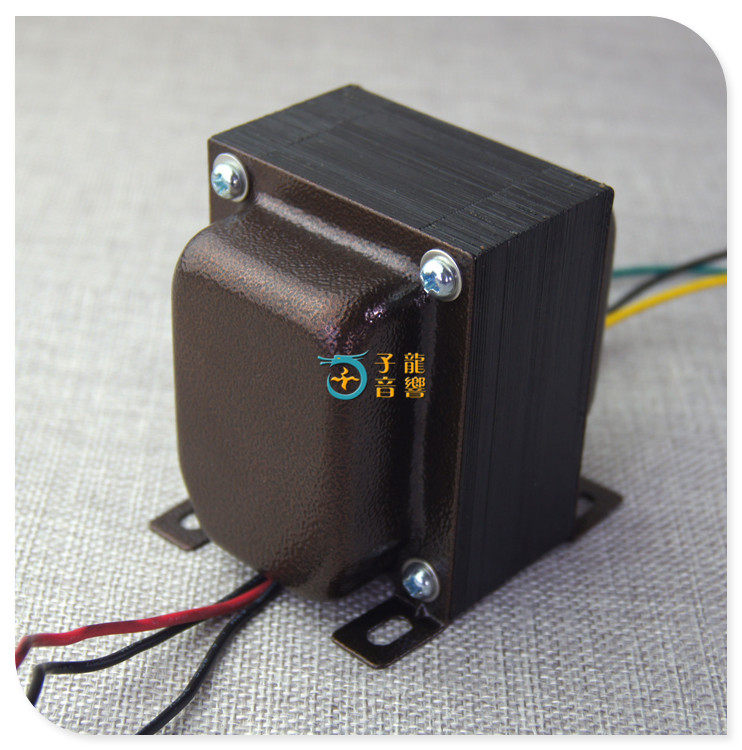

30W push-pull output transformer
