Details:
Independent design of left and right channels, without interference with each other.
12 Field-effect transistor with strong driving force.
Pure Class A design, combining electronic tube flavor and dynamics.
Operational amplifier balanced feedback, high stability without midpoint drift.
High precision metal resistor, with delicate sound and rich details.
Precision matching of triodes with high quality.

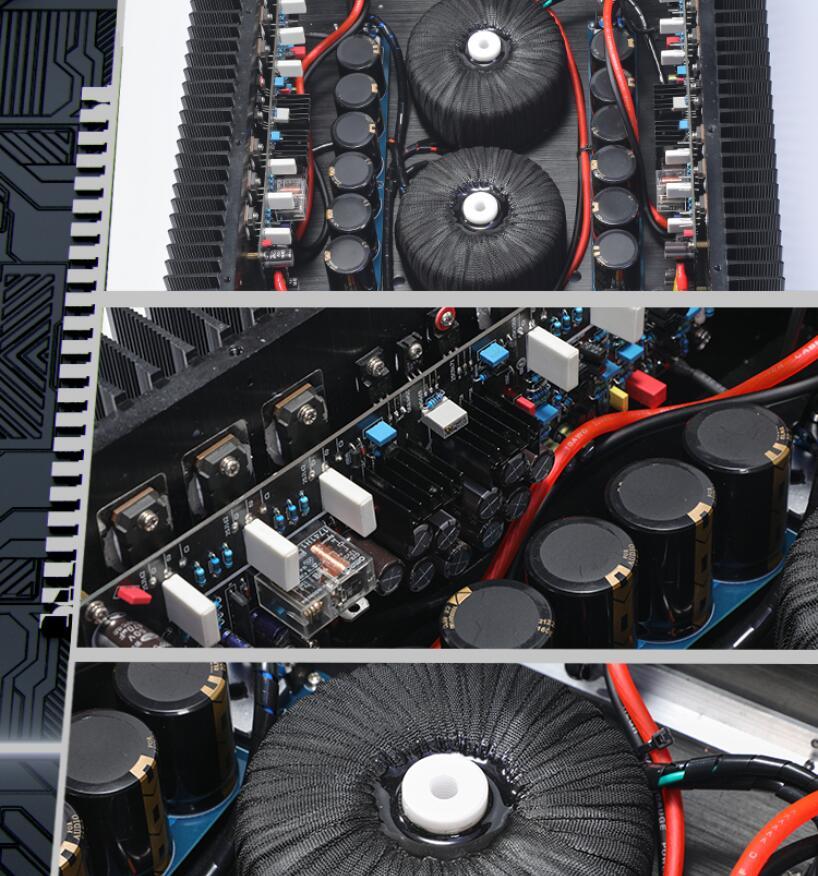

Customized black cloth ring transformer with high power and quiet background.
The chassis is treated with wire drawing, taking into account both aesthetics and heat dissipation.
Parameters:

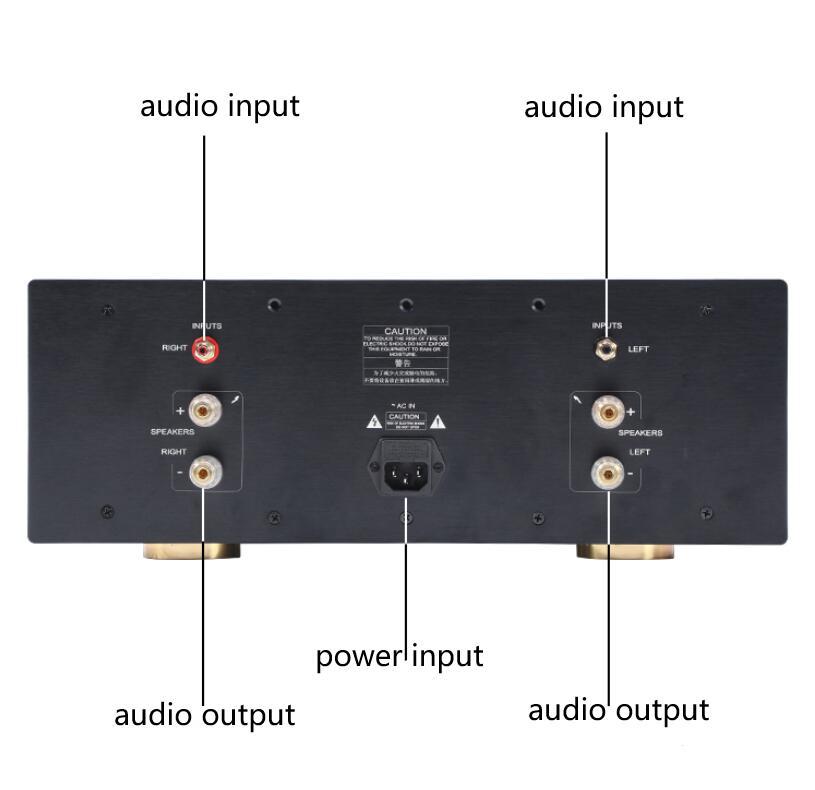

Audio input: RCA 1group,
Output type: dual channel Class A output
Working power supply: AC220V
Standby power consumption:120W
Output impedance: 4-8 ohms
Output power: Class A 8 ohms 28W 4 ohms 60W
Signal to noise ratio: 105db
Total harmonic distortion:<0.02%
Frequency response range: 20-20KHz

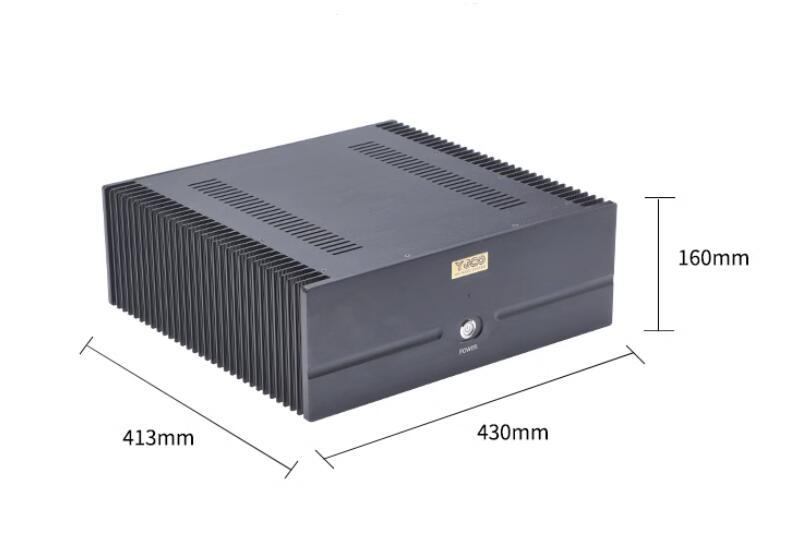

Size: 430 * 413 * 160 (excluding protruding parts)
Weight: 20kg
List：
Finished E550 amplifier X1
