Product Details:

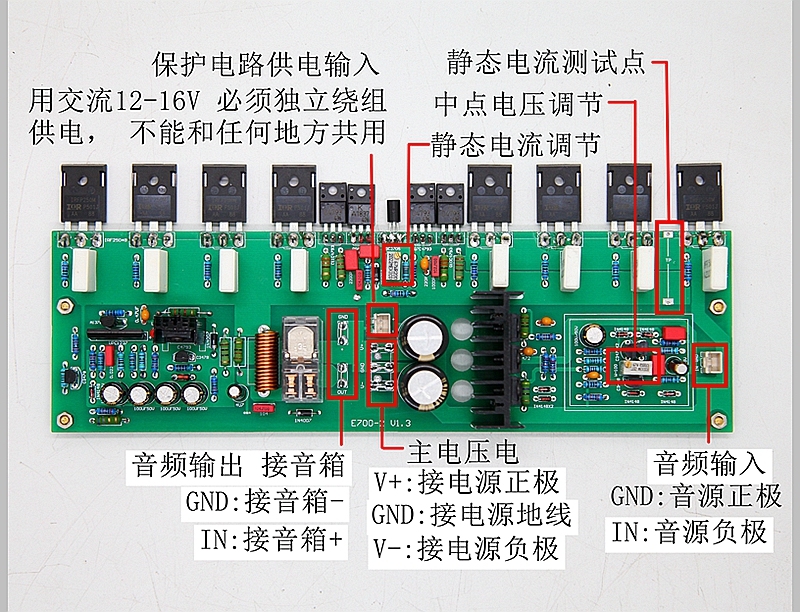

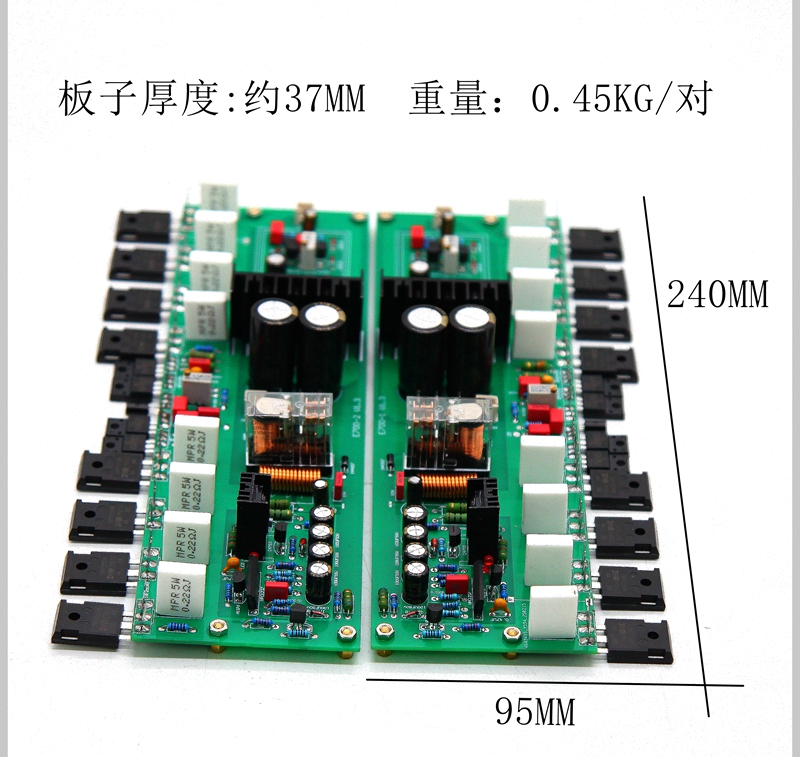

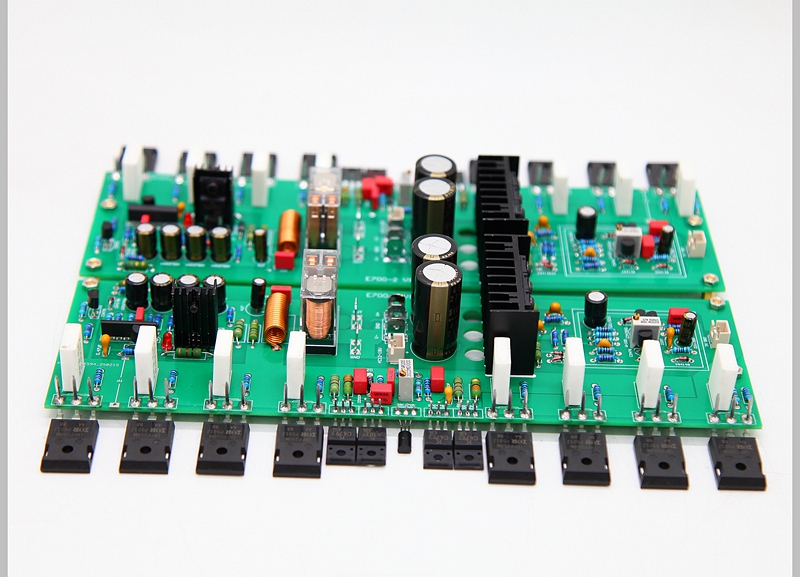

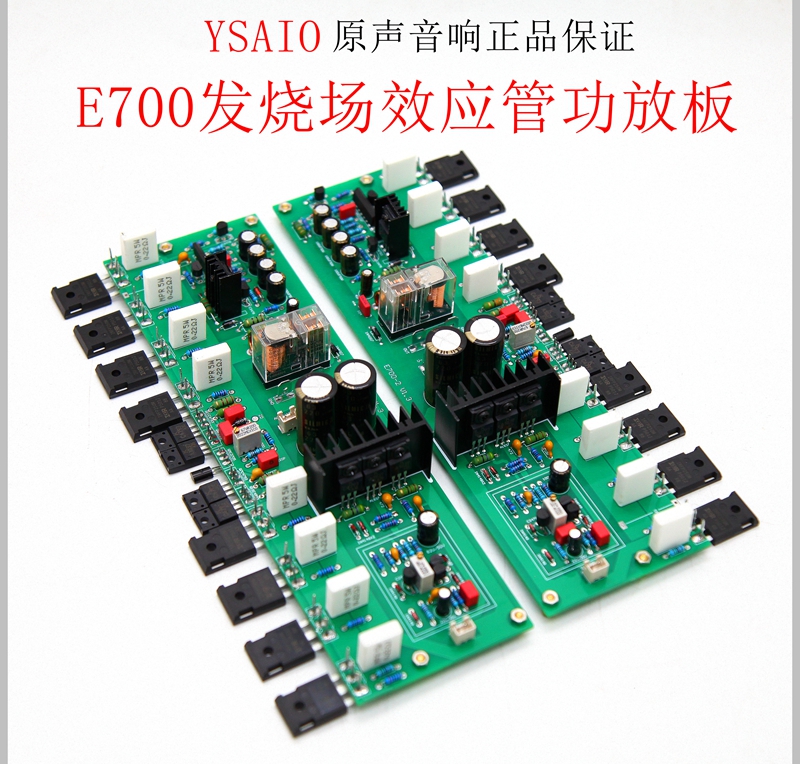

E700 Field Effect Transistor Amplifier Board.

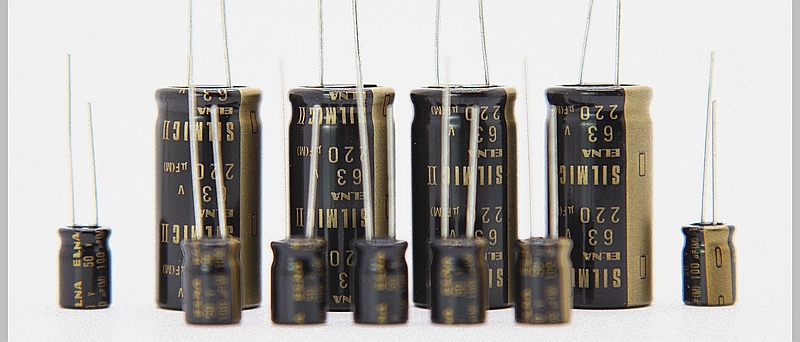

ELNA and other well-known brand filter capacitors have excellent performance, pure sound, low internal resistance discharge, and can be easily retracted and released in large dynamic range.
The optimized small signal processing circuit performs very well in terms of musicality and localization imaging.
The original Japanese Sanken transistor has strong thrust.
8 IR field-effect transistors output, with high output power and sweet sound.
Equipped with relay protection circuit, with no impact during startup delay, and with midpoint voltage detection protection.
Parameters:
Output power: 320W 8R
Frequency response: 10Hz-30KHz
Harmonic distortion: 0.01%
Magnification factor: 26 times
Input voltage: Dual DC35-60V AC12-16V (protection circuit)
Package list:
1 pair × E700 amplifier board
